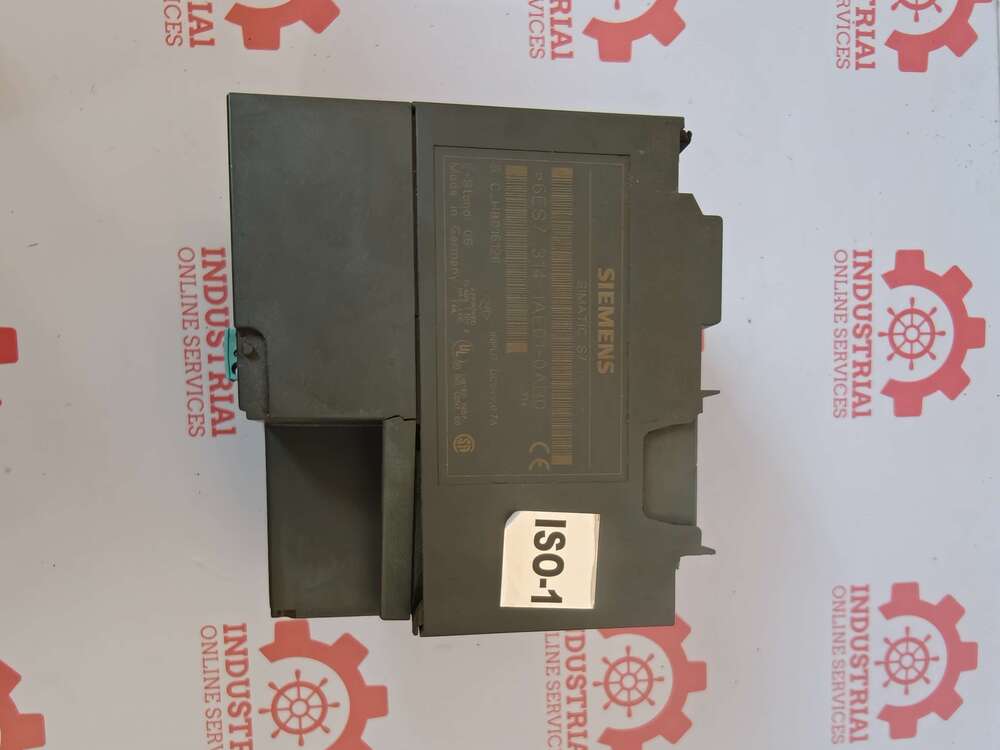

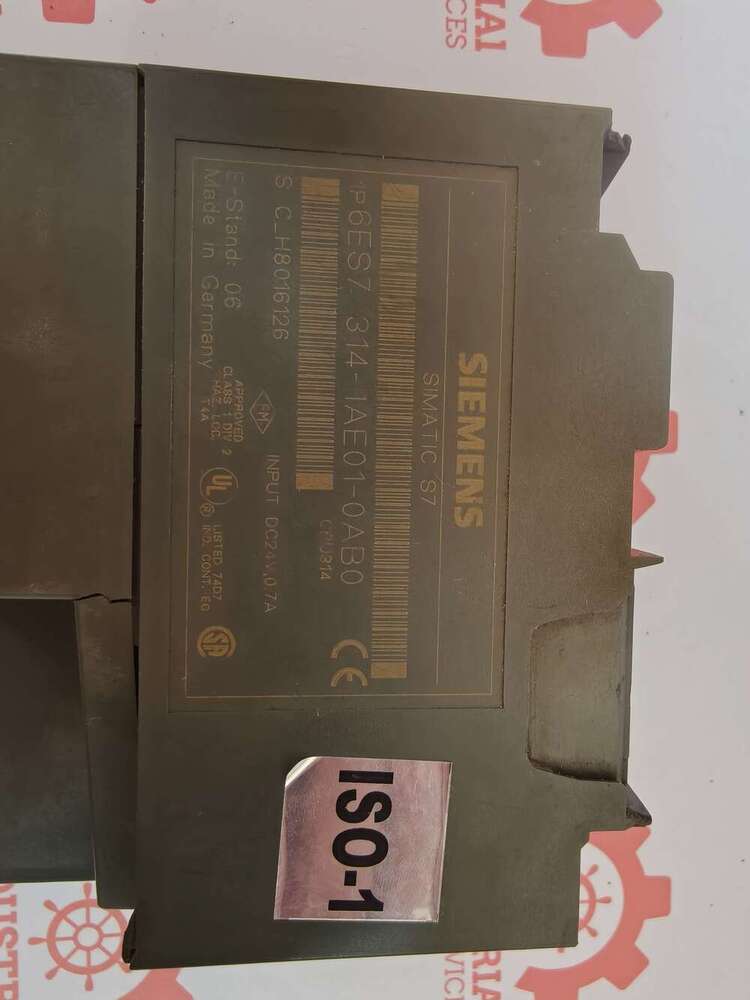

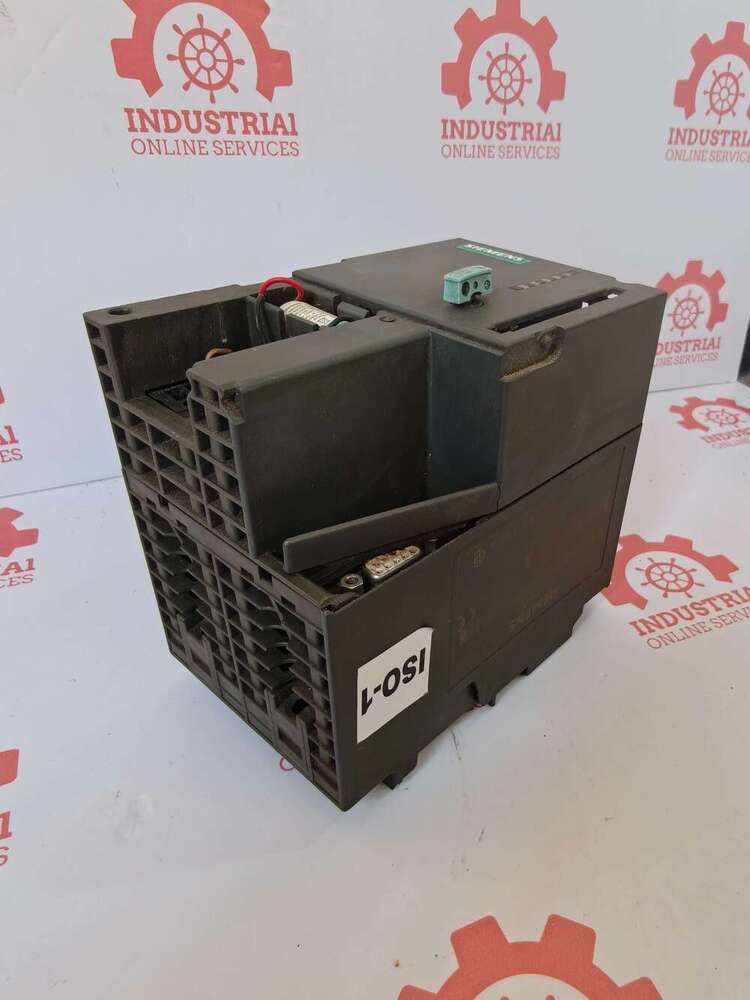

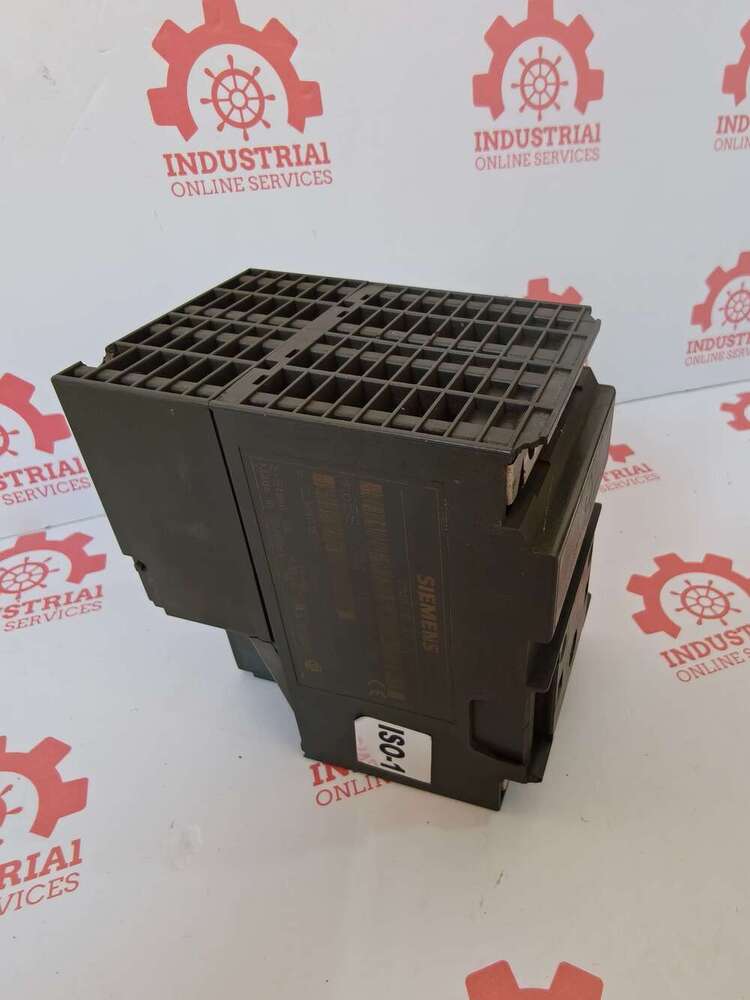

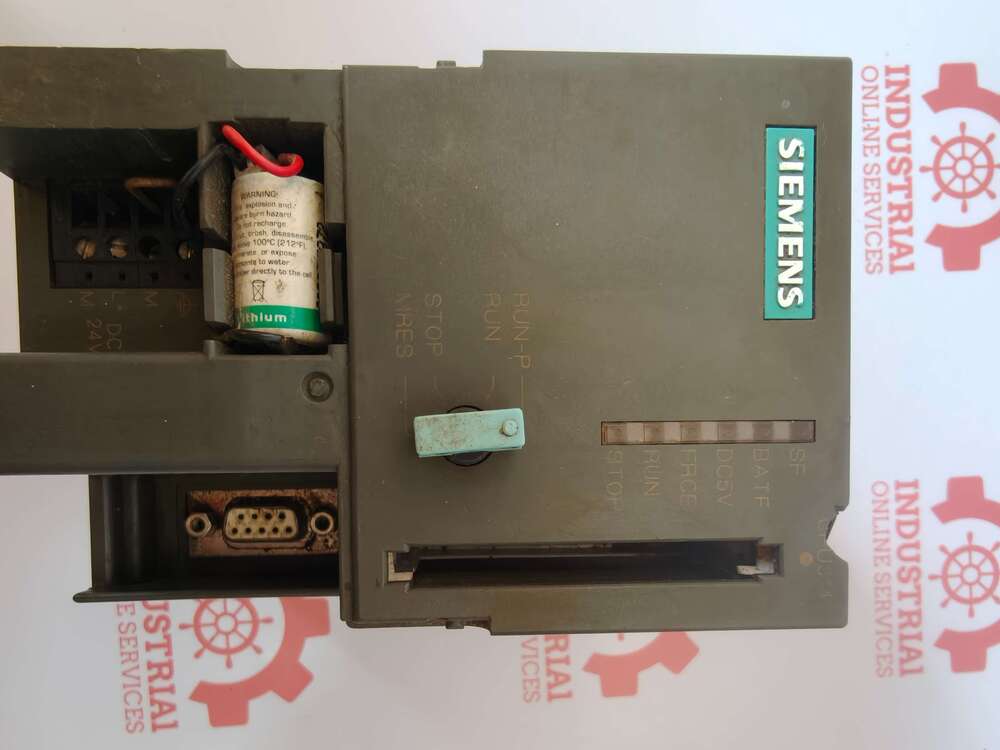

Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU

Name: Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU Specification

Efficiency
High (optimized for industrial PLC performance)

Operating Temperature
0C to 60C

Rated Voltage
24 V DC

Phase
Single phase (DC)

Output Voltage
N/A (CPU only; output via expansion modules)

Mounting Type
DIN rail mounting

Protection Level
IP20

Frequency
50/60 Hz tolerance (for input signals, not power supply)

Input Current
Max. 800 mA at 24 V DC

Humidity
5% to 95% (non-condensing)

Main Material
Industrial grade plastic and electronic components

Processing Type
Microprocessor-based

Condition
New

Function
Programmable Logic Controller CPU for S7-300 system

Application
Automation and control in industrial environments

Dimension (L*W*H)
125 x 80 x 120 mm

Power Mode
DC powered

Voltage
24 V DC

Power Consumption
3.5 W (typical)

Battery Life
Not applicable (no onboard battery for this CPU)

Accessories
Programming cable, mounting accessories, manual (accessories availability may vary)

Program Languages
LAD, FBD, STL (via STEP 7 software)

Integrated Digital Inputs/Outputs
None (requires expansion modules)

Number of Expansion Modules
Up to 8 per rack

Relative Air Pressure
795 to 1080 hPa

Display
Status LEDs

Compatibility
SIMATIC S7-300 modular system

Work Memory
32 KB

Load Memory
64 KB (expandable with memory card)

CPU Type
CPU314

Storage Temperature
-40C to +70C

Processing Speed
0.1 s per bit operation

Cycle Time
Typ. 1.2 ms per 1 K instructions

Backplane Bus
S7-300 standard

Communication Ports
MPI/DP interface for programming and communication

Weight
Approximately 400 g

Order Number
6ES7 314-1AE01-0AB0

Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU

Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU

Key Technical Specifications

Model Type: SIMATIC S7-300 CPU 314.
Work Memory: 24 Kbytes of integrated work memory for user programs.
Communication Interface: Integrated Multi-Point Interface (MPI) for PG/OP communication and basic networking.
Power Supply: Integrated 24 V DC power input.
Execution Speed: Approximately 0.7 ms per 1K of binary statements

Advanced Automation for Industry

Engineered for industrial control, the Siemens S7-300 CPU 314 delivers consistent and high-efficiency performance. Optimize automation processes with its fast processing speeds and robust memory architecture. Supporting several programming languages via STEP 7 software, it is designed for flexible and scalable industrial solutions.

Integration and Compatibility

The CPU314 seamlessly integrates within the SIMATIC S7-300 modular environment, enabling expansion with up to eight modules per rack. The standard S7-300 backplane bus and MPI/DP interface guarantee smooth communication and programming, facilitating straightforward system adaptation and maintenance.

Durability and Adaptability

Built to sustain demanding industrial environments, this PLC CPU tolerates a wide range of operating and storage temperatures, humidity, and air pressure conditions. Its IP20 protection level and module-based plastic construction assure durability and long service life even in intensive applications.

FAQ's of Siemens 6ES7 314-1AE01-0AB0 Simatic S7-300 PLC CPU:

Q: How do I expand the Siemens S7-300 CPU314 for additional inputs and outputs?

A: The S7-300 CPU314 itself does not include built-in digital inputs/outputs. You can expand its capabilities by attaching up to 8 compatible S7-300 expansion modules per rack, such as digital or analog I/O modules, using the standard S7-300 backplane bus.

Q: What programming languages are supported by the S7-300 CPU314, and what software is required?

A: The CPU314 supports Ladder Diagram (LAD), Function Block Diagram (FBD), and Statement List (STL) programming languages. Programming and configuration should be performed using Siemens STEP 7 software, which enables code development and downloading to the CPU.

Q: When should the S7-300 CPU314 be used in an industrial automation project?

A: This PLC CPU is ideal for automation applications requiring reliable performance, modular scalability, and flexible programming-specifically in scenarios demanding up to 8 expansion modules, robust environmental tolerance, and seamless integration with other SIMATIC S7-300 components.

Q: Where can the S7-300 CPU314 be installed within an automation system?

A: It is designed for easy installation on standard DIN rails inside control panels or industrial cabinets. Due to its IP20 rating, ensure the cabinet provides protection against dust and mechanical interference consistent with typical industrial environments.

Q: What is the process for communicating with the S7-300 CPU314?

A: Communication and programming are accomplished through the onboard MPI/DP interface, supporting both point-to-point and networked connections. This facilitates integration with HMIs, SCADA systems, and other controllers in a seamless fashion.

Q: How does using the S7-300 CPU314 benefit industrial automation operations?

A: By offering fast processing speeds, reliable operation, wide environmental tolerances, and easy system expansion, the S7-300 CPU314 increases operational efficiency, reduces downtime, and enables long-term scalability and flexibility within automated systems.
