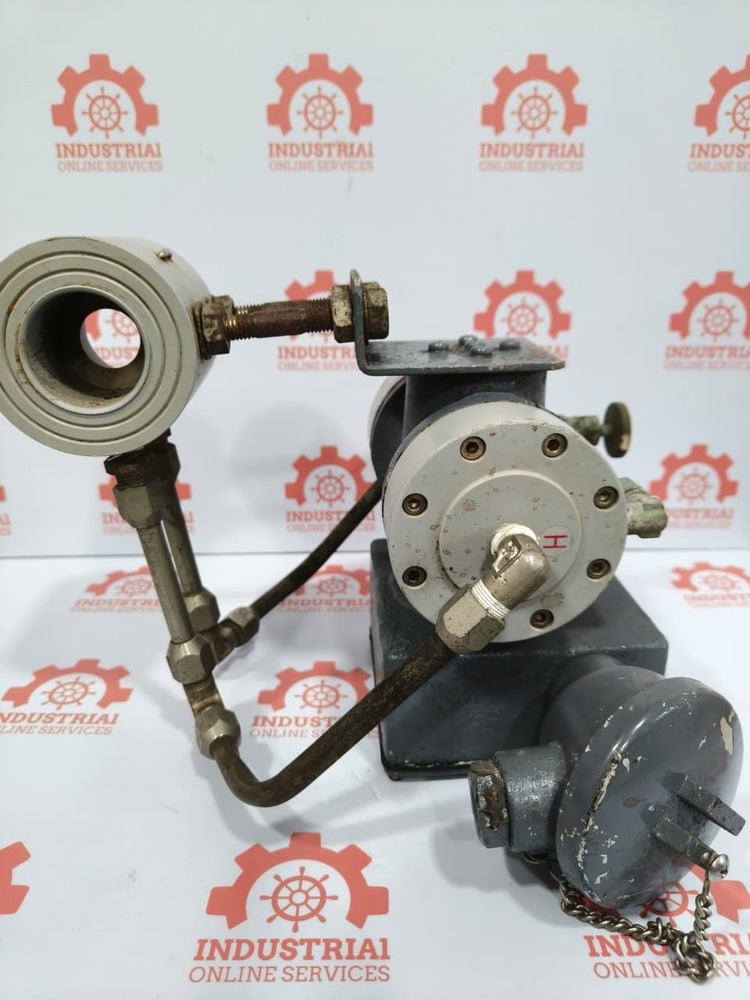

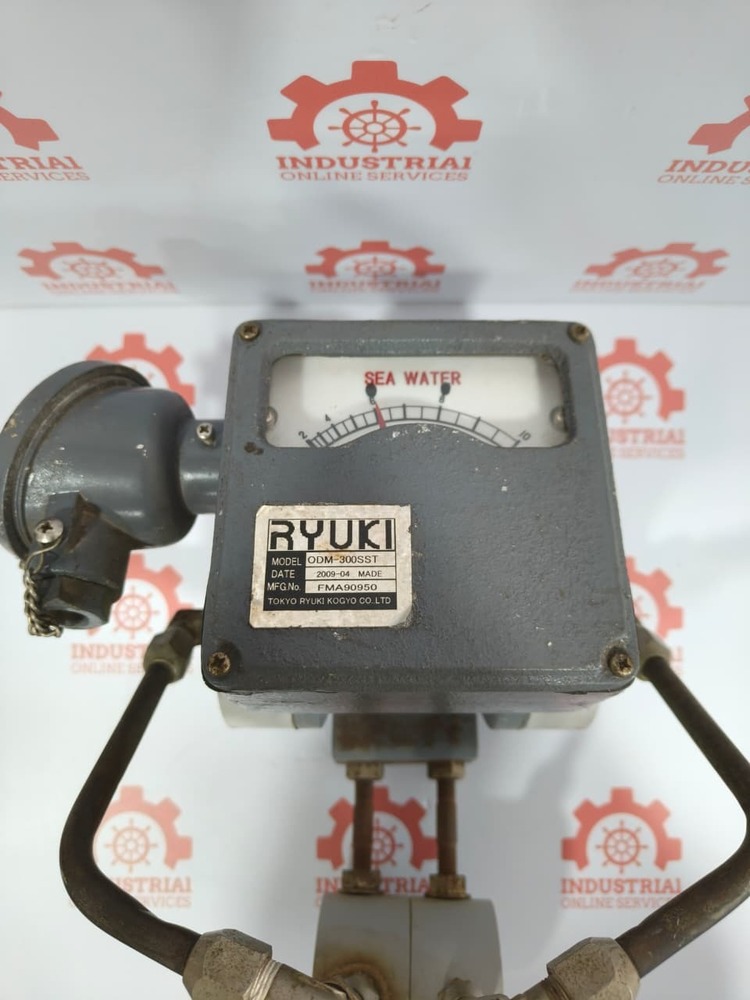

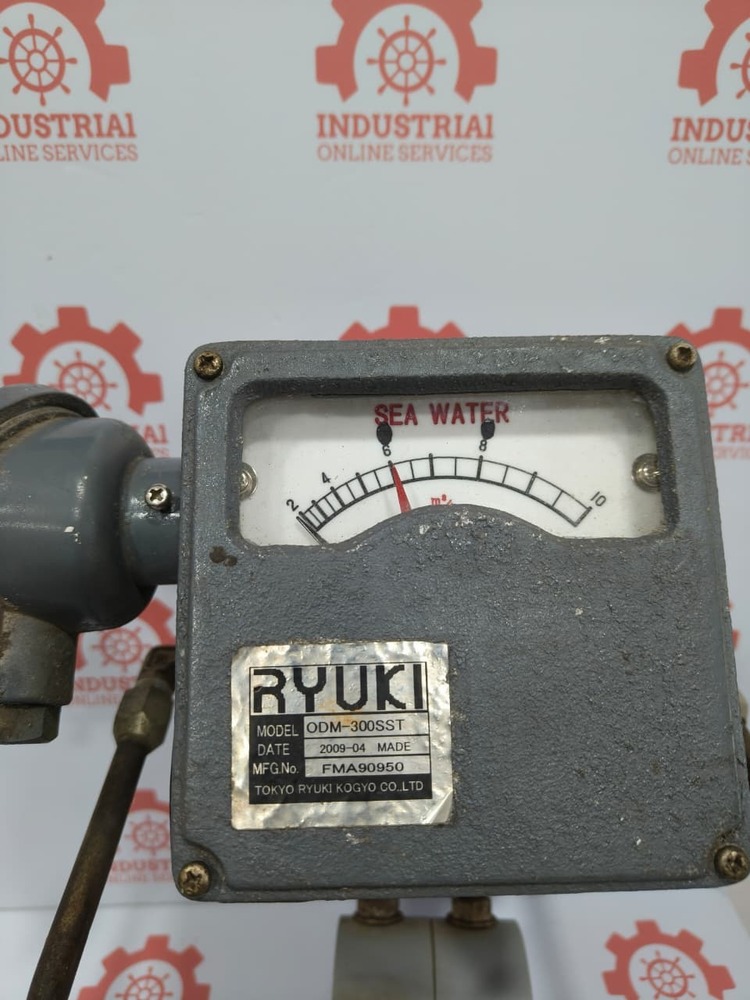

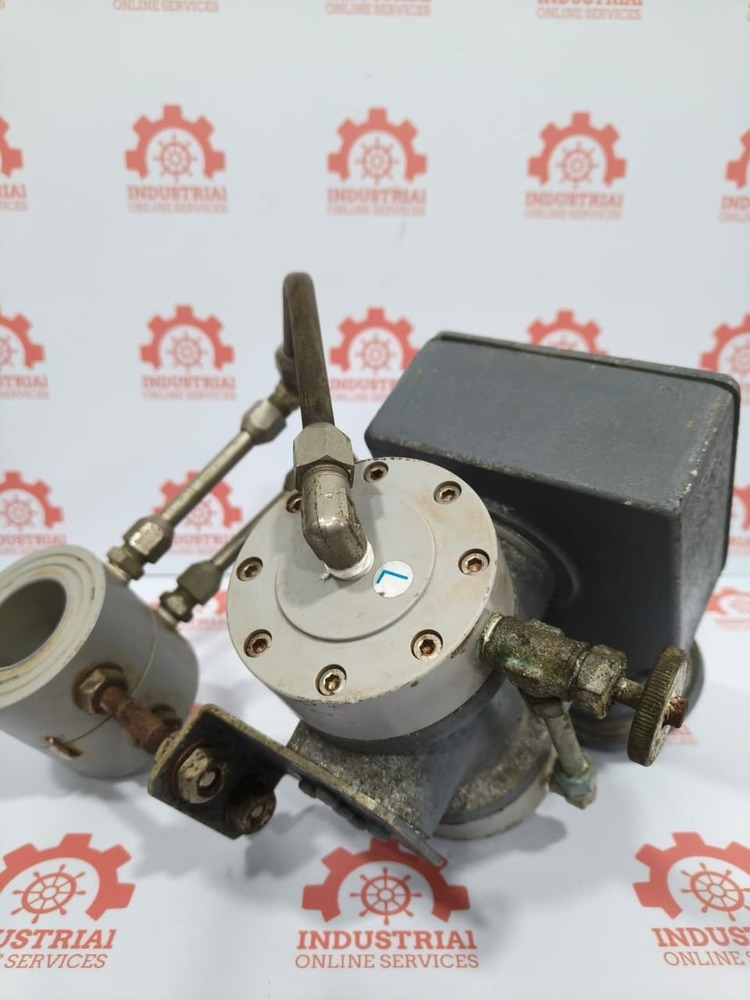

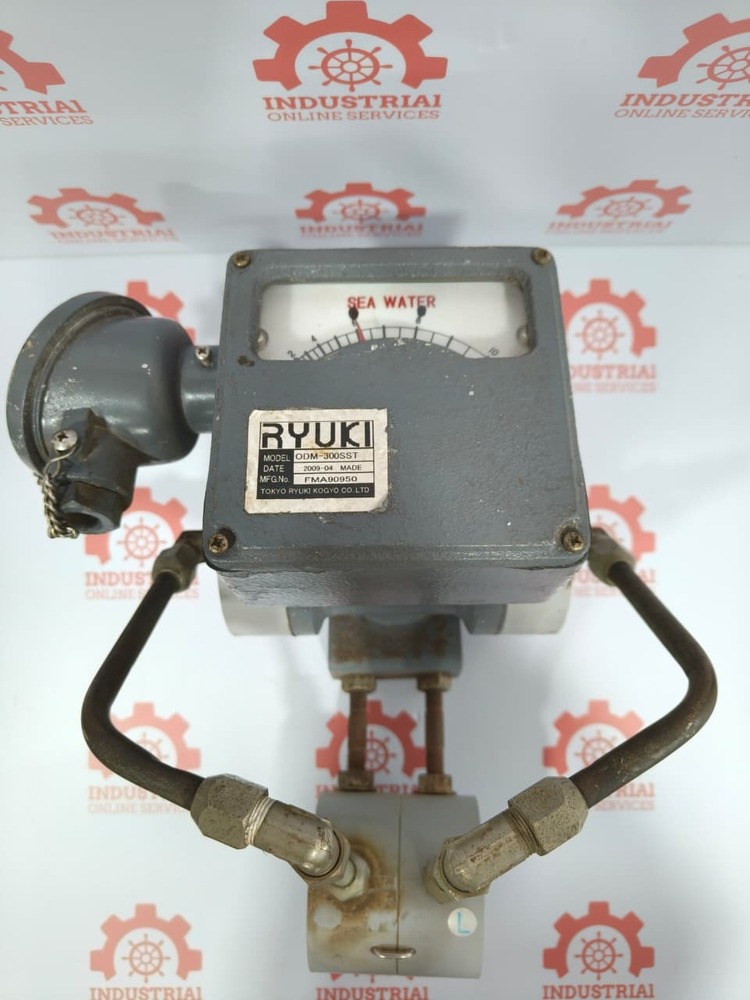

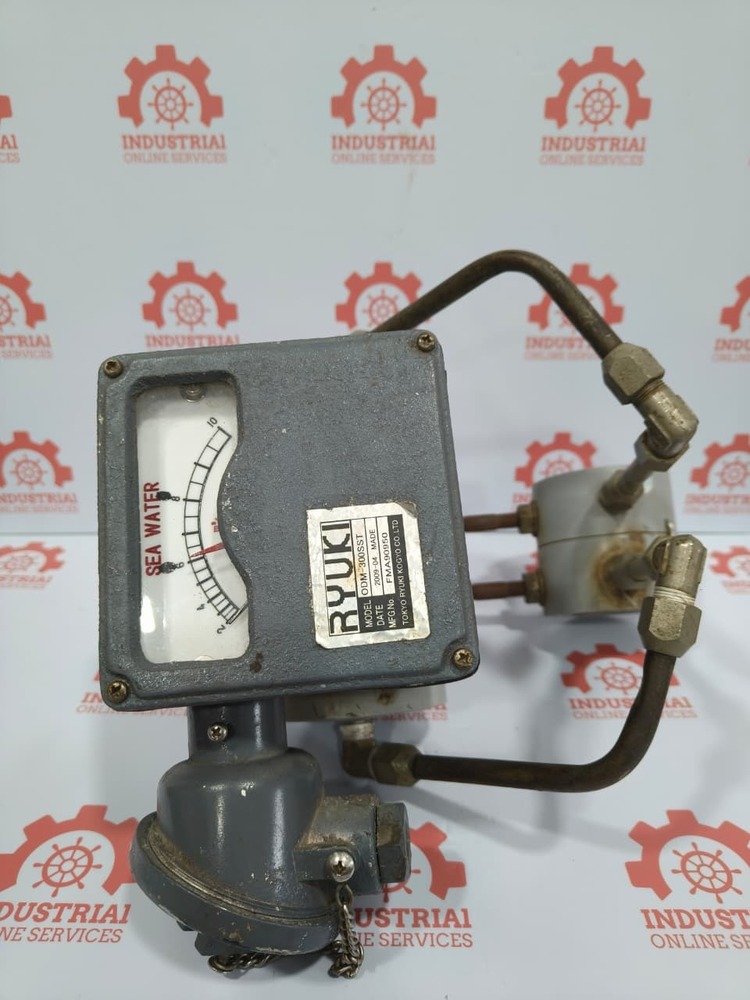

Tokyo Ryuki Kogyo ODM-300SST Differential Pressure Flow Meter

About Tokyo Ryuki Kogyo ODM-300SST Differential Pressure Flow Meter

Key Specifications

• Model Number: ODM-300SST
• Media: Seawater, Fresh Water, Industrial Water, Oils
• Flow Rate Range: Typical \(0.5 - 20 \text{ m}3/\text{h}\)
• Accuracy: \(\pm \)2% Full Scale (FS)
• Connection Type: Wafer/Sandwich (installed between pipe flanges)
• Max Working Temperature: \(100{\circ }\text{C}\)
• Pressure Range: \(0.05 - 1.0 \text{ MPa (G)}\)
• Material: SUS316 Stainless Steel (block and orifice)
• Protection Class: IP55

Features & Operation

• Mechanism: Diaphragm-type mechanical differential pressure
• Contacts: One (1) electrical contact for alarm signaling
• Remote Operation: Indicator can be separated from the detector body (up to 100m)
• Flow Direction: Bidirectional
•
