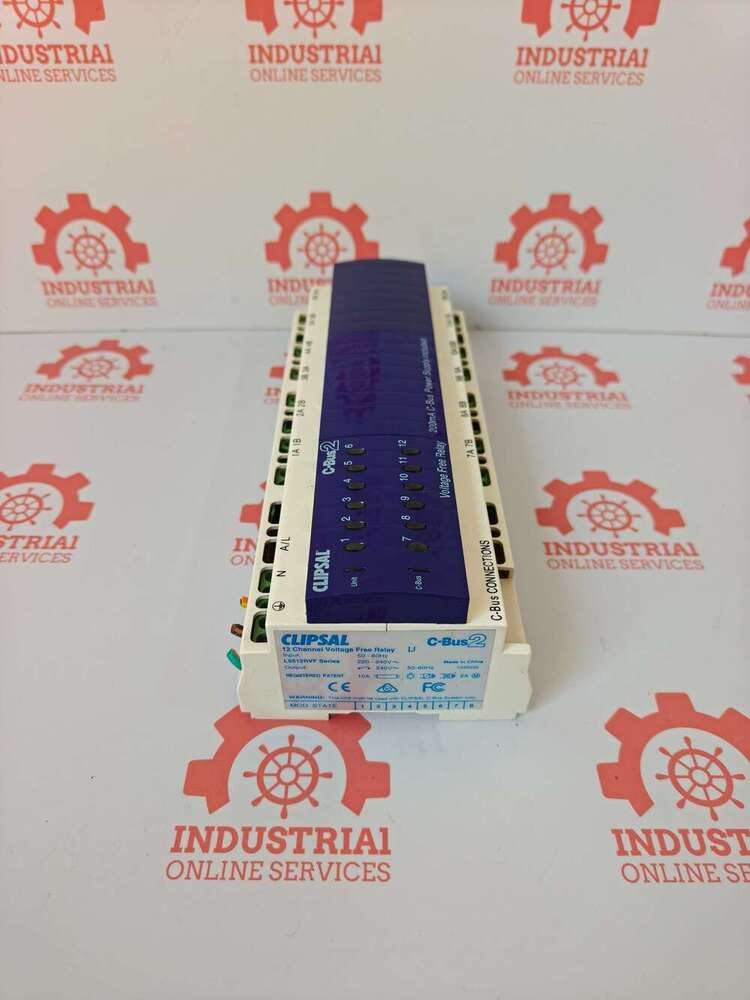

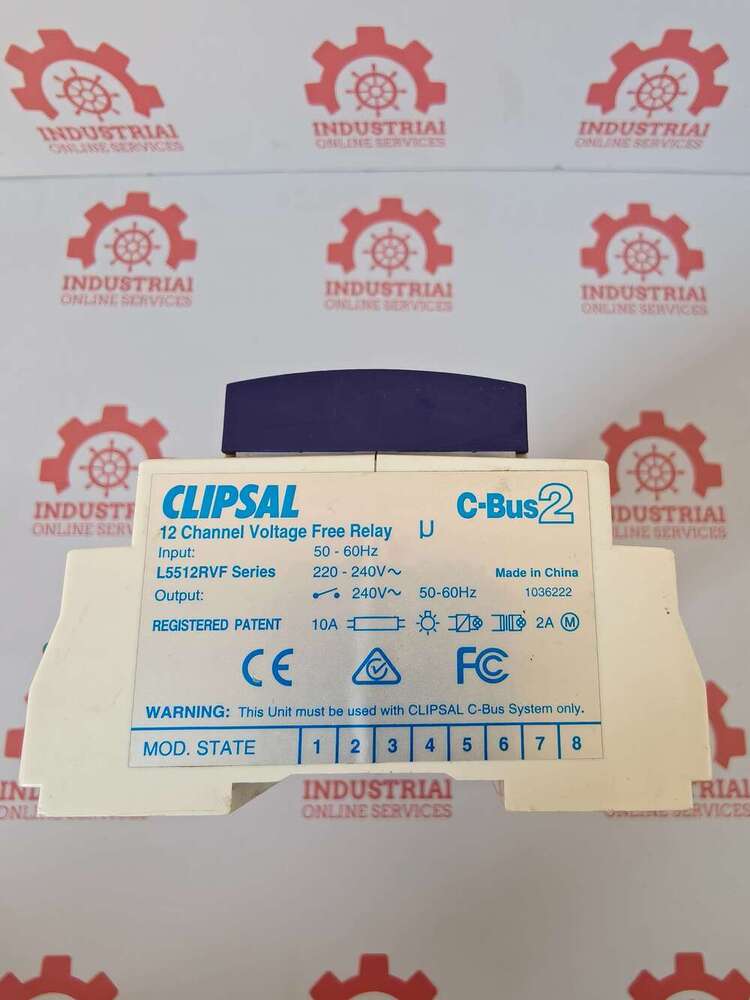

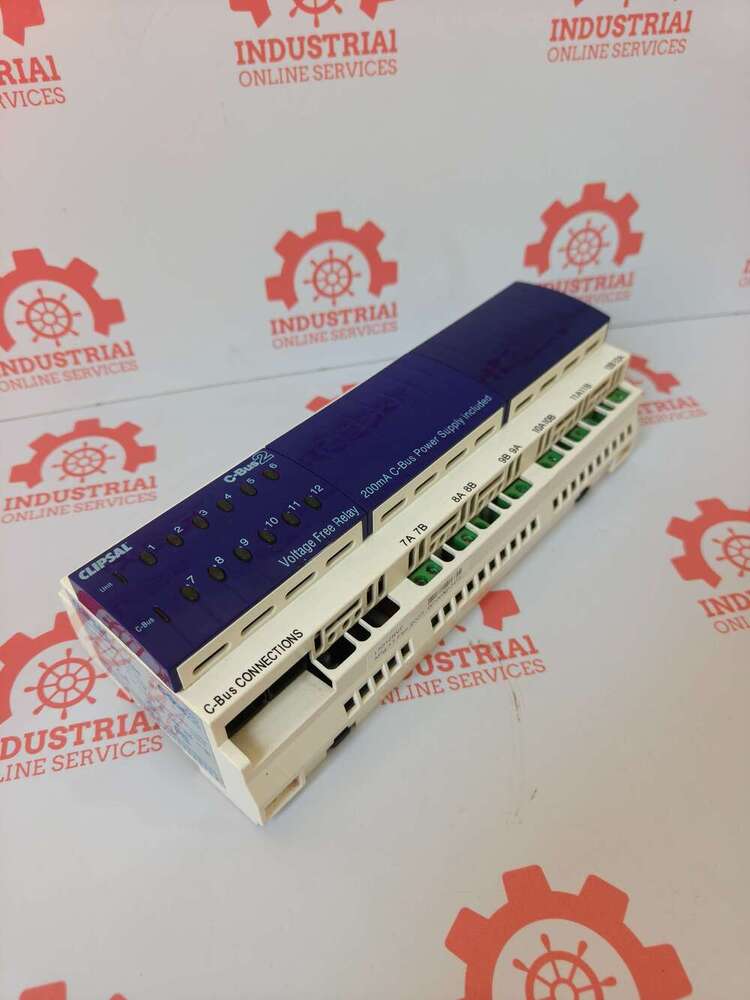

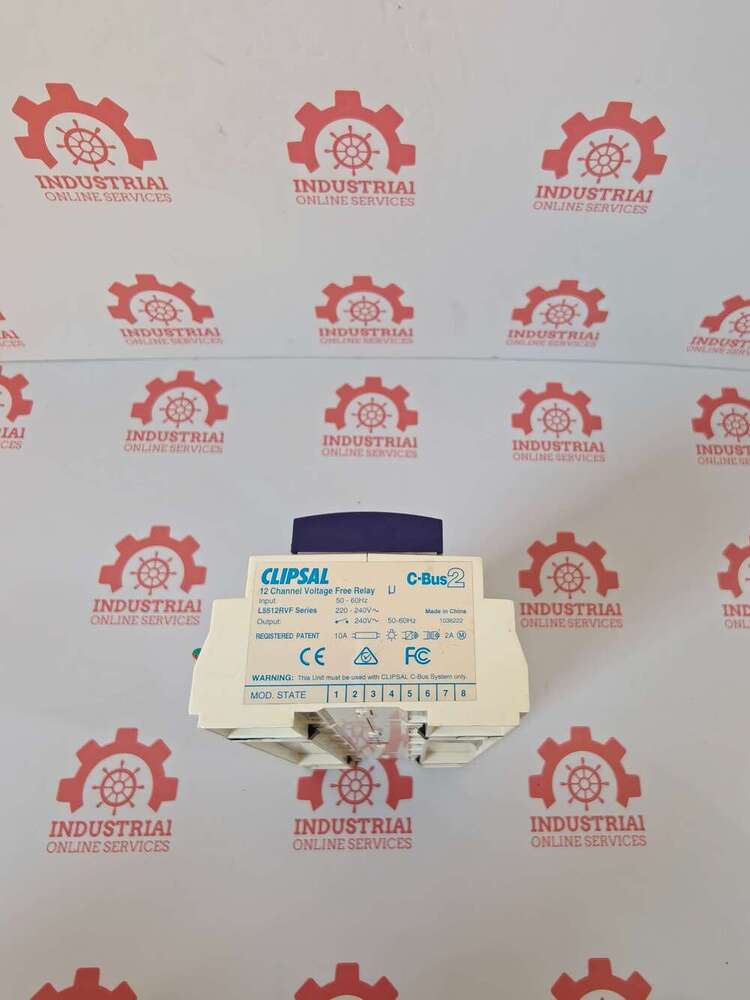

Clipsal L5512RVF C-Bus2 Voltage Free Relay Module

Name: Clipsal L5512RVF C-Bus2 Voltage Free Relay Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Clipsal L5512RVF C-Bus2 Voltage Free Relay Module Specification

Operating Temperature
0C to 45C

Protection Level
IP20

Mounting Type
DIN Rail Mount

Rated Voltage
240 V AC

Output Voltage
Voltage Free contacts

Input Current
30 mA (from C-Bus)

Humidity
10% to 95% RH, non-condensing

Frequency
50/60 Hz

Phase
Single Phase

Efficiency
High Efficiency Solid State Control

Main Material
Polycarbonate and Electronic Components

Processing Type
Relay Module

Condition
New

Function
Voltage Free Relay Switching (12 channels)

Application
Lighting Control, Building Automation

Dimension (L*W*H)
210 mm x 85 mm x 65 mm

Power Mode
Mains Power

Voltage
220-240V AC

Power Consumption
Less than 10W

Battery Life
Not Applicable (Mains powered)

Accessories
User Manual, Mounting Clips

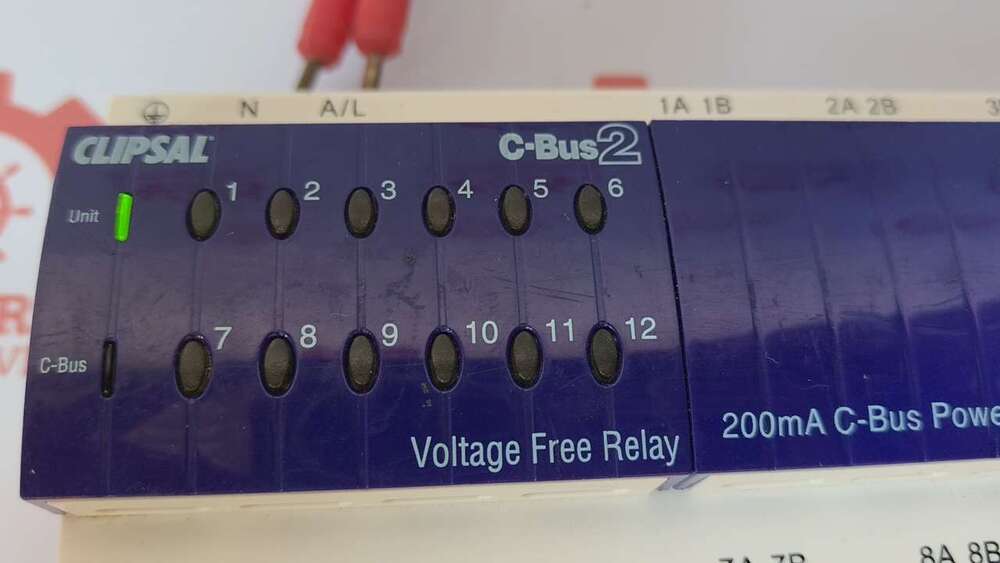

LED Status Indicators
Yes, per channel

Switching Current per Channel
10A @ 240V AC Resistive

Channel Count
12 Channel

Network Voltage
15-36V DC (C-Bus Communication)

Relay Type
Voltage Free (Dry Contacts)

Surge Protection
Inbuilt surge protection

Bus Coupler
Integrated C-Bus2

Model Number
L5512RVF

Load Types
Resistive, Inductive, Fluorescent, Electronic Ballast

Compliance
AS/NZS 60950.1; C-Tick

Clipsal L5512RVF C-Bus2 Voltage Free Relay Module Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Clipsal L5512RVF C-Bus2 Voltage Free Relay Module

Clipsal L5512RVF C-Bus2 Voltage Free Relay Module

Technical Specifications

Current Rating: 10A per channel.
Operating Voltage: 240V AC.
Mounting Type: Standard DIN rail mounted (occupies 12 DIN modules in width).
Network Connection: Convenient RJ45 connectors for easy looping between multiple modules.
Dimensions: 215 mm width x 85 mm height x 65 mm depth

Versatile Building Automation Relay Solution

Engineered for versatility, the L5512RVF is suitable for lighting control and building automation scenarios where voltage-free relay switching is critical. Its ability to handle various load types-including electronic ballast, inductive, and fluorescent-makes it adaptable to complex automation needs. Compatible with single-phase, 220-240V AC mains systems, it suits both commercial and industrial settings across India.

Reliable Operation and Enhanced Safety

This relay module offers integrated surge protection, ensuring longevity and stability even in challenging environments. The per-channel LED status indicators provide clear operational feedback for immediate diagnostics, streamlining both installation and ongoing maintenance. Its compliance with industry standards reinforces safety and quality assurance for every project.

FAQ's of Clipsal L5512RVF C-Bus2 Voltage Free Relay Module:

Q: How does the Clipsal L5512RVF integrate with a C-Bus2 network?

A: The L5512RVF has an integrated C-Bus2 bus coupler, allowing it to seamlessly connect to a C-Bus2 network with a required voltage of 15-36V DC for communication. This integration enables centralized control and monitoring within a building automation system.

Q: What types of loads can be switched using the L5512RVF relay module?

A: The module supports a variety of load types, including resistive, inductive, fluorescent, and electronic ballast. This versatility makes it suitable for controlling diverse lighting and electrical devices in automation projects.

Q: When should I use a voltage-free (dry contact) relay like the L5512RVF?

A: Voltage-free relays are ideal when electrical isolation between control and load circuits is required. The L5512RVF is particularly useful for applications where different voltages or power supplies are involved, ensuring safe and flexible switching.

Q: Where can the L5512RVF be installed within a building infrastructure?

A: This relay module is designed for DIN rail mounting, allowing installation in standard control panels or distribution boards, typically in electrical or communications rooms within commercial or industrial facilities.

Q: What process should be followed to configure and use each channel of the L5512RVF?

A: After mounting and wiring the module as per the supplied user manual, each channel can be configured via the C-Bus2 network for individualized control. The status of each channel is visible through the dedicated LED indicators for straightforward monitoring.

Q: What are the key benefits of using the L5512RVF for lighting control?

A: Key benefits include reliable 10A switching per channel, support for multiple load types, integrated surge protection, and real-time status feedback through LEDs. Its solid-state control ensures high efficiency and low power consumption (<10W), making it an energy-conscious choice.
