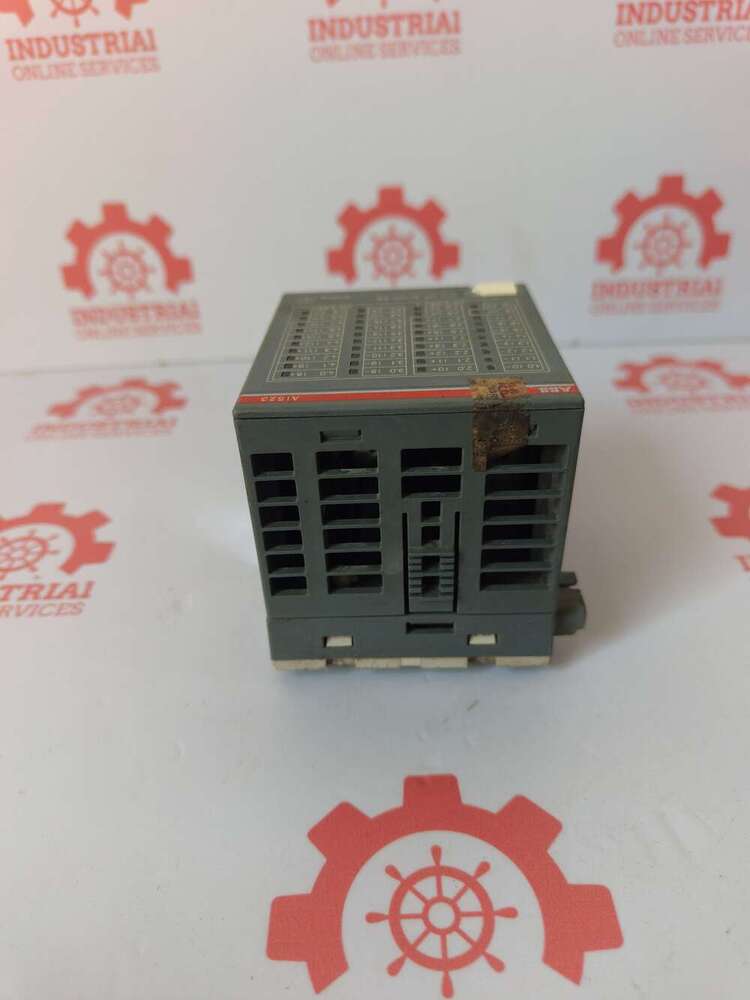

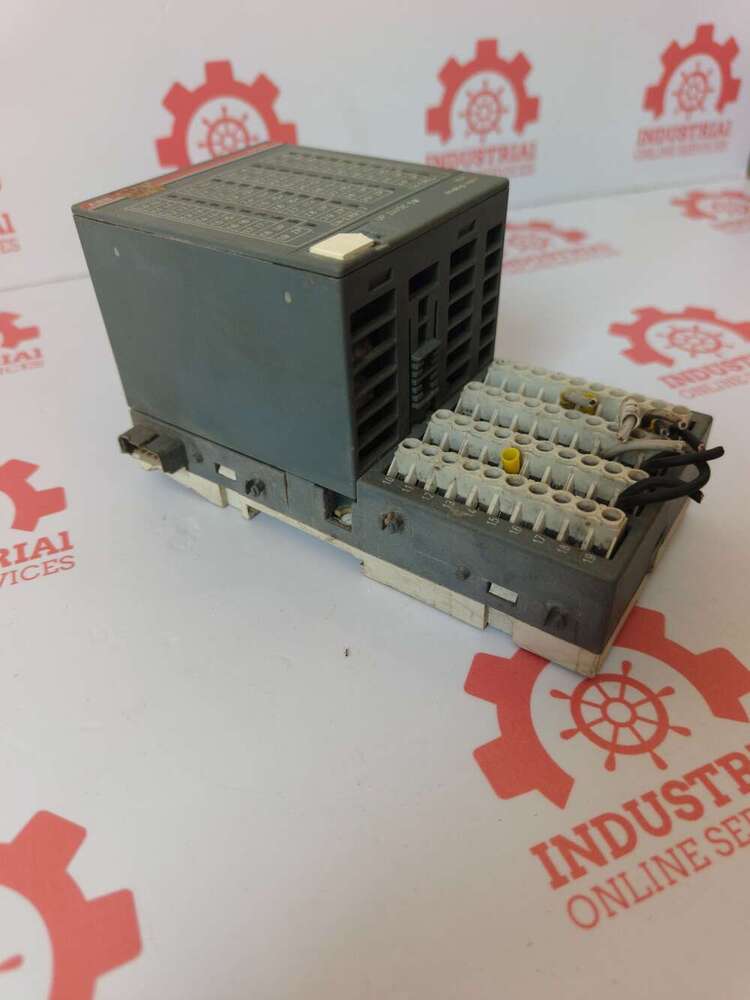

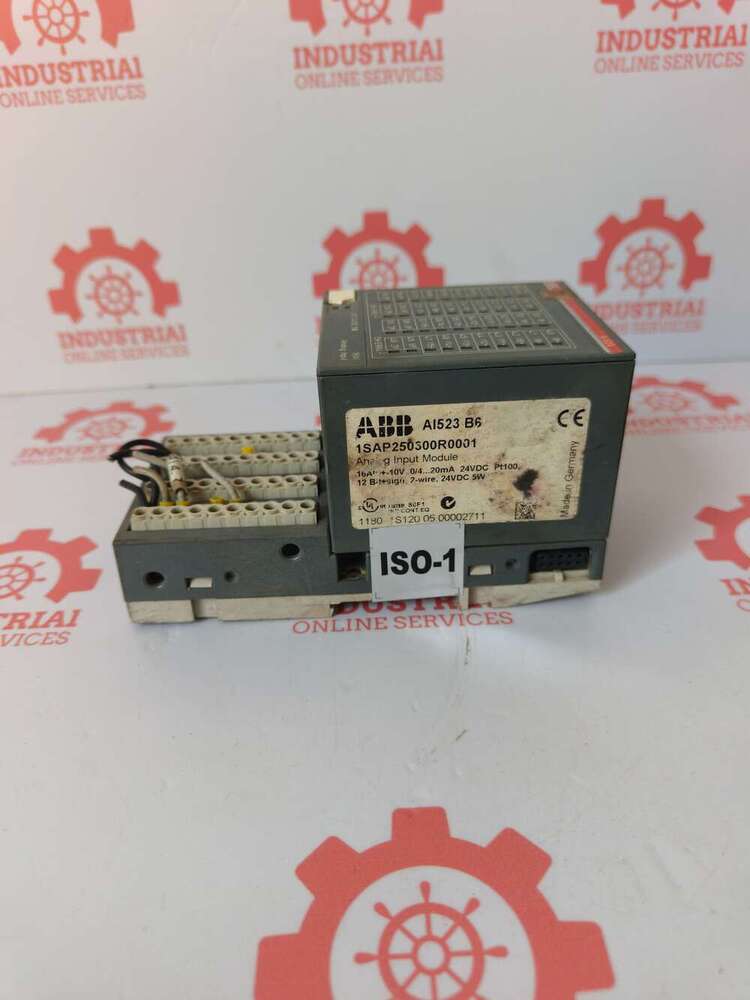

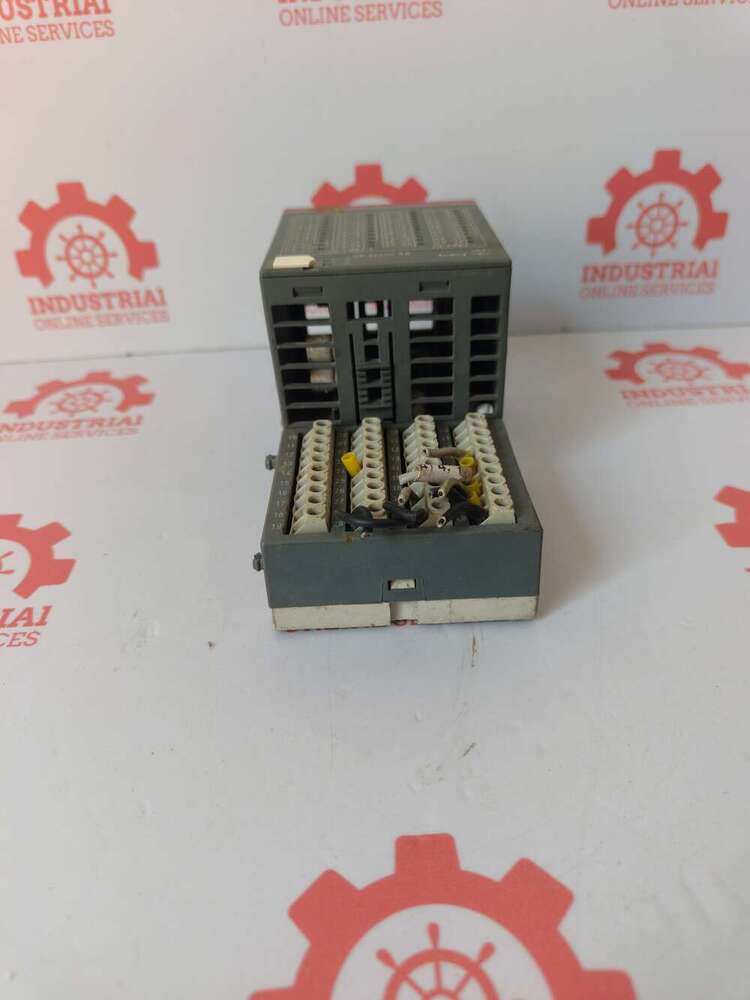

ABB 1SAP250300R0001 AI523 B6 Analog Input Module

About ABB 1SAP250300R0001 AI523 B6 Analog Input Module

Technical Specifications

According to official technical sheets from ABB and the EPLAN Data Portal, the module features the following core specifications:

• Channels: 16 configurable analog input channels.
• Signal Types: Supports Voltage (U), Current (I), Resistance Temperature Detectors (RTD), and Digital Inputs (DI).
• Input Ranges: ±10V, \(0\dots20\text{mA}\), \(4\dots20\text{mA}\), and Pt100 temperature sensors.
• Resolution: 12-bit + sign / 13-bit including sign.
• Wiring Configuration: 1-wire, 2-wire, or 3-wire connection types.
• Power Supply: 24 V DC operating voltage with a power consumption of approximately 5W.
• Protection Rating: IP20 enclosure rating (requires installation in a protected control cabinet).
• Physical Properties: Net weight of 0.125 kg with standard compact block dimensions (67.5mm Width — 76mm Height — 62mm Depth)
•
