ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface

Name: ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface Specification

Chip Type
Microcontroller-Based

Model No
APR,DCS-CP-P

I/O Cards Type
Operator/Keypad Interface Module

Condition
New

Compatible Port/Slot
Dedicated Drive Interface Port

Use
Drive Control Interface Panel

OS Supported
Proprietary (ABB Drive Systems)

Weight
Around 150 grams

Interface Functions
Parameter setting, drive status monitoring, and diagnostics

Communication Protocol
Proprietary ABB Drive Communication

Operating Temperature
0C to +50C

Storage Temperature
-25C to +70C

Protection Class
IP20

Mounting Type
Panel Mount (front mounting)

Application
Compatible with ABB Drives ACS, DCS series

Supply Voltage
24V DC (typically from drive)

Dimensions
Approx. 70mm x 110mm x 25mm

Display Type
LCD Segment Display

Input Method
Membrane Keypad

ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface About

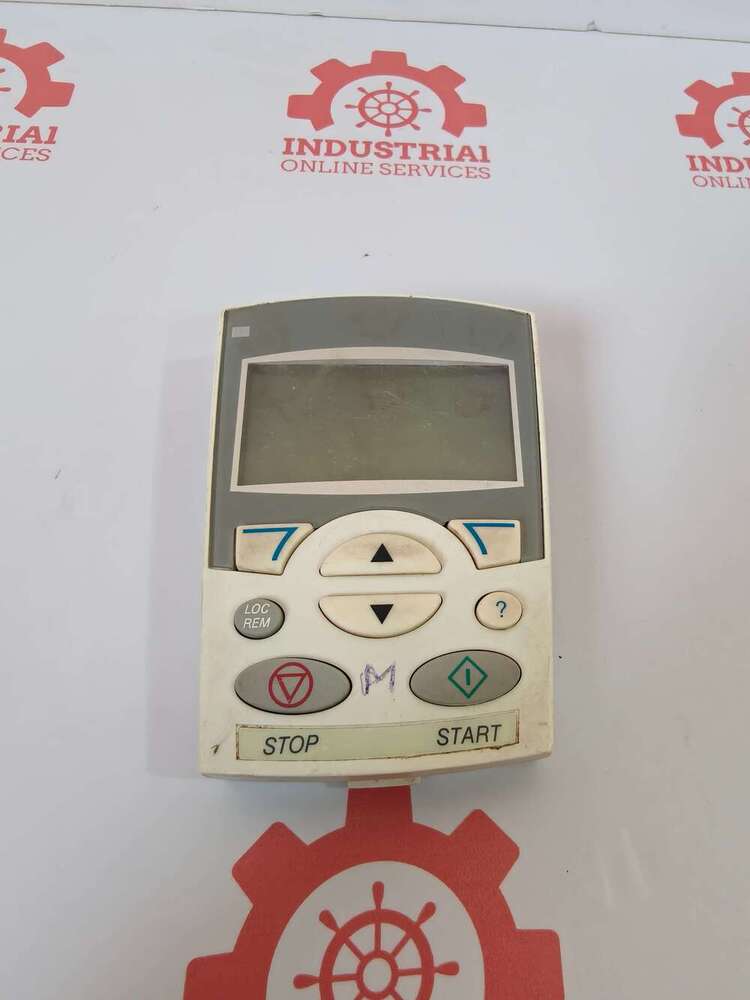

ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface

The ABB APR, DCS-CP-P (Part Number: 3ADT220129R1001) is a removable control panel/keypad operator interface manufactured by ABB. It is primarily designed for configuring, monitoring, and operating ABB DCS550 and DCS800 DC industrial drives.

Key Technical Specifications & Features

Compatibility: Native interface for ABB DCS550 and DCS800 DC speed controllers.
Functionality: Features alpha-numeric display and command keys for data logging, drive parameter commissioning, alarm management, and troubleshooting.
Environmental Protection: Built with an industrial robust design, often supporting up to IP54 protection when panel-mounted.
Hardware Portability: Hot-swappable keypad that can be split or remotely mounted from the main drive unit for safer control access

Integrated Drive Management

The ABB APR,DCS-CP-P keypad operator interface panel simplifies drive parameter setting, condition monitoring, and diagnostics. Thanks to its intuitive membrane keypad and clear LCD segment display, it enables users to efficiently manage drive operations directly on the panel, enhancing productivity on the factory floor.

Durable Build for Industrial Environments

Designed for panel mounting, this operator interface offers IP20 protection and reliable operation within temperatures from 0C to +50C. Its robust build and microcontroller-based core ensure consistent performance, even under demanding industrial conditions. The unit is lightweight and easy to install, making it suitable for both new installations and system retrofits.

FAQ's of ABB APR,DCS-CP-P Drive Control Panel Keypad Operator Interface:

Q: How do I install the ABB APR,DCS-CP-P Drive Control Panel?

A: The control panel is designed for front panel mounting. Secure the panel into the designated cutout on your drive cabinet and connect to the dedicated drive interface port using the ABB proprietary communication protocol. No complex wiring is required, simplifying installation.

Q: What drives are compatible with the APR,DCS-CP-P keypad operator interface?

A: This operator panel is compatible specifically with ABB ACS and DCS series drives, ensuring streamlined integration and precise control within these drive systems.

Q: When should I use the diagnostics function on this control panel?

A: Utilize the diagnostics feature whenever you need to troubleshoot drive performance or identify issues. It provides real-time feedback and error codes, making maintenance more efficient and minimizing downtime.

Q: Where can this operator interface panel be used?

A: The APR,DCS-CP-P is suitable for industrial environments requiring reliable drive control, particularly when panel mounting is possible. It is ideal for manufacturing plants, process industries, and automation setups using ABB drive solutions.

Q: What is the process for setting drive parameters on the keypad?

A: Drive parameters are set via the membrane keypad. Navigate through the LCD segment display menus to select and adjust parameters tailored to your application's requirements, ensuring optimal drive performance.

Q: What are the benefits of using this drive control interface panel?

A: This panel enhances operational efficiency by enabling fast parameter adjustments, comprehensive status monitoring, and prompt diagnostics-all in a compact, user-friendly design engineered for high reliability in industrial settings.
