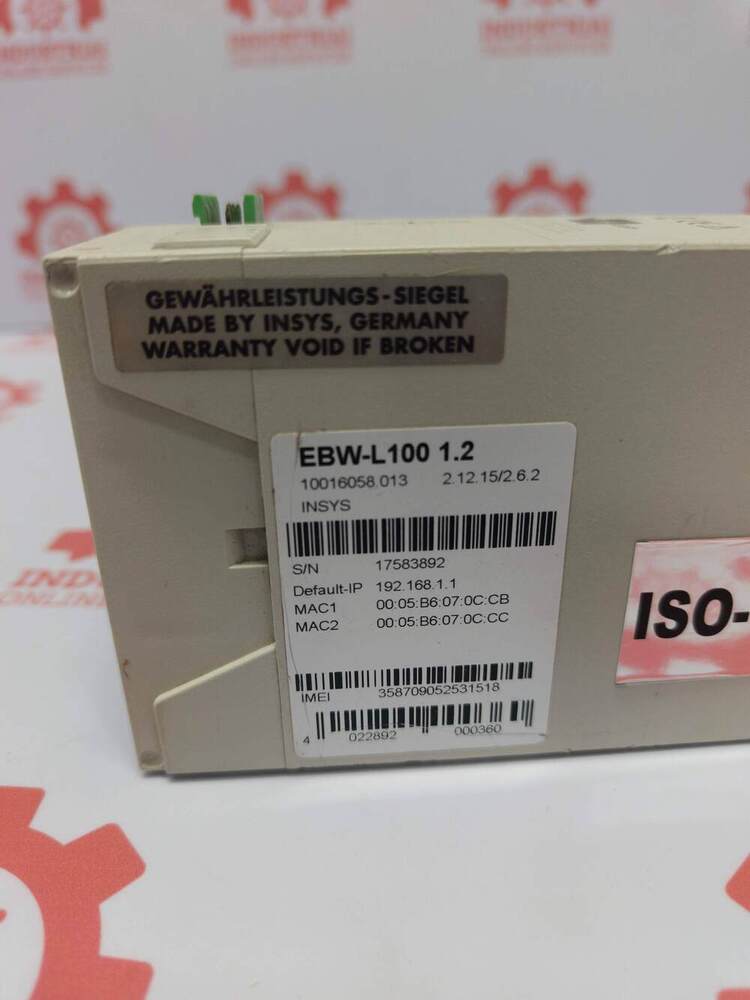

INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications

Send Inquiry

Request To Call Back

INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications

Name: INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications Specification

Protection Level
IP20

Input Current
Max. 0.7 A

Rated Voltage
24 V DC (Recommended)

Mounting Type
DIN rail mounting

Phase
Single Phase DC

Efficiency
Industrial high efficiency

Frequency
LTE FDD (800/900/1800/2100/2600 MHz), LTE TDD (2600 MHz), 3G (UMTS/HSPA+) & 2G (GSM/GPRS/EDGE)

Humidity
5% to 95% (non-condensing)

Operating Temperature
-30C to +70C

Main Material
Industrial grade plastic and metal housing

Processing Type
Routing / Gateway operation

Condition
New

Function
LTE Mobile Routing Gateway, Secure VPN, Firewall, Network redundancy

Application
Industrial M2M and IoT communication, Remote monitoring, Secure data transfer, SCADA systems

Dimension (L*W*H)
110 x 45 x 75 mm

Power Mode
DC Power supply

Voltage
9-36 V DC

Power Consumption
Max. 6 W

Battery Life
Not Applicable (Mains powered device)

Accessories
DIN rail mounting bracket, Power terminal block, Quick start guide

SIM Slots
1 x Mini SIM (2FF)

Weight
Approx. 250 g

Model
EBW-L100.1.2

Firewall
Integrated stateful firewall

User Management
Multi-level password protection

Cellular Interface
LTE/3G/2G

Firmware
icontrol OS with extended VPN and security functions

Compliance Standards
Industrial standards for M2M/IoT

Enclosure Material
Metal with plastic covers

Antenna Connectors
2 x SMA female

Serial Interface
RS232/RS485 (option with adapter)

Network Interfaces
1 x 10/100Base-TX Ethernet, 1 x 10/100Base-TX WAN/LAN

Remote Management
WEB GUI, SSH, Telnet, SNMP, HTTPS

Downlink Rate
Up to 100 Mbps

Reset Button
Yes

Uplink Rate
Up to 50 Mbps

Status LEDs
Yes, Power, Network, Signal

VPN Protocols Supported
OpenVPN, IPsec, GRE, L2TP

Data Security
VPN, Firewall, MAC/IP filtering

INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications

INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications

Key Features & Capabilities

Integrated Hardware: Consists of a cellular LTE/UMTS/HSPA router integrated with a physical 2-port 10/100 MBit/s Ethernet switch.
Robust IT Security: Embeds a stateful firewall and robust VPN protocol capabilities (including OpenVPN and IPsec) to guarantee secure data transmission.
Programmable Edge Computing: Features the INSYS-Sandbox, an embedded Linux programming environment allowing users to execute local Python or compiled shell applications directly on the gateway.
Industrial Design: Houses a broad wide-range power input matching standard 10 to 48 VDC configurations, working reliably within extreme industrial environments.
Monitoring & Cloud Extensions: Operates with a dedicated monitoring application natively capable of polling PLC controls like Siemens LOGO!, S7, or Modbus TCP controllers and reporting triggers via SMS or Email.

Built for Industrial M2M and IoT Applications

The EBW-L100.1.2 is engineered to address the evolving needs of industrial automation and IoT integration. With industry-standard compliance and efficient routing capabilities, it provides seamless connectivity and secure communications, making it a perfect fit for SCADA, remote monitoring, and data acquisition across sectors reliant on robust and dependable network solutions.

Advanced Security and Remote Management

Equipped with icontrol OS firmware, the gateway offers a comprehensive security suite, including OpenVPN, IPsec, GRE, and L2TP protocols, integrated firewall, MAC/IP filtering, and multi-level password protection. Remote management is simplified via WEB GUI, SSH, Telnet, and SNMP, enabling operators to monitor and configure devices securely from any location with real-time status through dedicated LEDs.

Flexible Installation and Rugged Design

Designed with industrial durability in mind, the EBW-L100.1.2 features a compact, robust enclosure and DIN rail mounting for straightforward installation. With an operating temperature range from -30C to +70C and support for 9-36 V DC input, it accommodates demanding environments while maintaining reliable network performance. Supporting both Ethernet and serial interfaces, it adapts easily to existing infrastructure.

FAQ's of INSYS EBW-L100.1.2 Professional, Industrial LTE Mobile Routing Gateway Built For Secure M2M And IoT Applications:

Q: How do I set up the INSYS EBW-L100.1.2 for remote monitoring applications?

A: To set up the EBW-L100.1.2 for remote monitoring, mount the device on a DIN rail using the included bracket, connect Ethernet, cellular antennas, and power (9-36 V DC), then insert your Mini SIM card. Use the WEB GUI or SSH to configure network interfaces, VPN settings, and firewall rules as per your remote monitoring scenario, ensuring optimal secure connectivity with SCADA, automation, or IoT platforms.

Q: What security features make the EBW-L100.1.2 suitable for industrial IoT applications?

A: The EBW-L100.1.2 supports multiple VPN protocols (OpenVPN, IPsec, GRE, L2TP), an integrated stateful firewall, MAC/IP filtering, and multi-level user authentication. These features are designed to safeguard critical data during transmission and ensure only authorized users have access, vital for sensitive M2M and IoT deployments in industrial settings.

Q: When should I consider using the EBW-L100.1.2 over other LTE gateways?

A: Choose the EBW-L100.1.2 when you need industrial-grade performance, extended temperature and voltage support, enhanced security features, and reliable operation in demanding environments. It is ideal for SCADA, remote monitoring, and other M2M/IoT applications where secure, robust, and versatile network connectivity is a priority.

Q: Where can the EBW-L100.1.2 be installed and what environments is it suitable for?

A: The EBW-L100.1.2 is designed for DIN rail mounting, making it suitable for installation within electrical cabinets, control rooms, or industrial enclosures. Its wide temperature and humidity range, IP20-rated protection, and robust housing allow deployment in factories, utility plants, remote stations, and harsh industrial environments.

Q: What is the process for managing the device remotely or updating its configurations?

A: You can manage and update the EBW-L100.1.2 remotely using the secure WEB GUI, SSH, Telnet, or SNMP interfaces. Administrators can change configurations, monitor network status with LEDs, apply firmware updates, and review security logs from any authorized location, simplifying maintenance and reducing on-site intervention.

Q: How does the EBW-L100.1.2 benefit industrial users seeking secure data transfer?

A: With support for secure VPNs, advanced firewalls, and redundancy options, the EBW-L100.1.2 ensures uninterrupted and protected data flow, critical for real-time control and monitoring. Its reliability and security features help industrial users minimize downtime, prevent data breaches, and maintain operational efficiency even in challenging conditions.
