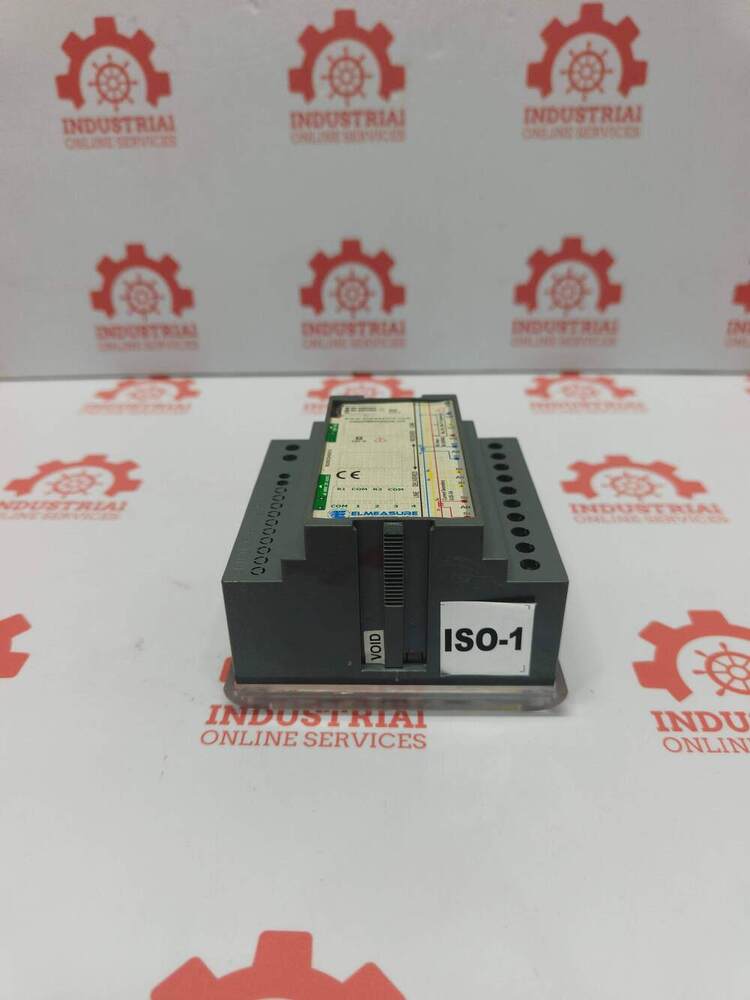

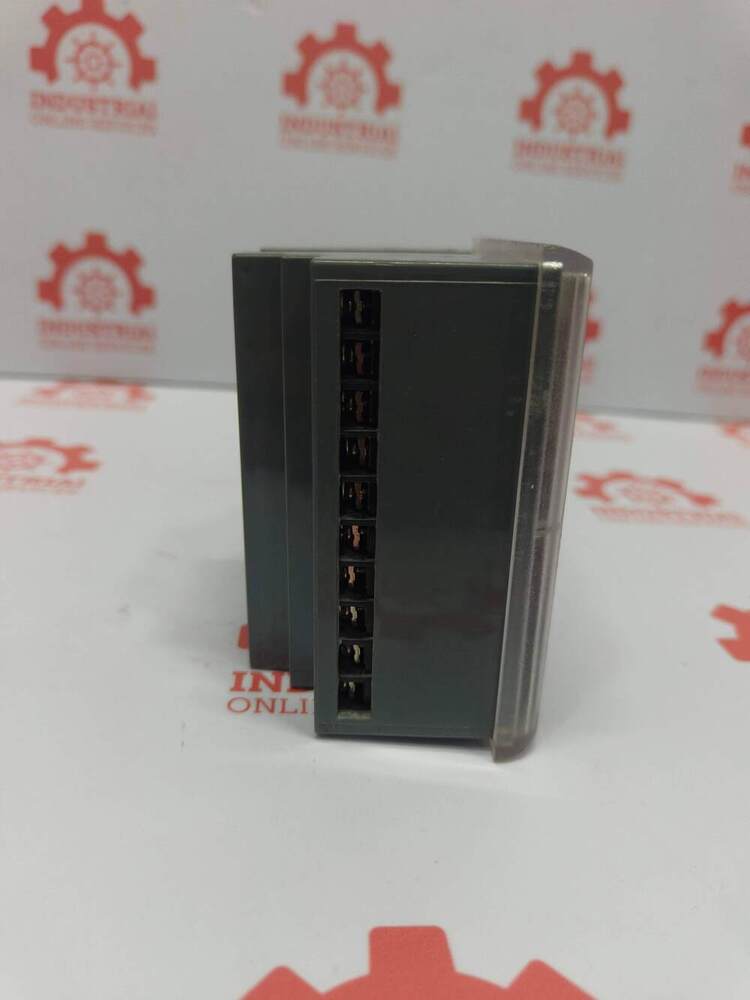

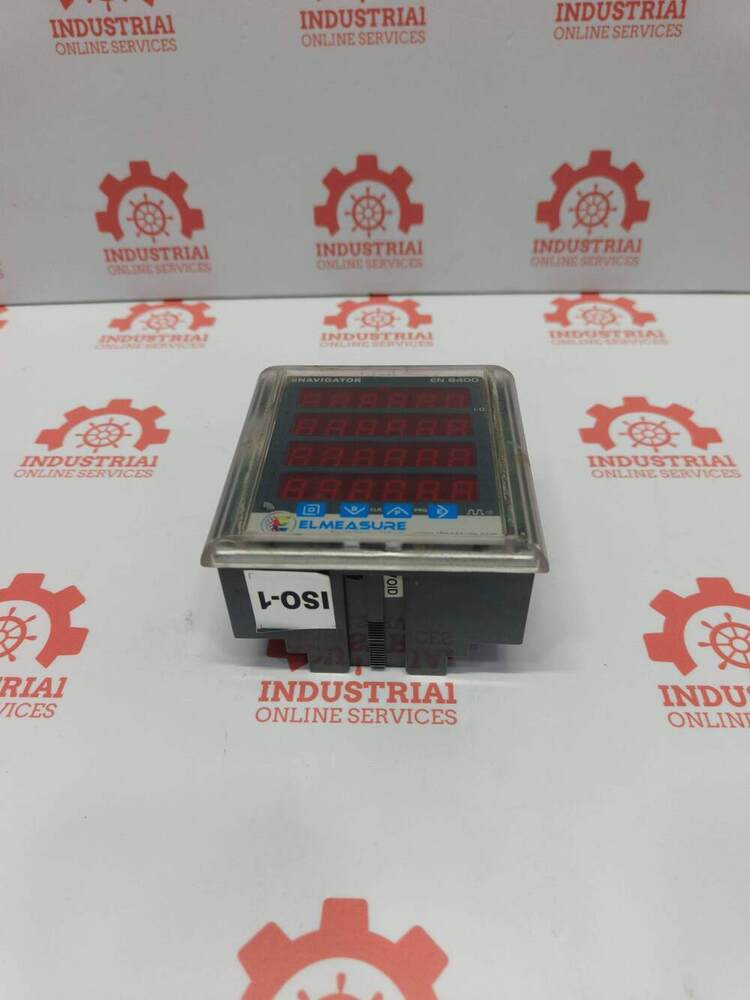

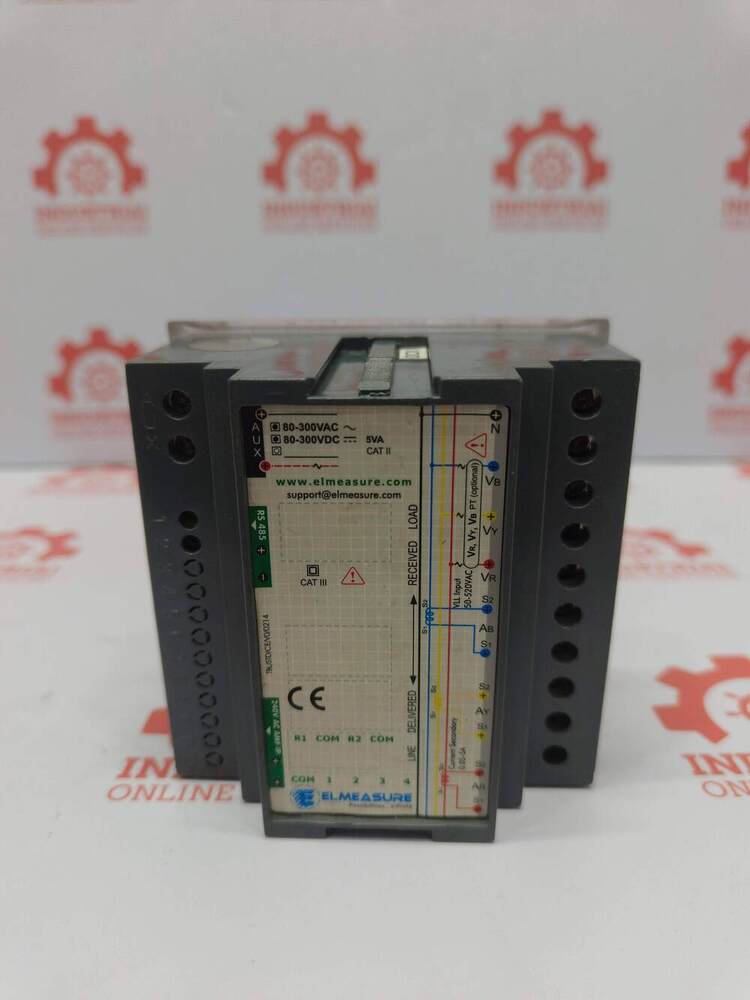

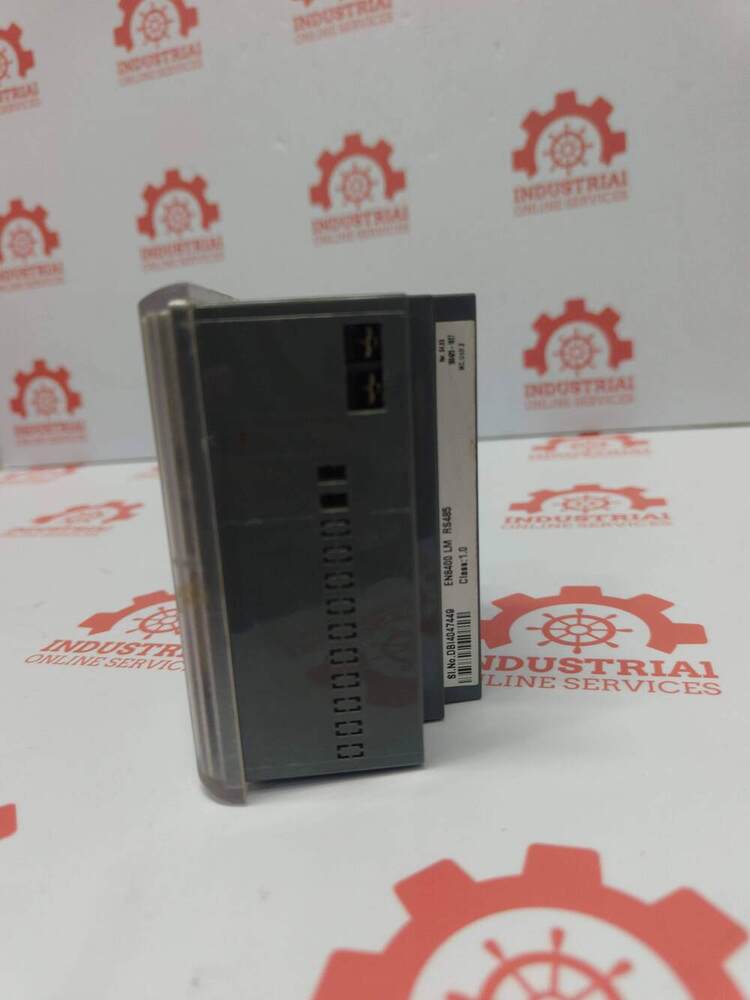

ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM)

Name: ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM)
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM) Specification

Output Voltage
Configurable digital outputs, no direct output voltage

Efficiency
High accuracy Class 0.5S (Ref: IEC 62053-22)

Input Current
1A or 5A (CT Programmable)

Mounting Type
Panel Mounted

Frequency
45-65 Hz

Humidity
95% RH (Non-Condensing)

Rated Voltage
Up to 480 V L-L

Phase
3 Phase / 4 Wire, 3 Phase / 3 Wire support

Protection Level
IP52 (Front Panel)

Operating Temperature
-10C to +60C

Main Material
ABS Plastic Housing

Processing Type
Digital

Condition
New

Function
Multi-Function Meter for True RMS Measurement, Energy, Demand, Power Quality

Application
Power monitoring for Electrical Panels, Industrial Automation, Energy Management

Dimension (L*W*H)
96 x 96 x 60 mm (Approx.)

Power Mode
AC Powered

Voltage
57-230 V AC / 100-415 V AC (Auxiliary Supply)

Power Consumption
7 VA

Battery Life
Not Applicable (Mains Powered)

Accessories
User Manual, Mounting Clips

Alarm Settings
Configurable Alarms for Electrical Parameters

CT Secondary
1A/5A Programmable

Display Digits
4 Rows x 3 Digits

Input Voltage Range
10 V to 600 V AC

Data Logging
Onboard Memory for Energy and Demand Logging

PT Ratio
Programmable

Pulse Output
2 Digital Outputs (for Energy/Alarm Pulse)

Display Type
Large Backlit LED Display

Communication Interface
RS485, MODBUS RTU Protocol

Weight
~400g

Parameter Measurement
V, I, PF, F, kW, kVA, kVAR, kWh, kVAh, kVARh, MD, THD, Harmonics

ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM)

ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM)

Key Technical Specifications

Measurement: True RMS, 4 Quadrant Power & Energy tracking, updating every 1 second.
Accuracy Classes: Available in Class 1.0 (standard), Class 0.5S, or Class 0.2S variations.
Display: Bright 4-row, 6-digit LED display (or optional 7-digit graphical LCD) with auto-scaling and scrolling features.
Electrical Inputs:
- Rated Voltage: 50V to 600V Line-to-Line (programmable for 110V or 415V LL Nominal).
- Rated Current: Supports 10mA to 6A current inputs.
- Max CT/PT Ratio: Programmable up to 2000 MVA.
Power Quality: Monitors parameters like Amps, Volts, Hz, Watts, VA, PF, and VAr, with some variants supporting industrial harmonics up to the 31st order.
Demand Control: Offers sliding or fixed demand prediction with options for 2 or 4 relay control outputs for load shedding protection.
Communication Options: Available with RS-485 Modbus, Wi-Fi, or Ethernet ports depending on the specific catalog sub-model.

Advanced Multi-Parameter Monitoring

The EN8400 allows comprehensive monitoring of key electrical parameters such as voltage, current, power factor, frequency, real and apparent power, energy consumption, harmonics, and demand. This equips users with detailed insights into their electrical systems, supporting smarter operational decisions and effective energy management across a variety of industrial and commercial panels.

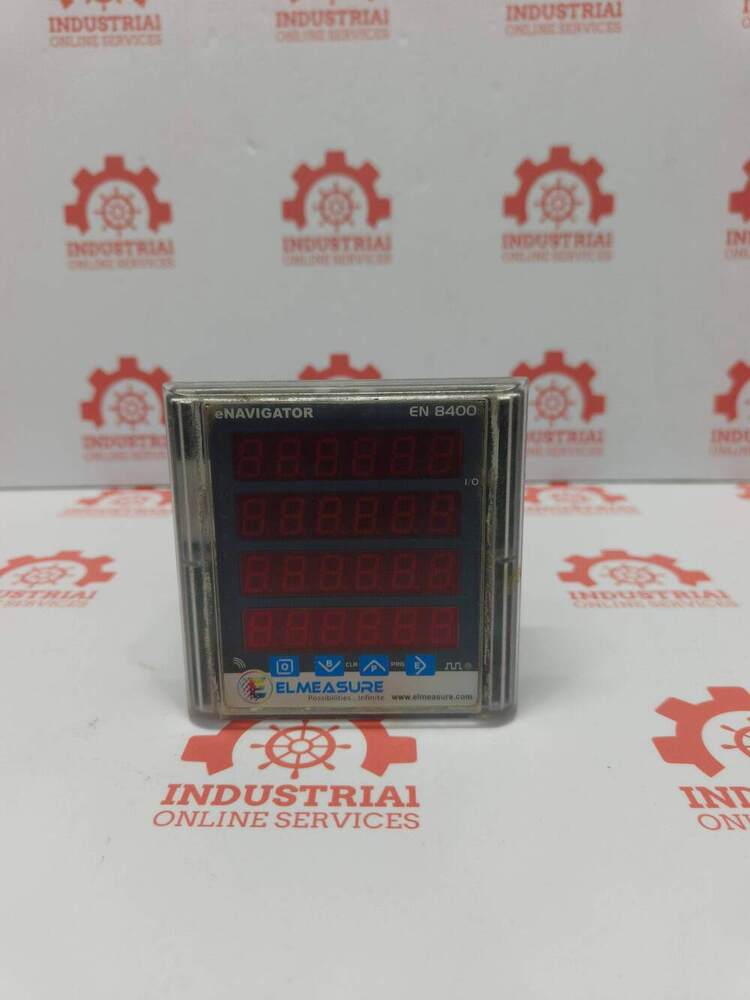

Intuitive LED Display and Alarm Configuration

The device features a large 4-row LED display, clearly presenting multiple measurements simultaneously, even in low-light conditions. Configurable alarms can be set for critical electrical parameters, helping facility managers respond proactively to abnormal system behaviors or efficiency losses, thereby improving safety and minimizing downtime.

Reliable Data Logging and Communication

Equipped with onboard memory for energy and demand logging, the meter enables historical tracking of power usage. With RS485 MODBUS RTU communication, it seamlessly integrates into automation and energy management systems, streamlining the collection and analysis of power quality data for informed optimization.

FAQ's of ELMEASURE EN8400 High-Profile, High-End Multi-Function Meter (MFM):

Q: How do I connect the EN8400 meter to my energy management system?

A: You can connect the EN8400 to your energy management or automation system via the RS485 communication port using the MODBUS RTU protocol. This allows for seamless data integration and remote monitoring of real-time and logged parameters.

Q: What electrical parameters can the EN8400 monitor and log?

A: The meter measures and logs voltage, current, power factor, frequency, active and reactive power (kW, kVAR), apparent power (kVA), energy consumption (kWh, kVARh, kVAh), maximum demand, total harmonic distortion (THD), and individual harmonics, providing a complete picture of power quality.

Q: When is data logging performed by the EN8400, and how is it accessed?

A: The built-in memory logs energy and demand data at configurable intervals. Logged information is accessible via the front panel display or remotely by querying the meter through MODBUS RTU over RS485 communication.

Q: Where is the EN8400 typically installed?

A: The EN8400 is designed for panel mounting in electrical distribution panels, making it ideal for use in industrial facilities, commercial buildings, and energy management systems where accurate power and energy measurement are required.

Q: What is the process for setting up current and potential transformer (CT/PT) ratios?

A: You can easily program the CT secondary (1A/5A) and PT ratio using the front panel interface, ensuring accurate measurement tailored to your installation's transformer ratings.

Q: How does the EN8400 benefit industrial automation and power monitoring?

A: By offering real-time, accurate measurements along with data logging and alarms, the EN8400 enables early detection of power quality issues, facilitates proactive maintenance, and supports energy savings initiatives, leading to increased system reliability and reduced operational costs.

Q: What accessories are provided with the EN8400 meter upon purchase?

A: Included with the meter are a user manual for guidance, mounting clips for installation, and all components necessary for immediate integration into panel systems.
