JRC JLR-6000MKII Marine GPS Navigator

Name: JRC JLR-6000MKII Marine GPS Navigator
Brand: Industrial Online Services
Price: 40000 INR
Availability: InStock

Price 40000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

JRC JLR-6000MKII Marine GPS Navigator Specification

Rated Voltage
12/24 V DC

Operating Temperature
-15C to +55C

Mounting Type
Panel or Desk Mountable

Humidity
0-93% (non-condensing)

Input Current
Approx. 1.2A (at 12V DC)

Phase
Single Phase

Protection Level
Not Specified (Typically IPX2 or above for marine)

Frequency
1575.42 MHz (L1 GPS)

Main Material
ABS/Plastic Enclosure, Electronic Parts

Processing Type
Electronic, Digital

Condition
Used

Function
Global Positioning, Navigation, Waypoint Tracking

Application
Marine GPS Navigation for vessels

Dimension (L*W*H)
Approx. 250 x 130 x 90 mm

Power Mode
DC Powered

Voltage
10.8 - 31.2 V DC

Power Consumption
Approx. 10 W

Battery Life
Not specified (requires external power)

Accessories
Antenna, Power cable, Mounting bracket (dependent on supply)

GNSS Support
GPS (L1 band)

Antenna Connector
BNC (for external GPS antenna)

Approval
IMO Compliant (Marine Use)

Display
LCD with backlight, 5-inch approx.

Languages Supported
English (default), others configurable

Date of Manufacture
Depends on model production (JLR-6000MKII released around 2010s)

Weight
Approx. 1.5 kg

Data Output
NMEA-0183 compatible

Alarm Functions
Arrival, Anchor Watch, Cross Track Error, etc.

User Interface
Keypad Operation

Storage Capacity
Up to 999 waypoints, 999 track points

JRC JLR-6000MKII Marine GPS Navigator Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About JRC JLR-6000MKII Marine GPS Navigator

JRC JLR-6000MKII Marine GPS Navigator

Key Specifications & Hardware

Manufacturer: Japan Radio Co., Ltd. (Japan)
Part/Model Number: KN98474
Device Weight: Approximately 2.070 kg
Power Supply: Dual DC voltage support (12V / 24V DC)

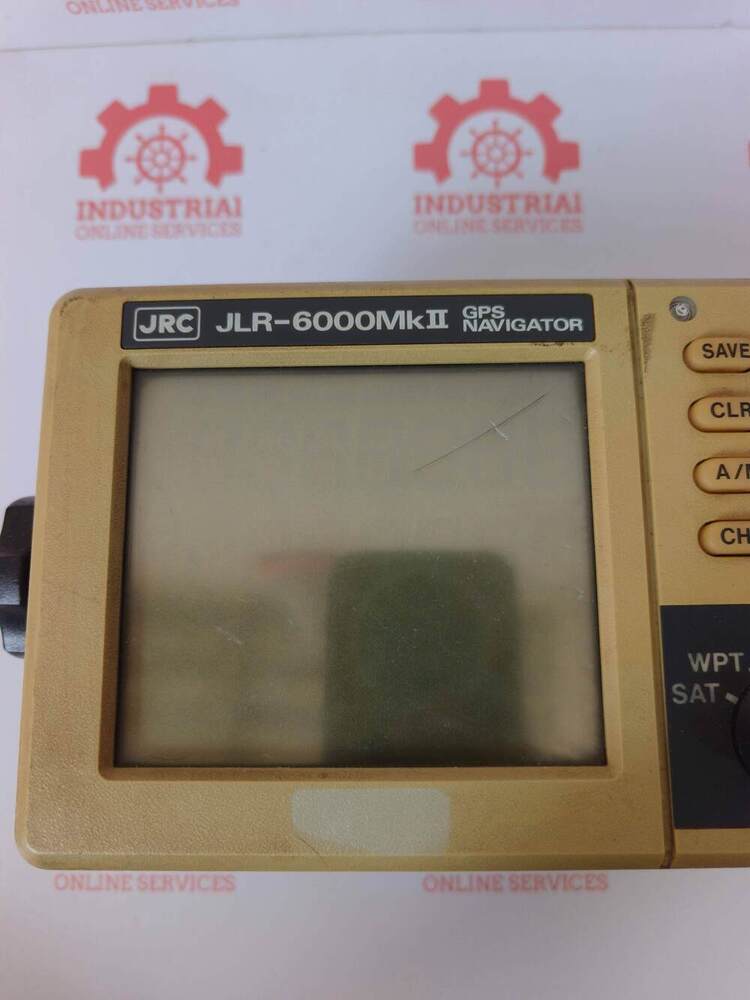

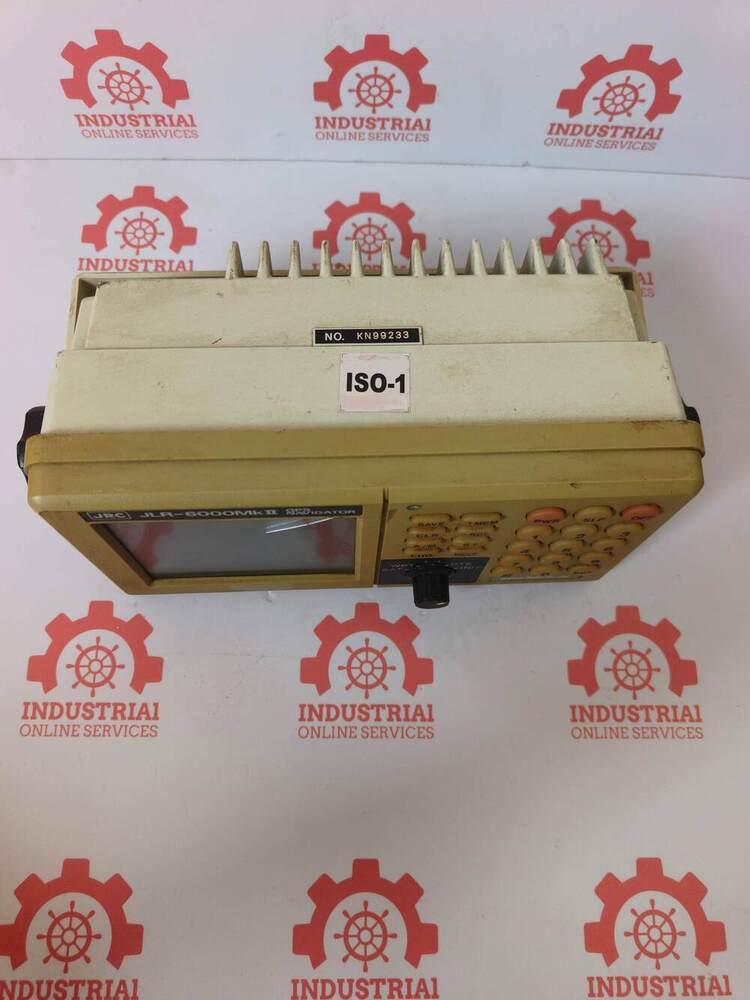

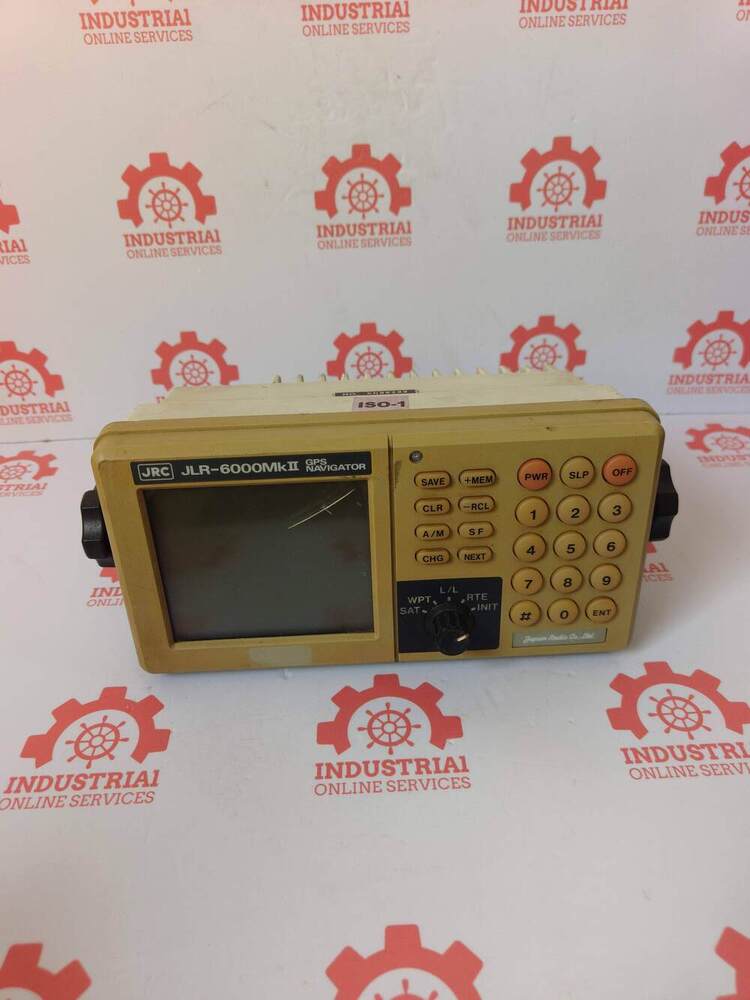

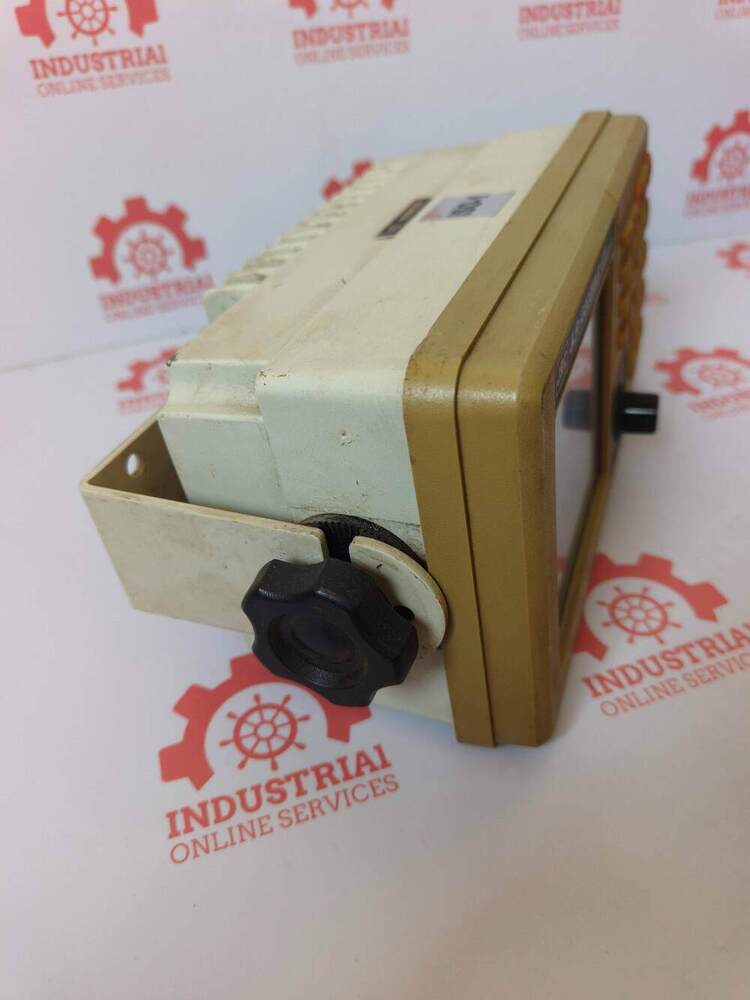

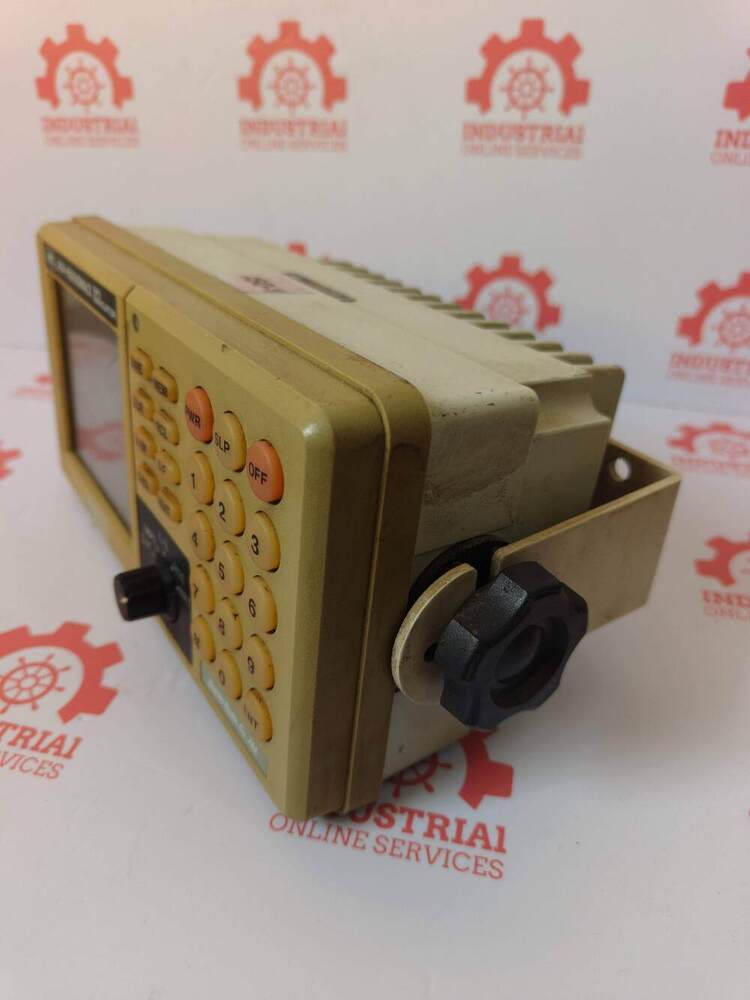

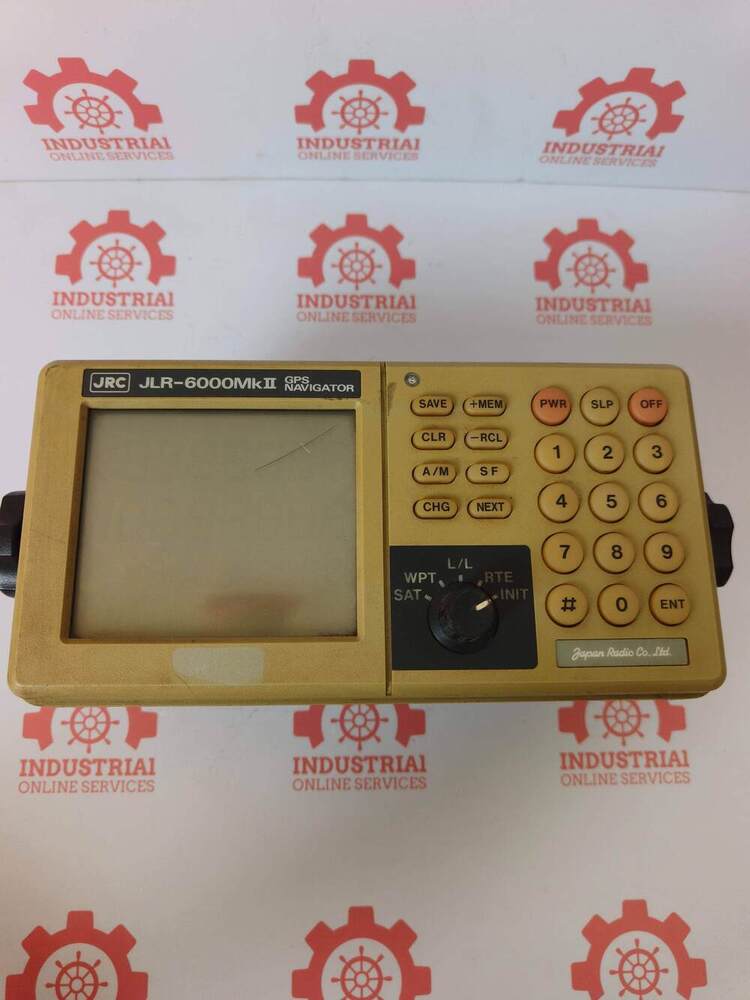

Physical Design: A classic, rugged marine build featuring an LCD screen panel surrounded by physical function buttons and directional dials.

Core Capabilities

Precise Maritime Positioning: Provides accurate latitude, longitude, and course tracking data to aid in safe marine passage planning.
Waypoint & Route Management: Allows captains and navigators to input, store, and edit specific geographic waypoints and coordinate routes.
Interface Connectivity: Equipped with serial ports (typically NMEA 0183 compliant) to interface data with other onboard systems like marine radars, autopilots, and chartplotters.
Navigational Alarms: Includes built-in safety alarms for tracking arrival status, cross-track errors (deviation from course), and signal loss.

Clear and Reliable Marine Navigation

With its robust ABS enclosure and backlit LCD screen, the JRC JLR-6000MKII is engineered for challenging marine conditions. Operators benefit from up to 999 stored waypoints, enabling flexible route planning and efficient navigation across long sea journeys. Designed for panel or desk mounting, installation is versatile across vessel types.

User-Friendly Controls and Alarm Functions

Operating the navigator is simple, thanks to the intuitive keypad interface. Multiple alarms, including arrival and anchor watch, support safe navigation and anchoring, while the cross track error alarm helps maintain accurate course over ground. All alerts are easily visible and audible for prompt action.

Flexible Connectivity and Power Options

The navigator offers seamless integration with marine systems due to its NMEA-0183 compatibility and BNC antenna connector. Supporting 12/24 V DC input, it consumes low power, making it suitable for varying vessel power setups. Accessories like antenna, power cable, and mounting bracket may be included depending on the supplier.

FAQ's of JRC JLR-6000MKII Marine GPS Navigator:

Q: How do I operate the JRC JLR-6000MKII Marine GPS Navigator?

A: You can operate the JRC JLR-6000MKII using its intuitive keypad interface, which allows for straightforward input of waypoints, navigation settings, and alarm functions, ensuring ease of use in dynamic marine environments.

Q: What is the storage capacity for waypoints and track points on this navigator?

A: The device stores up to 999 waypoints and 999 track points, providing ample space for route planning and journey record-keeping across multiple voyages.

Q: When and where can the JLR-6000MKII be used for navigation?

A: This IMO-compliant GPS navigator is designed for marine vessels, including commercial and recreational boats, and can be operated in environments with temperatures from -15C to +55C and humidity up to 93% (non-condensing).

Q: What benefits does the alarm system provide during navigation?

A: The arrival, anchor watch, and cross track error alarms enhance operational safety by notifying users of key events or deviations, making it easier to respond promptly and maintain proper navigation or anchoring.

Q: Where can I connect an external GPS antenna, and why is it useful?

A: An external GPS antenna connects to the unit via the BNC connector, improving satellite signal reception and ensuring accurate positioning, especially when the device is installed inside enclosed or signal-obstructed areas of a vessel.

Q: What power supplies are supported by the JLR-6000MKII?

A: The device operates on DC power, supporting voltages from 10.8 to 31.2 V (typically using the vessel's 12V or 24V supply) and has a power consumption of around 10W, making it adaptable to most marine electrical systems.
