LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface)

Send Inquiry

Request To Call Back

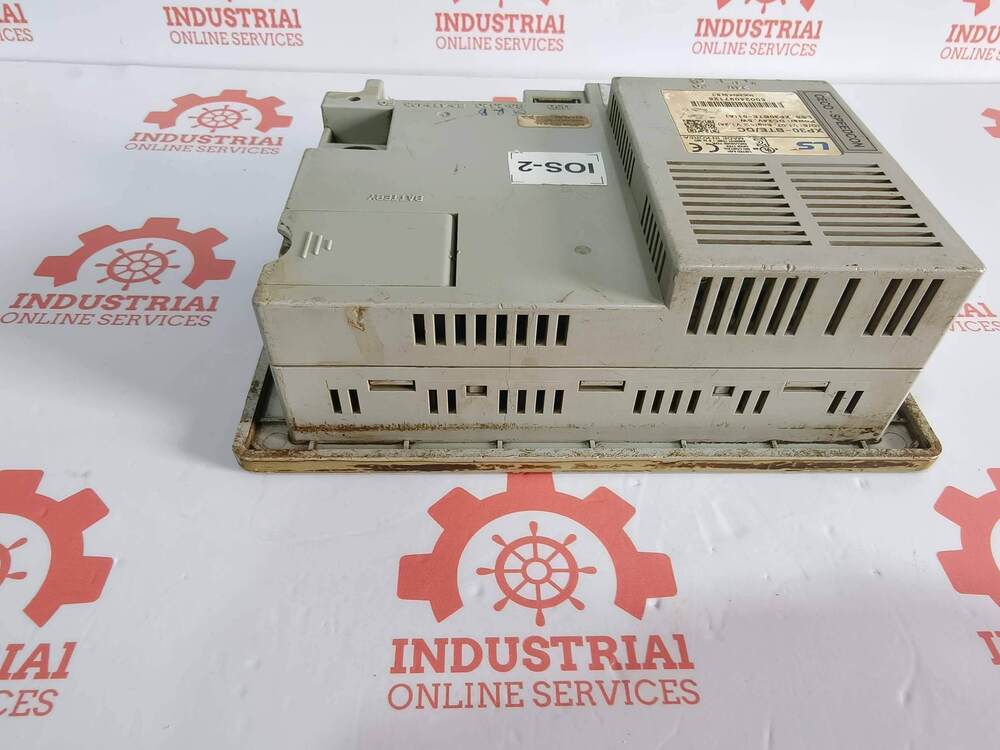

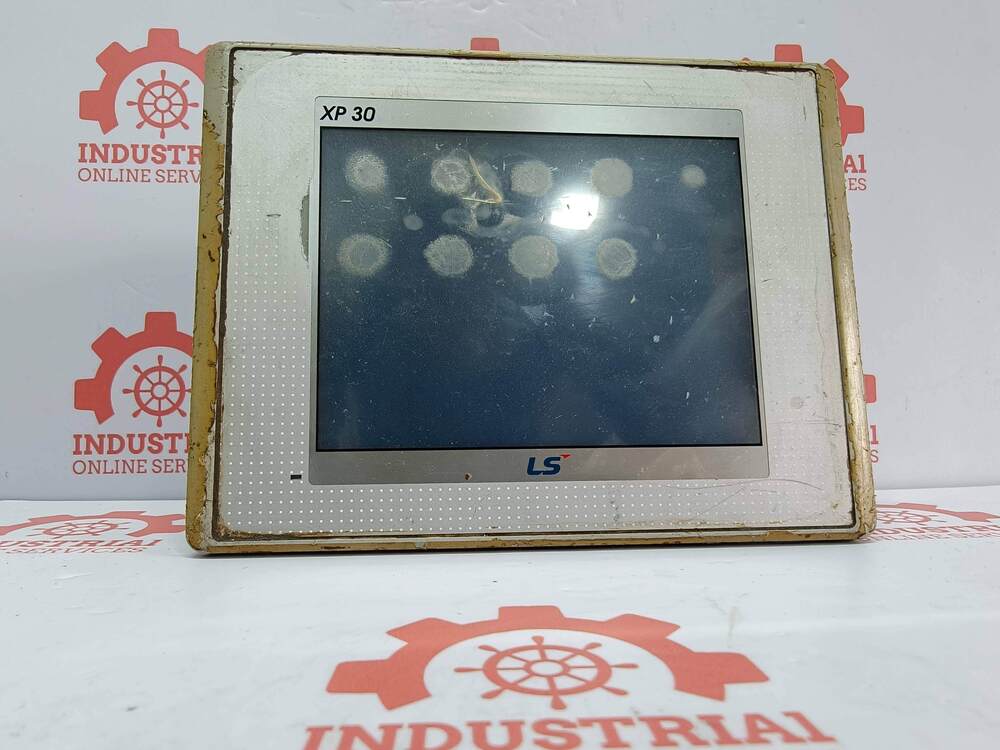

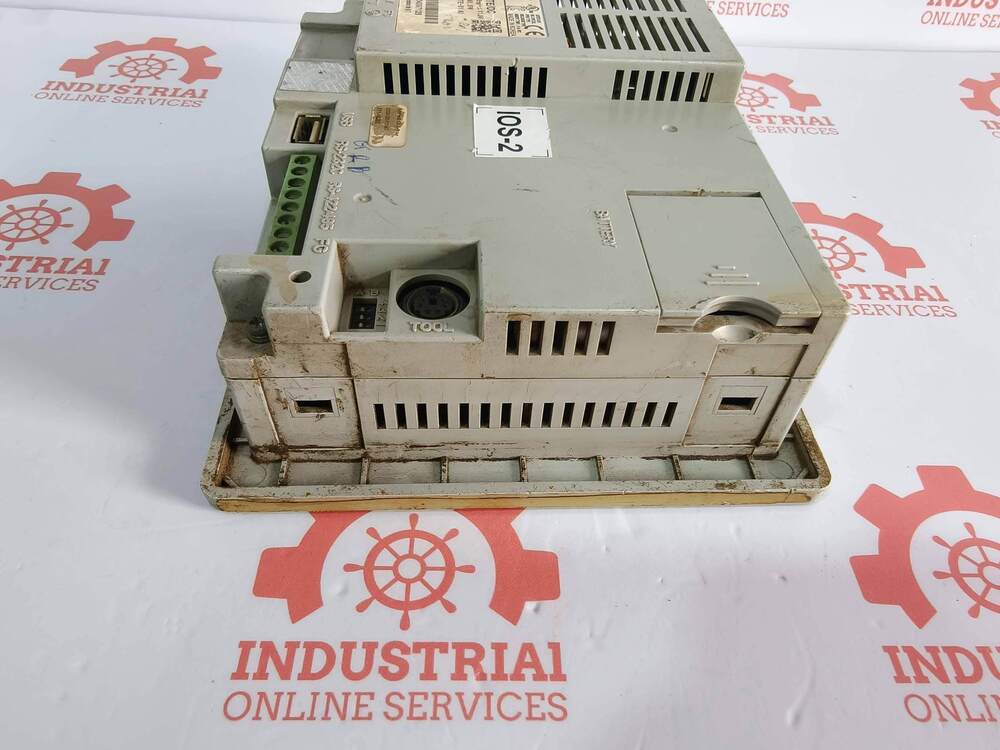

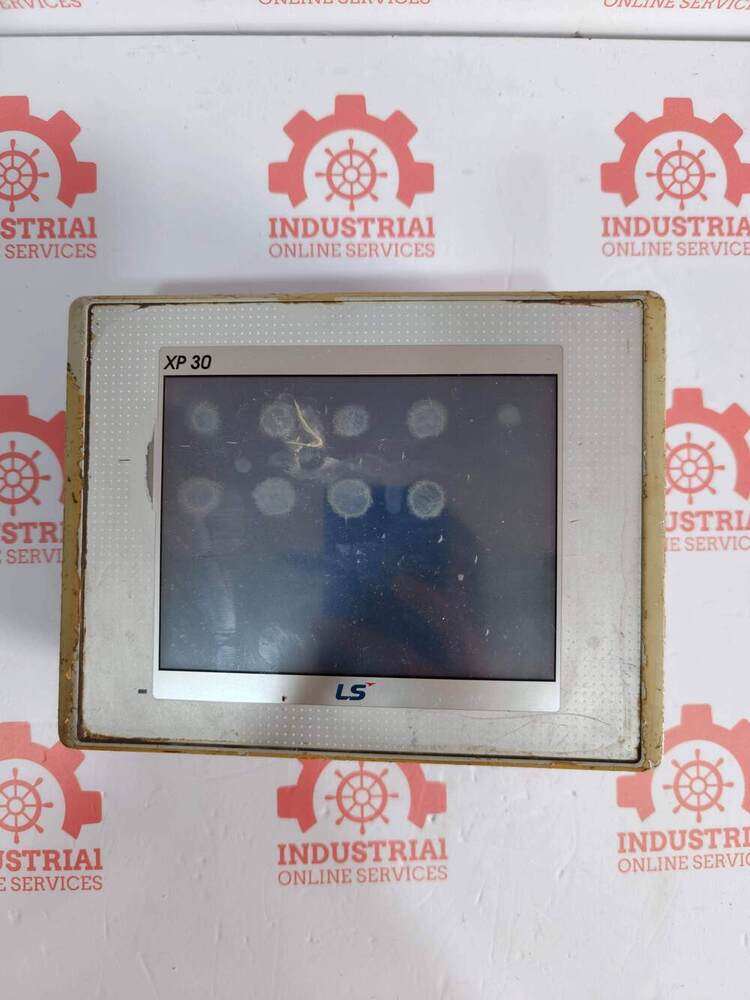

LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface)

Name: LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface)
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface) Specification

Phase
Single Phase (DC)

Humidity
10-90% RH, non-condensing

Protection Level
IP65 (front panel only)

Mounting Type
Panel mount

Input Current
Approx. 300mA at 24V DC

Rated Voltage
24V DC

Operating Temperature
0C to 50C

Efficiency
Standard for HMI device

Main Material
Plastic and metal

Processing Type
Digital/Touch Interface

Condition
Used/Refurbished

Function
Display and control interface for PLC and automation

Application
Industrial HMI for automation control systems

Dimension (L*W*H)
Approx. 185mm x 145mm x 45mm

Power Mode
DC powered

Voltage
24V DC

Power Consumption
8W max

Battery Life
Not applicable (no internal battery)

Accessories
Not included, main unit only

Display Type
Monochrome (blue LCD)

Storage Memory
2MB Flash

Color
White/Beige front frame

Display Size
5.7-inch

Operating System
Proprietary (LS HMI software compatible)

Program Download
Via RS-232

Communication Ports
1 x RS232C, 1 x RS422/485

Backlight
LED

Resolution
320 x 240 pixels (QVGA)

Touch Panel
4-wire resistive touch

Model
XP30-BTE/DC

Weight
Approx. 0.7 kg

LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface)

he LS ELECTRIC XP30-BTE/DC is a 5.7-inch monochrome (blue) HMI (Human Machine Interface) operator panel belonging to the XGT Panel XP Series.

Key Specifications

Display Type: 5.7" QVGA Monochrome LCD with an 8-column grayscale/blue LED backlight.
Resolution: 320 x 240 pixels.
Input Method: Analog resistive touch screen.
Power Supply: 24V DC operational voltage.
Operating System: Windows CE Core.
Memory Capacity: 4 MB for screen data and 128 KB for backup data storage.
Protection Rating: IP65 certified front panel for dust and moisture protection in rugged environments.

Versatile Industrial Interface

The XP30-BTE/DC HMI from LS ELECTRIC offers a monochrome touch display tailored for robust industrial settings. Its compact dimension and durable panel-mounted design ensure quick integration into control systems. With IP65-rated front protection, it withstands dust and splashes, delivering reliable operation in challenging automation environments.

Reliable and User-Friendly Operations

Equipped with a resistive touch panel, this HMI provides easy data input even with gloves. It supports flexible communication via RS232C and RS422/485 ports, ensuring seamless PLC connectivity. Programming and updates can be executed conveniently through the RS-232 port, streamlining setup and maintenance for operators.

FAQ's of LS ELECTRIC XP30-BTE/DC 5.7-inch Monochrome (blue) HMI (Human Machine Interface):

Q: How do I program or update the LS ELECTRIC XP30-BTE/DC HMI?

A: Programming and updates can be performed via the RS-232 communication port using LS HMI software, which is compatible with this device. Simply connect your PC to the HMI using the correct cable and follow the software's upload/download instructions.

Q: What environments are suitable for installing the XP30-BTE/DC HMI?

A: This panel is best mounted in industrial control cabinets or automation systems, as it offers an IP65-rated front panel for dust and splash resistance. It operates reliably in temperatures from 0C to 50C and at humidity levels between 10% and 90% RH (non-condensing).

Q: When is the XP30-BTE/DC most beneficial for a project?

A: This HMI excels in applications requiring a compact yet durable display and control interface, especially where glove-friendly operation and straightforward PLC integration are needed. Its reliability and touch functionality suit both new builds and refurbished systems.

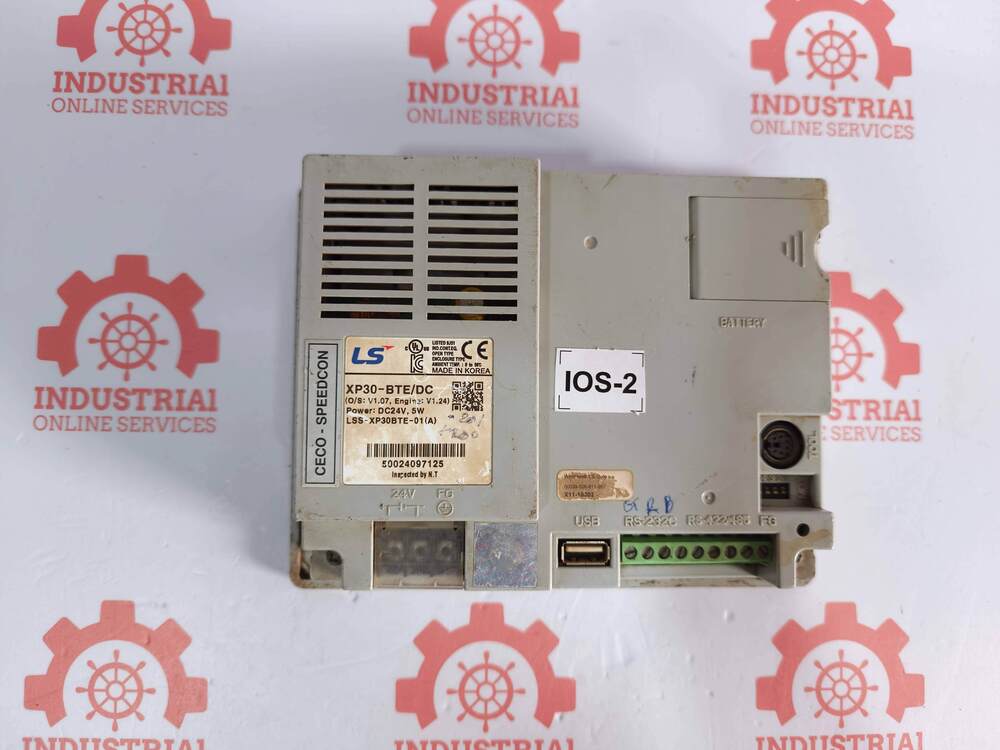

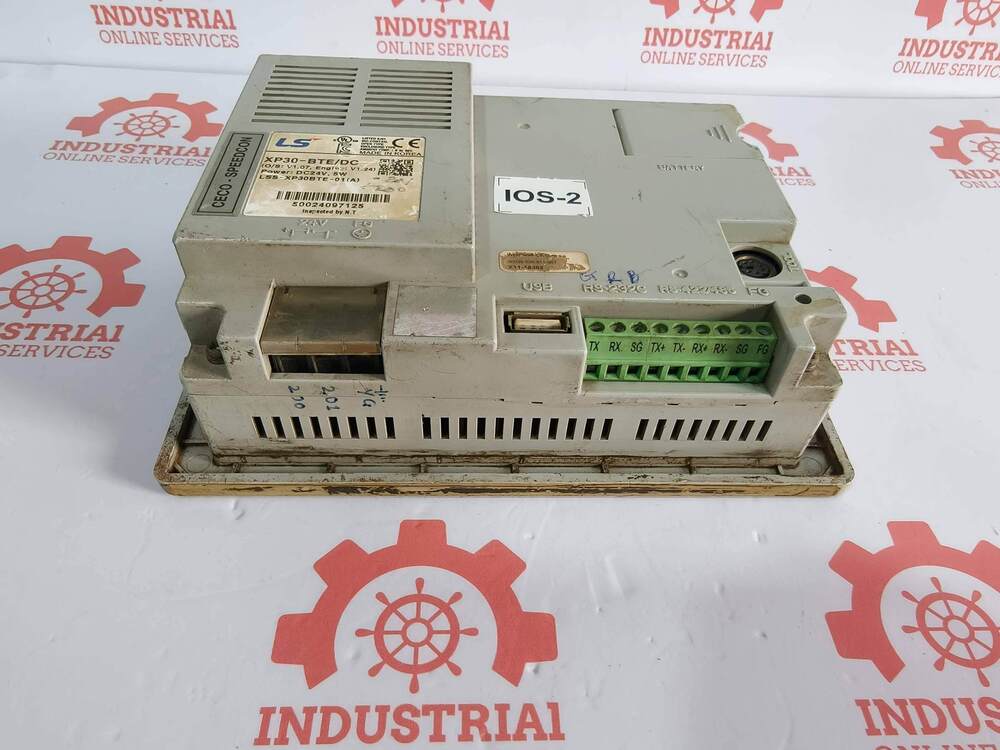

Q: Where is the communication port located on the device, and what are its functions?

A: The XP30-BTE/DC provides one RS232C and one RS422/485 port, usually accessible at the rear of the unit. These ports are essential for connecting to PLCs, input/output devices, or for programming and monitoring tasks.

Q: What is the process for mounting the XP30-BTE/DC HMI?

A: Mounting is achieved via panel mount installation, securing the unit directly into a prepared cutout on your control enclosure's front panel. Ensure a snug fit to maintain the IP65 protection on the front face.

Q: How can this HMI improve automation system efficiency?

A: The touch-enabled, easy-to-read monochrome display and straightforward interface allow operators to interact seamlessly with control systems, minimizing downtime and simplifying system diagnostics or parameter adjustments.

Q: What accessories are provided with the XP30-BTE/DC unit?

A: This product is supplied as the main unit only, without accessories. Users will need to procure mounting hardware, programming cables, and other installation items separately if required.
