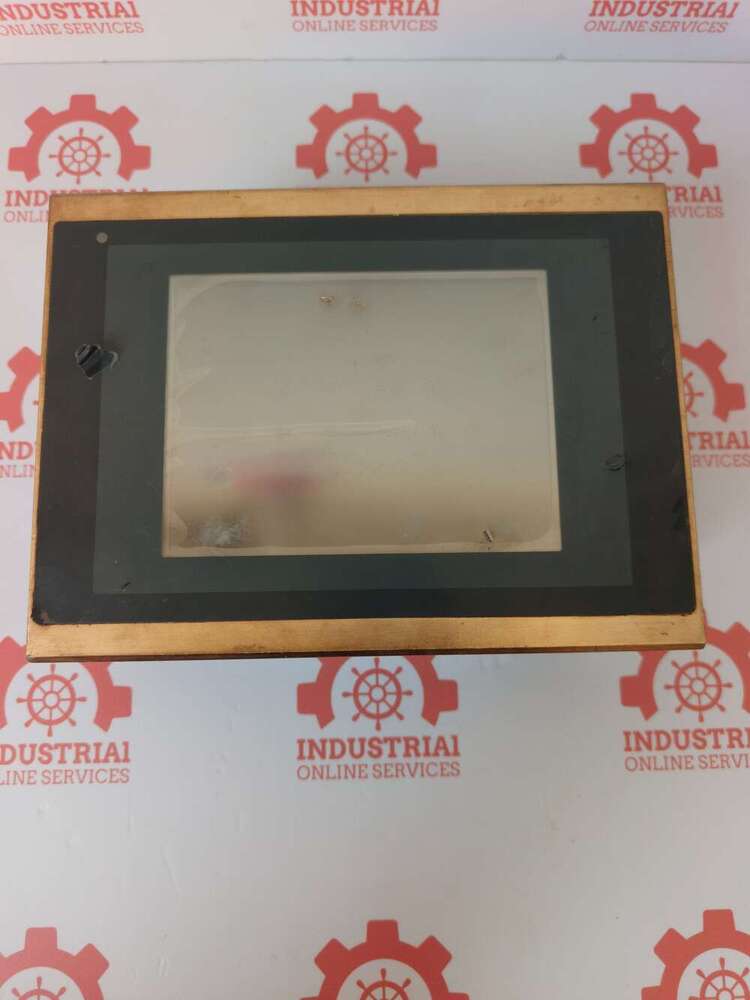

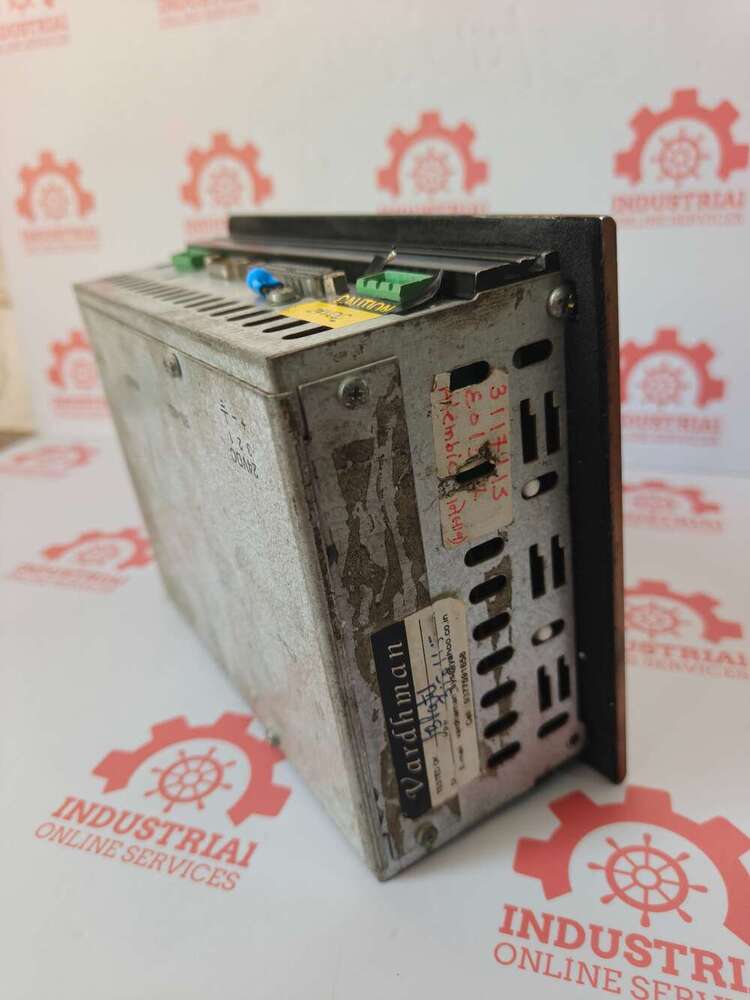

Beijer E615 04410C HMI Operator Panel

Name: Beijer E615 04410C HMI Operator Panel
Brand: Industrial Online Services
Price: 50000 INR
Availability: InStock

Price 50000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Beijer E615 04410C HMI Operator Panel Specification

Frequency
N/A (DC powered)

Mounting Type
Panel Mount

Humidity
10% to 90% RH (non-condensing)

Phase
Single

Rated Voltage
24 V DC

Input Current
Max 0.8 A

Operating Temperature
0C to 50C

Protection Level
IP65 (front panel)

Efficiency
High

Main Material
Plastic/Aluminum Alloy

Processing Type
Electronic

Condition
Used/Refurbished

Function
Operator interface for industrial automation systems

Application
Industrial HMI Control Panel

Dimension (L*W*H)
230 mm x 170 mm x 45 mm (approx.)

Power Mode
External DC Supply

Voltage
24 V DC

Power Consumption
Approx. 20 W

Accessories
No accessories included

Product Series
Beijer E615

Display Type
TFT LCD Touchscreen

Backlight
CCFL (replaceable)

Display Size
5.7 inch

Resolution
320 x 240 pixels (QVGA)

Memory
User Flash 2 MB, SRAM 512 KB

Weight
Approx. 1.2 kg

Model Number
04410C

CPU
32-bit RISC processor

Communication Ports
RS232, RS422/RS485, Ethernet (varies by model)

Beijer E615 04410C HMI Operator Panel Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Beijer E615 04410C HMI Operator Panel About

Beijer E615 04410C HMI Operator Panel

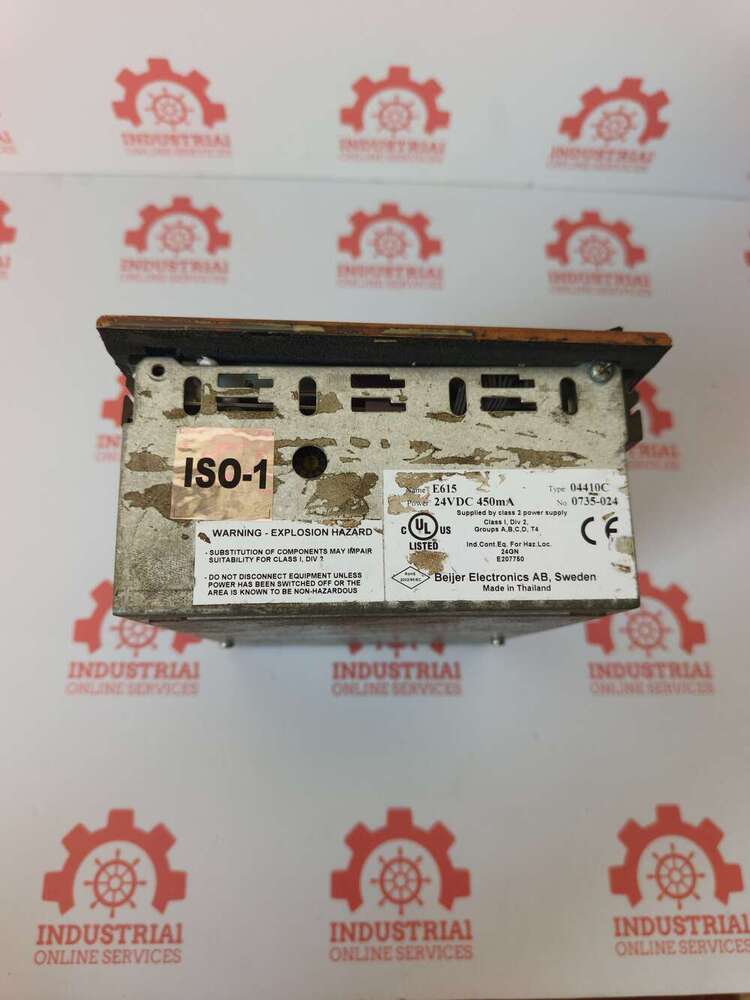

The E615 (TYPE 04410C) is a legacy industrial Human Machine Interface (HMI) Operator Panel manufactured by Beijer Electronics. It functions as a control and monitoring terminal for automated machinery, commonly used alongside Programmable Logic Controllers (PLCs) across manufacturing environments.

Core Specifications

Power Supply: Operates on a standard industrial 24V DC input voltage.
Current Consumption: Draws a nominal current of 450 mA during operation.
Display Interface: Features a 7-inch LCD color touchscreen layout.
Touch Technology: Utilizes a rugged resistive analog touch layer suitable for gloved operation.

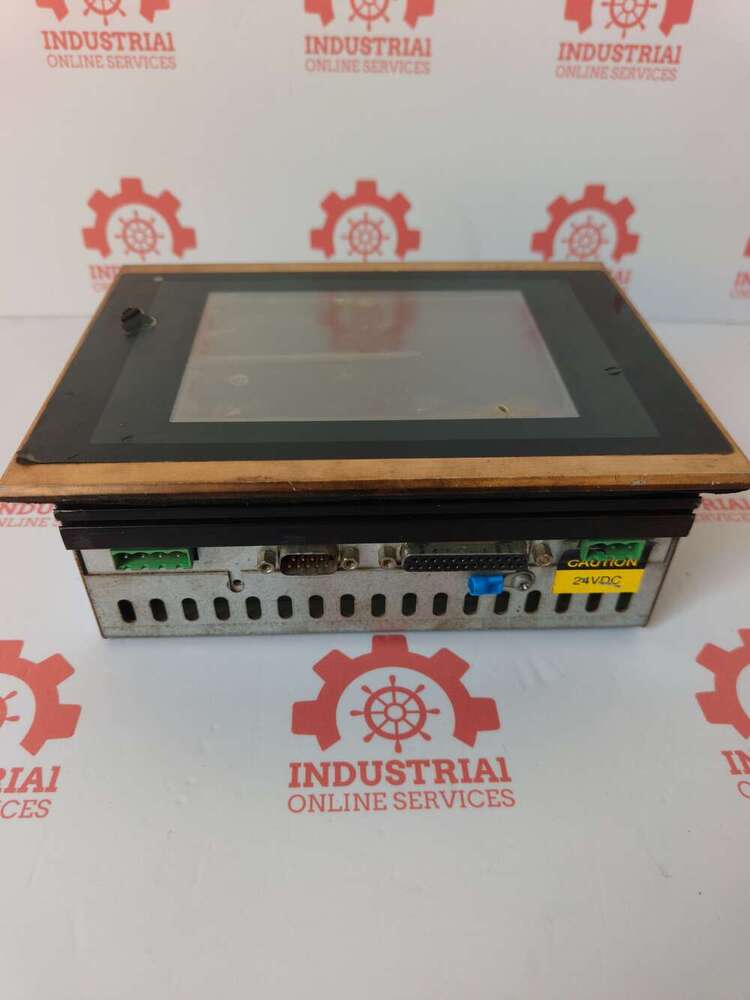

Connectivity Ports: Integrates hardware communication protocols via Ethernet, RS232, RS422, and RS485 serial interfaces.
Safety Class: Certified for hazardous industrial environments under Class I, Division 2 standards

Reliable Human-Machine Interface for Automation

The Beijer E615 04410C is built to enhance industrial automation with its reliable and efficient touchscreen HMI solution. It enables operators to easily monitor and control machinery, making processes smoother and more intuitive. With its clear display and robust design, the panel is ideal for factories, production lines, or any automation scenario requiring dependable operator interfaces.

Versatile Communication and Expandability

Equipped with a range of communication ports-including RS232, RS422/RS485, and optional Ethernet-the E615 panel seamlessly fits into various control networks. Adaptability across models ensures compatibility with existing and new industrial setups. The model's replaceable backlight and accessible design also simplify on-site maintenance and upgrades.

FAQ's of Beijer E615 04410C HMI Operator Panel:

Q: How do I mount the Beijer E615 04410C operator panel in my industrial setup?

A: The E615 is designed for panel mounting. Simply follow the manufacturer's guidelines, ensuring the cutout matches the panel's dimensions (230 mm x 170 mm x 45 mm) and the mounting secure for the panel to achieve its front IP65 protection.

Q: What are the main benefits of using the Beijer E615 as an HMI in automation systems?

A: This HMI panel provides a clear touchscreen interface, versatile communication options, and reliable performance. Its robust construction (IP65 protection) and efficient processing power help minimize downtime, enhance operator control, and ensure better visualization of process data.

Q: What is the recommended operating environment for this HMI?

A: Operate the E615 panel in conditions between 0C and 50C, within 10% to 90% relative humidity (non-condensing) to maintain performance and longevity. The panel's front is IP65-rated for resistance to dust and water jets.

Q: Where does this operator panel get its power and how much does it consume?

A: It requires an external 24 V DC supply, consuming approximately 20 W with a maximum current of 0.8 A. This allows for stable operation and compatibility with most industrial DC power supply systems.

Q: What communication interfaces are available for connecting the E615 to other systems?

A: Depending on the specific model, the E615 supports RS232, RS422/RS485, and sometimes Ethernet ports. This flexibility allows easy integration into various industrial control networks or PLCs.

Q: Is the E615 suitable for replacing in older control systems or for new setups?

A: Yes, the E615's standard panel size, communication flexibility, and DC power compatibility make it suitable for both retrofitting older systems and deploying in new automation projects.

Q: Are any accessories included with the E615 04410C panel?

A: No, the panel does not include additional accessories. You may need to source related mounting hardware or cables separately.
