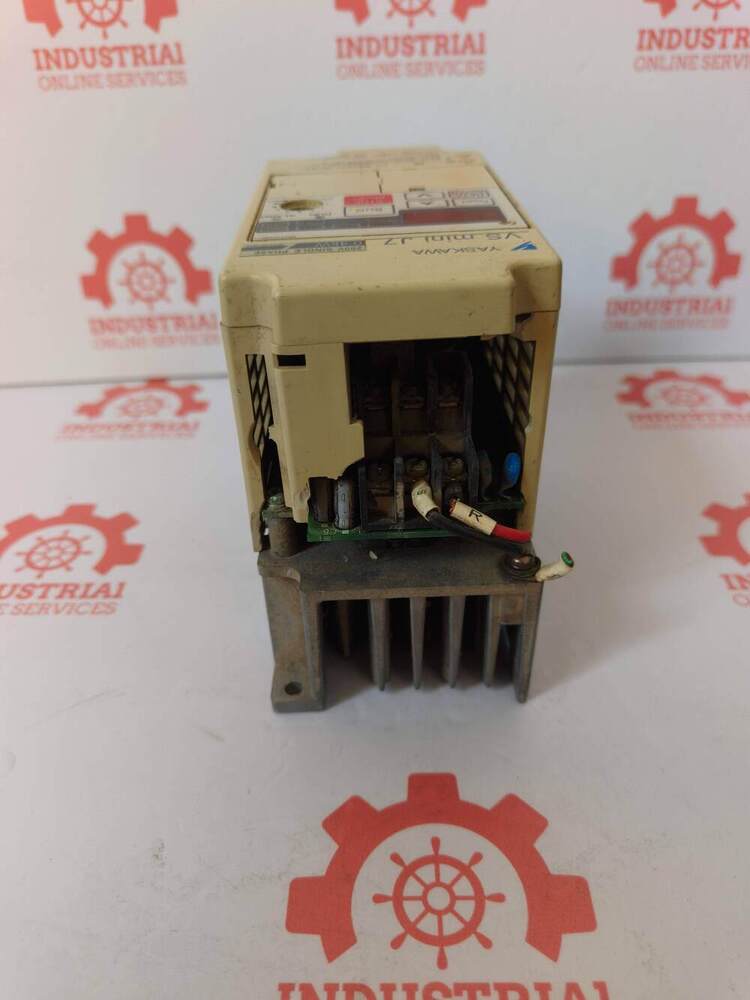

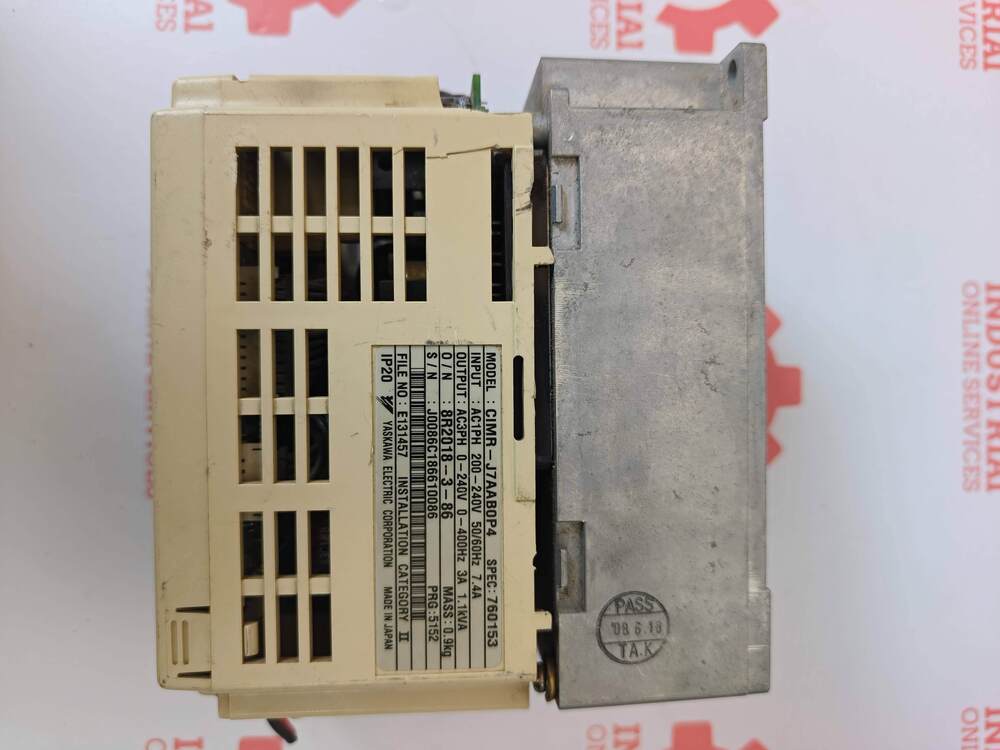

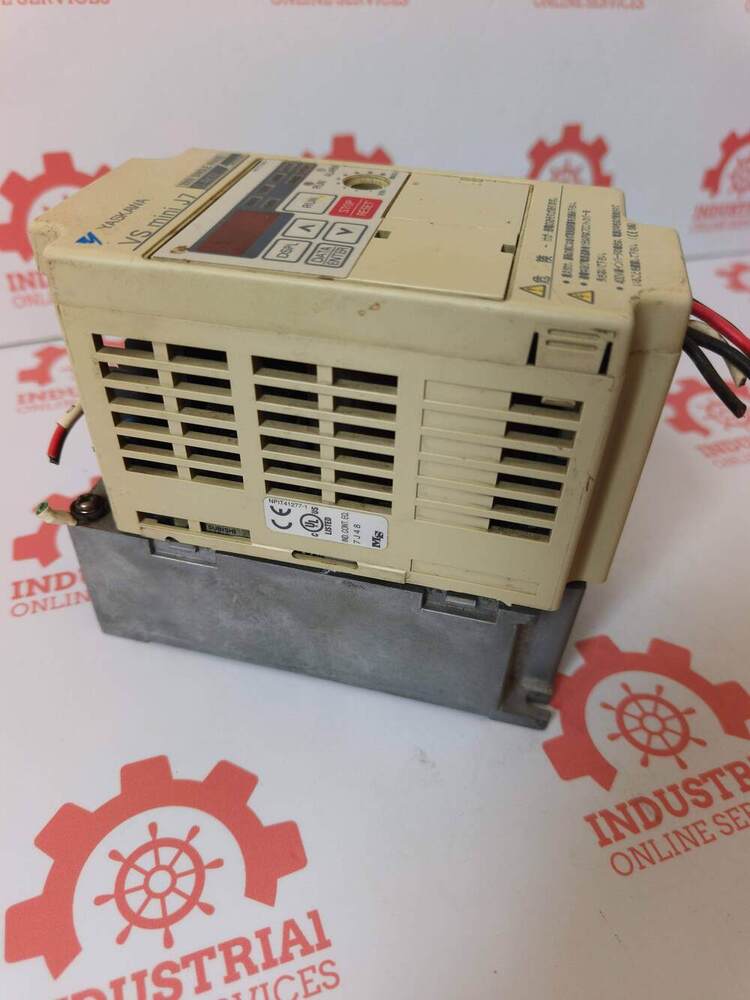

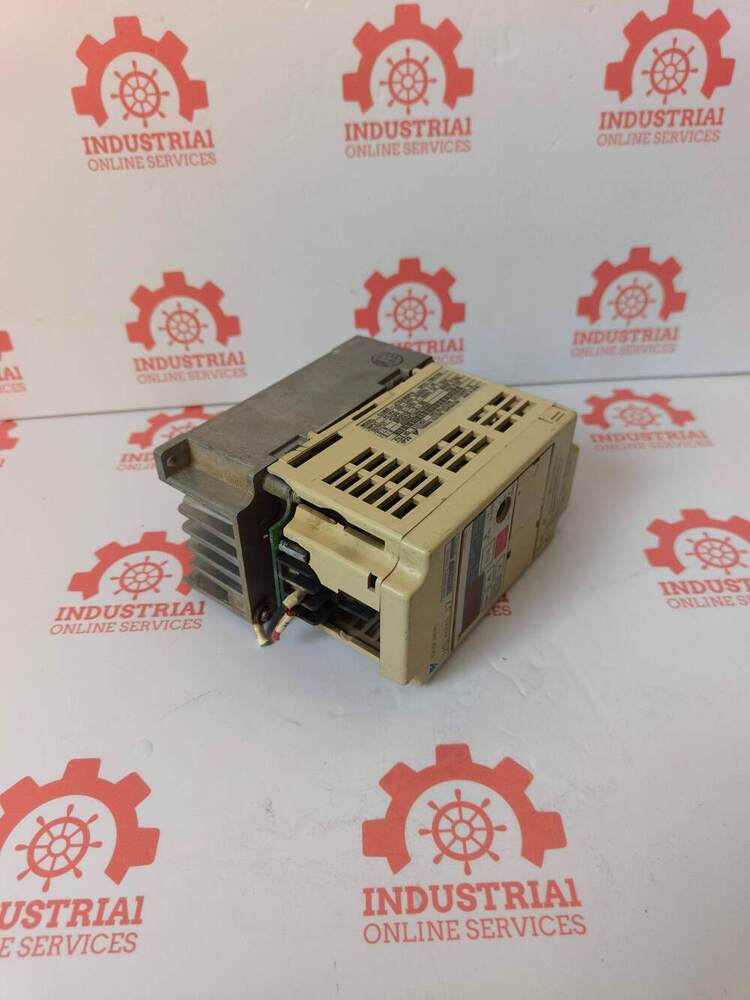

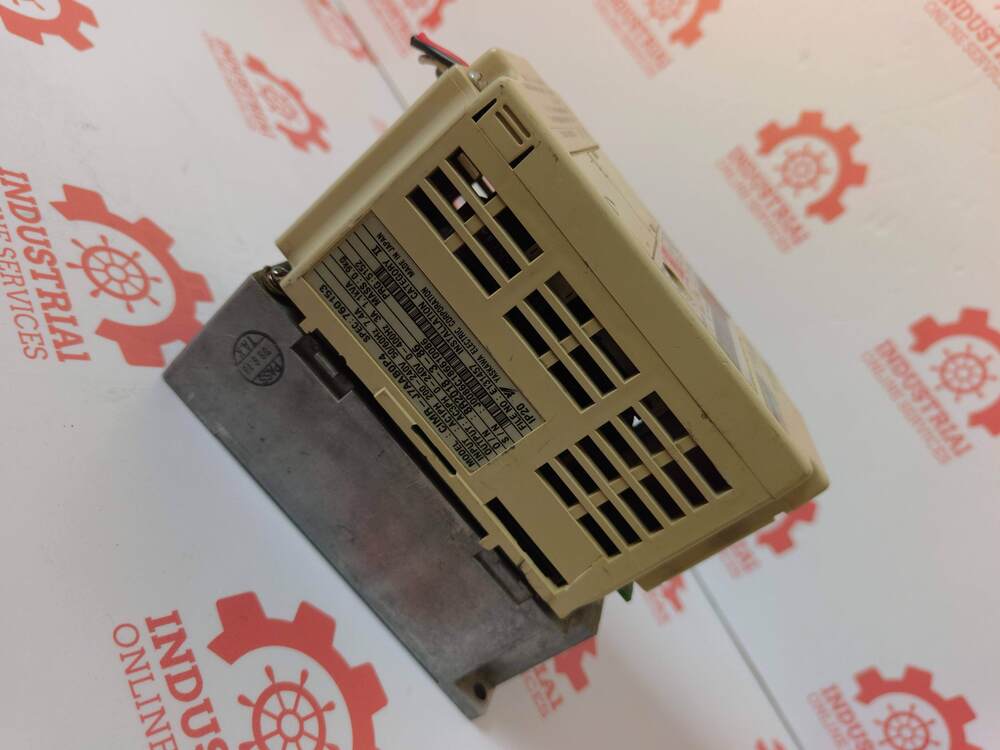

The CIMR-J7AAB0P4 is a compact Variable Frequency Drive (VFD) / Inverter part of the VS Mini J7 series manufactured by Yaskawa Electric Corporation. It is primarily engineered for precise industrial motor speed control applications. [1, 2, 3]

Key Technical Specifications

• Series Name: VS Mini J7 (also referred to as J7 Series)
• Power Rating: 0.4 kW (equivalent to approximately 0.5 Horsepower)
• Input Voltage & Phase: Single-Phase (1-Phase) 200V to 240V AC at 50/60 Hz (7.4A rated input current)
• Output Specifications: Three-Phase (3-Phase) 0 to 240V AC, with a frequency range of 0 to 400 Hz (3.0A rated output current, 1.1 kVA)
• Enclosure Rating: IP20 [1, 2, 3, 4]

Key Features

• Compact Footprint: Designed to save space inside automated industrial electrical panels.
• Phase Conversion: Capable of converting household or standard commercial single-phase input into a three-phase output to run standard industrial motors.
• Built-in Interface: Features an integrated digital operator on the front face for easy parameter setup, programming, and monitoring.
• Durability: Incorporates forced-air cooling to maintain optimal operating temperatures under continuous manufacturing workloads.
