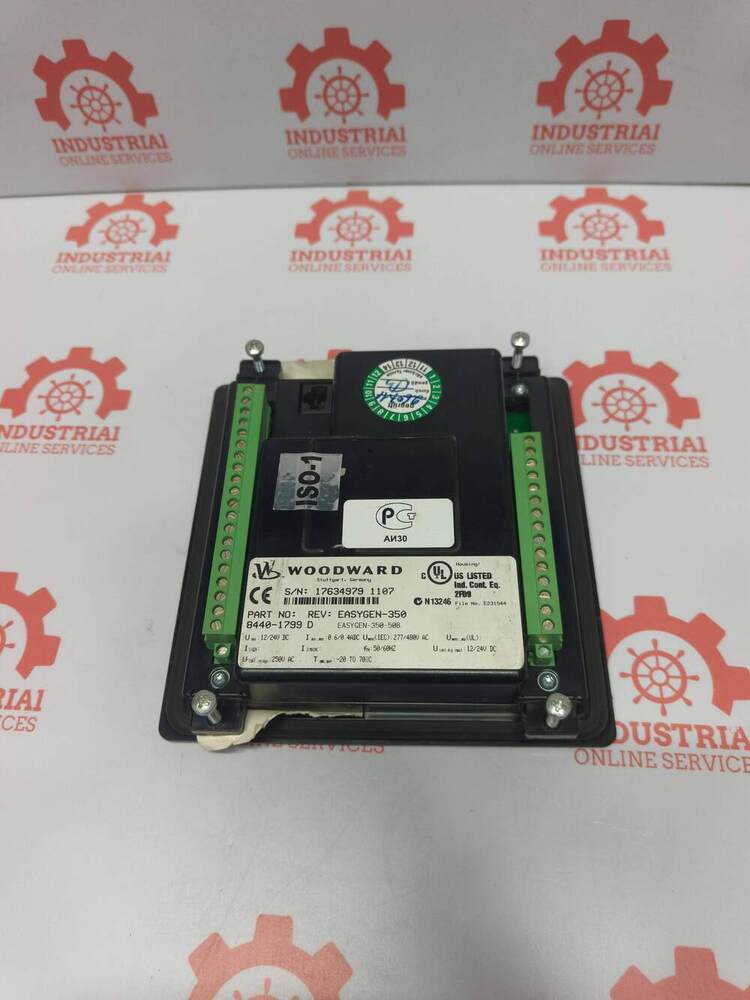

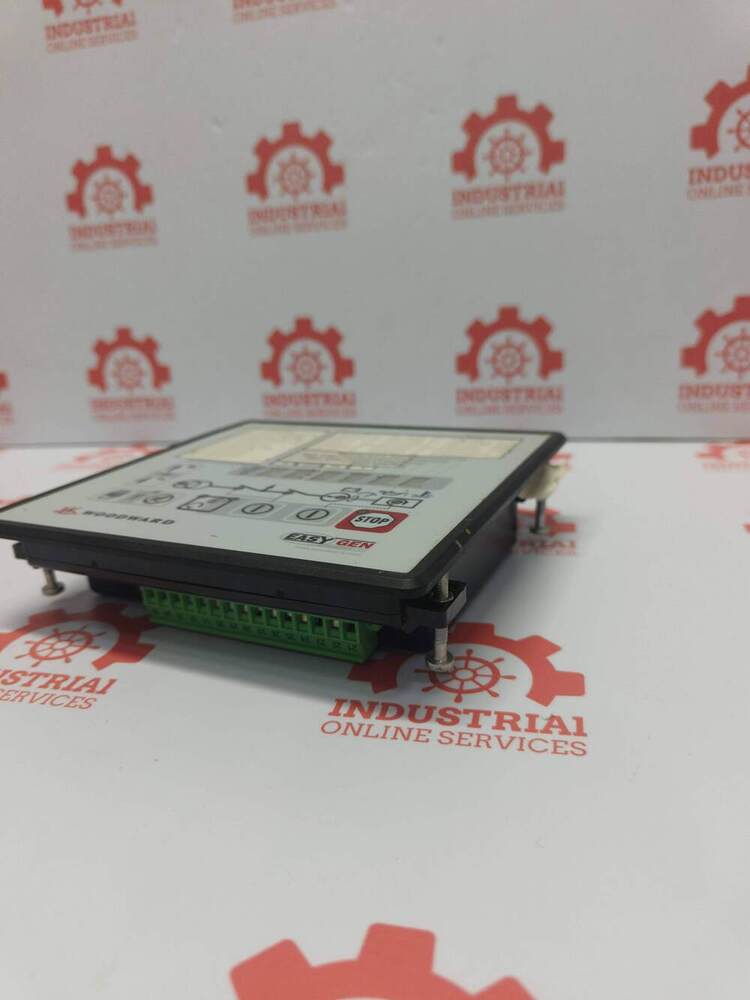

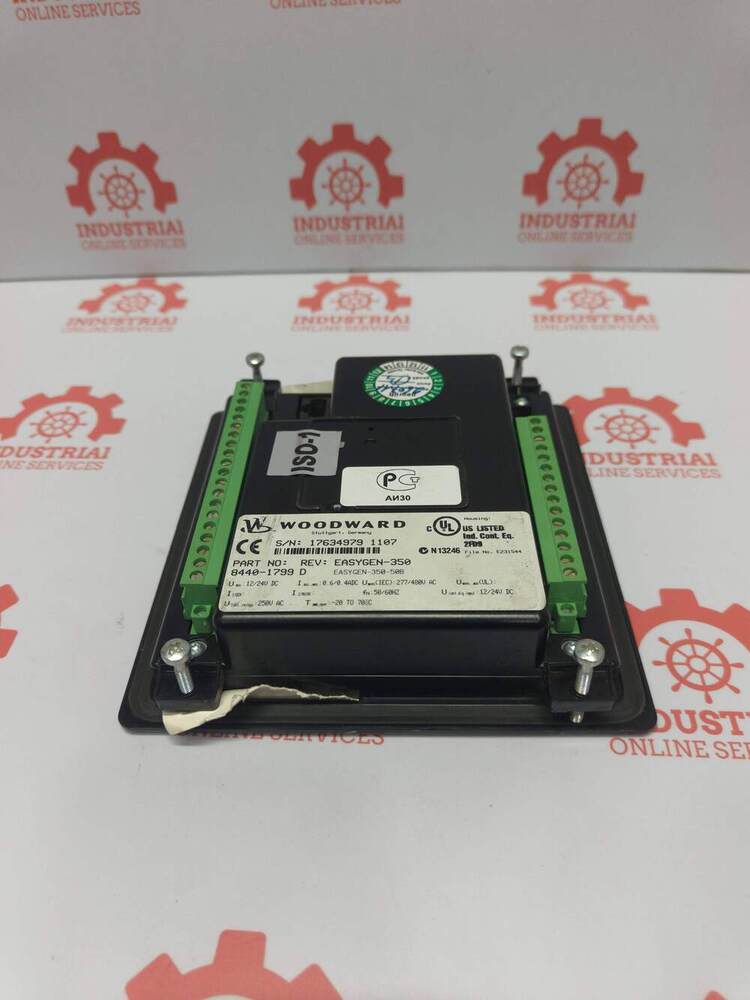

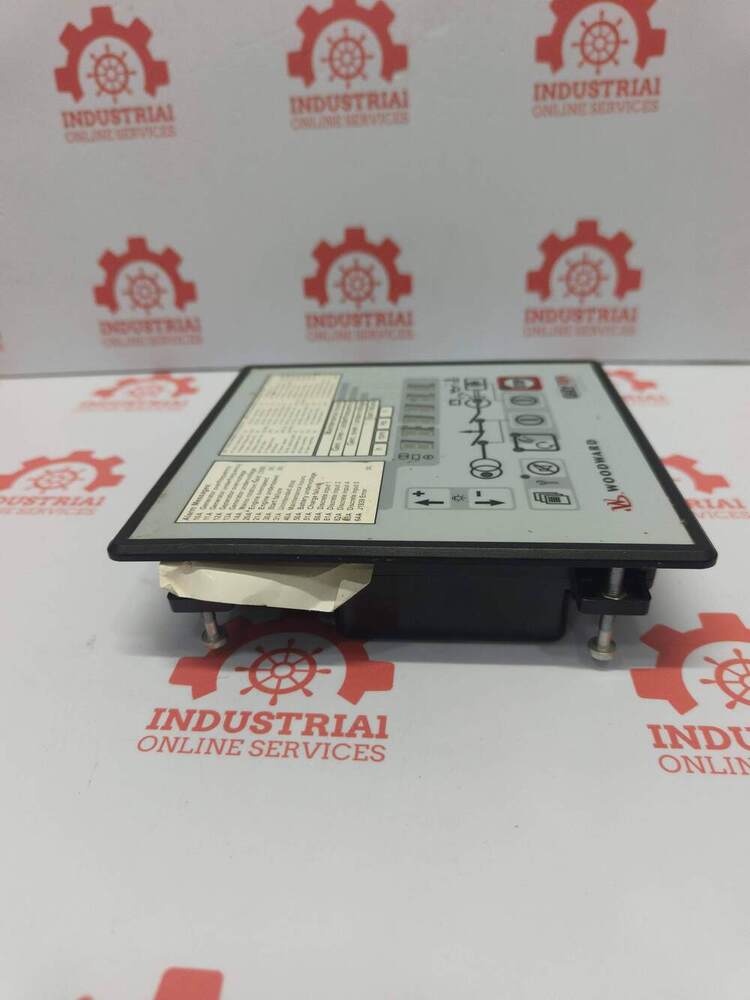

WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller

Send Inquiry

Request To Call Back

WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller

Name: WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller Specification

Output Voltage
Relay Contacts up to 250VAC/8A

Input Current
Max 0.4A at 24VDC

Mounting Type
Panel Mount

Phase
3-Phase / 1-Phase Supported

Frequency
50/60 Hz autoselect

Protection Level
IP54 (Front)

Operating Temperature
-20C to +70C

Humidity
95% RH Non-Condensing

Efficiency
High efficiency microprocessor control

Rated Voltage
8 - 40 VDC

Main Material
Polycarbonate (Front), Metal Housing

Processing Type
Microprocessor Based Control

Condition
New

Function
Automatic Generator Control, Synchronization, Load Sharing

Application
Genset Control, Synchronizing, Protection & Monitoring

Dimension (L*W*H)
144 mm x 144 mm x 62 mm

Power Mode
DC Powered

Voltage
8 - 40 VDC

Power Consumption
< 10W

Battery Life
Not Applicable (controller is powered externally)

Accessories
Standard Mounting Kit Included

Firmware Upgrade
Field Upgradable via Communication Port

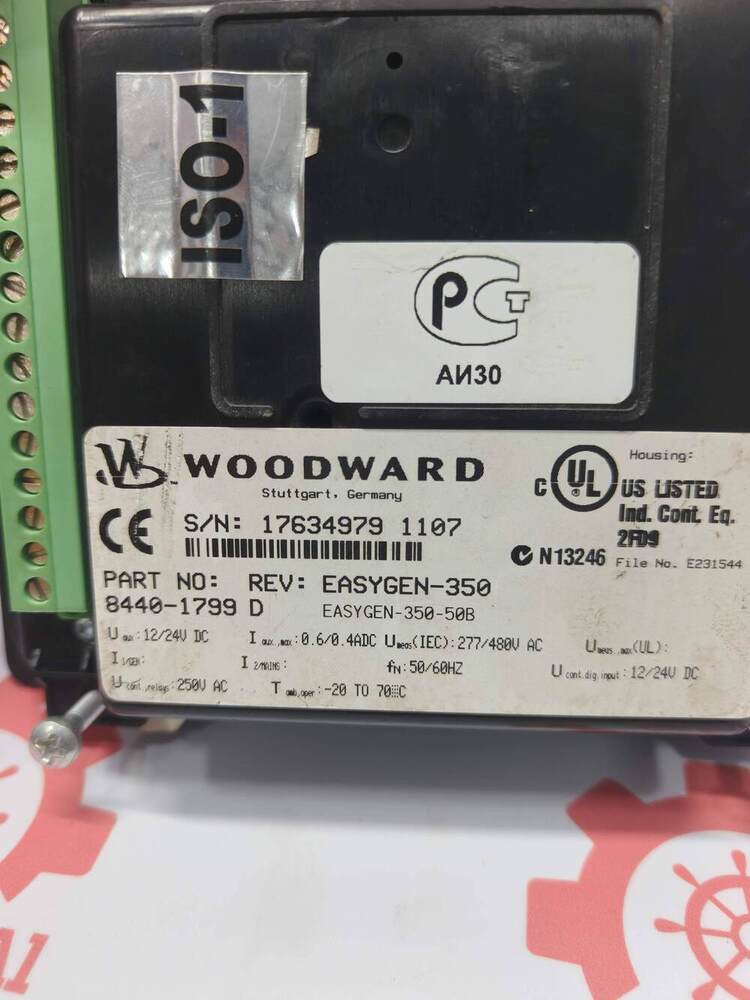

Part Number
8440-1799

Output Relays
Configurable Outputs

Model Number
EasYgen-350

Communication Interface
RS-485 (Modbus RTU)

Measurement Input
Voltage, Current, Frequency, Power, Power Factor

Memory Backup
Non-volatile EEPROM

Alarm
Integrated Audible Alarm

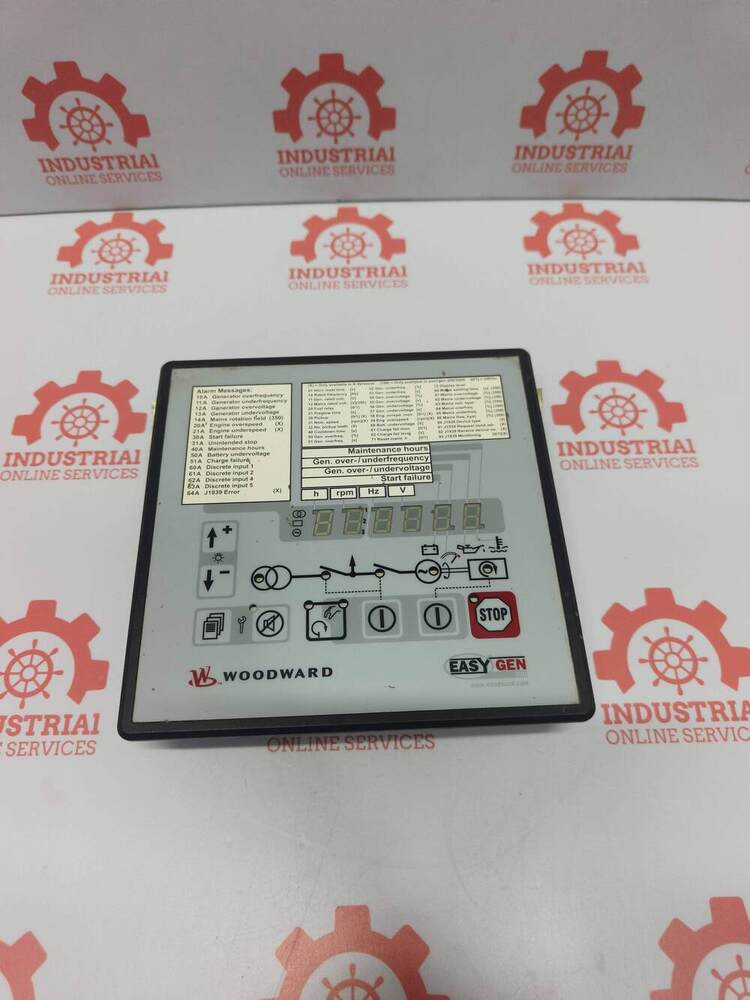

Display
Multifunction Backlit LCD

WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller

WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller

Technical Specifications

Power Input: 12/24V DC (Operational range generally supports standard industrial DC power)
Measuring Voltage: 277/480V AC (IEC compliance)
Frequency: 50/60 Hz compatibility
Weight: Approximately 450 grams
Mounting: Panel mounted design

Core Capabilities

Generator Control: Provides complete control and protection management for standalone diesel/gas generator sets.
Automation: Supports automated engine start/stop sequences, transfer switch operations, and mains/generator voltage monitoring.
Industry Applications: Commonly deployed across the power industry, commercial backup power systems, and petrochemical sectors.

Advanced Generator Control and Synchronization

The EasYgen-350 offers automatic control and precise synchronization for single or multiple gensets, making it suitable for diverse applications. Its microprocessor-based design facilitates efficient load sharing and system stability, while the integrated LCD provides real-time monitoring of key electrical parameters such as voltage, current, frequency, power, and power factor.

Rugged, User-Friendly Design

Built for durability, the EasYgen-350 comes with a polycarbonate front panel, metal housing, and an IP54-rated front, ensuring reliable operation in industrial and outdoor settings. User interaction is simplified with a multifunction backlit LCD and an integrated audible alarm for immediate alerts.

Flexible Communication and Firmware Upgradeability

Seamless integration into modern automation systems is achieved through the RS-485 (Modbus RTU) interface. Field firmware can be upgraded via the communication port, maximizing longevity and adaptability to changing requirements without removing the controller from service.

FAQ's of WOODWARD 8440-1799 Part Number For The EasYgen-350 Genset Controller:

Q: How do I upgrade the firmware on the WOODWARD EasYgen-350 controller?

A: Firmware updates for the EasYgen-350 can be performed in the field through the RS-485 (Modbus RTU) communication port. Follow the manufacturer's instructions to connect to the controller and safely load the latest firmware, ensuring minimal downtime.

Q: What applications is the EasYgen-350 controller best suited for?

A: The EasYgen-350 is ideal for generator control, synchronization, protection, and monitoring. It supports both single and multi-genset systems in industrial, commercial, and utility environments where automatic power management is critical.

Q: When should I use the configurable output relays in this controller?

A: The configurable output relays should be assigned based on your operational requirements, such as signaling faults, start/stop commands, or to activate auxiliary equipment. Programming is straightforward through the device's setup menu.

Q: Where can I mount the EasYgen-350 controller and what is included for installation?

A: The EasYgen-350 is panel-mounted and includes a standard mounting kit for convenient installation in control panels. The controller's design meets industrial panel standards and provides IP54 protection at the front.

Q: What is the process for integrating the EasYgen-350 with an existing automation system?

A: Integration is accomplished via the RS-485 (Modbus RTU) communication interface. Configure the communication parameters to match your system and follow the communication protocol for real-time data exchange and remote control.

Q: How does the controller ensure data retention during power loss?

A: The EasYgen-350 utilizes non-volatile EEPROM memory, which safely retains configuration and operational data even during power outages, eliminating the need for an internal battery and ensuring long-term reliability.

Q: What benefits does the EasYgen-350 offer over traditional genset controllers?

A: The EasYgen-350 delivers high efficiency, flexible communication, robust protection, and easy field upgrades. Its user-friendly interface, wide voltage input, and advanced synchronization capabilities offer significant advantages in modern generator management.
