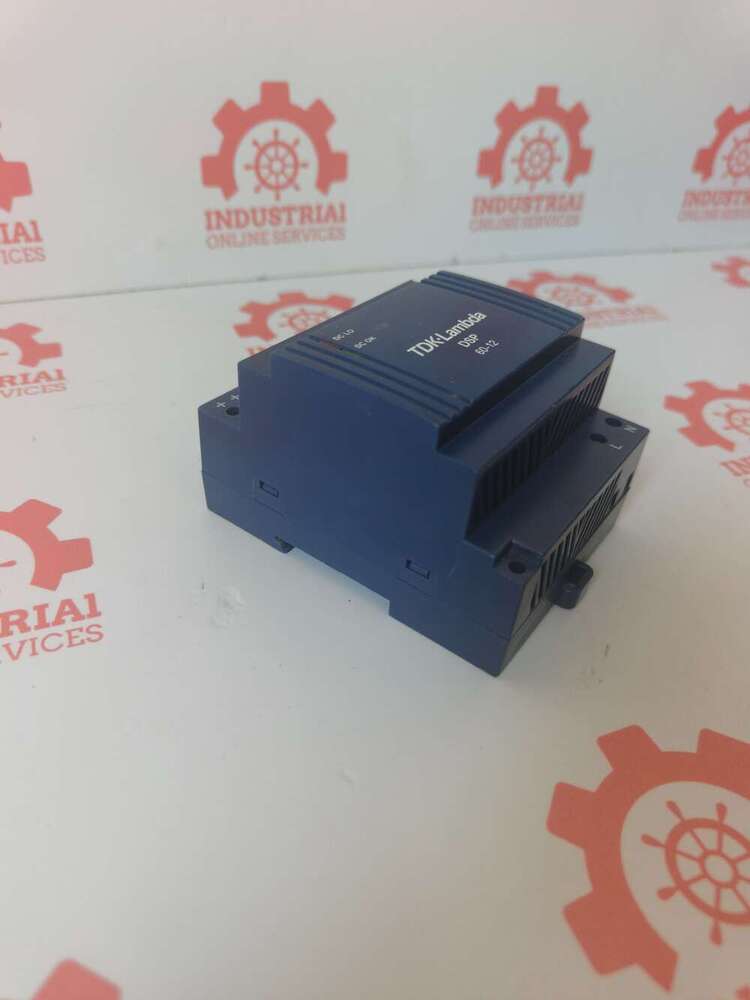

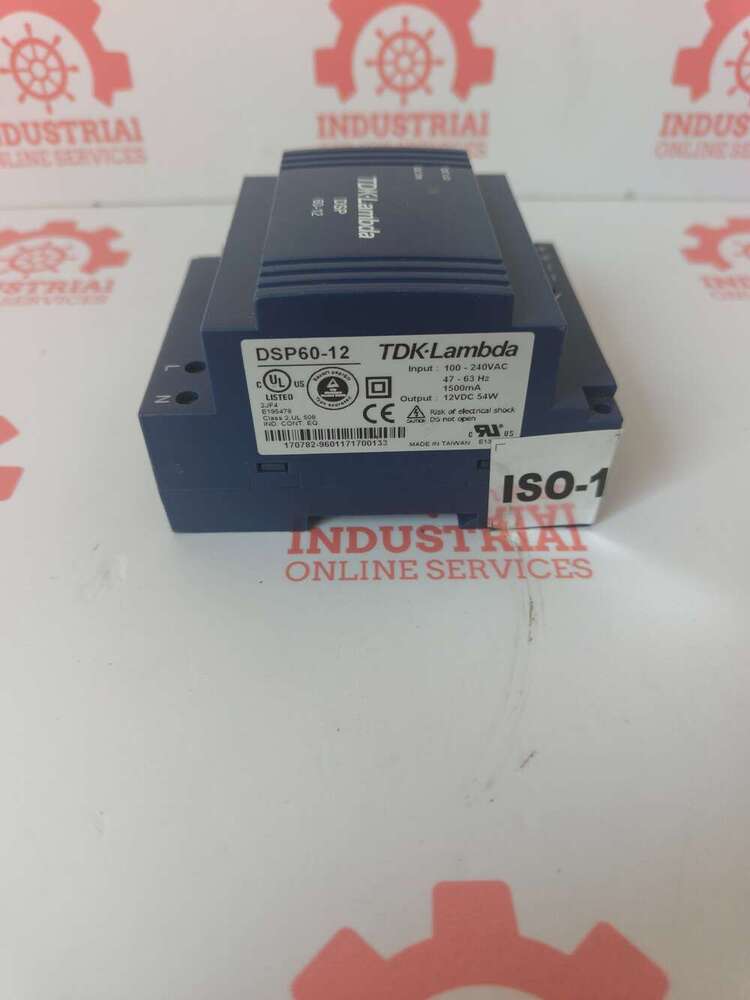

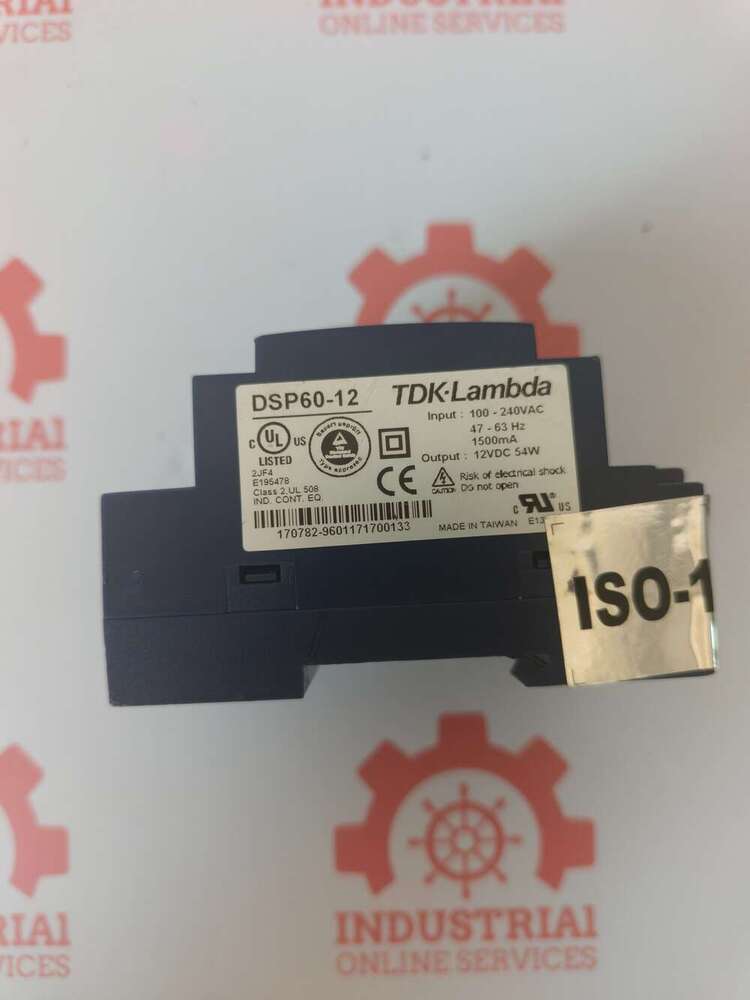

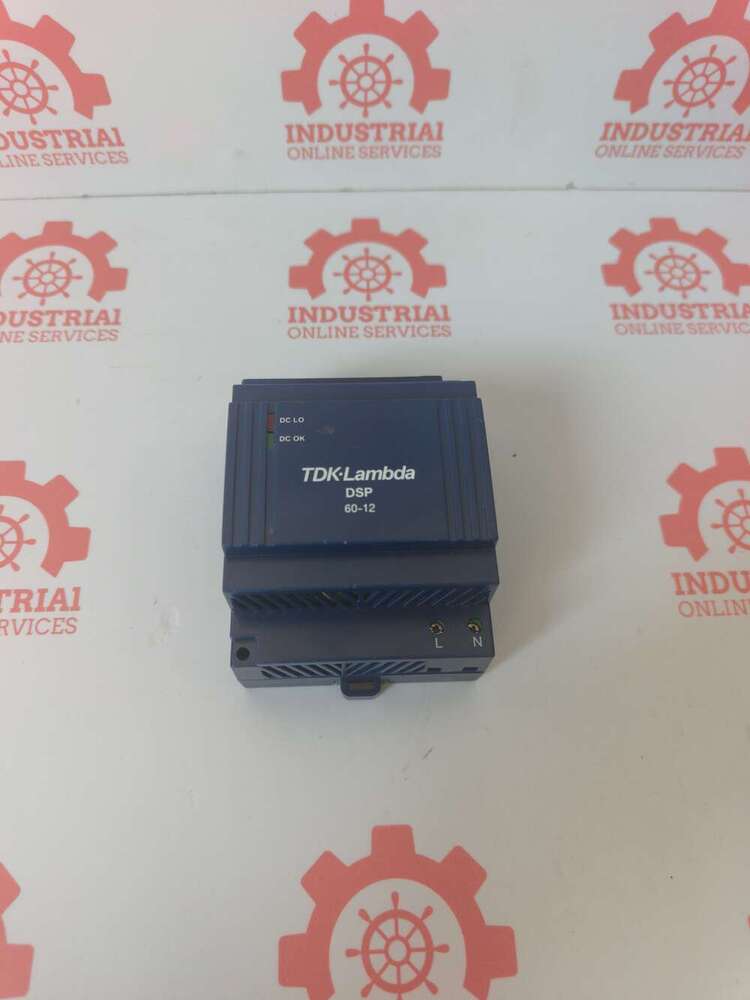

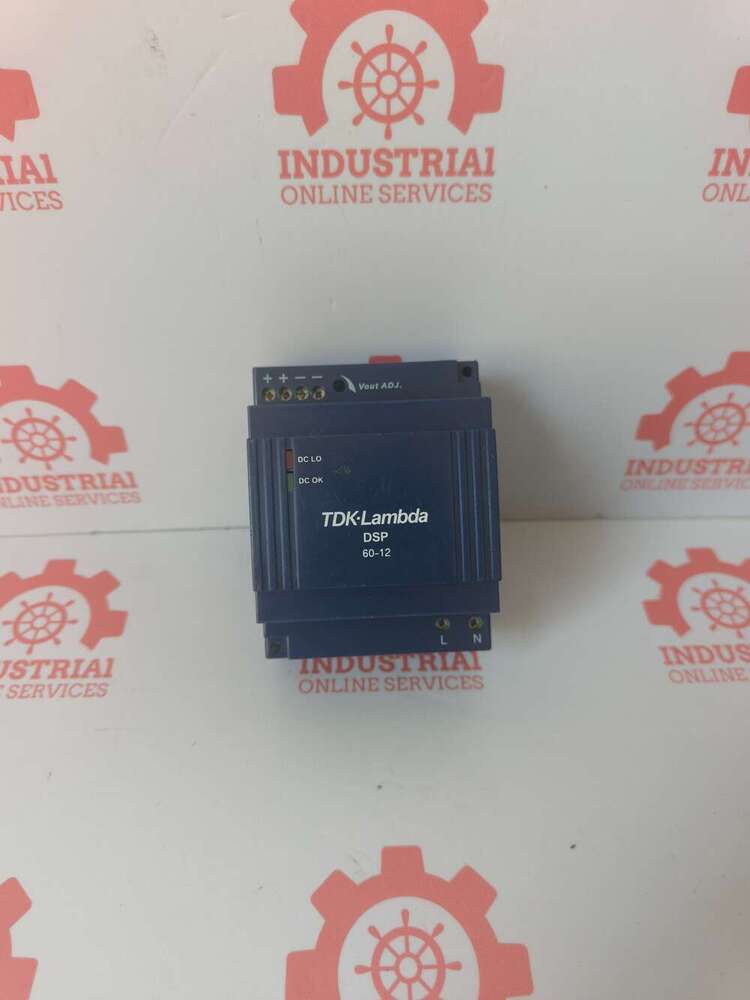

TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply

Send Inquiry

Request To Call Back

TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply

Name: TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply Specification

Phase
Single Phase

Humidity
20-90% RH (non-condensing)

Output Voltage
12V DC

Efficiency
more than 85%

Rated Voltage
12V

Frequency
47-63 Hz

Mounting Type
DIN Rail

Protection Level
Overload, Overvoltage, Short Circuit

Operating Temperature
-10C to +60C

Input Current
1.6A (at 100V AC), 0.8A (at 240V AC)

Main Material
Plastic and metal housing

Processing Type
Switching Power Supply

Condition
New

Function
AC to DC conversion and regulated DC supply

Application
Industrial automation, machinery, control panels

Dimension (L*W*H)
90 x 70 x 56 mm

Power Mode
AC/DC

Voltage
100-240V AC (Input)

Power Consumption
60W

Accessories
None included

Storage Temperature
-20C to +85C

Model Number
DSP60-12

Output Current
5A

Cooling Method
Natural air cooling

Ripple & Noise
< 120mVp-p

Isolation Voltage
3,000 VAC (input to output)

Weight
Approx. 340g

Adjustment Range
10.2 - 13.8V

Connection
Screw terminal

Standards Compliance
EN61000-3-2

LED Indicator
Power on indicator

TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply About

TDKLambda DSP6012 ACDC Din Rail Power Supply

Technical Specifications

Output Voltage 12V DC Adjustable from 12V to 14V

Output Current 45 A

Maximum Output Power 54W

Input Voltage Range 90264V AC or 120370V DC

Efficiency 84 typical

Operating Temperature 25C to 71C Delivers full power up to 61C without derating

Cooling Natural convection cooling

Dimensions 71mm W x 91mm H x 556mm D

Protections Shortcircuit overcurrent and overvoltage protection

Safety Certifications UL1310 Class 2 EN609501 UL508 CE

Robust Design for Industrial Applications

The DSP60-12 is engineered for industrial environments, offering outstanding durability with plastic and metal housing. Its isolation voltage of 3,000 VAC ensures safety, while natural air cooling enables quiet, reliable performance, free from moving parts that could fail over time.

Easy Installation and Operation

Equipped with a screw terminal connection and DIN rail mounting, the DSP60-12 is straightforward to install in control panels and machinery. The clear LED power indicator and voltage adjustment range (10.2 - 13.8V) add to its flexibility for on-site tuning and status checks.

Superior Efficiency and Compliance

Operating at over 85% efficiency and adhering to EN61000-3-2 standards, this supply delivers reliable power output while minimizing energy loss. Its wide input voltage range (100-240V AC) and robust protection features make it suitable for diverse global applications.

FAQ's of TDK-Lambda DSP60-12 AC/DC Din Rail Power Supply:

Q: How is the TDK-Lambda DSP60-12 power supply installed?

A: The DSP60-12 is designed for quick DIN rail mounting, typically found in control panels or machinery enclosures. Electrical connections are made easily via the screw terminal block, making integration into industrial systems straightforward.

Q: What are the main benefits of using the DSP60-12 in industrial automation?

A: This power supply ensures a stable 12V DC output with high reliability and over 85% efficiency. Its built-in protection and robust build offer long-term, low-maintenance operation, which minimizes downtime and supports complex automation tasks safely.

Q: When should the output voltage be adjusted, and how do I do it?

A: Adjust the output voltage within the 10.2 - 13.8V range if your specific application requires a voltage other than the default 12V DC. Adjustment can be done via the accessible trim potentiometer, following the recommended procedures during installation or maintenance.

Q: Where can the DSP60-12 be used?

A: The DSP60-12 is ideal for use in industrial automation, machinery, and control panels. Its robust design and operational temperature range (-10C to +60C) also make it suitable for various hardwired industrial and commercial settings.

Q: What protections does the TDK-Lambda DSP60-12 offer?

A: This model is equipped with overload, overvoltage, and short-circuit protection, safeguarding both the power supply and connected devices from common electrical faults.

Q: How does natural air cooling benefit the DSP60-12 power supply?

A: Natural air cooling eliminates the need for fans, reducing noise and potential mechanical failure. This enhances the supply's reliability and makes it suitable for noise-sensitive environments.
