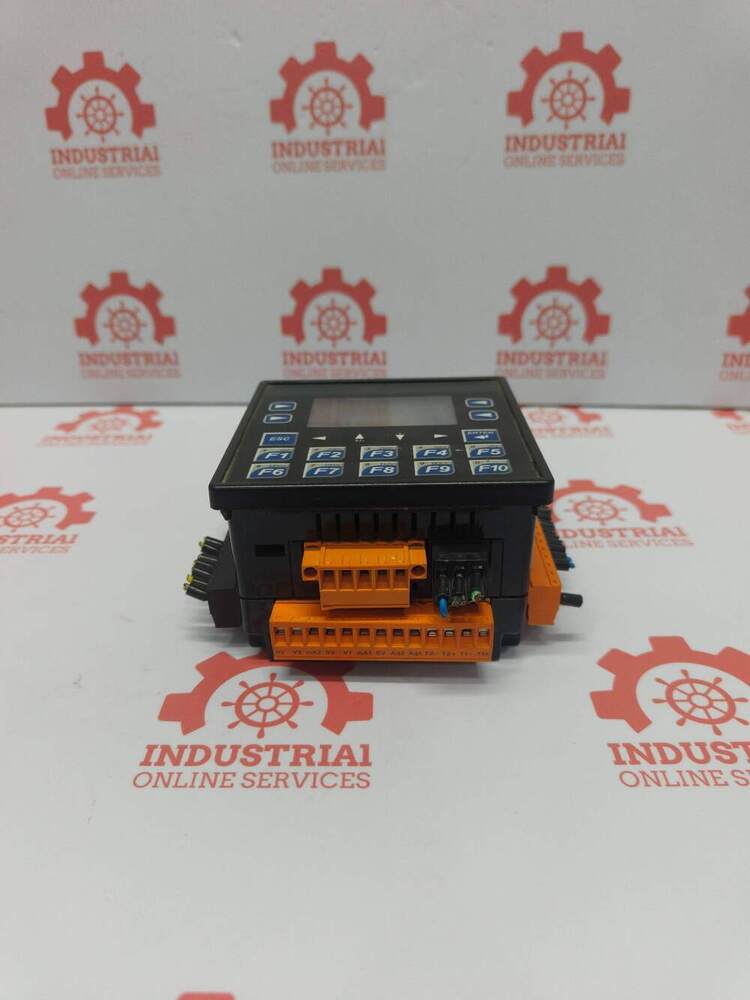

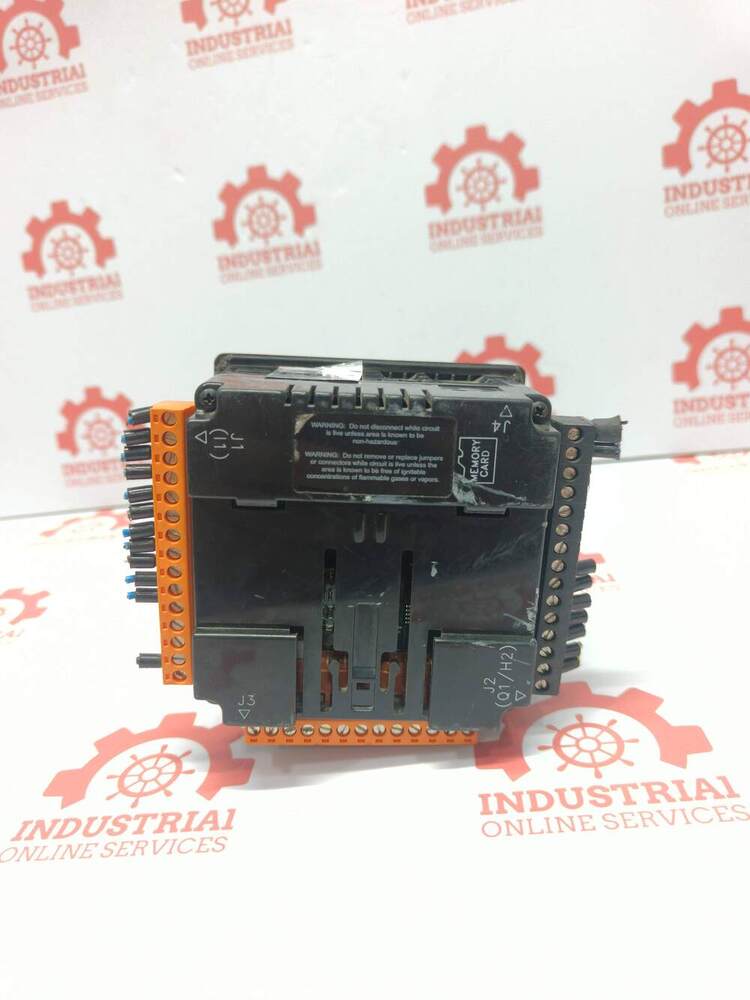

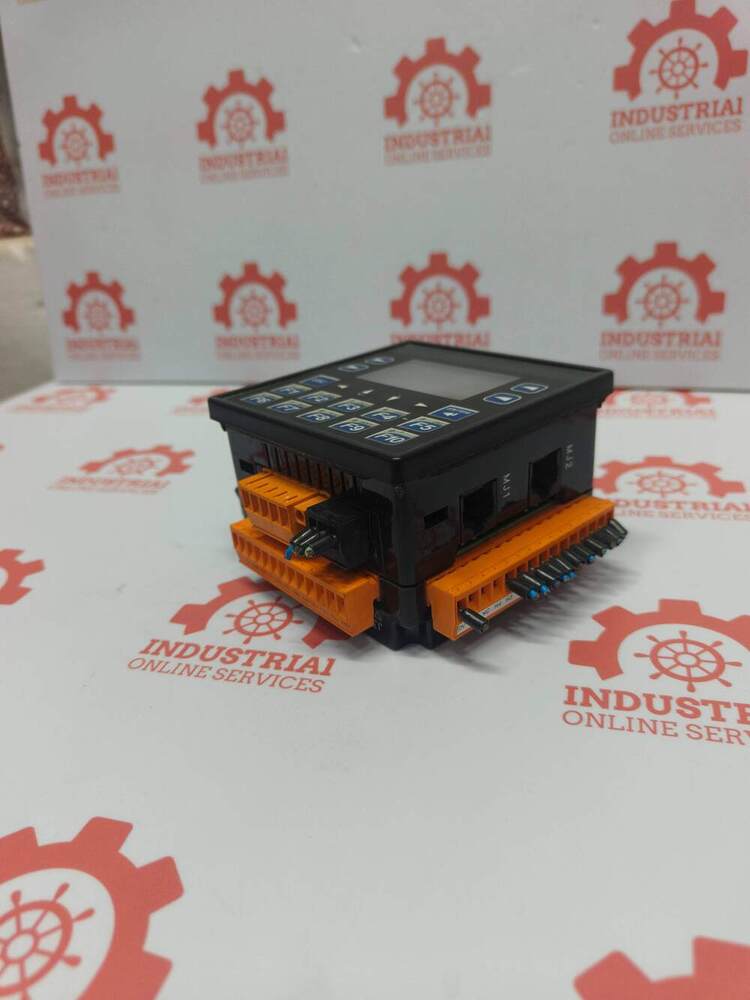

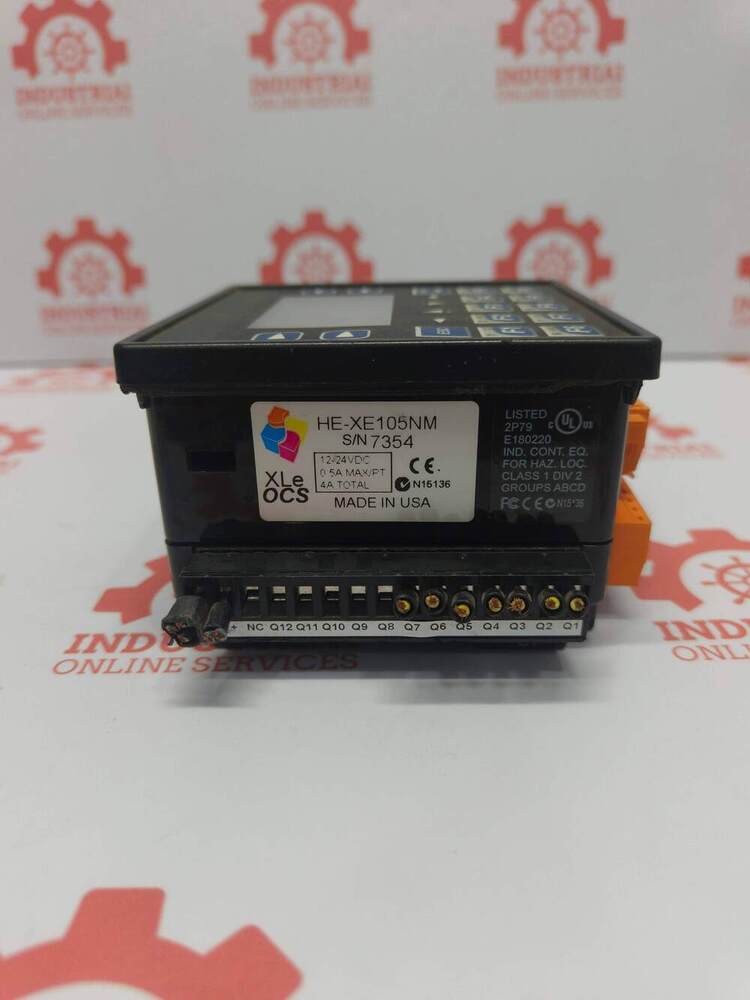

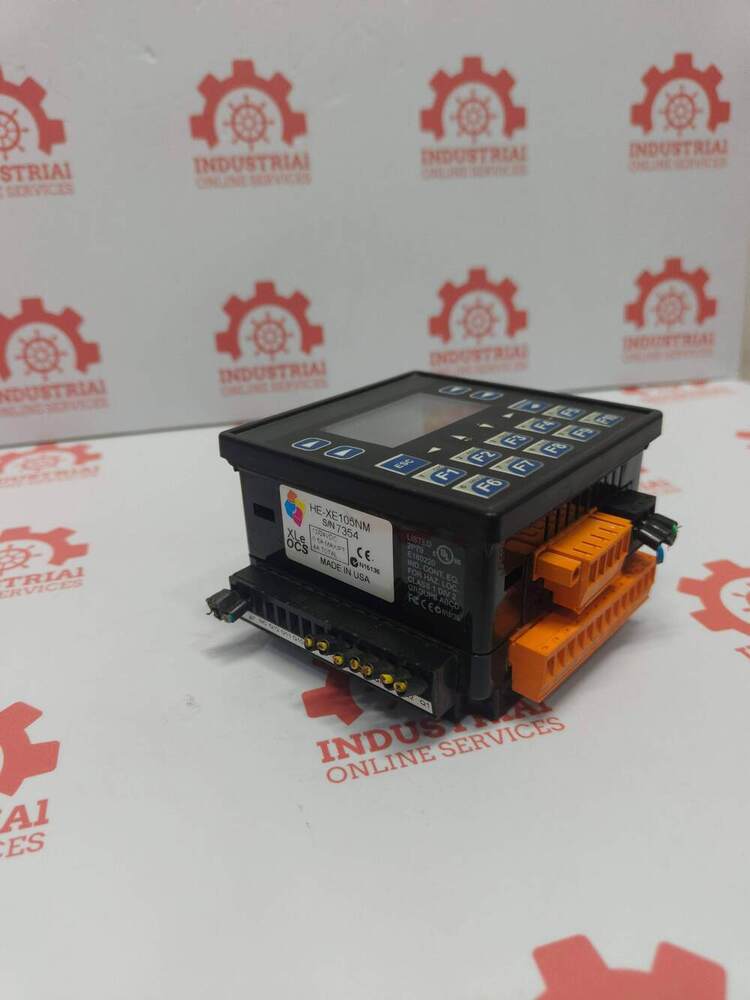

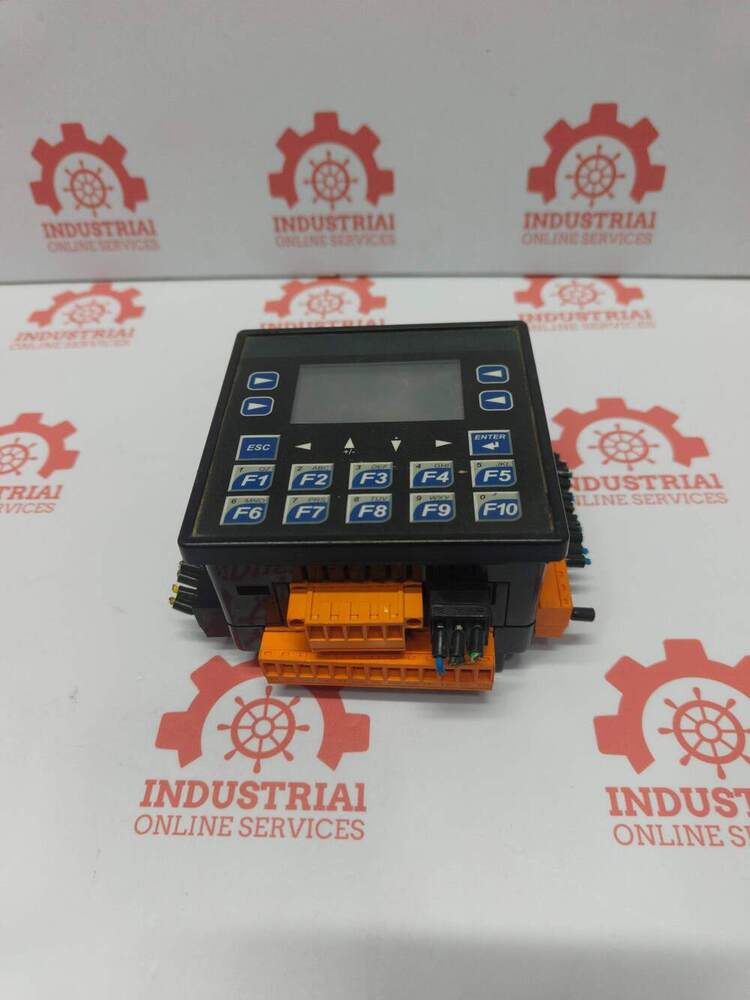

HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station)

Send Inquiry

Request To Call Back

HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station)

Name: HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station)
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station) Specification

Operating Temperature
-10C to +60C

Protection Level
IP65 (front panel)

Humidity
5% to 95% non-condensing

Efficiency
High efficiency MCU-based control

Frequency
50/60 Hz

Mounting Type
Panel mount

Phase
Single phase

Rated Voltage
24V DC typical

Output Voltage
Relay outputs, switching up to 30V DC / 250V AC

Input Current
Max 500mA

Main Material
Polycarbonate housing, industrial-grade components

Processing Type
PLC integrated operation and control

Condition
New

Function
All-in-one programmable logic controller (PLC) and operator interface

Application
Industrial automation, Process control, Machine operation interface

Dimension (L*W*H)
96 mm x 96 mm x 57 mm

Power Mode
DC Powered

Voltage
9-30V DC

Power Consumption
6W typical

Battery Life
User-replaceable battery, up to 5 years (typical)

Accessories
Mounting brackets, wiring connectors, user manual

Backlight
LED backlit display

Programming Software
Cscape

Touch Type
12 keypad programmable function keys

Model Number
XE-XE105NM

Number of I/O
20 digital I/O, 4 analog inputs, 2 analog outputs (model dependent)

Real Time Clock
Integrated RTC

Communication Ports
RS-232, RS-485, and optional Ethernet

Expansion Capability
Supports I/O expansion modules

Display Size
128 x 64 pixel monochrome graphical LCD, 2.25-inch

Response Time
Scan rate <1 ms per 500 instructions

Storage
Removable microSD storage slot

Weight
Approx. 300 g

HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station)

HORNER AUTOMATION XEXE105NM an AllInOne XLe Series OCS Operator Control Station

Key Technical Specifications

Feature Specification

Display 22 128x64 graphical monochrome LCD with a 20key numeric keypad

Digital Inputs 12 DC Inputs 12V24VDC with 4 inputs usable for 10kHz HighSpeed Counting

Digital Outputs 12 DC Outputs 05A per point with 2 outputs usable for PWM pulse generation

Analog Inputs 2 Universal 14bit Inputs supporting Thermocouple RTD 0100mV 010V and 420mA

Analog Outputs 2 12bit Outputs selectable between 010V and 420mA

Memory Processing 256KB application memory with a rapid 07mSK logic scan rate

Communication Dual RS232RS485 serial ports Modbus RTU MasterSlave and 1 integrated CsCANCANopen network port

Storage Removable MicroSD mass storage device slot for data logging and application updates

Environment Operating temperature of 10C to 60C NEMAUL Type 44X washdown protection

Integrated Operator Control Solution

Designed as an all-in-one PLC and operator interface, the XE-XE105NM maximizes performance and convenience in a single unit. Its 20 digital I/O, up to 4 analog inputs, and 2 analog outputs deliver versatile control for industrial automation, reducing wiring and space requirements on the panel while providing quick and reliable performance.

Industrial Durability & Efficiency

Encased in polycarbonate and built with industrial-grade components, the XE-XE105NM withstands harsh conditions including extreme temperatures (-10C to +60C) and high humidity (5-95% non-condensing). The IP65-rated front panel and robust design guarantee long-term reliability in demanding applications.

Flexible Connectivity & Programming

The OCS supports RS-232, RS-485, and optional Ethernet communication for seamless integration with various control networks. Programming and configuration are managed using the user-friendly Cscape software. The unit supports I/O expansion modules and features a microSD slot, enabling scalable, adaptable control solutions for evolving industrial needs.

FAQ's of HORNER AUTOMATION XE-XE105NM an All-In-One XLe Series OCS (Operator Control Station):

Q: How is the XE-XE105NM operator control station typically used in industrial automation?

A: The XE-XE105NM integrates PLC-based control and operator interface capabilities, making it ideal for machine operation interfaces, process control systems, and general industrial automation tasks. Users can monitor operations, modify parameters, and execute control logic in real time, ensuring streamlined and efficient workflows.

Q: What are the key steps involved in programming the XE-XE105NM?

A: Programming the XE-XE105NM is carried out using Cscape, Horner Automation's proprietary software. Users connect the device via the available communication ports, configure I/O, and assemble control logic and user interface screens within Cscape. The finished program is downloaded directly to the controller for immediate deployment.

Q: When should the user-replaceable battery for the real-time clock be changed?

A: The internal battery, which powers the integrated real-time clock (RTC), typically lasts up to five years. Replacement is recommended when the RTC loses accuracy, during routine maintenance, or as part of a five-year preventive maintenance schedule.

Q: Where can the XE-XE105NM be installed for optimal performance?

A: This unit is designed for panel mounting in industrial control cabinets or enclosures. It is suitable for a variety of settings, including manufacturing plants, processing facilities, and automation applications, provided the front panel is exposed to allow keypad access and display visibility while maintaining the IP65 protection.

Q: What expansion options does the XE-XE105NM offer for future system growth?

A: The controller supports I/O expansion modules, allowing users to increase digital or analog input/output as system requirements evolve. Optional Ethernet communication modules and removable microSD storage also support advanced data logging and networking capabilities.

Q: How does using the XE-XE105NM benefit industrial automation operations?

A: By combining PLC control, operator interface, robust I/O, and advanced communications in one compact device, the XE-XE105NM simplifies system architecture, minimizes wiring complexity, and supports rapid deployment, resulting in improved efficiency and system reliability.
