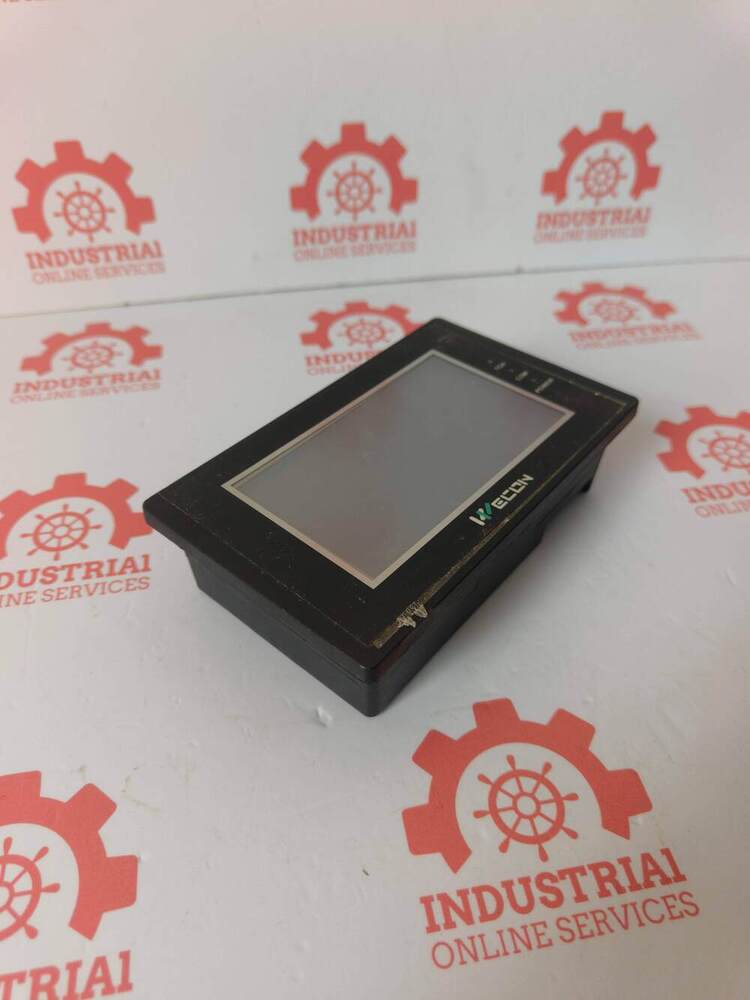

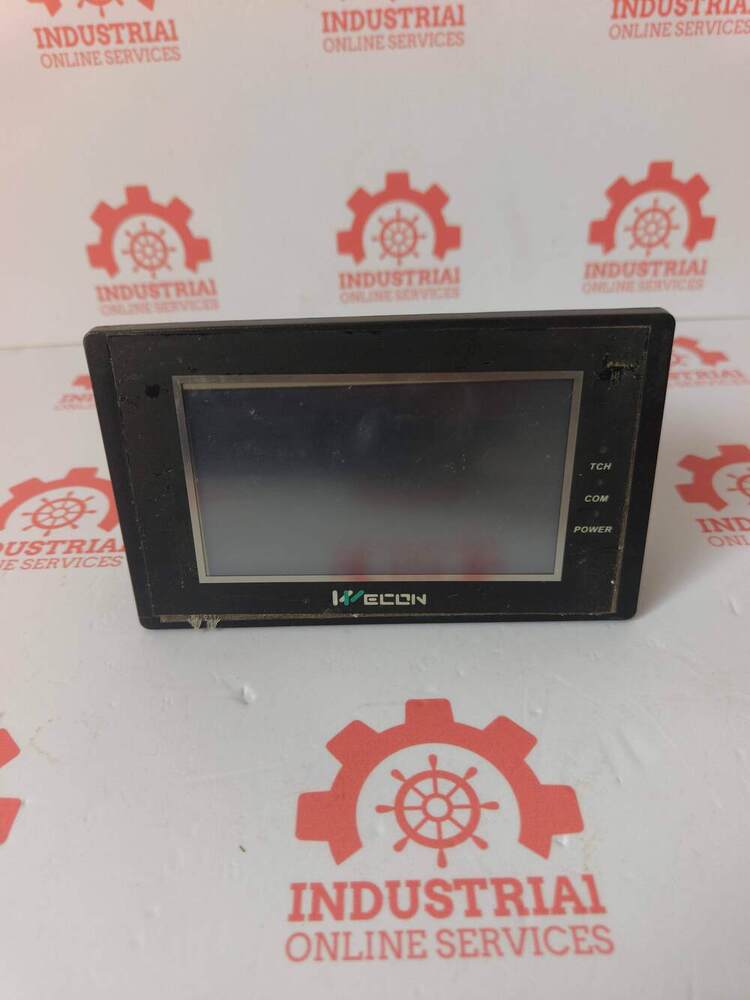

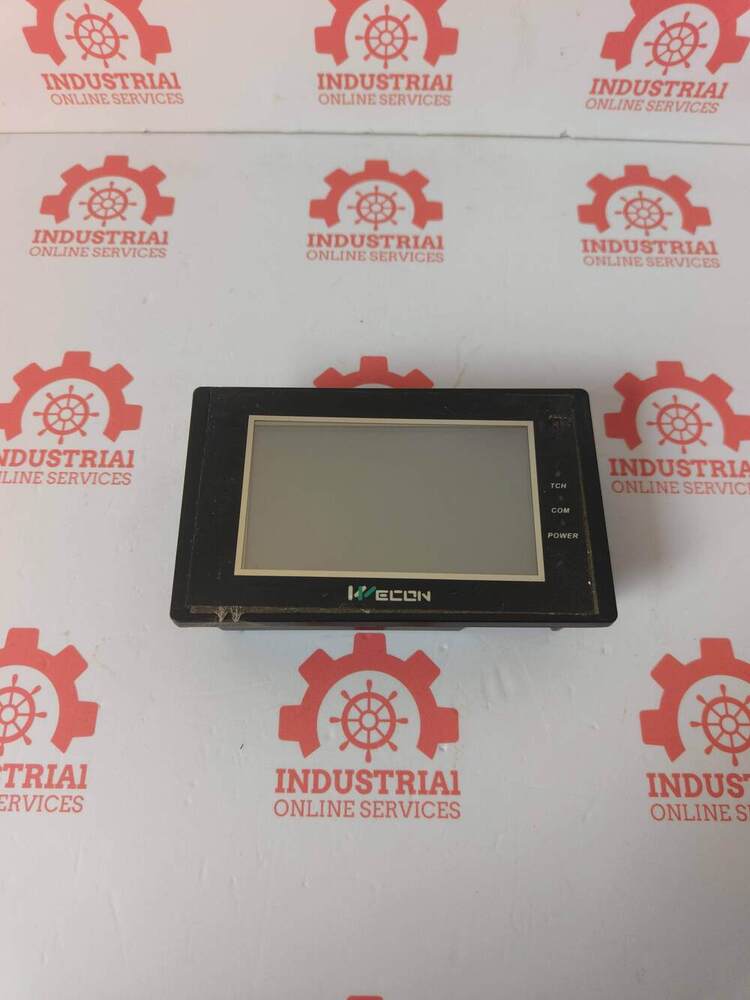

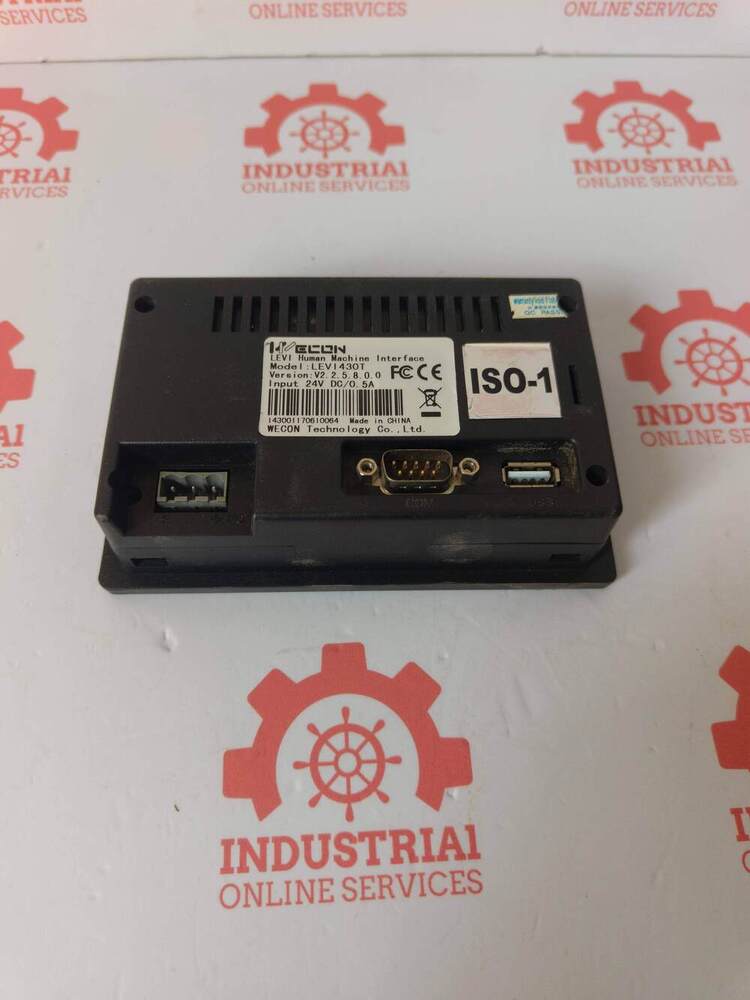

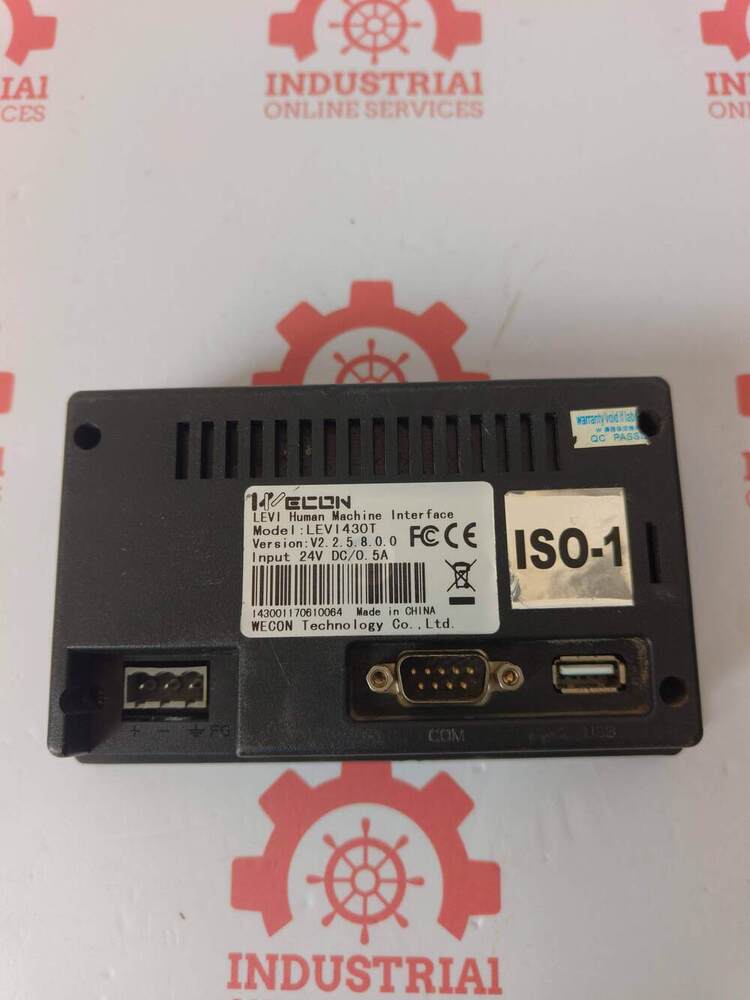

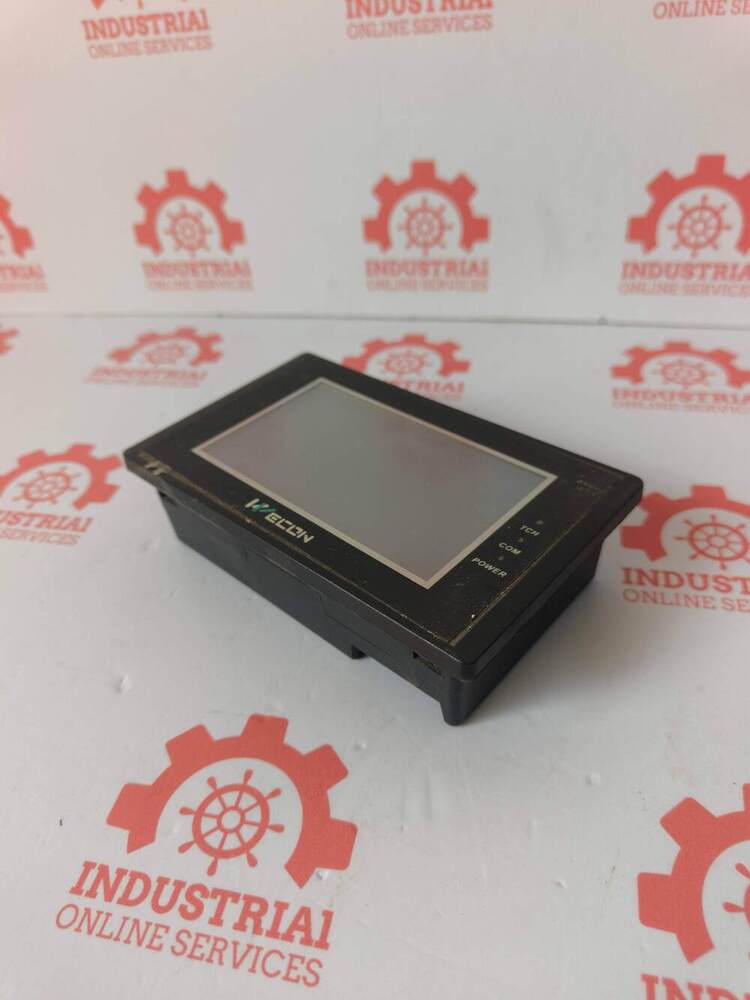

ECON LEV1430T Industrial Human-Machine Interface (HMI) Touchscreen Panel

Name: ECON LEV1430T Industrial Human-Machine Interface (HMI) Touchscreen Panel
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ECON LEV1430T Industrial Human-Machine Interface (HMI) Touchscreen Panel Specification

Humidity
10% to 90% RH (Non-Condensing)

Frequency
50/60Hz

Rated Voltage
24V DC

Efficiency
High

Operating Temperature
0C to 50C

Protection Level
IP65 (Front Panel)

Input Current
Max. 0.5A

Mounting Type
Panel Mount

Phase
Single Phase

Main Material
ABS Plastic Enclosure

Processing Type
Touch Input Processing

Condition
New

Function
Human-Machine Interface, Data Visualization

Application
Industrial Automation, Control Panels, Machine Interface

Dimension (L*W*H)
160 x 102 x 36 mm

Power Mode
DC Powered

Voltage
24V DC

Power Consumption
Approx. 10W

Accessories
User Manual, Mounting Clips

CPU
32-bit RISC Processor

Weight
Approx. 400g

Communication Ports
RS232/RS485/Ethernet

Backlight
LED Backlight

Storage Memory
128MB NAND Flash

Touch Technology
4-wire Resistive Touch

Display Size
7 inch TFT LCD

Color
Black Front Bezel

Resolution
800 x 480 pixels

ECON LEV1430T Industrial Human-Machine Interface (HMI) Touchscreen Panel Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ECON LEV1430T Industrial Human-Machine Interface (HMI) Touchscreen Panel

ECON LEV1430T Industrial HumanMachine Interface HMI Touchscreen Panel

Key Technical Specifications

Display Size 43inch true TFT LCD display

Resolution 480 272 pixels with 65536 colors

Processor 32bit RISC CPU running at 400 MHz

Memory 128 MB Flash storage paired with 64 MB SDRAM

Touch Panel 4wire precision resistance panel with a surface hardness of 4H

Interfaces Features a serial communication port supporting RS232 RS485 and RS422 protocols for connecting to PLCs Programmable Logic Controllers

Networking Standard variants do not support Ethernet

Programming Software Programmed and configured primarily using PIStudio software

Advanced Touchscreen Panel for Industrial Automation

The ECON LEV1430T HMI panel offers a 7-inch vibrant display and user-friendly interface tailored for real-time process control. It brings efficiency and versatility to automation, ensuring seamless interaction between operators and machines. With its high protection level, it can withstand harsh industrial settings, making it perfect for control panels, factory automation, and more.

Reliable Performance and Connectivity

Powered by a 32-bit RISC processor and 128MB NAND flash storage, this panel ensures swift operation and secure data handling. Multiple communication ports-including RS232, RS485, and Ethernet-allow easy integration into existing systems. The panel's IP65 front protection and operating range from 0C to 50C promise consistent reliability.

FAQ's of ECON LEV1430T Industrial Human-Machine Interface (HMI) Touchscreen Panel:

Q: How is the ECON LEV1430T HMI panel installed in control panels?

A: The ECON LEV1430T is designed for panel mounting. Use the included mounting clips and follow the installation guide in the user manual to securely fit the unit into your control panel cutout (160 x 102 x 36 mm). Ensure proper sealing for the IP65-rated front protection.

Q: What applications are suitable for this HMI touchscreen panel?

A: This panel is ideal for industrial automation projects, control panels, and machine interfaces. It enables operators to visualize data, monitor processes, and interact directly with machinery, enhancing the efficiency and safety of industrial operations.

Q: When should I use the resistive touch technology featured in this model?

A: The 4-wire resistive touch technology is best used in environments where operators may wear gloves or where durability is crucial. It allows precise input without requiring direct skin contact, making it suitable for industrial settings.

Q: Where can I connect the ECON LEV1430T for data communication?

A: Connection options include RS232, RS485, and Ethernet ports. You can choose the most suitable port depending on your existing automation network and easily integrate the panel into various systems.

Q: What benefits does the IP65 rated front panel provide?

A: The IP65-rated front panel offers outstanding protection against dust and water jets, allowing the panel to function reliably in demanding industrial areas. This ensures the longevity and minimal maintenance of the touchscreen unit.

Q: How does the panel handle power requirements and efficiency?

A: It operates on a 24V DC single-phase supply with low power consumption of around 10W and a maximum input current of 0.5A. This ensures energy efficiency while delivering consistent performance in continuous industrial usage.
