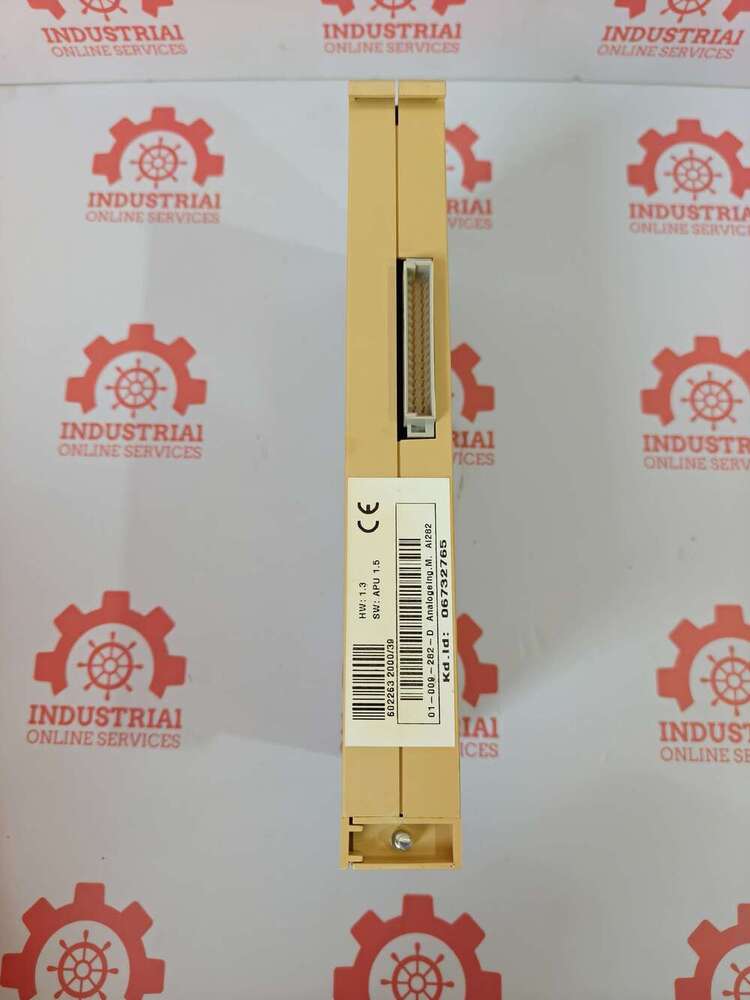

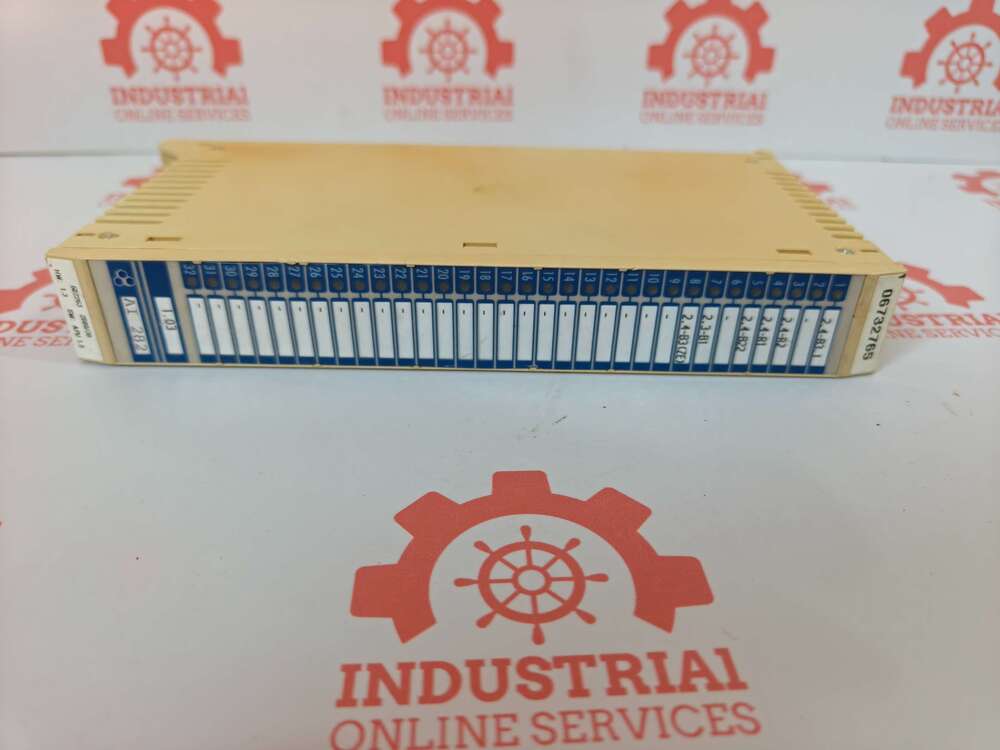

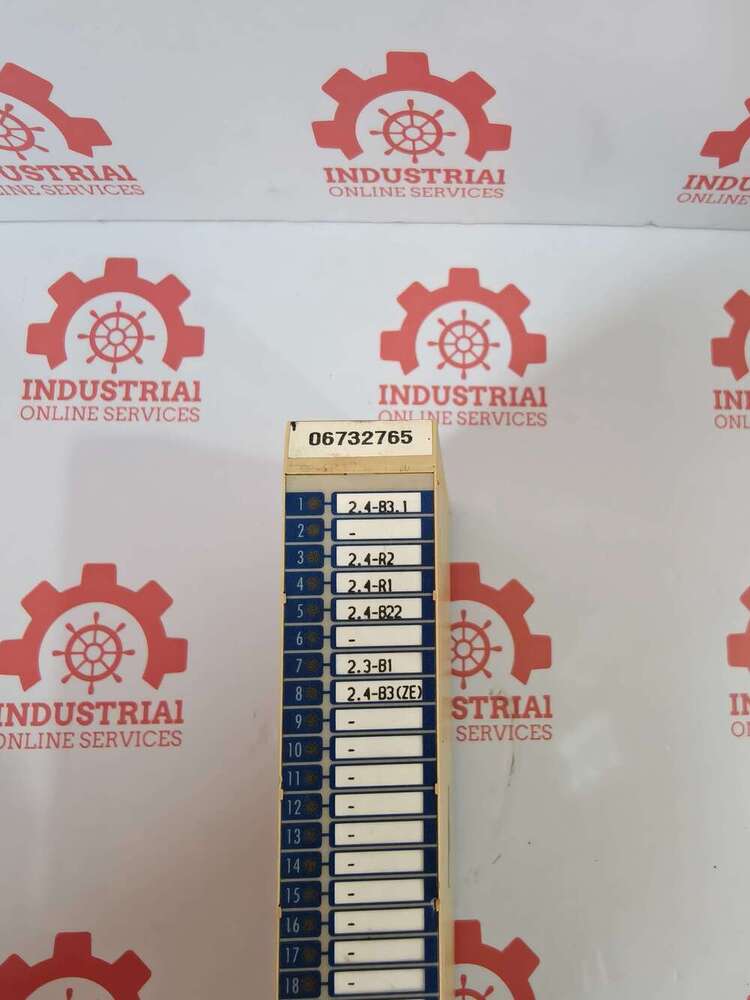

Mannesmann Demag AI282 06732765 PLC Analog Input Module

Name: Mannesmann Demag AI282 06732765 PLC Analog Input Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mannesmann Demag AI282 06732765 PLC Analog Input Module Specification

Operating Temperature
0C to +55C

Protection Level
IP20

Phase
Single Phase

Efficiency
High signal fidelity, industrial grade

Mounting Type
DIN Rail Mount

Frequency
50/60 Hz

Rated Voltage
24 V DC

Input Current
Max. 70 mA

Humidity
5% to 95% RH, non-condensing

Main Material
Industrial Grade Plastic/Metal

Processing Type
Input Signal Processing

Condition
New

Function
Analog Input Signal Acquisition

Application
Industrial Automation, Input acquisition for PLCs

Dimension (L*W*H)
125 x 20 x 120 mm

Power Mode
External Power Supply

Voltage
24 V DC (Supply Voltage)

Power Consumption
Approx. 2 W

Accessories
Module only, no accessories included

Response Time
22 ms

Storage Temperature
-25C to +70C

Input Signal Type
Analog (Voltage/Current configurable)

Isolation
Channel to bus isolated

Input Range
0-10V DC, 0-20mA, 4-20mA

Status Display
Integrated LED indicators

Module Type
AI282

Resolution
12 Bit

Bus Interface
Proprietary PLC Bus

Product Name
Mannesmann Demag AI282 06732765 PLC Analog Input Module

Weight
Approx. 180 g

Standards Compliance
CE, RoHS

Number of Analog Inputs
8 Channels

Mannesmann Demag AI282 06732765 PLC Analog Input Module Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Mannesmann Demag AI282 06732765 PLC Analog Input Module

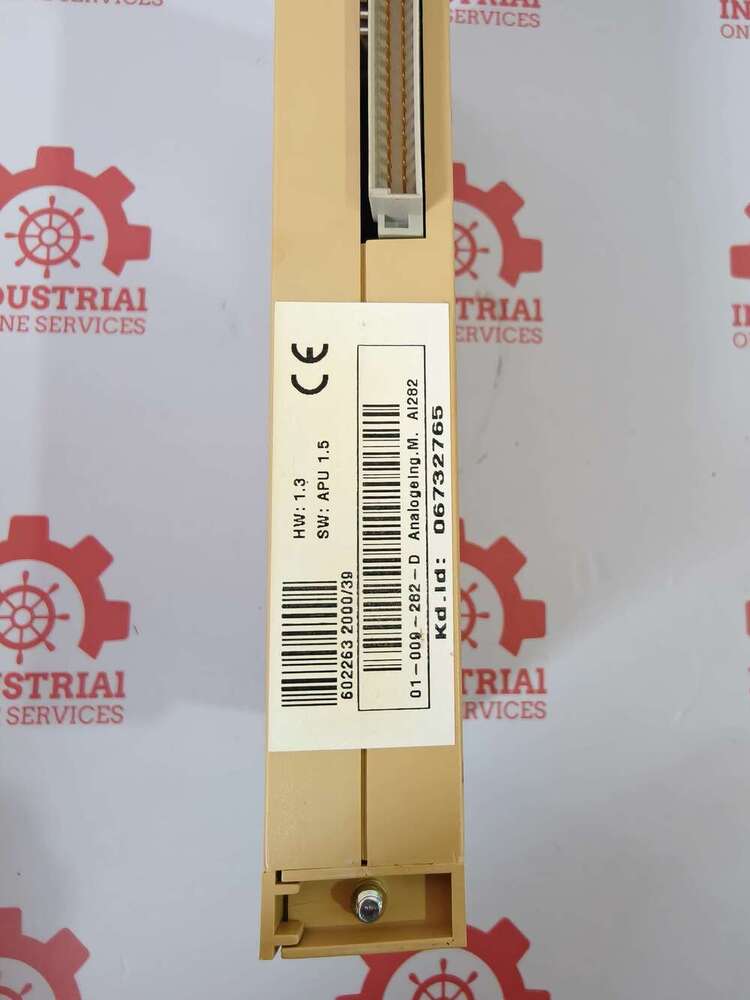

Mannesmann Demag AI282 06732765 01-009-282-D PLC Analog Input Module

Product Specifications & Details

Device Type: Analog Input Module / Peripheral PLC Card
Model Name: AI 282 (sometimes labeled as AI282)
Part ID: 06732765 (Customer ID / Identification Number)

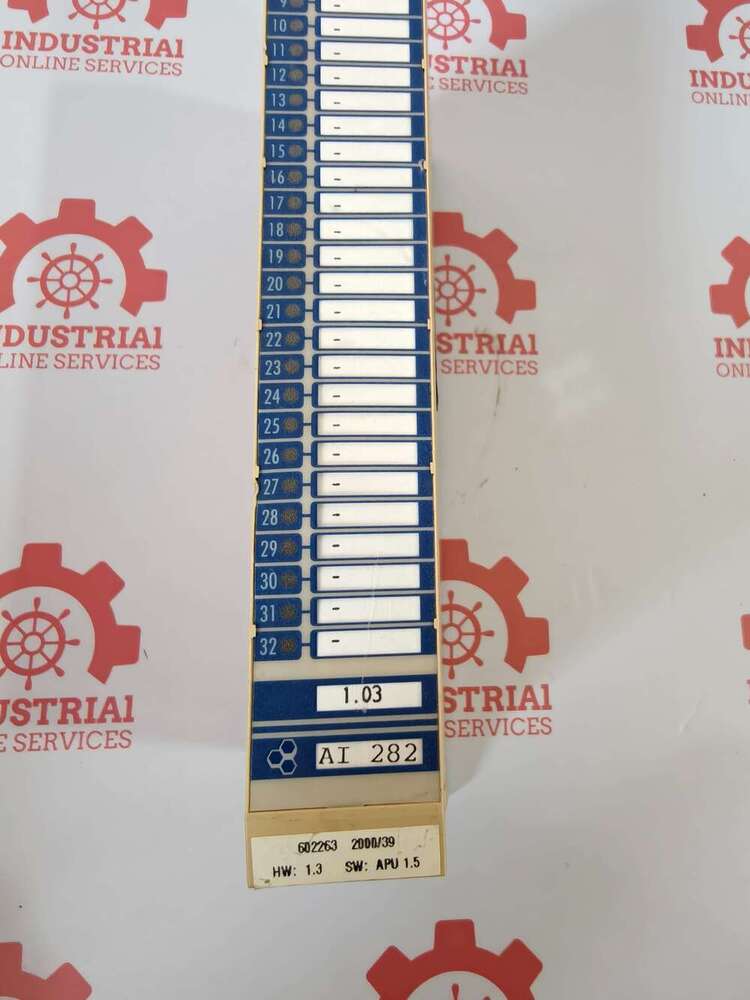

Hardware Version: Often found as HW:1.3
Manufacturer: Mannesmann Demag (Dematik series)

Versatile Analog Signal Input

The AI282 Analog Input Module allows users to connect up to 8 analog sensors or devices, supporting both voltage and current signal types. Its wide input ranges and configurable channels make it suitable for a diverse range of measurement and automation tasks in PLC-controlled industrial systems.

Reliable, Industrial-Grade Construction

Built to withstand demanding industrial conditions, this module features robust plastic and metal housing, a broad operating temperature range, and IP20 protection. The channel-to-bus isolation further enhances reliability and safety in complex automation setups.

Efficient Integration and Operation

Designed for seamless integration into proprietary PLC bus environments, the AI282 ensures rapid response with a 22 ms acquisition time. Integrated LED indicators offer clear status visualization, streamlining troubleshooting and system monitoring during operations.

FAQ's of Mannesmann Demag AI282 06732765 PLC Analog Input Module:

Q: How do I configure the analog input channels on the Mannesmann Demag AI282 PLC Analog Input Module?

A: Each of the 8 channels on the AI282 module can be individually configured to accept either voltage (0-10V DC) or current (0-20mA, 4-20mA) input signals. Configuration is performed according to your PLC system's setup instructions, typically via the control software associated with your proprietary PLC bus.

Q: What are the main benefits of using the AI282 Analog Input Module in industrial automation applications?

A: The AI282 provides high signal fidelity, reliable channel-to-bus isolation, and robust construction for demanding environments. With its fast 22 ms response time and 12-bit resolution, the module ensures accurate, real-time data acquisition-optimizing control and monitoring in complex automation tasks.

Q: When should I use this module within my automation setup?

A: The AI282 module is ideal for scenarios where you need to acquire multiple analog sensor signals, such as in process control, monitoring, and feedback systems. It performs best when integrated into PLC-controlled automation lines requiring precise, simultaneous analog signal input processing.

Q: Where can the Mannesmann Demag AI282 Analog Input Module be installed?

A: This module is designed for DIN rail mounting inside industrial control panels or enclosures. With a protection level of IP20 and operating temperature range of 0C to +55C, it is suitable for standard industrial environments with humidity levels of 5% to 95% RH (non-condensing).

Q: What is the process for integrating this module into a PLC system?

A: Integration involves mounting the module on a DIN rail, wiring the analog signal inputs and 24V DC power supply, and connecting it to the proprietary PLC bus. After physical installation, software configuration assigns channel types and calibrates ranges as per your application's requirements.

Q: How does the built-in status display facilitate usage and maintenance?

A: The integrated LED indicators provide immediate visual feedback on module operation and input channel status. This feature enables rapid troubleshooting and monitoring, reducing system downtime during operation or maintenance cycles.
