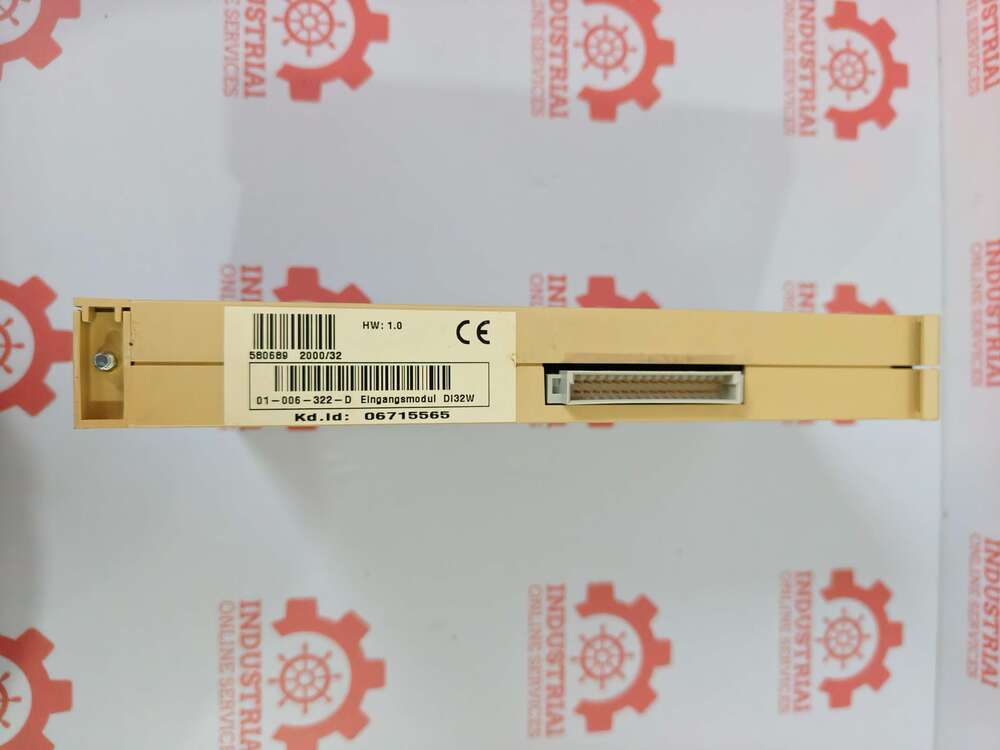

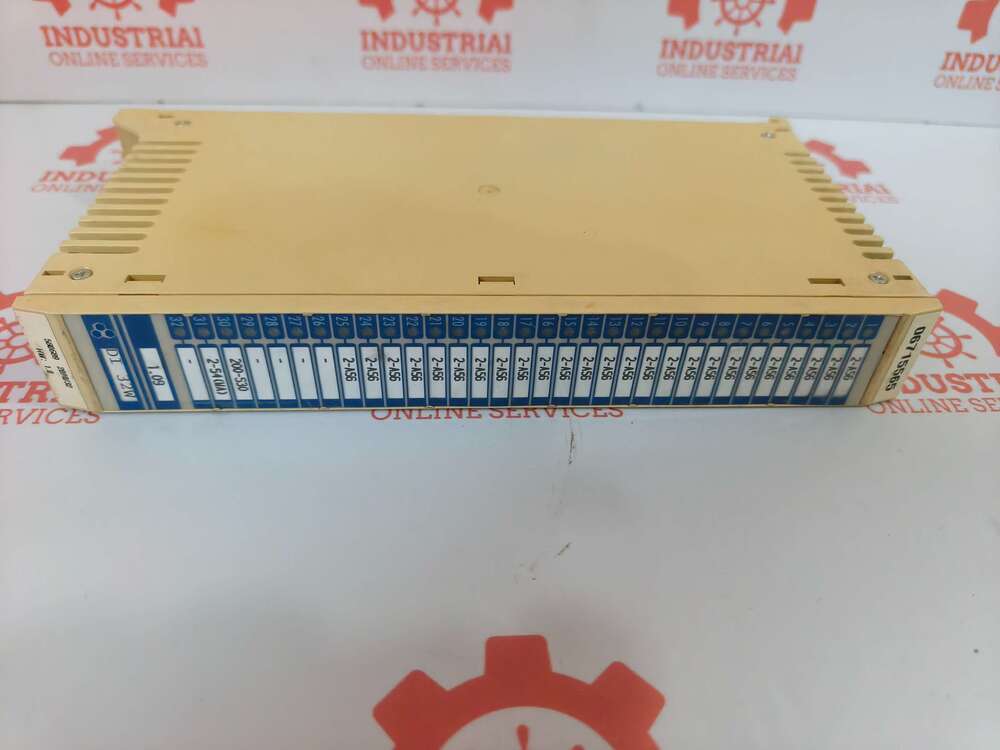

Mannesmann Demag DI32W 06715565 PLC Digital Input Module

Name: Mannesmann Demag DI32W 06715565 PLC Digital Input Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Mannesmann Demag DI32W 06715565 PLC Digital Input Module Specification

Operating Temperature
0C to +60C

Output Voltage
Not Applicable (Input Module)

Frequency
50/60Hz Compatible

Phase
Single Phase

Efficiency
High Signal Reliability

Mounting Type
DIN Rail Mount

Protection Level
IP20

Humidity
5% to 95%, Non-condensing

Input Current
Approx. 6 mA per channel

Rated Voltage
24V DC

Main Material
High Quality ABS Plastic, Metal Contacts

Processing Type
Automatic

Condition
New

Function
Digital Input Acquisition for PLC

Application
Industrial Automation, PLC Automation Systems

Dimension (L*W*H)
125 x 45 x 120 mm

Power Mode
External Supply

Voltage
24V DC

Power Consumption
4.0W

Accessories
Standard Manual

Compatible With
Compatible with Mannesmann Demag PLC Systems

Isolation Voltage
500V (Channel to Bus)

Number of Input Channels
32

Connection
Screw Terminal

Model No.
DI32W 06715565

Input Type
Sink/Source

Weight
Approx. 220 g

Storage Temperature
-25C to +70C

Response Time
< 5 ms

Color
Grey

Standards
CE Certified, RoHS Compliant

Mannesmann Demag DI32W 06715565 PLC Digital Input Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Mannesmann Demag DI32W 06715565 PLC Digital Input Module

Mannesmann Demag DI32W 06715565 PLC Digital Input Module

Key Technical Specifications

Module Type: Digital Input Card / Module (DIAS System Architecture)
Channel Capacity: 32 distinct 32-bit digital input points
Primary Manufacturer: Sigmatek (Austria)
OEM Integration: Mannesmann Demag / Sumitomo Demag injection moulding machines
Control Platform: NC4 controller series (e.g., Ergotech machines)

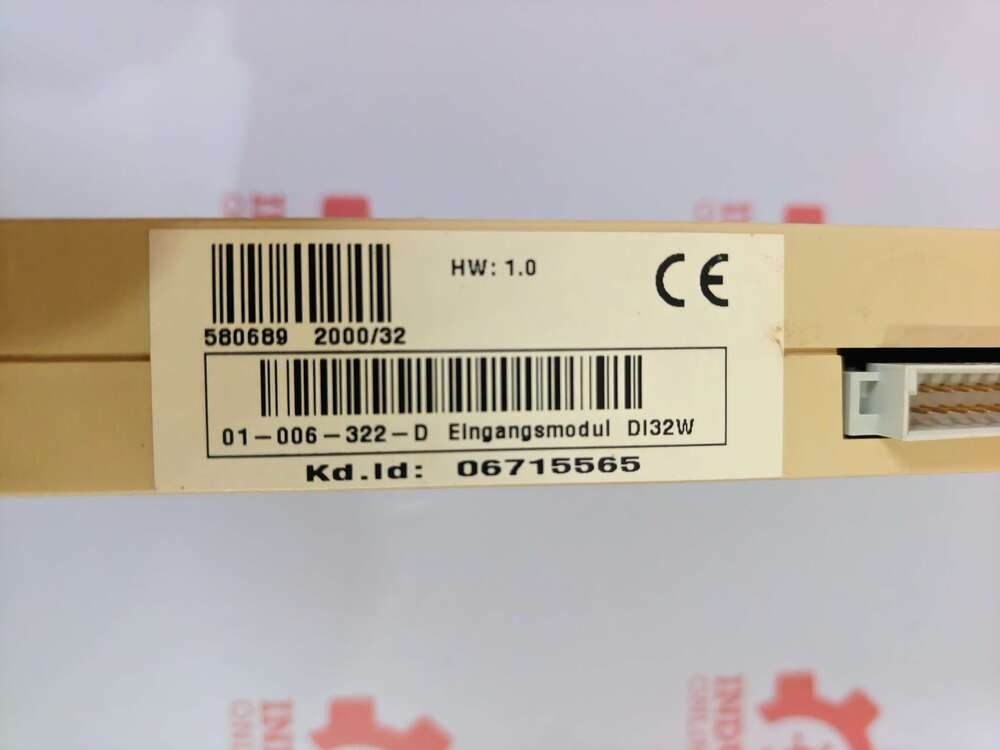

Hardware Revision: Generally listed as HW: 1.0

Reliable Input Acquisition for Industrial Automation

Engineered for precision, the DI32W 06715565 module gathers digital input signals with high accuracy, ensuring consistent and trustworthy data acquisition in automated systems. Its compatibility with PNP and NPN signal types, along with a wide voltage range, makes it suitable for various equipment and control scenarios. This versatility, combined with robust LED channel indicators and rapid response time, minimizes downtime and streamlines maintenance in industrial settings.

Robust Design and Easy Installation

Constructed using premium ABS plastic and metal contacts, the DI32W module offers durability and protection in harsh industrial conditions. Its DIN rail mounting simplifies installation, while its compact size allows straightforward integration into existing PLC panels. Designed for flexibility, it operates efficiently over broad temperature and humidity ranges, making it a dependable choice for distributors and automation solution providers within India.

FAQ's of Mannesmann Demag DI32W 06715565 PLC Digital Input Module:

Q: How do I install the DI32W 06715565 digital input module into my PLC system?

A: The DI32W module is designed for DIN rail mounting, allowing easy integration into standard industrial control panels. Simply secure the module onto the DIN rail and connect the digital input signals to the terminal block according to your PLC's wiring scheme.

Q: What type of digital inputs is the module compatible with?

A: This module supports both sinking (NPN) and sourcing (PNP) digital input types, making it versatile for various PLC automation applications requiring a voltage range of 20.4 to 28.8V DC.

Q: When should I use the individual channel LED indicators?

A: The individual channel LEDs provide real-time status of each input, making diagnostics and troubleshooting straightforward. Use these indicators during system setup, maintenance, or whenever you need to verify signal presence and integrity.

Q: Where can the DI32W module be used effectively?

A: This module is ideal for industrial automation systems, such as manufacturing lines, process control panels, and PLC-based automation where reliable digital input acquisition is required in environments with temperatures from 0C to +60C and humidity up to 95% non-condensing.

Q: What benefits does the DI32W offer compared to standard digital input modules?

A: The module delivers high signal reliability with fast response times (<4 ms), robust construction, and individual LED channel indicators for quick input status assessment. Its flexibility in accepting both PNP and NPN signals enhances its adaptability across different automation setups.

Q: How does the module achieve high signal reliability?

A: The DI32W uses high-quality ABS plastic construction, metal contacts, and maintains low input current (approx. 6 mA per channel), which together contribute to high signal integrity and low susceptibility to electrical noise in industrial environments.
