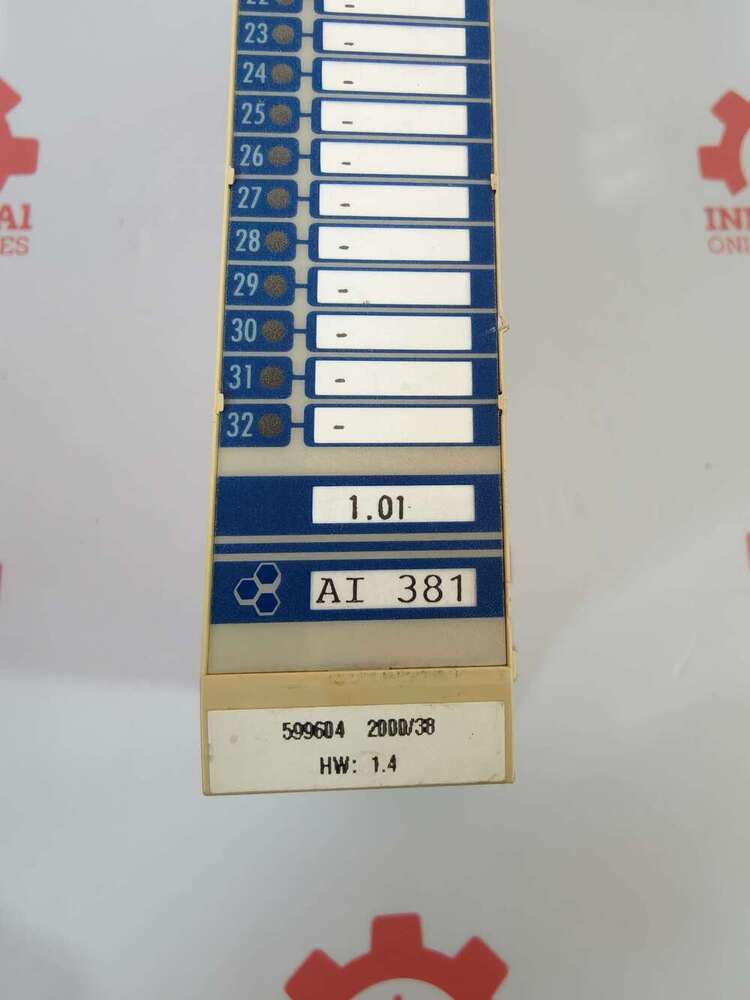

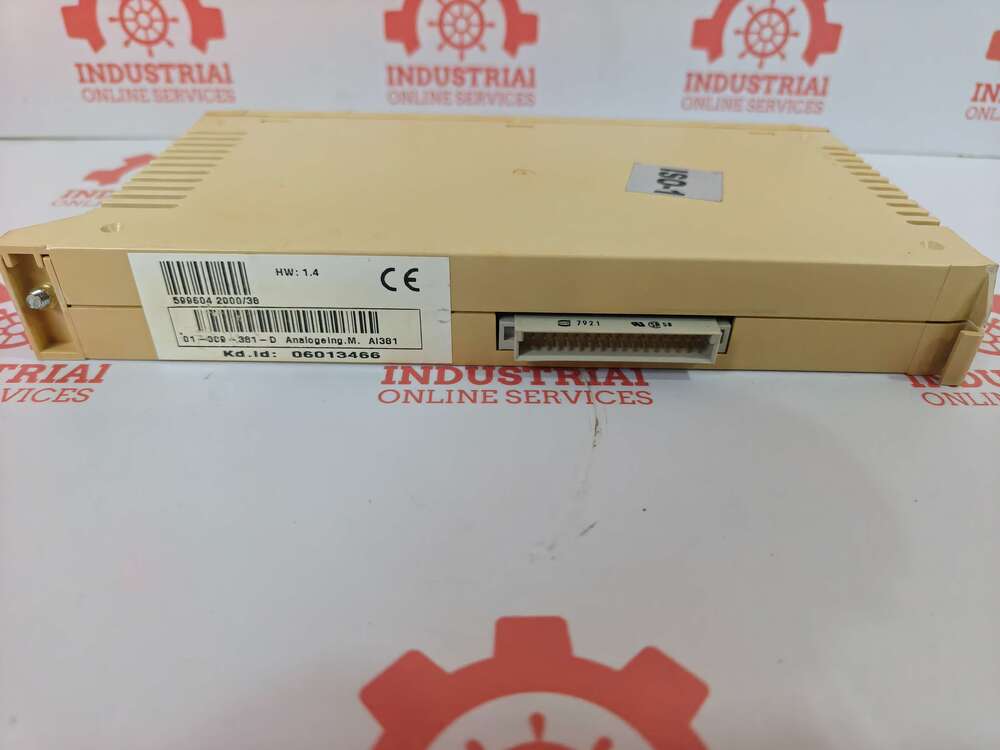

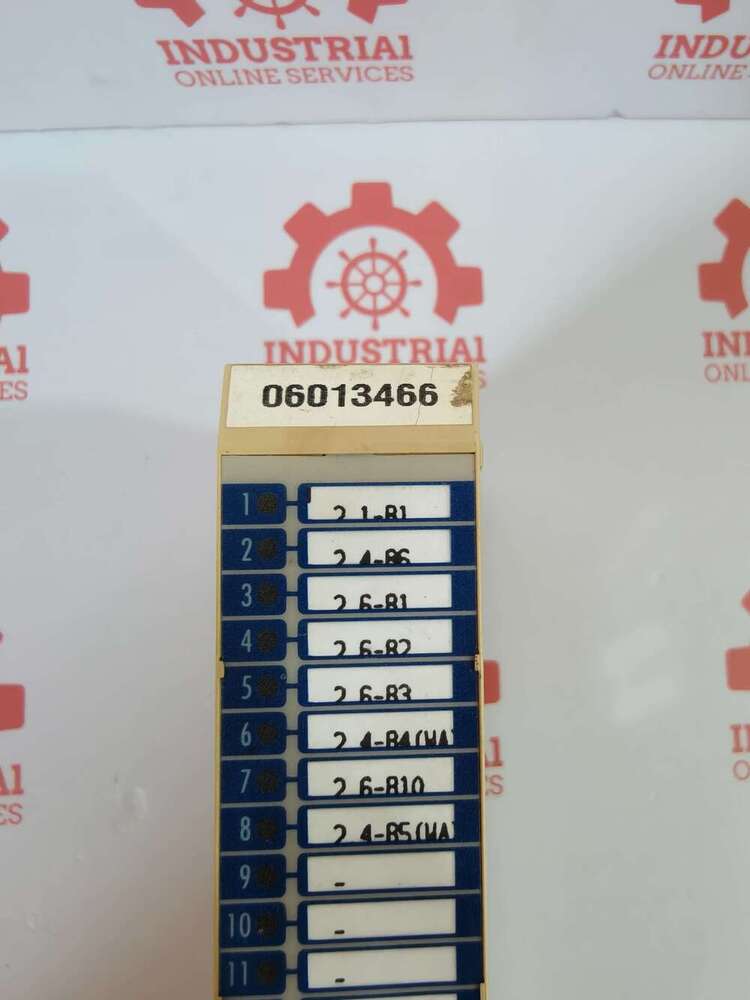

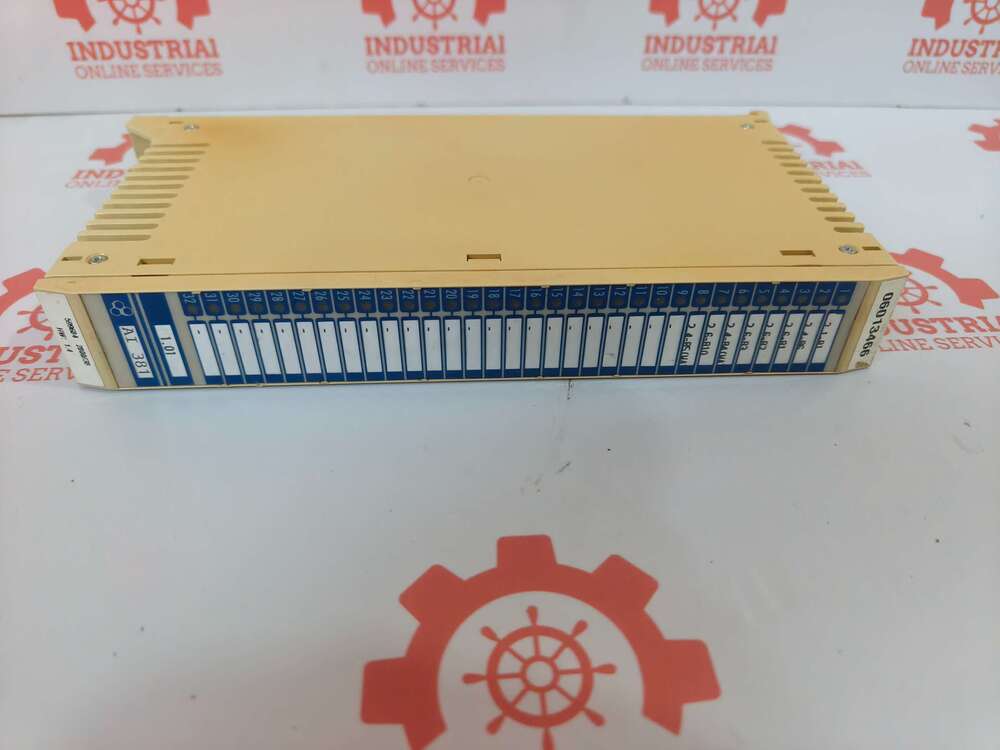

Mannesmann Demag AI381 06013466 PLC Analog Input Module

Name: Mannesmann Demag AI381 06013466 PLC Analog Input Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mannesmann Demag AI381 06013466 PLC Analog Input Module Specification

Input Current
Max. 120 mA

Operating Temperature
0C to +60C

Protection Level
IP20

Humidity
10% - 95% (non-condensing)

Mounting Type
DIN Rail

Rated Voltage
24 V DC

Efficiency
High

Frequency
DC (No frequency)

Phase
Single Phase

Main Material
Industrial-grade Plastic and Electronic Components

Processing Type
Analog Input Module

Condition
New

Function
PLC Analog Input Signal Processing

Application
PLC Automation, Industrial Control Systems

Dimension (L*W*H)
130 mm x 98 mm x 70 mm

Power Mode
DC Powered

Voltage
24 V DC

Power Consumption
Max. 3 W

Accessories
Not Included

Number of Input Channels
8 Channels

Model Number
AI381 06013466

Product Category
PLC Analog Input Module

Input Current Range
0-20 mA

Input Type
Analog (Voltage/Current configurable)

Weight
Approx. 280 g

Connector Type
Removable Screw Terminal

Standards Compliance
CE Certified, RoHS Compliant

Response Time
< 10 ms

Compatible PLC Series
Mannesmann Demag compatible PLC systems

Resolution
12 Bit

Input Voltage Range
0-10 V DC

Isolation
Channel to Bus; optically isolated

Storage Temperature
-20C to +70C

Mannesmann Demag AI381 06013466 PLC Analog Input Module Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Mannesmann Demag AI381 06013466 PLC Analog Input Module

Mannesmann Demag AI381 06013466 PLC Analog Input Module

Key Technical Specifications

Module Type: Programmable Logic Controller (PLC) / Distributed Control System (DCS) Analog Input Module.
Function: Converts incoming real-world analog signals (such as temperature, pressure, or flow data) into digital signals for the core processor.

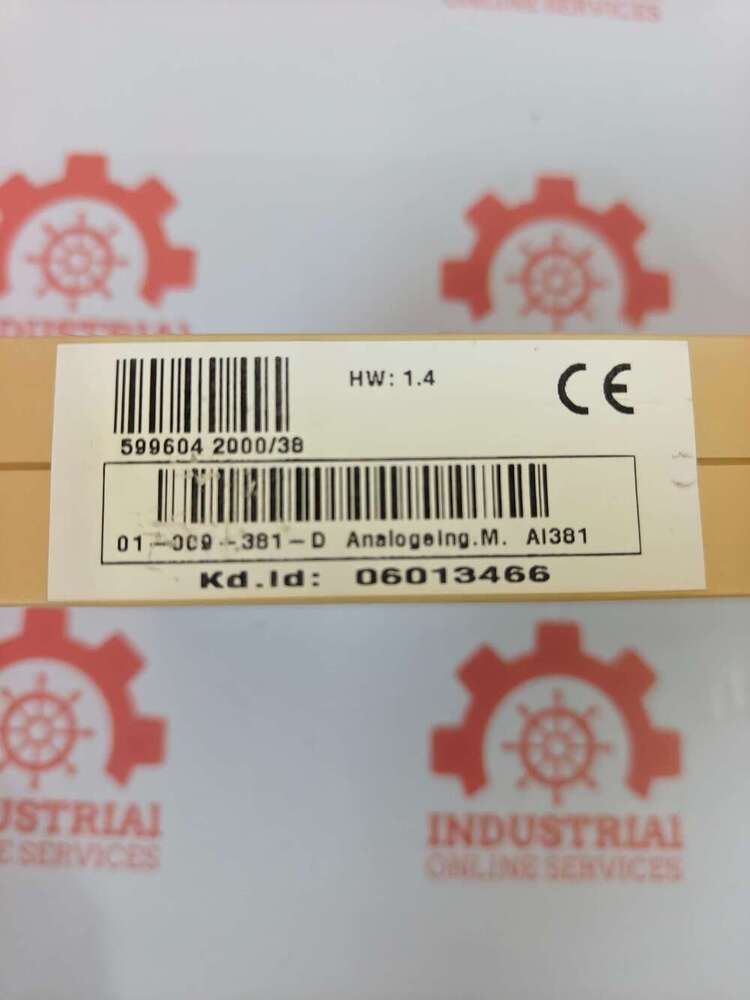

Manufacturer Identification Numbers:

MDKT Ident-No: 06013466
Part / Model Number: 01-009-381-D
Alternative SKU: 431641 AI381

High-Precision Analog Signal Processing

The AI381 06013466 module delivers industry-leading accuracy via its 12-bit resolution and configurable voltage/current inputs. This allows for highly detailed monitoring and control in industrial automation, enhancing system reliability and response. With a response time below 10 ms, it supports applications requiring rapid data acquisition and conversion, ensuring your control systems operate efficiently and effectively at all times.

Designed for Seamless PLC Integration

Compatible with Mannesmann Demag PLC series, this module integrates effortlessly into new or existing control systems. Removable screw terminals make wiring straightforward, while DIN rail mounting streamlines installation. Optical isolation provides robust channel-to-bus protection, adding an extra layer of safety in demanding industrial settings where signal integrity is critical to operations.

Engineered for Industrial Demands

Built from industrial-grade plastics and electronic components, the AI381 06013466 endures challenging environments with ease. It operates reliably within a wide temperature range (-20C to +70C storage, 0C to +60C operation) and high humidity (10%-95% non-condensing), making it suitable for diverse industrial applications. Its IP20 protection keeps internal electronics safe from dust and accidental contact.

FAQ's of Mannesmann Demag AI381 06013466 PLC Analog Input Module:

Q: How do I configure the Mannesmann Demag AI381 06013466 for voltage or current input?

A: Each of the 8 input channels on the AI381 06013466 can be individually set to accept either voltage (0-10 V DC) or current (0-20 mA) as input. Configuration is performed through the module's setup interface in your PLC programming environment, allowing flexibility based on signal type requirements.

Q: What applications is the AI381 06013466 Analog Input Module most suited for?

A: This module is ideal for industrial automation and control systems, specifically where precise analog signal measurement and processing are required. Common uses include process monitoring, factory automation, and integration with sensors and transducers in PLC environments.

Q: Where can the AI381 06013466 Analog Input Module be installed?

A: The module features DIN rail mounting, making it suitable for standard control cabinets in industrial settings. Its robust design ensures reliable operation within temperatures from 0C to +60C and non-condensing humidities from 10% to 95%.

Q: What process is involved in connecting sensors to this input module?

A: Sensors with analog outputs (voltage or current) are connected to the removable screw terminals on the module. Ensure correct polarity and configuration (voltage or current) per channel before powering the unit. The signals are then processed and transmitted to the PLC for control system operations.

Q: What are the key benefits of using the AI381 06013466 module in industrial automation?

A: Key benefits include precise 12-bit signal conversion, optically isolated channels for optimal safety, compatibility with Mannesmann Demag PLCs, ease of installation, CE/RoHS certifications, and robust operation in harsh industrial environments. This translates to enhanced system reliability and efficient performance.

Q: When should I consider replacing or upgrading to the AI381 06013466 module?

A: Upgrade when precise analog signal acquisition is required, or when your current module cannot meet required resolution, speed, or compatibility standards. Its high efficiency, fast response time, and robust protection make it a suitable choice for modernization projects or new installations.

Q: What type of maintenance does the AI381 06013466 module require for optimal performance?

A: Regularly inspect the module for dust and secure connections on screw terminals. Ensure operating conditions remain within specified temperature and humidity ranges. Periodic system diagnostics through the PLC can help maintain long-term reliable performance.
