Mannesmann Demag PS242 06029066 NC4-System Power Supply Module

Send Inquiry

Request To Call Back

Mannesmann Demag PS242 06029066 NC4-System Power Supply Module

Name: Mannesmann Demag PS242 06029066 NC4-System Power Supply Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Mannesmann Demag PS242 06029066 NC4-System Power Supply Module Specification

Output Voltage
24V DC

Efficiency
>85%

Rated Voltage
24V

Operating Temperature
0C to 50C

Phase
Single Phase

Input Current
0.35A

Humidity
10-90% RH, non-condensing

Mounting Type
Panel Mount

Frequency
50/60 Hz

Protection Level
IP20

Main Material
Metal and High-Grade Industrial PCB

Processing Type
Electronic Module

Condition
Used/Refurbished

Function
Provides regulated power supply to NC4 system

Application
CNC and Industrial Automation Systems

Dimension (L*W*H)
200mm x 100mm x 60mm

Power Mode
AC Power

Voltage
230V AC

Power Consumption
Approx. 65W

Accessories
Not Included

Indicator
Status LED

Cooling
Natural convection

Weight
1.2 kg (approximate)

Output Power
Up to 42 W

System Compatibility
NC4-System

Model
PS242

Isolation
Galvanic isolation between input and output

Part Number
06029066

Mannesmann Demag PS242 06029066 NC4-System Power Supply Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Mannesmann Demag PS242 06029066 NC4-System Power Supply Module

Mannesmann Demag PS242 06029066 NC4-System Power Supply Module 01-003-242-D

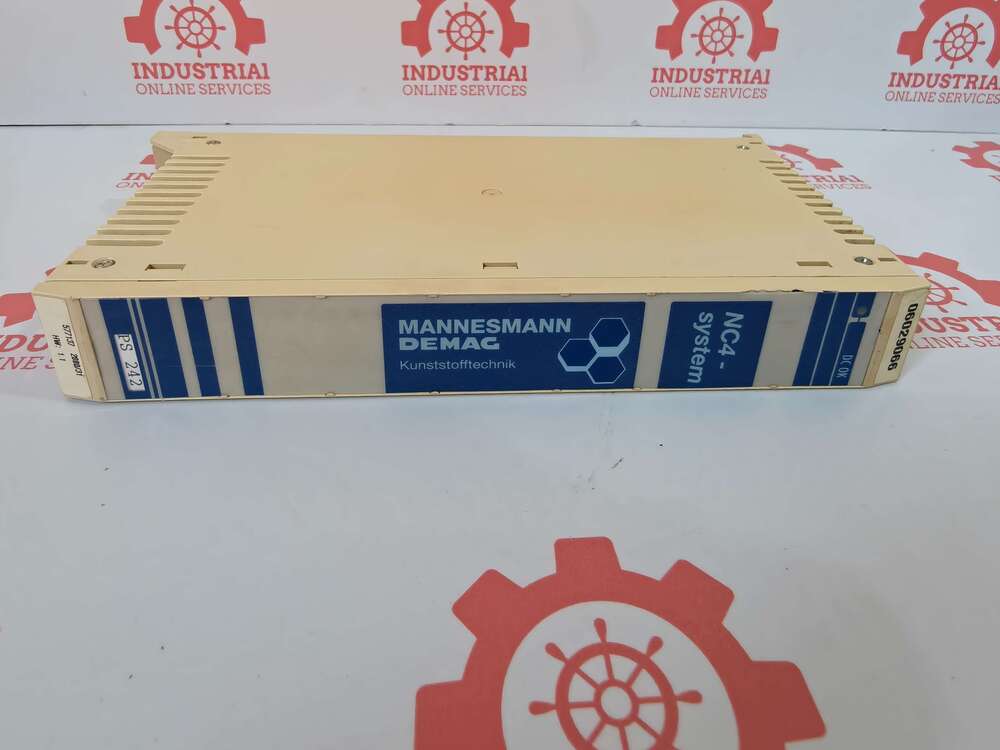

The Mannesmann Demag PS242 is an industrial Power Supply Module (often integrated alongside PLC/DCS automation frameworks) designed specifically for the legacy NC4-System control architecture. It is widely used in plastic manufacturing infrastructure, predominantly supporting heavy industrial injection moulding machines.

Core Technical Specifications

Manufacturer: Mannesmann Demag (Kunststofftechnik / Plastics Machinery division).
System Component: NC4-System Control Suite.

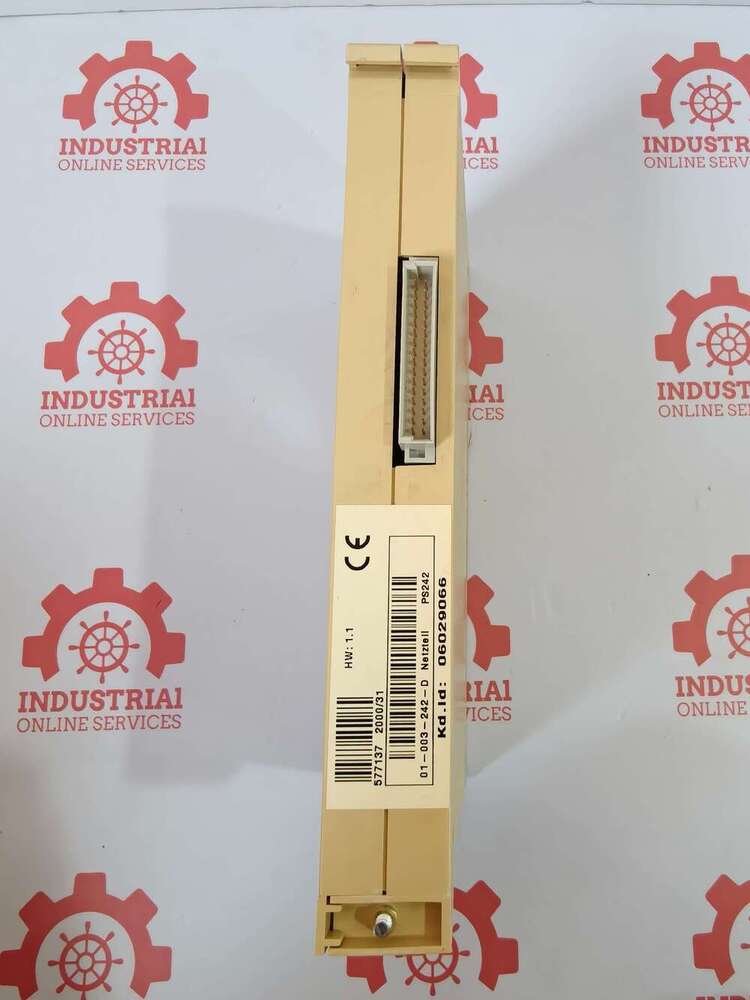

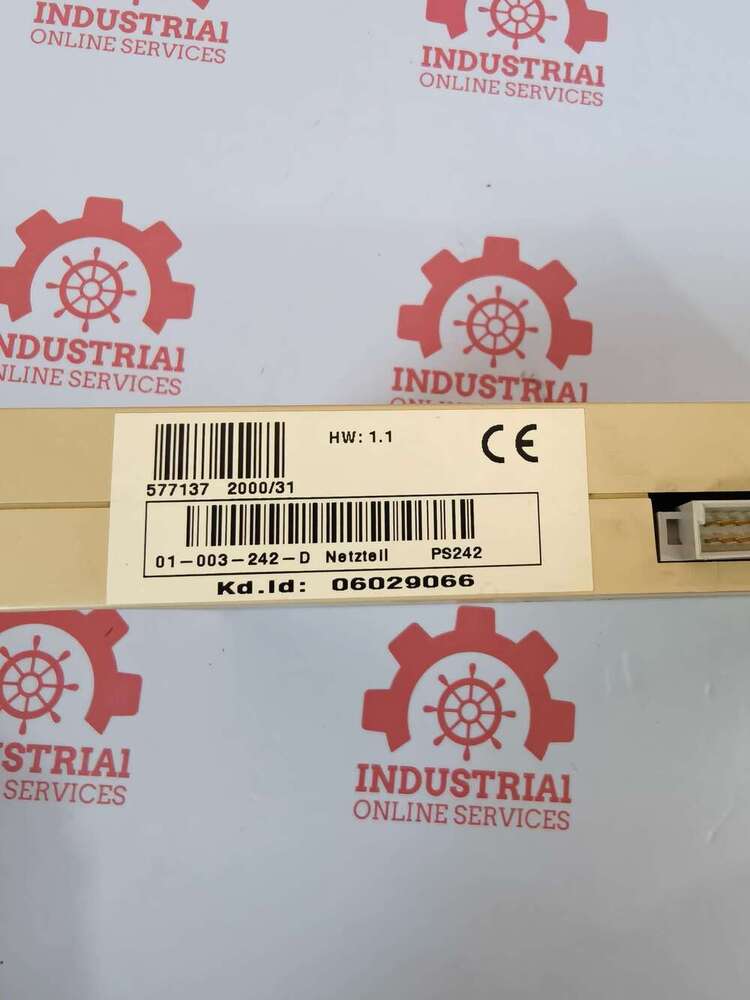

Part Numbers / Identifiers:

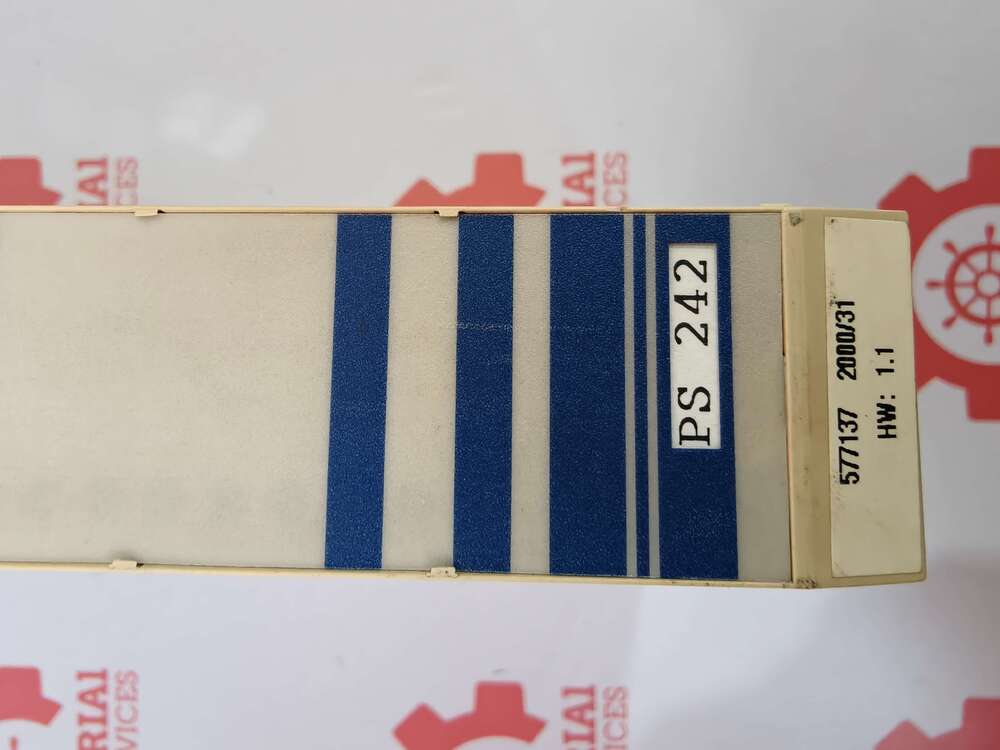

- MPN / Model: PS 242 (or PS242).
- MDKT Ident-No: 06029066 (also variants ending in 06029068).
- Hardware Version: HW 1.1 (Standard Version V1.0 also exists).
- Alternate Reference Codes: 01-003-242-D.
Physical Weight: Approximately 310 to 320 grams

Precision Power for Industrial Automation

Engineered for demanding environments, the PS242 06029066 provides consistent 24V DC output to NC4-System CNC controllers. With natural air cooling and robust metal construction, this power supply guarantees long-term service, making it perfect for industrial automation and CNC systems. Its panel mount design ensures easy integration into existing setups, while safety standards compliance offers peace of mind.

Efficient and Reliable Performance

The NC4-System Power Supply Module boasts high efficiency (>85%) and stability, supporting operations in a wide temperature range (0C to 50C) with humidity tolerance up to 90% RH. It's capable of handling input voltages of 230V AC at 0.35A, converting to a regulated 24V DC output for sensitive electronics. Ideal for refurbishing or upgrading CNC equipment, it is a trusted choice for system integrators.

FAQ's of Mannesmann Demag PS242 06029066 NC4-System Power Supply Module:

Q: How do I install the Mannesmann Demag PS242 06029066 Power Supply Module into my CNC system?

A: To install the PS242 06029066, secure it within your control cabinet using the panel mount fittings. Connect your input and output wires to the appropriate screw terminals, following the wiring diagram specific to your NC4-System. Ensure all connections are tight and power off the main supply during installation.

Q: What CNC controllers are compatible with this power supply module?

A: This module is compatible with NC4-System CNC controllers. It is designed to provide the regulated 24V DC power essential for the stable operation of these controllers in various automation and industrial settings.

Q: When should this power supply module be replaced in an industrial system?

A: Replacement is recommended when you notice voltage fluctuations, inconsistent system performance, or failure to deliver the expected output power. Additionally, it is prudent to consider replacement during system refurbishments or after extensive operational hours to ensure reliable CNC operation.

Q: Where is the best placement for the PS242 06029066 module within an industrial control cabinet?

A: Mount the module on a dedicated panel inside your control cabinet, ensuring proper airflow for natural cooling. Avoid placing it near sources of excess heat or moisture; the unit is rated IP20 and should be in a clean, controlled environment for best longevity.

Q: What safety standards does the Mannesmann Demag Power Supply comply with?

A: This module meets IEC/EN 60950-1 safety standards and features Class I insulation, ensuring robust protection against electrical hazards typical in industrial automation environments.

Q: How does the PS242 06029066 benefit CNC and automation applications?

A: By providing a stable and regulated 24V DC output with over 85% efficiency, it ensures smooth and reliable operation of NC4-System CNC controllers, minimizing downtime and enhancing the productivity of automated systems.
