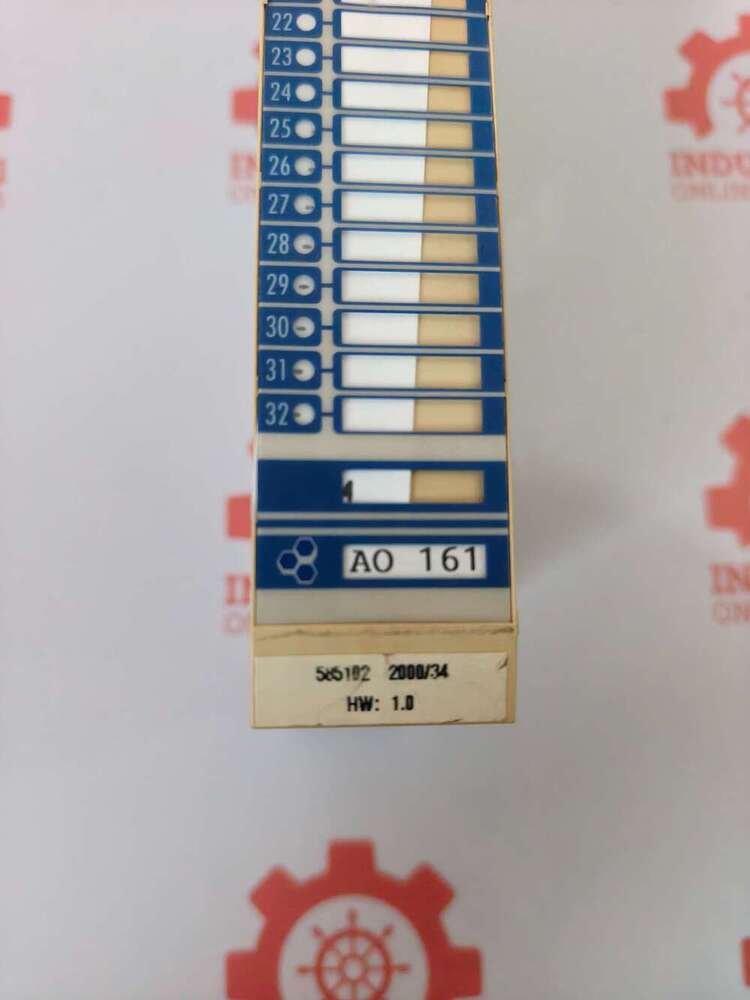

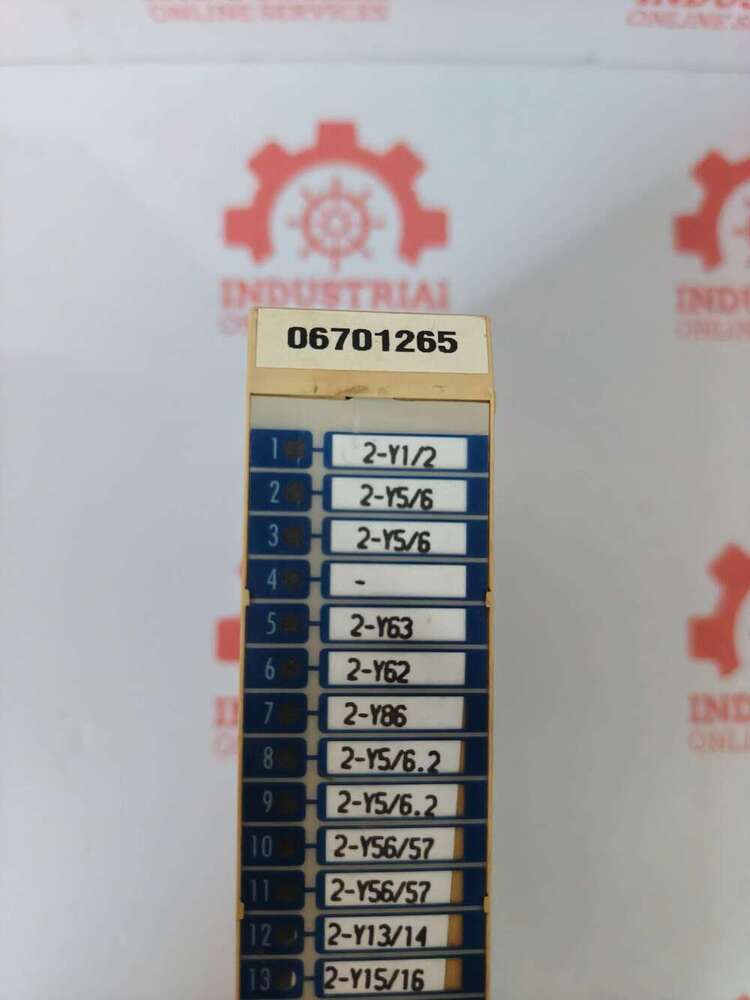

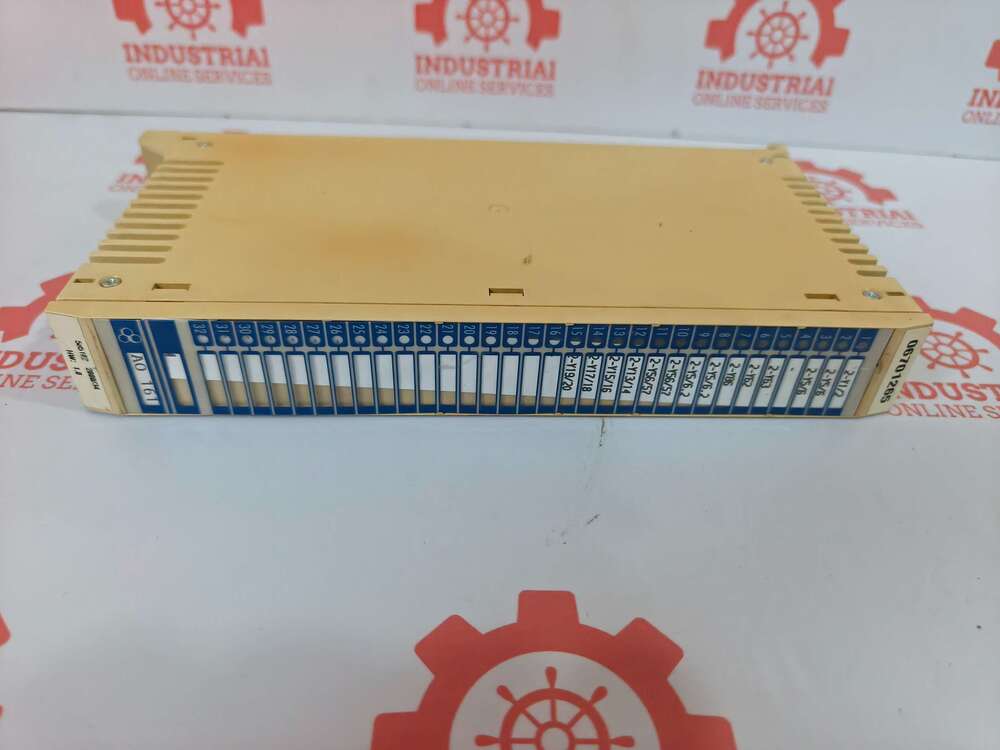

Mannesmann Demag AO161 06701265 Analog Output Module

Send Inquiry

Request To Call Back

Mannesmann Demag AO161 06701265 Analog Output Module

Name: Mannesmann Demag AO161 06701265 Analog Output Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Mannesmann Demag AO161 06701265 Analog Output Module Specification

Frequency
50/60 Hz

Input Current
Max 0.5 A

Efficiency
High

Phase
Single

Operating Temperature
0C to 60C

Rated Voltage
24 V DC

Humidity
5% - 95% (Non-condensing)

Mounting Type
DIN Rail Mount

Output Voltage
0-10 V or 0/4-20 mA (Configurable)

Protection Level
IP20

Main Material
Industrial Grade Plastic, Electronic Components

Processing Type
Analog Output Processing

Condition
New

Function
Analog Output Signal Conversion

Application
Industrial Automation, Process Control, PLC Systems

Dimension (L*W*H)
122 mm x 120 mm x 38 mm

Power Mode
DC Power Supply

Voltage
24 V DC

Power Consumption
Low

Accessories
Not Included

Module Status Indicator
LED

Weight
Approx. 250 g

Output Type
Analog (Voltage/Current)

Number of Outputs
8 Channels

Compatible System
DEMAG PLC Series

Storage Temperature
-25 C ~ +70 C

Response Time
<1 ms

Model
AO161 06701265

Output Signal Range
0-10 V or 4-20 mA

Connectivity
Terminal Block

Mannesmann Demag AO161 06701265 Analog Output Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Mannesmann Demag AO161 06701265 Analog Output Module

Mannesmann Demag AO161 06701265 Analog Output Module

Core Product Details

Component Type: Analog Output (AO) PLC Peripheral Module
Part Number: 06701265

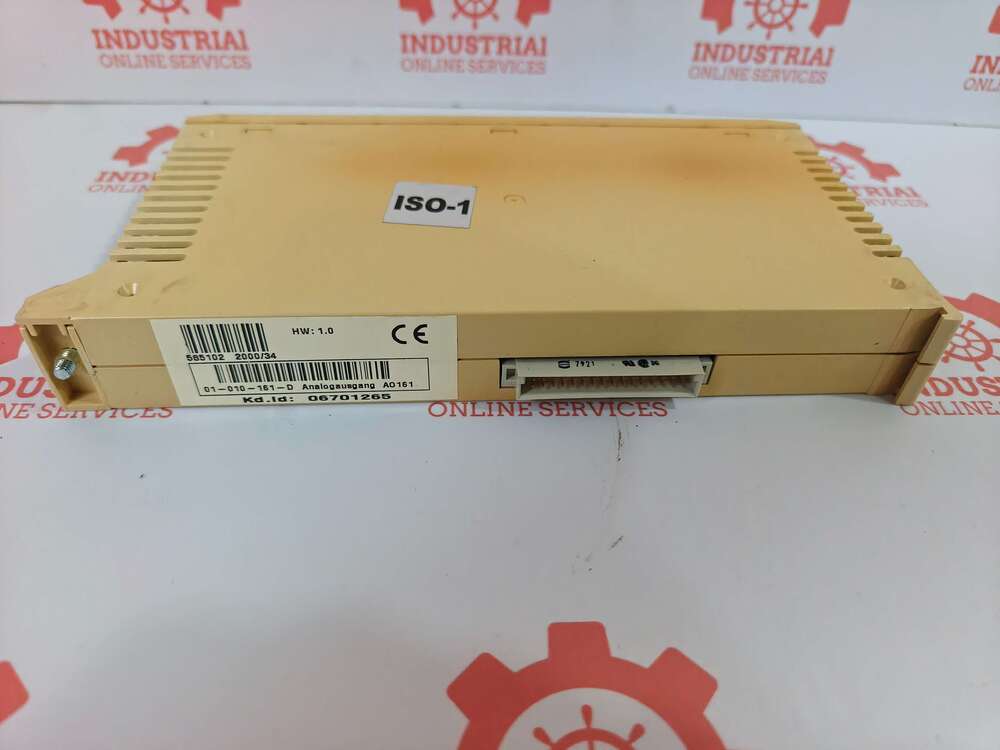

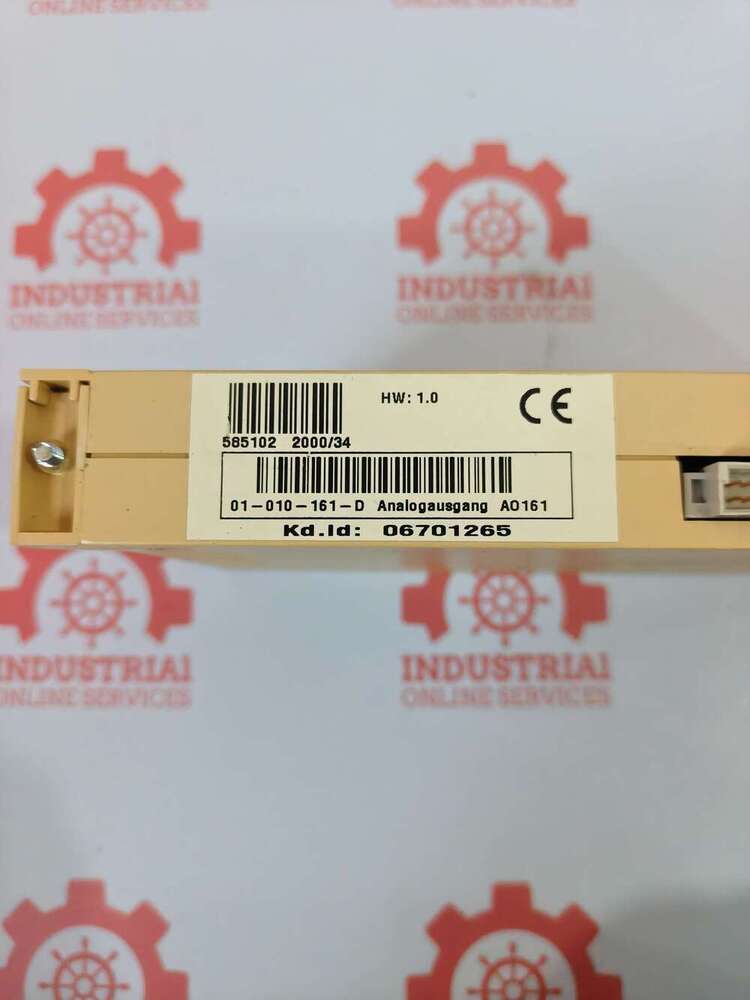

Model Number: 01-010-161-D / AO161
Common Applications: Frequently found in the control cabinets of heavy machinery, industrial automation systems, and Demag Injection Molding Machines.
Alternative Identifiers: It is often cataloged under serial/batch numbers like 431511 and cross-referenced with companion modules like the AI282 analog input module

Versatile Analog Output Performance

The AO161 module provides six configurable analog output channels, allowing you to select between voltage or current outputs. This adaptability ensures seamless integration with a wide range of actuators and industrial devices in advanced automation setups. Its rapid response time also makes it highly suitable for time-sensitive process control applications.

Robust and Reliable for Industrial Environments

Designed with industrial-grade materials, the AO161 withstands harsh operational conditions, including wide temperature and humidity ranges. Its IP20 protection level and 500 V channel-to-bus isolation secure both device longevity and operator safety, making it dependable for critical process control tasks.

Efficient and Easy to Install

Efficiency is at the core of the AO161, with low power consumption and a compact footprint that fits easily into any DIN rail panel. The proprietary Demag Bus communication allows for straightforward connectivity with Mannesmann Demag control systems, simplifying both installation and ongoing maintenance.

FAQ's of Mannesmann Demag AO161 06701265 Analog Output Module:

Q: How do I configure the AO161 module for either voltage or current output?

A: The AO161 module's six analog output channels can be configured for either voltage (0-10 V) or current (0/4-20 mA) output. Configuration is typically performed through your Mannesmann Demag control system's interface or software tool, allowing you to tailor each channel's output mode to your specific process requirements.

Q: What are the typical applications for the AO161 Analog Output Module?

A: This module is well-suited for industrial automation, process control, and PLC systems where precise and rapid analog signal conversion is required. It is commonly used in applications like control of valves, drives, instrumentation, and other equipment demanding variable analog signals.

Q: When should I use the AO161 module in my automation system?

A: The AO161 is ideal when your system requires multiple, rapid, and accurate analog signal outputs, especially in environments demanding high efficiency and reliability. Consider using it when your application needs up to six analog output channels with a choice of voltage or current signaling, and reliable integration with Mannesmann Demag control systems.

Q: Where can I install the AO161 module within my control cabinet?

A: The AO161 is designed for DIN rail mounting, making it suitable for standard industrial control panels. Ensure the environment complies with its rated operating temperature (0C to 60C) and humidity (5%-95%) specifications, and that it is protected within an IP20 enclosure for optimal performance and safety.

Q: What is the process for integrating the AO161 with my control system?

A: Integration involves mounting the AO161 on the DIN rail, connecting its 24 V DC power supply, interfacing the analog outputs with the field devices, and wiring to the proprietary Demag Bus. The module is then configured using your control system's software for desired output types and ranges, ensuring seamless communication within your PLC infrastructure.

Q: What benefits does the AO161 offer for industrial automation?

A: The module delivers high-resolution (12 bit) signal conversion, rapid response times under 1 ms, robust isolation, and low power consumption. These features improve control accuracy, system safety, and operational efficiency, making it a reliable choice for demanding automation tasks.
