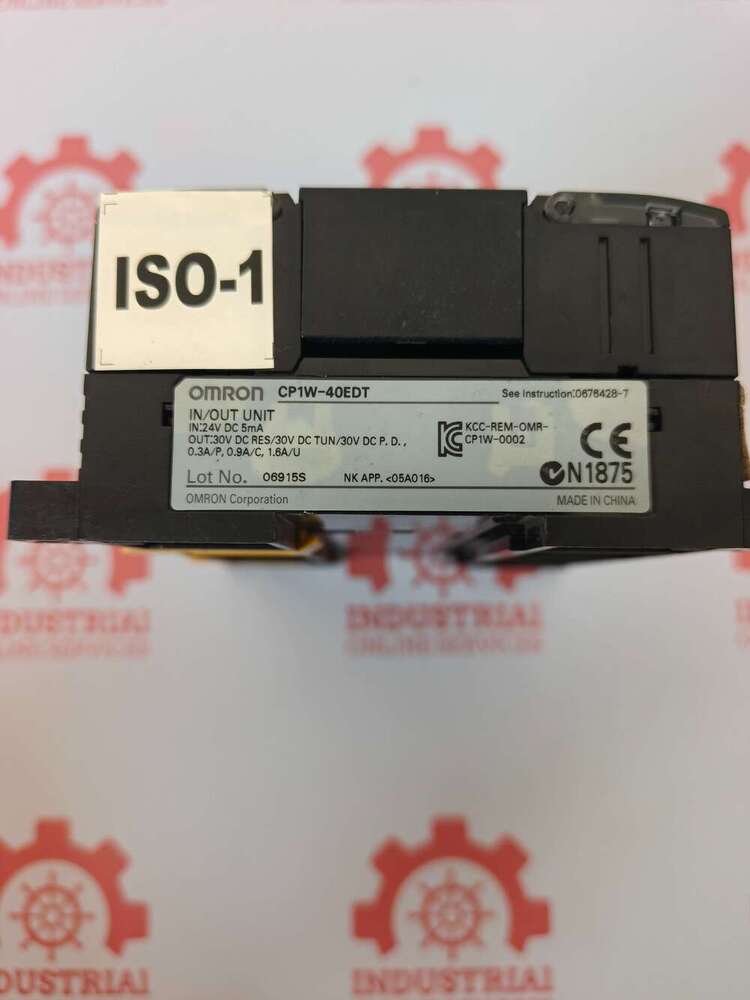

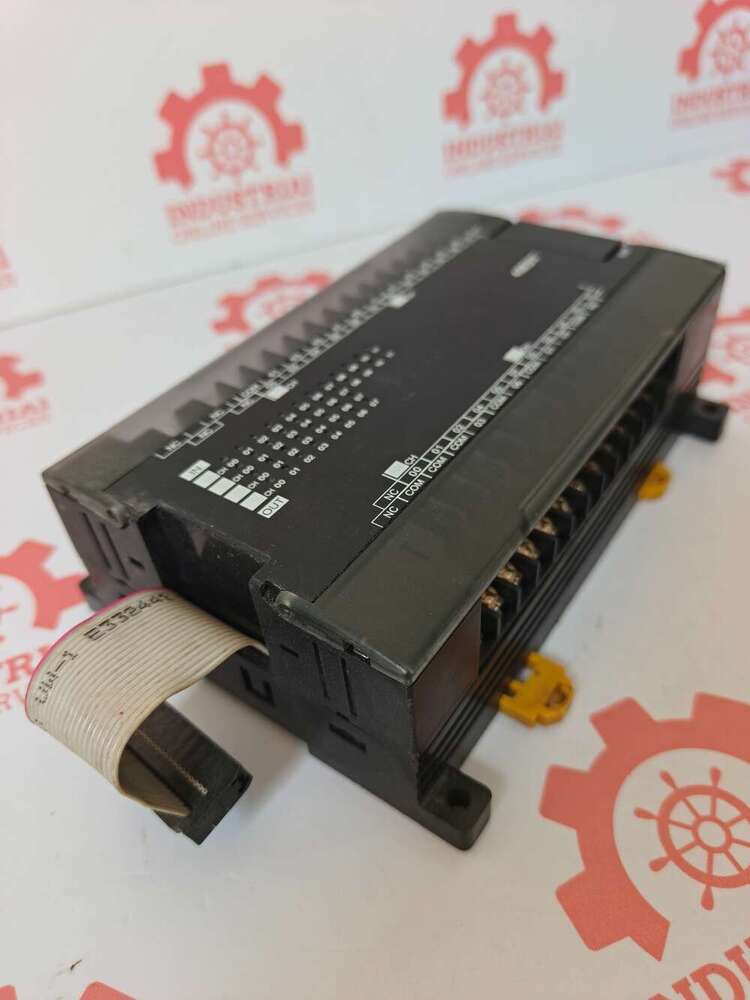

Omron CP1W-40EDT PLC Mixed Digital Expansion Input/Output Module

About Omron CP1W-40EDT PLC Mixed Digital Expansion Input/Output Module

The Omron CP1W-40EDT is a mixed digital expansion input/output (I/O) module designed for the SYSMAC CP1E, CP1L, and CP1H series of Programmable Logic Controllers (PLCs). It expands the capacity of your main PLC processor by providing 40 additional channels, consisting of 24 digital inputs and 16 digital transistor outputs.

Technical Specifications

• Total I/O Channels: 40 points
• Digital Inputs: 24 channels, 24V DC (supports sinking or sourcing signals)
• Digital Outputs: 16 channels, 24V DC
• Output Type: Transistor (NPN / Sinking type)
• Maximum Output Current: 0.5A per point (3A total maximum combined)
• Mounting Type: Standard DIN Rail
• Termination: Screw terminals
