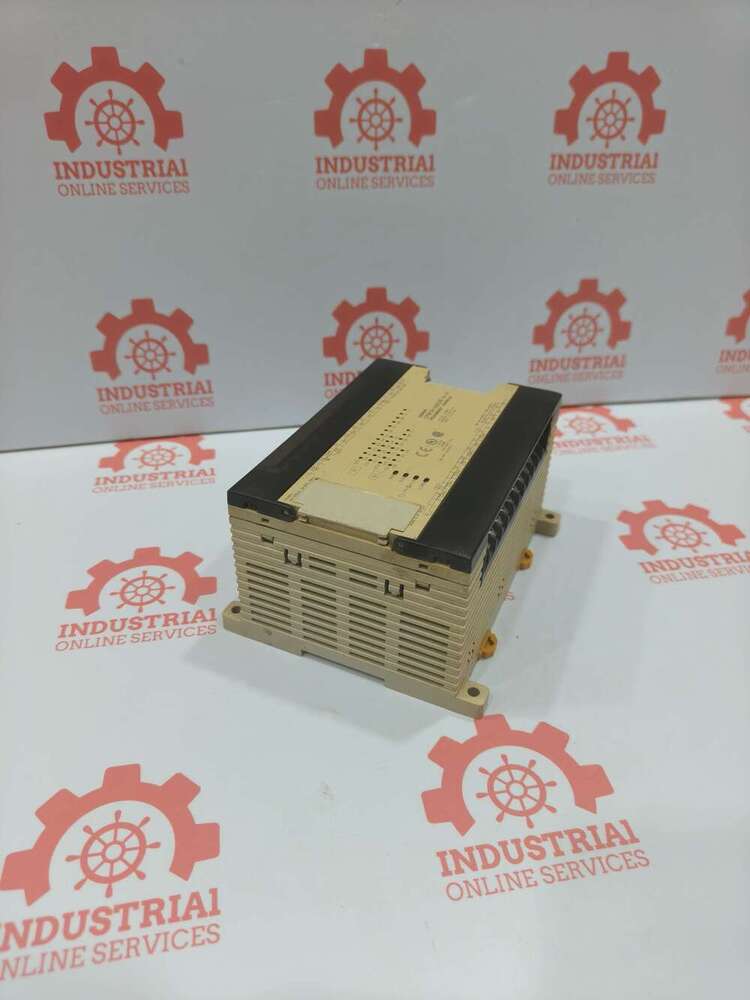

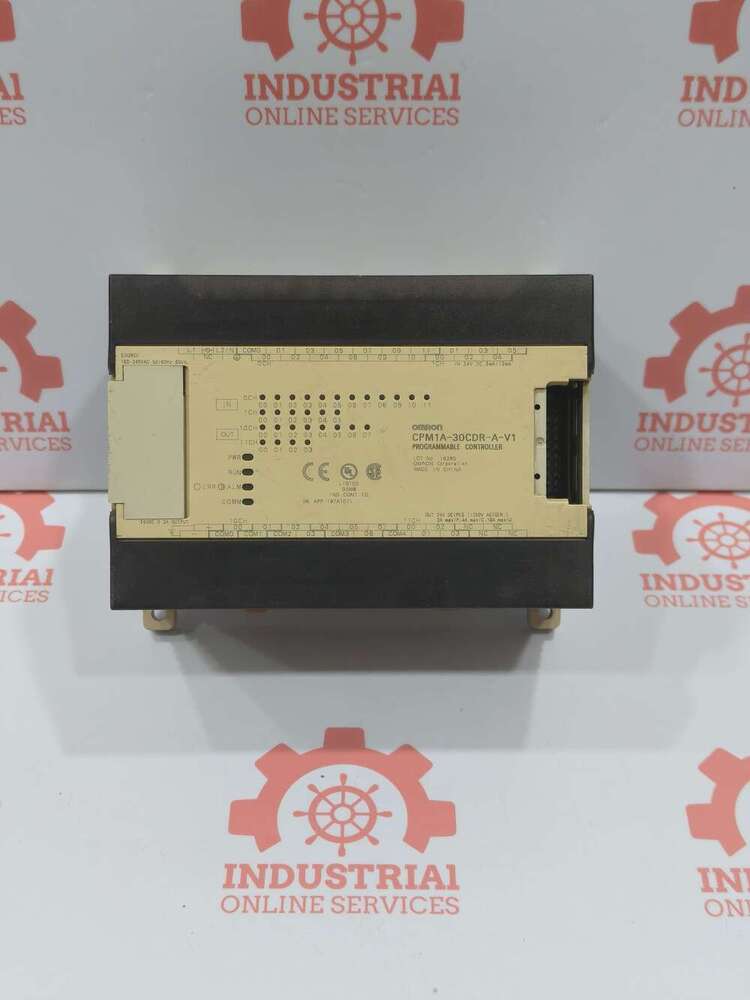

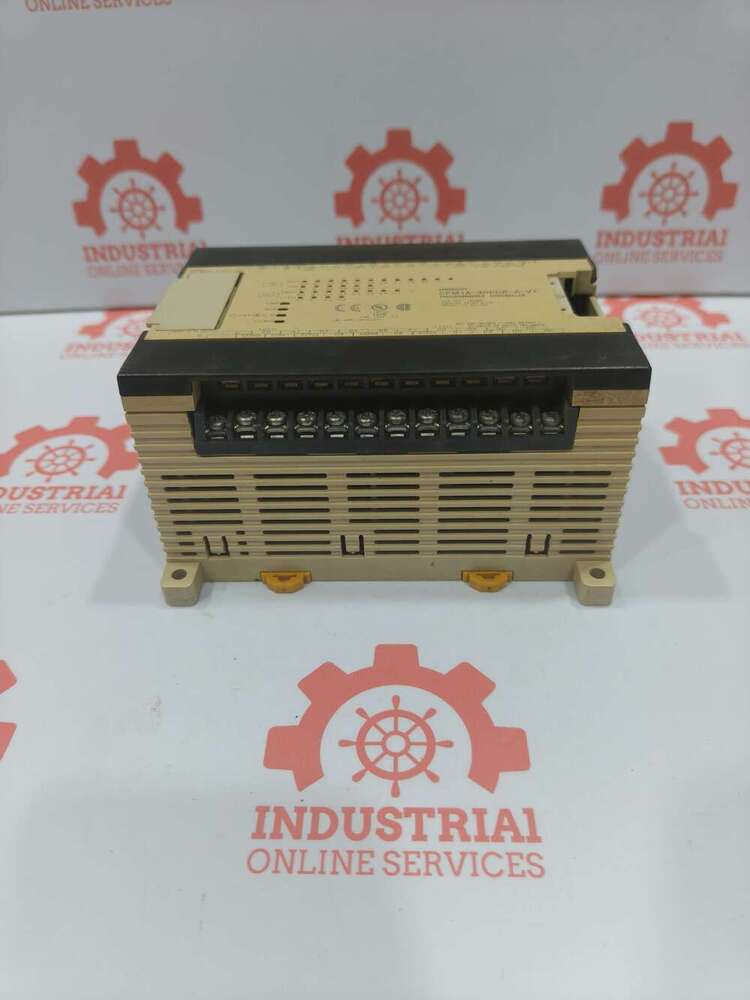

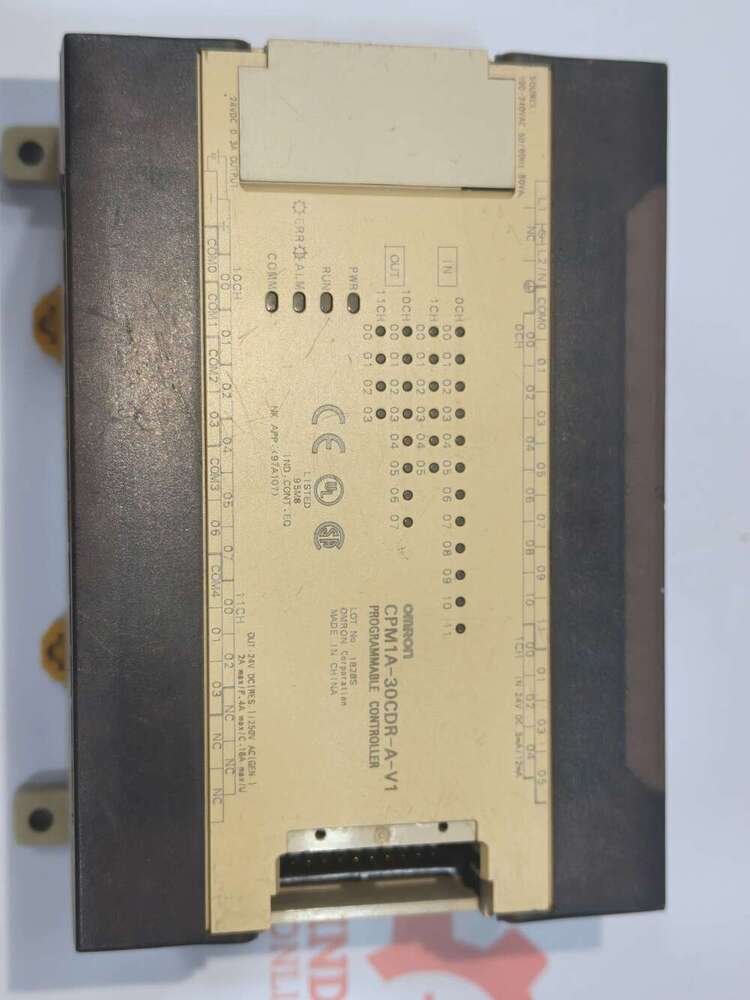

Omron CPM1A-30CDR-A-V1 PLC Compact I/O CPU Module

Name: Omron CPM1A-30CDR-A-V1 PLC Compact I/O CPU Module
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Omron CPM1A-30CDR-A-V1 PLC Compact I/O CPU Module Specification

Rated Voltage
100-240V AC

Protection Level
IP20 (Panel mount, not for outdoor use)

Output Voltage
Relay contact outputs (max 250V AC/30V DC)

Mounting Type
DIN Rail or Panel Mount

Frequency
50/60 Hz

Input Current
0.7A max (at rated voltage)

Phase
Single Phase

Efficiency
Industrial PLC efficiency, not specifically rated

Operating Temperature
0C to 55C

Humidity
10% to 90% RH (non-condensing)

Main Material
ABS/Polycarbonate Plastic Housing

Processing Type
Automatic Digital Processing

Condition
Used/Refurbished

Function
Programmable Logic Controller (PLC) CPU Module

Application
Industrial automation, PLC control systems

Dimension (L*W*H)
130 mm x 90 mm x 60 mm (approx)

Power Mode
AC Power Supply

Voltage
100-240V AC

Power Consumption
Approx. 10 W max (depending on I/O load)

Accessories
No accessories included

Output Points
12 (Relay)

Model Name/Number
CPM1A-30CDR-A-V1

Series
CPM1A

Digital Outputs
Relay contacts, 2A per point

Digital Inputs
24V DC (sink/source compatible)

Communication Port
RS-232C (optional adapter)

Memory
2 Kwords (program), 1 Kwords (data)

Output Type
Relay Type (NO/NC contact)

Expandability
Supports CPM1A/CPM1A-Expansion modules

Weight
Approx. 500g

Program Capacity
1,000 steps

Input Points
18 (Digital)

Omron CPM1A-30CDR-A-V1 PLC Compact I/O CPU Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Omron CPM1A-30CDR-A-V1 PLC Compact I/O CPU Module

Omron CPM1A30CDRAV1 PLC Compact IO CPU Module

The Omron Automation India CPM1A30CDRAV1 is a compact 30point IO CPU module featuring a 100240 VAC power supply 18 digital inputs and 12 relay outputs It supports DIN rail mounting and is part of the legacy Omron CPM1A microPLC series

Hardware Specifications

Total IO Points 30 points 18 inputs 12 outputs

Power Supply 100 to 240 VAC 5060 Hz

Output Type Relay output

Mounting DIN rail or chassis mount

Lifecycle Status Obsolete discontinued by manufacturer

Compact Design for Industrial Versatility

The CPM1A-30CDR-A-V1 PLC module boasts a compact form factor (130 x 90 x 60 mm), enabling flexible installation even in space-restricted panels. Its robust ABS/polycarbonate housing and IP20-rated enclosure ensure durability and safety for indoor industrial environments. Mounting options include DIN rail or panel mounting for easy integration into automation systems.

Flexible I/O and Reliable Performance

This module features 18 digital inputs and 12 relay outputs, each capable of withstanding demanding industrial loads (2A per point, up to 250V AC/30V DC). Inputs are compatible with 24V DC sink/source configurations, offering versatility in varied control schemes. With expandability support via CPM1A expansion modules, it adapts to growing automation requirements.

Efficient Control and Easy Integration

The CPM1A-30CDR-A-V1 offers up to 1,000 program steps and communication interfacing through an RS-232C port (adapter required). Its memory allows for reliable program and data storage, while efficient power consumption (approx. 10 W max) ensures cost-effective operation. The wide operating temperature and humidity range enhance system reliability under industrial conditions.

FAQ's of Omron CPM1A-30CDR-A-V1 PLC Compact I/O CPU Module:

Q: How can the Omron CPM1A-30CDR-A-V1 PLC be integrated into an automation system?

A: The CPM1A-30CDR-A-V1 can be installed using either DIN rail or panel mounting within a control panel. Connections for digital inputs (24V DC) and relay outputs are straightforward, and expandability with CPM1A modules allows seamless adaptation to system requirements. An optional RS-232C adapter enables communication with external devices.

Q: What are the benefits of using relay outputs in this PLC module?

A: Relay outputs on the CPM1A-30CDR-A-V1 support both NO and NC contacts, allowing flexible control over various AC and DC loads. Each output can handle up to 2A (max 250V AC or 30V DC), providing reliable switching for industrial equipment, making it suitable for various automation tasks.

Q: When should I consider expanding the I/O capacity of this PLC module?

A: Expansion is recommended when your automation project demands additional input or output points beyond the standard 18 inputs and 12 outputs. The CPM1A-30CDR-A-V1 supports CPM1A/CPM1A-Expansion modules, which can be added as the system grows or when reconfiguring for more complex control tasks.

Q: Where can the CPM1A-30CDR-A-V1 be used safely?

A: This PLC module is designed for indoor use within industrial environments. With an operating temperature range of 0C to 55C, 10% to 90% non-condensing humidity tolerance, and an IP20 protection level, it is ideal for panel-mounted applications, but not suitable for outdoor use.

Q: What is the process for programming the CPM1A-30CDR-A-V1?

A: Programming is typically performed using Omron's dedicated PLC programming software. Programs, up to 1,000 steps, can be written and downloaded to the unit via the RS-232C port (with optional adapter). Onboard memory allows storage of user program and data, supporting efficient automation workflows.

Q: How does the module ensure electrical efficiency and safety during operation?

A: Despite its compact size, the unit operates efficiently with a maximum power consumption of 10W (dependent on I/O load) and utilizes relay isolation for outputs. Single-phase 100-240V AC operation, ABS/polycarbonate housing, and overload limits on each output point further enhance safety during use.
