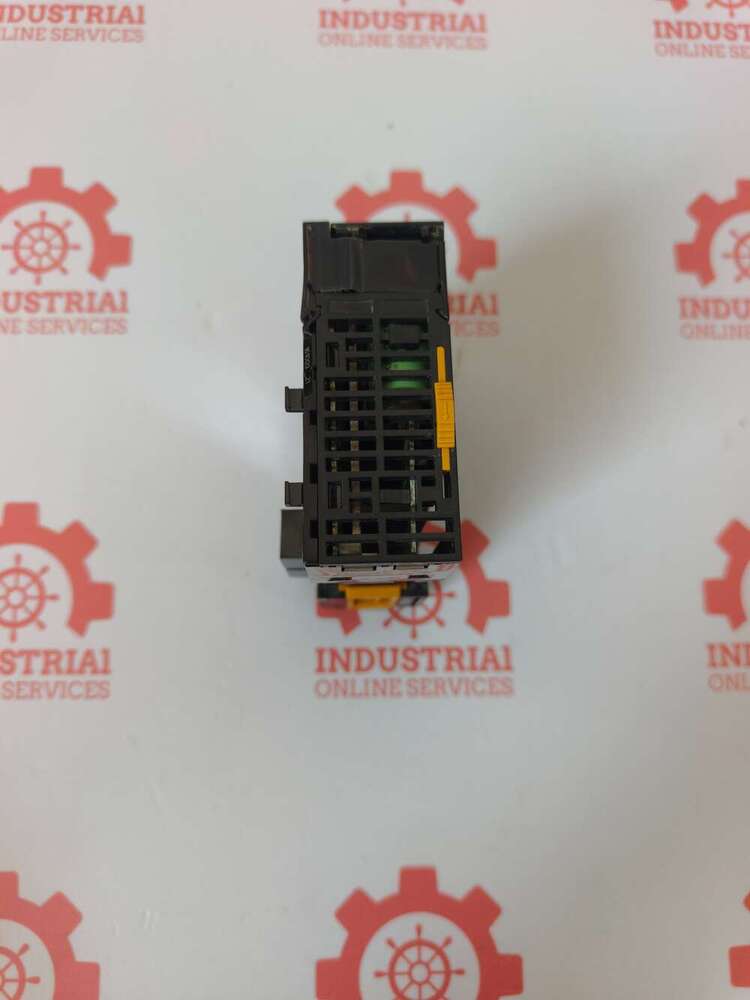

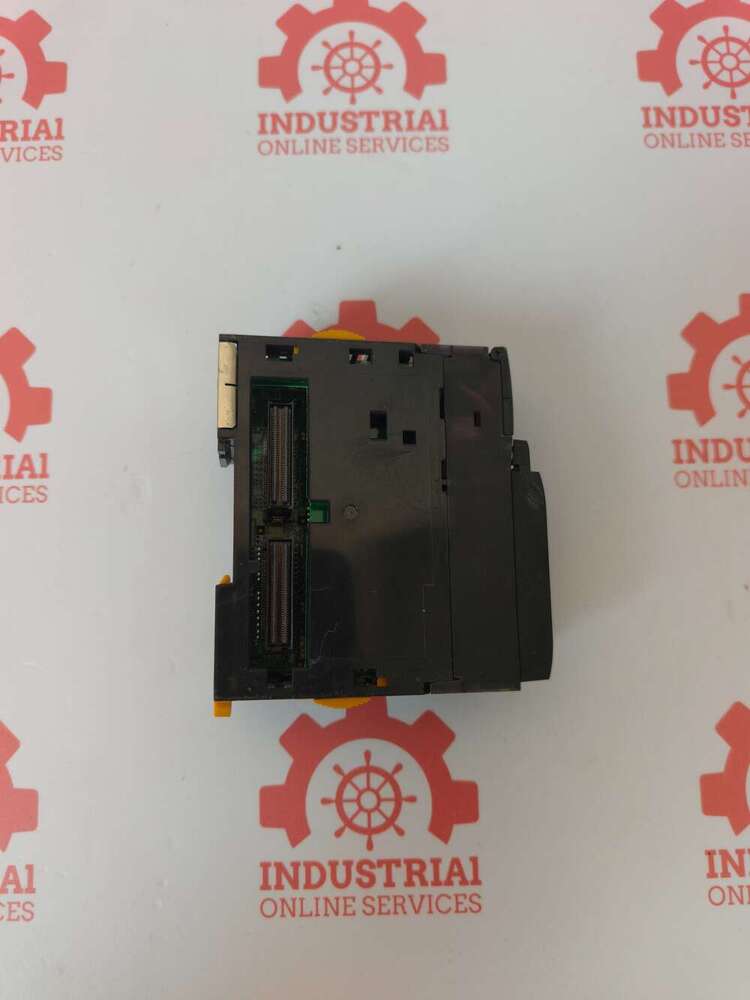

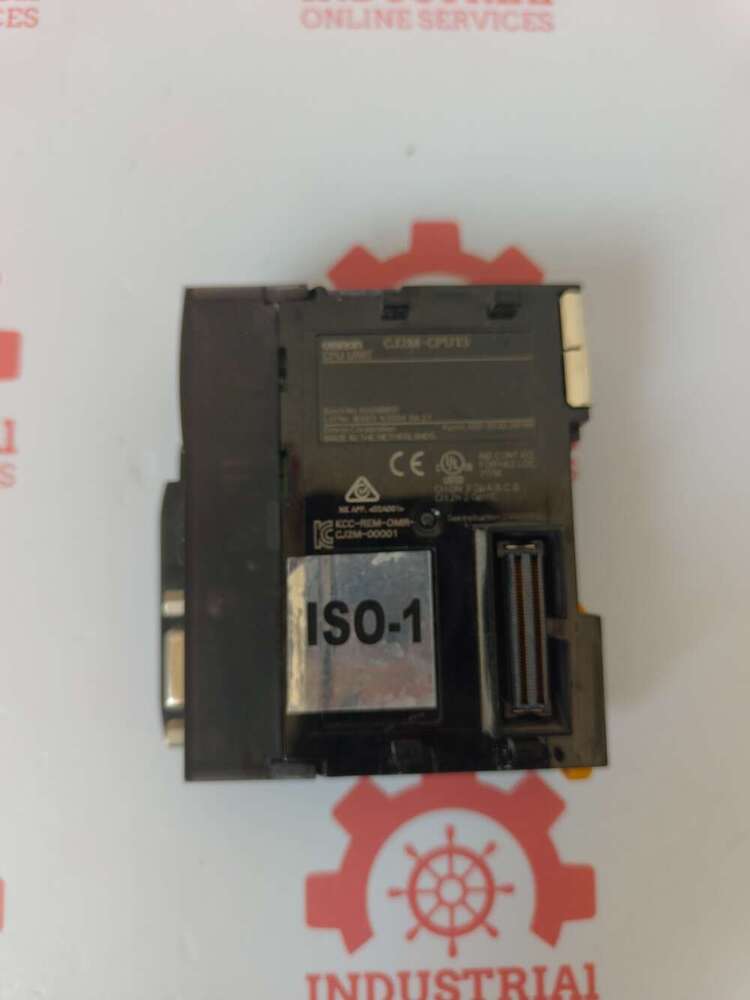

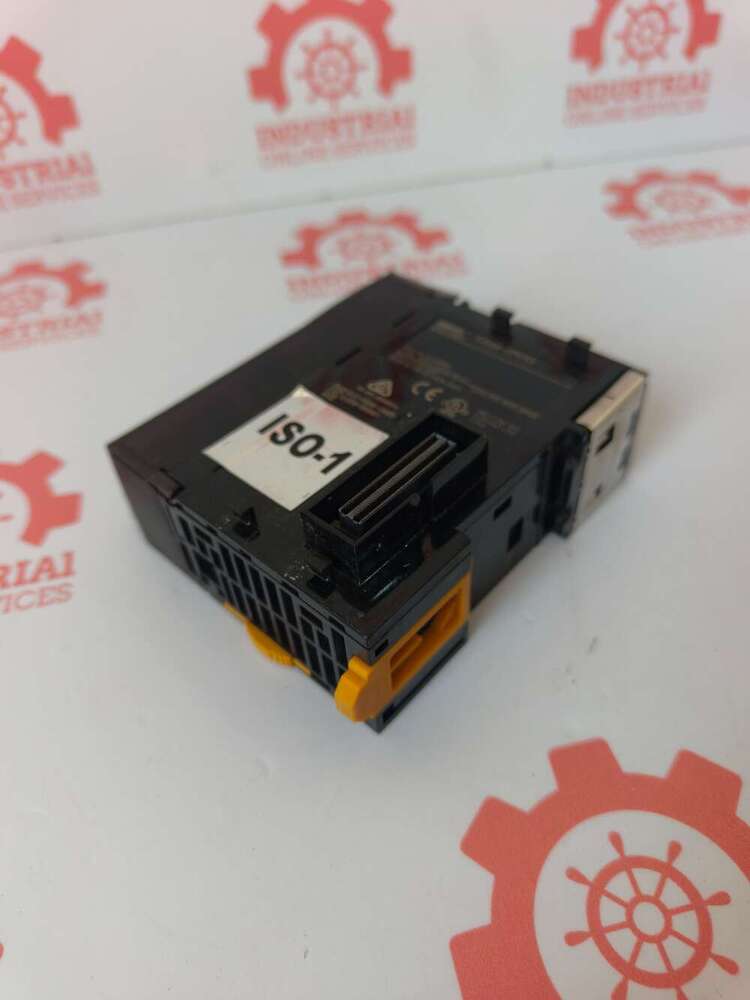

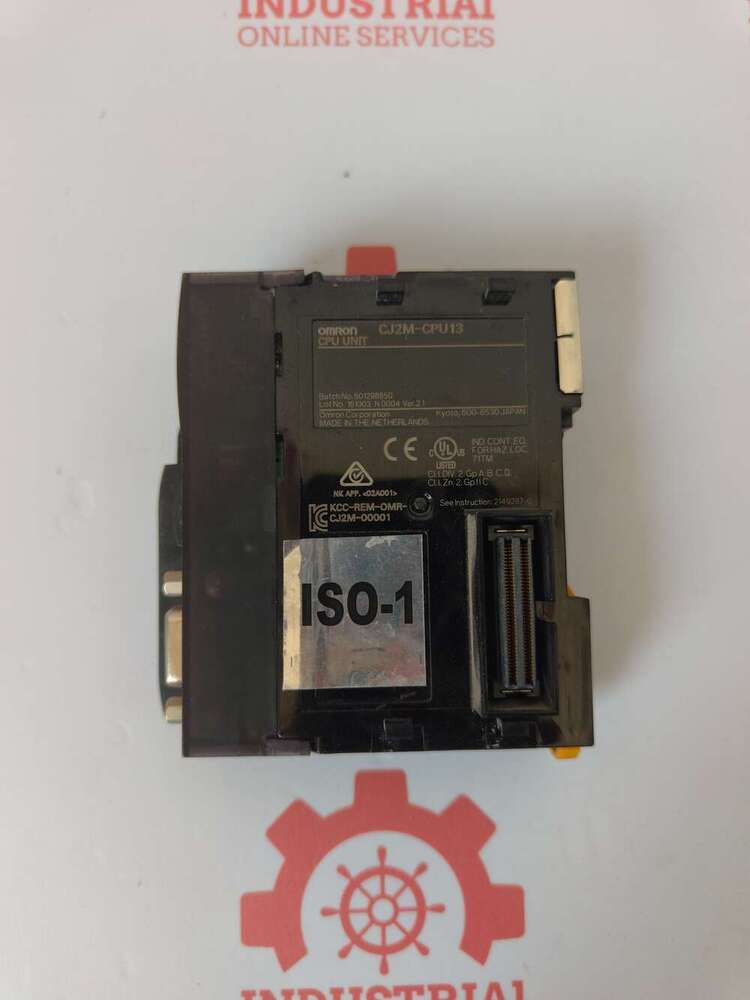

Omron CJ2M-CPU13 PLC CPU Module

Name: Omron CJ2M-CPU13 PLC CPU Module
Brand: Industrial Online Services
Price: 30000 INR
Availability: InStock

Price 30000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Omron CJ2M-CPU13 PLC CPU Module Specification

Operating Temperature
0 to 55C

Output Voltage
Provided to expansion modules from base unit

Humidity
10% to 90% (non-condensing)

Protection Level
IP20

Phase
Single phase (supply dependent)

Rated Voltage
24 V DC

Input Current
Typical 0.25A at 5V DC (from Backplane)

Mounting Type
DIN Rail Mountable

Frequency
50/60 Hz (via external power supply)

Efficiency
High-response processing, efficient logic execution

Main Material
Flame-resistant resin housing

Processing Type
Programmable Logic Controller (PLC)

Condition
New

Function
CPU module for Omron CJ2M PLC system

Application
Industrial Automation, Process Control

Dimension (L*W*H)
90mm x 65mm x 52mm (approx.)

Power Mode
DC Powered

Voltage
24 V DC (Supplied separately)

Power Consumption
5 W maximum

Battery Life
5 Years (Estimated)

Accessories
Manual, Mounting Bracket

Model Number
CJ2M-CPU13

Memory Capacity
20K steps program capacity, 32K words data memory

Storage Temperature
-20 to 70C

Diagnostics
Self-diagnosis, error codes and status LEDs

Communication Ports
1 RS-232C port, 1 USB device port

Clock
Built-in real-time clock

Programming Method
Ladder, Structured Text, Function Block

Weight
Approx. 0.25 kg

Number of I/O Points
Up to 2,560

Expansion Capability
Supports multiple expansion modules

Communication Protocols
Host Link, Toolbus, FINS

Display
LED status indicators

Omron CJ2M-CPU13 PLC CPU Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Omron CJ2M-CPU13 PLC CPU Module About

Omron CJ2MCPU13 PLC CPU Module

The Omron CJ2MCPU13 is a modular highperformance central processing unit CPU belonging to the Omron SYSMAC CJ Series of Programmable Logic Controllers PLCs It is designed to deliver fast processing speeds and compact sequence control across standard industrial automation setups

Core Technical Specifications

According to official documentation provided by Omron Europe and the manufacturer data sheet

Program Capacity 20000 steps

Data Memory Capacity 64000 words total DM 32K words EM 32K words 1 bank

Execution Speed Ultrafast logic processing at 004 microseconds 40 ns minimum for basic instructions

IO Capacity Supports up to 2560 local digital IO bitspoints

Expandability Max 40 modules total spread across up to 3 expansion racks

Builtin Interfaces 1 USB 20 port for programmingplugandplay access and 1 Serial RS232C port 9pin Dsub

Programming Software Fully compatible with Omron CXOne specifically CXProgrammer

Languages Supported Ladder Diagram LD Structured Text ST Sequential Function Chart SFC and Instruction List IL

Robust Performance and Flexibility

The CJ2M-CPU13 provides high-response processing and efficient logic execution, supporting complex automation needs. Its compatibility with various programming languages-ladder, structured text, and function blocks-enables flexibility in design and application. Multiple communication and expansion options offer seamless integration into both new and existing control systems.

User-Friendly Diagnostics and Maintenance

With built-in self-diagnosis, error codes, and LED status indicators, maintenance and troubleshooting are simplified. The included manual and mounting bracket streamline installation, while a built-in real-time clock ensures accurate time-stamped records for critical processes.

FAQ's of Omron CJ2M-CPU13 PLC CPU Module:

Q: How do I program the Omron CJ2M-CPU13 PLC CPU module?

A: Programming the CJ2M-CPU13 can be carried out using ladder logic, structured text, or function block methods through supported Omron software such as CX-Programmer. The unit's USB and RS-232C ports allow direct connection to a PC for convenient program upload, download, and monitoring.

Q: What benefits does the built-in diagnostic feature offer?

A: The self-diagnosis functionality and error code system provide fast identification of issues, while LED status indicators offer real-time feedback on system health. This minimizes downtime and helps maintenance personnel address faults efficiently.

Q: When should the battery be replaced in the CJ2M-CPU13 module?

A: The CPU module's battery is designed to last approximately 5 years under typical operating conditions. Replacement is recommended as part of scheduled maintenance, or immediately if the warning indicator signals battery depletion.

Q: Where can I mount the CJ2M-CPU13 in my control system?

A: The module is DIN rail mountable, making it suitable for standard industrial panels. Its IP20 protection rating ensures it functions reliably in typical automation environments while safeguarding against dust and accidental contact.

Q: What is the process for expanding the I/O capacity of the CJ2M-CPU13?

A: Expansion is straightforward; simply attach compatible Omron expansion modules to increase I/O capacity, up to 2,560 points. The CPU automatically recognizes added modules, ensuring seamless integration without system interruption.

Q: How does the CJ2M-CPU13 support communication with external devices?

A: The module includes RS-232C and USB ports, supporting Host Link, Toolbus, and FINS protocols. This enables communication with supervisory systems, HMIs, and other networked devices for comprehensive process control.

Q: What industries or applications benefit most from the CJ2M-CPU13?

A: Due to its versatility, efficiency, and reliable performance, the CJ2M-CPU13 is ideal for industrial automation, process control, material handling, and any application demanding robust, high-speed logic control and easy system expansion.
