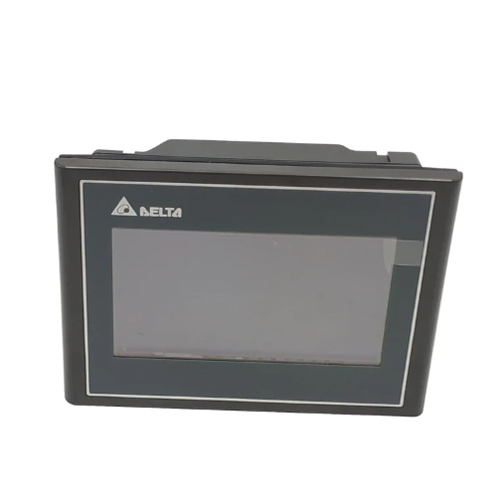

Delta DOP 103BQ HMI

Get a Price/Quote

MOQ : 1 Piece

Delta DOP 103BQ HMI Specification

Remote Control
Yes

Frequency
50/60 Hz

Automation Grade
Automatic

Processor Type
32-bit RISC CPU

Mounting Type
Panel Mounting

Weight
Approx. 0.4 kg

Application
Industrial Operator Interface

Control Type
Touch Screen

Phase
Single Phase

IP Rating
IP65 (Front Panel)

Features
High-resolution display, multi-lingual support, user-friendly design

Connectivity Type
1 x RS232/RS485/RS422, 1 x USB Host, 1 x Ethernet

Screen Size
4.3 inch TFT LCD

Material
Plastic Body / Glass Panel

Power
5W

Temperature
0C to 50C (Operating), -20C to 60C (Storage)

Voltage
24V DC (15%)

Storage Expansion
Supports USB Data Storage

Color Depth
65K Colors

Memory
128 MB Flash, 64 MB RAM

Communication Ports
COM1: RS232/RS485/RS422, USB Host (Type-A), Ethernet

Backlight
LED

Front Panel Dimension
129 x 99 x 34 mm

Display Resolution
480 x 272 pixels

Vibration Resistance
10~25Hz (X, Y, Z directions) 2G, 30 min.

Cutout Dimension
119 x 92 mm

Touch Panel Type
Analog Resistive

System Clock
Real Time Clock (RTC) Built-in

Humidity
10% to 90% RH (non-condensing)

About Delta DOP 103BQ HMI

Experience a phenomenal upgrade in industrial automation with the Delta DOP 103BQ HMI-available for a limited time and already earning favorable reviews from top-rated professionals across India. With a majestic, laureate design and a vivid 4.3-inch TFT LCD display offering 65K color depth and 480x272 pixel resolution, it delivers supreme clarity for every operator. Enhanced by a robust IP65 front panel, user-friendly analog resistive touchscreen, and multiple communication ports (RS232/RS485/RS422, USB, Ethernet), it supports rapid data exchange and storage. Built to withstand challenging environments, this lightweight HMI features high vibration resistance, a real-time system clock, and reliable multi-lingual support for diverse applications.

Versatile Applications and Usage Scope

The Delta DOP 103BQ HMI is ideal for a broad array of industrial operator interfaces, providing seamless control in both specific and general automation settings. Its adaptable design fits effortlessly on panel-mounted surfaces, especially in manufacturing lines, process control, and machine monitoring. With its high-resolution display, user-friendly operation, and multilingual support, this HMI is perfectly suited for any application requiring accurate visualization and dependable input on rugged surfaces.

Efficient Packaging, Sample Policy, and Domestic Offerings

Order processing for the Delta DOP 103BQ HMI is meticulously handled, ensuring that each unit is securely packed for safe transit and prompt delivery. We encourage sample requests under our accessible sample policy to help minimize initial expenditure while evaluating the product. Our main domestic market focuses on India, catering to nationwide automation needs through reliable order fulfillment and favorable offers for bulk purchasing.

FAQ's of Delta DOP 103BQ HMI:

Q: How is the Delta DOP 103BQ HMI typically used in industrial environments?

A: The Delta DOP 103BQ HMI is widely utilized as an operator interface for monitoring and controlling industrial machinery, production processes, and automated systems, delivering real-time data and robust connectivity to various devices.

Q: What are the main benefits of choosing the Delta DOP 103BQ HMI?

A: This top-rated HMI offers high-resolution visuals, reliable performance in harsh conditions, user-friendly touch controls, flexible communication options, and favorable reviews for its easy integration and low maintenance requirements.

Q: Where can the Delta DOP 103BQ HMI be mounted or installed?

A: It is designed for convenient panel mounting, making it suitable for integration into machine control panels, equipment consoles, or any flat surface within the industrial workspace.

Q: What kind of connectivity does the DOP 103BQ HMI provide for industrial automation?

A: The HMI supports multiple connectivity options, including RS232/RS485/RS422 serial ports, USB Host (Type-A), Ethernet, and expansion for external USB data storage, empowering versatile interface possibilities.

Q: When is sample availability offered for the DOP 103BQ HMI, and how does the ordering process work?

A: Samples can be requested through our straightforward sample policy, especially for bulk or distributor inquiries. Orders are processed efficiently to prioritize timely delivery and cost-effective expenditure.
