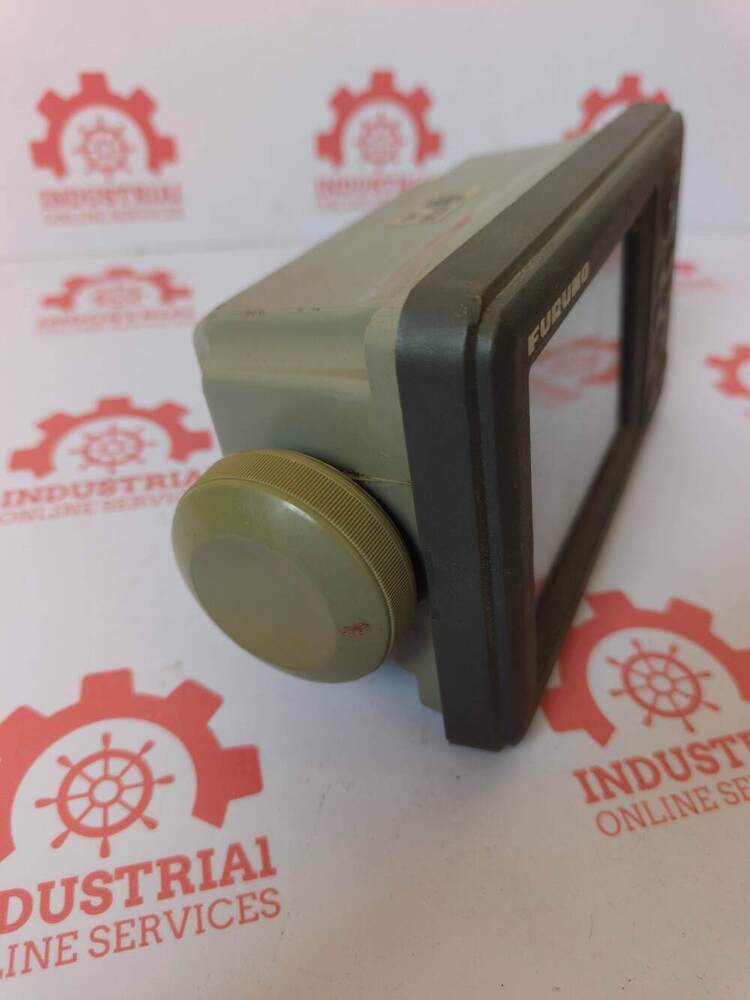

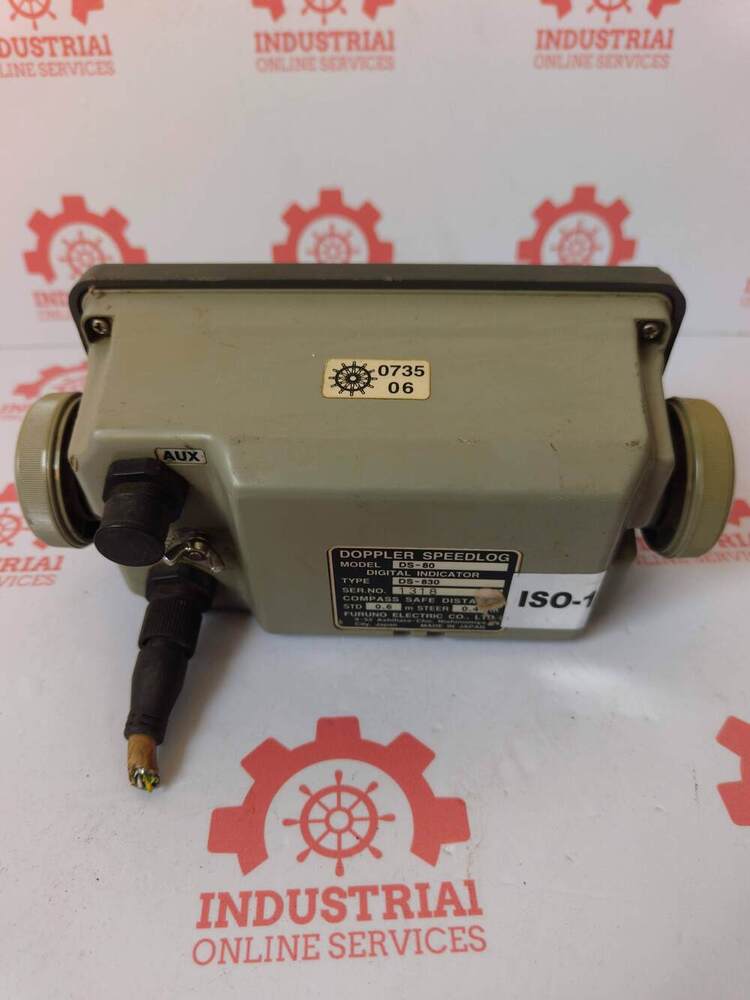

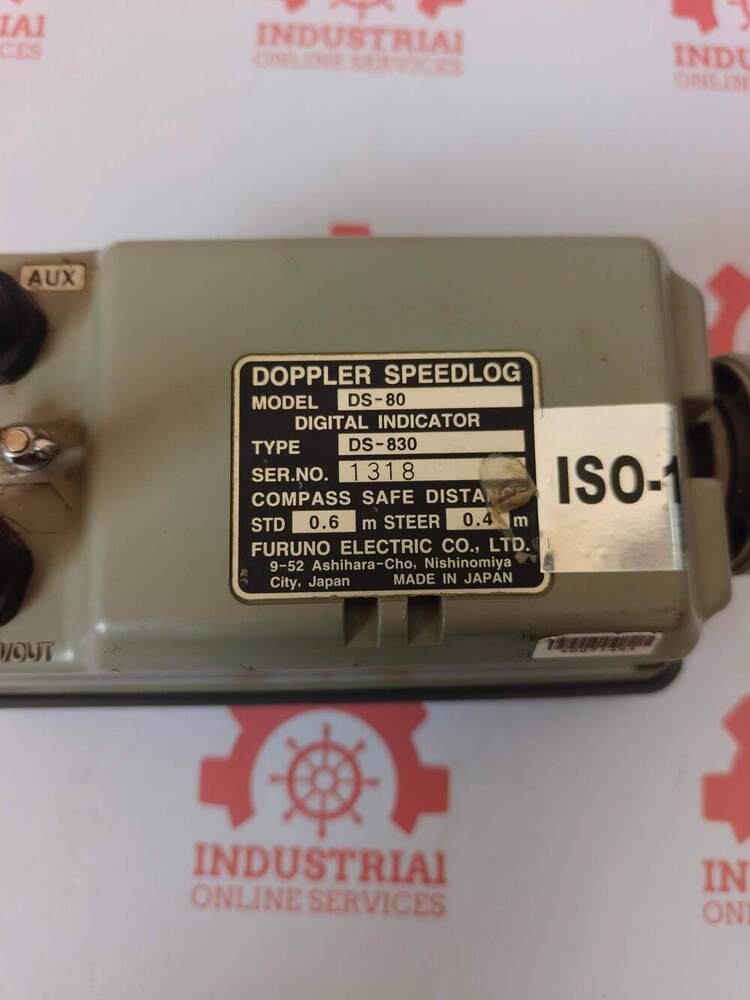

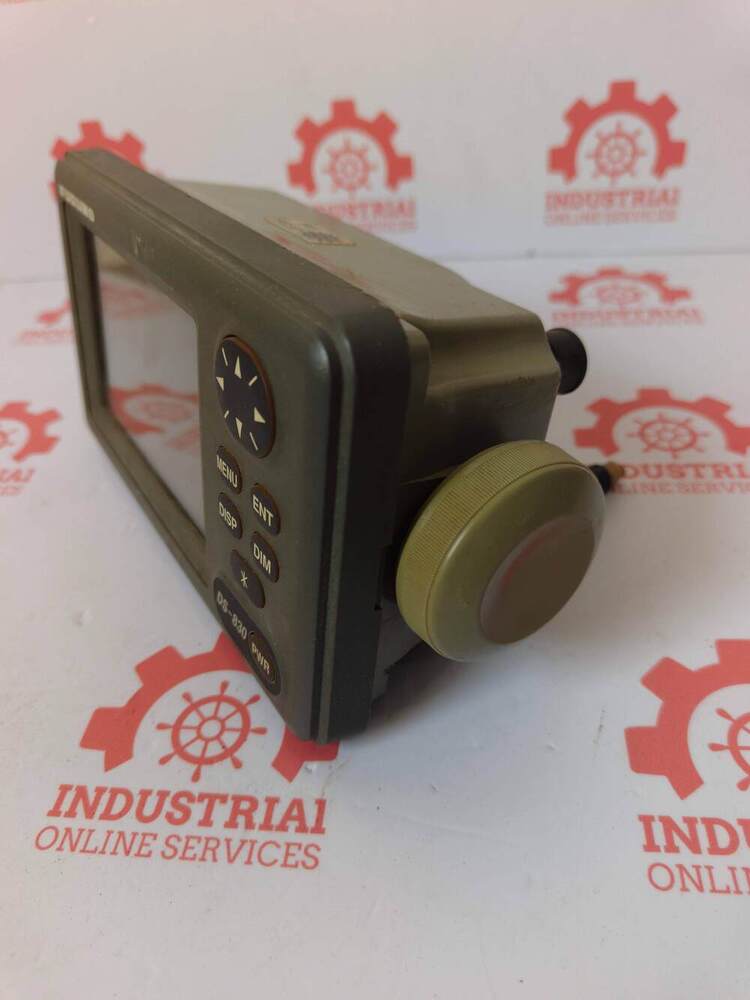

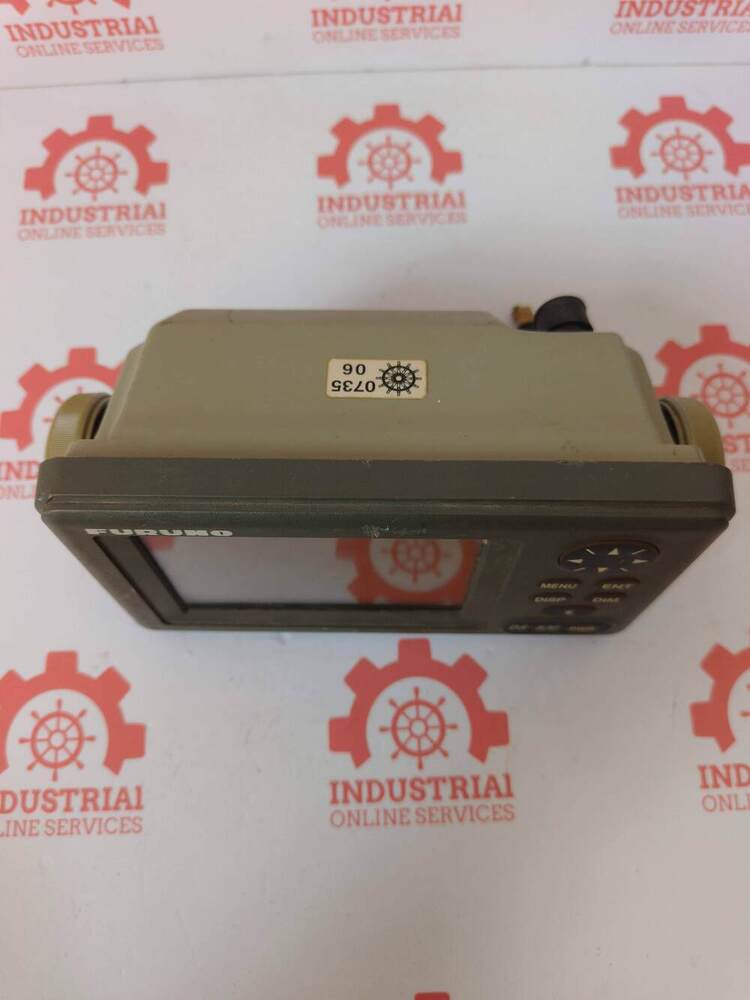

FURUNO DS-830( DS-80 )Doppler Speed Log System

Send Inquiry

Request To Call Back

FURUNO DS-830( DS-80 )Doppler Speed Log System

Name: FURUNO DS-830( DS-80 )Doppler Speed Log System
Brand: Industrial Online Services
Price: 35000 INR
Availability: InStock

Price 35000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

FURUNO DS-830( DS-80 )Doppler Speed Log System Specification

Phase
Single phase (DC powered non-AC phase system)

Humidity
Up to 93% RH (non-condensing)

Mounting Type
Panel or flush mount

Input Current
Approx. 1.5A at 24V DC

Frequency
13.77 MHz (transducer working frequency)

Rated Voltage
24V DC

Operating Temperature
-15C to +55C (indicator); -2C to +40C (transducer)

Protection Level
IPx5 for indicator (subject to manufacturer data)

Output Voltage
N/A (data output in NMEA)

Efficiency
High efficiency Doppler conversion

Main Material
ABS plastic and electronic components

Processing Type
Doppler signal processing

Condition
Used / Refurbished / Good working condition

Function
Displays ships speed over ground/water using Doppler technology

Application
Marine/Dock/Ship speed measurement and navigation

Dimension (L*W*H)
Approx. 260 170 100 mm (indicator unit, varies by model/component)

Power Mode
Continuous/External Supply

Voltage
DC 24V (range usually 21.6V to 31.2V DC)

Power Consumption
Approx. 30 W

Battery Life
N/A (Mains-powered equipment)

Accessories
Standard cables, instruction manual, mounting brackets (varies by package)

Data Output Format
NMEA 0183, RS-422

Readout
LCD digital display, backlit

Color
Grey/black

Model
FURUNO DS-830 / DS-80

Display Resolution
0.01 knot

Transducer Mounting
Hull mount or retractable type (subject to ship installation)

Weight
Approx. 2.2 kg (indicator unit)

Speed Measurement Range
0 to 20 knots

Approvals/Standards
IMO A.824(19), ISO 19679, MED (Marine Equipment Directive)

Other Features
Trip log, memory function, calibration menu, alarms for shallow water/speed limit

FURUNO DS-830( DS-80 )Doppler Speed Log System Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About FURUNO DS-830( DS-80 )Doppler Speed Log System

FURUNO DS-830( DS-80 )Doppler Speed Log System

Compatible Main System FURUNO DS-80 Doppler Speed Log

Display Technology Monochrome LCD with adjustable backlight contrast

Character Size 15 mm or 21 mm height option for visibility

Speed Indication RangeFore: -10.0 to +40.0 knots through-the-water
Aft: Max -10.0 knots through-the-water

Distance Run Range 0.00 to 999,999.99 nautical miles

Power Supply Requirements 110 / 220 V AC, Single-phase (50/60 Hz)

AI Mode conversation: FURUNODS-830

FURUNODS-830

The FURUNO DS-830 is an optional external Digital Speed Indicator display unit designed exclusively for the FURUNO DS-80 Doppler Speed Log system. It replicates the main speed log data, allowing crew members to view real-time vessel speed and distance run from alternative locations on the ship (such as the wings of the bridge or the aft station). [1, 2, 3, 4]

Core Technical Specifications

Parameter	Specification Details
Primary Function	Remote digital speed and distance display
Compatible Main System	FURUNO DS-80 Doppler Speed Log
Display Technology	Monochrome LCD with adjustable backlight contrast
Character Size	15 mm or 21 mm height option for visibility
Speed Indication Range	Fore: -10.0 to +40.0 knots through-the-water Aft: Max -10.0 knots through-the-water
Distance Run Range	0.00 to 999,999.99 nautical miles
Power Supply Requirements	110 / 220 V AC, Single-phase (50/60 Hz)

Key Features

Shared Controls: The DS-830 features the exact same user control interfaces and button layouts as the main DS-80 display unit for intuitive, identical operation across stations.
System Integration: It ties directly into the DS-801 Distribution Box alongside other peripheral indicators like the DS-840 Remote Distance Indicator.
IMO & SOLAS Compliance: When integrated into the full DS-80 setup, it helps fulfill standard SOLAS carriage requirements for commercial vessels exceeding 300 gross tonnage (GT).

Advanced Doppler Technology for Accurate Speed Measurement

The FURUNO DS-830 (DS-80) leverages high-efficiency Doppler signal processing to deliver precise speed measurements. This cutting-edge technology assures accurate readings of your vessel's movement over ground or water, with 0.01-knot resolution displayed on a bright, backlit LCD for optimal visibility under any conditions.

User-Friendly Interface & Versatile Mounting Options

Designed with ease of use in mind, the DS-830 (DS-80) features a highly readable digital display, intuitive calibration menu, and simple trip log memory functions. The indicator unit is compact and can be panel or flush mounted, while the transducer supports both hull-mount and retractable installations, catering to diverse ship designs and requirements.

Reliable and Certified for Marine Use

Certified to meet IMO A.824(19), ISO 19679, and MED standards, the DS-830 (DS-80) is built for robust marine performance. It operates efficiently in challenging environments, withstanding up to 93% humidity and wide temperature ranges, while providing essential alarms for shallow water and speed limits to enhance safety and compliance at sea.

FAQ's of FURUNO DS-830( DS-80 )Doppler Speed Log System:

Q: How does the FURUNO DS-830 (DS-80) measure the speed of a vessel?

A: The DS-830 (DS-80) utilizes advanced Doppler signal processing technology to precisely measure a ship's speed over ground or water. It detects the frequency shift of a signal reflected from the seabed or water particles, converting this data into a digital speed reading displayed on its LCD screen.

Q: What are the mounting options for the transducer and indicator unit?

A: The transducer can be installed either as a hull mount or as a retractable type, depending on the vessel's structure. The indicator unit itself supports both panel and flush mounting, ensuring versatile installation to accommodate different bridge layouts or space constraints.

Q: When should I calibrate the speed log, and how do I access calibration settings?

A: It's recommended to calibrate the DS-830 (DS-80) after installation, major maintenance, or when accuracy needs verification. The system features a dedicated calibration menu, which can be accessed directly from the display interface, allowing users to perform adjustments with ease.

Q: Where is the data output from the DS-830 (DS-80) compatible for use?

A: The DS-830 (DS-80) outputs data in NMEA 0183 and RS-422 formats, making it compatible with a wide range of onboard navigation systems, data recorders, and integrated marine electronics typically found on ships and docks.

Q: What benefits does this system offer for marine navigation and safety?

A: With its high-precision speed measurements, memory function, trip log, and built-in alarms for shallow water or exceeding speed limits, the system enhances safe navigation. These features help crews maintain compliance with maritime regulations and improve overall situational awareness during operations.

Q: How do I maintain and operate the FURUNO DS-830 (DS-80) in challenging environments?

A: The DS-830 (DS-80) is engineered to withstand up to 93% humidity and temperature variations between -15C and +55C for the indicator unit. Regular checks, proper installation, and following the supplied instruction manual will ensure continued reliable performance even under demanding marine conditions.
