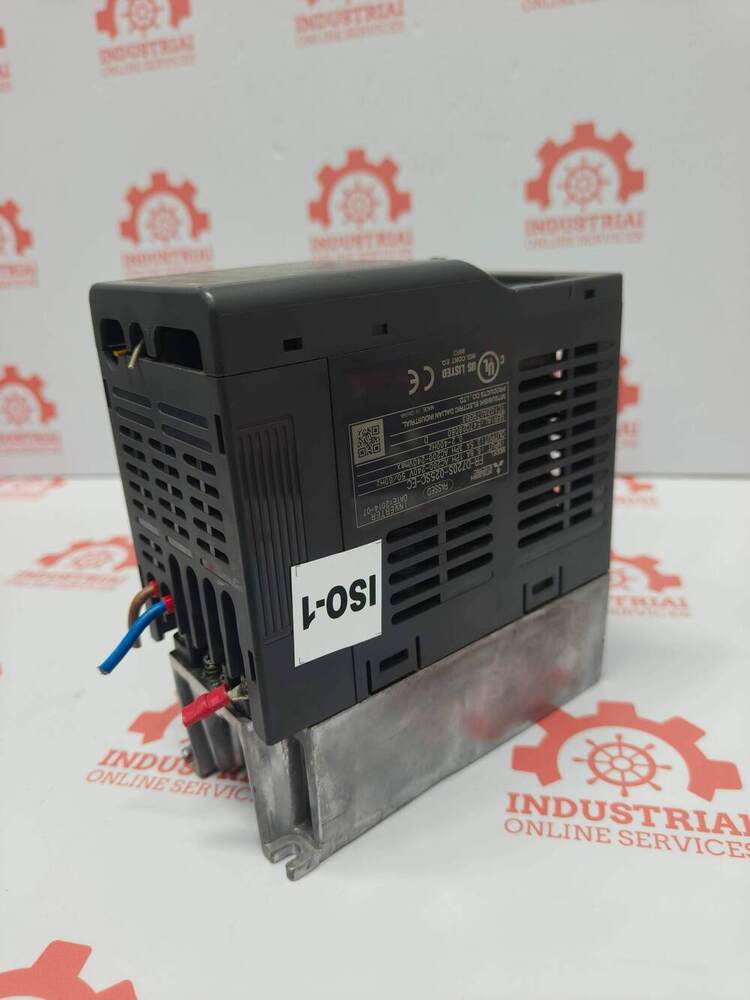

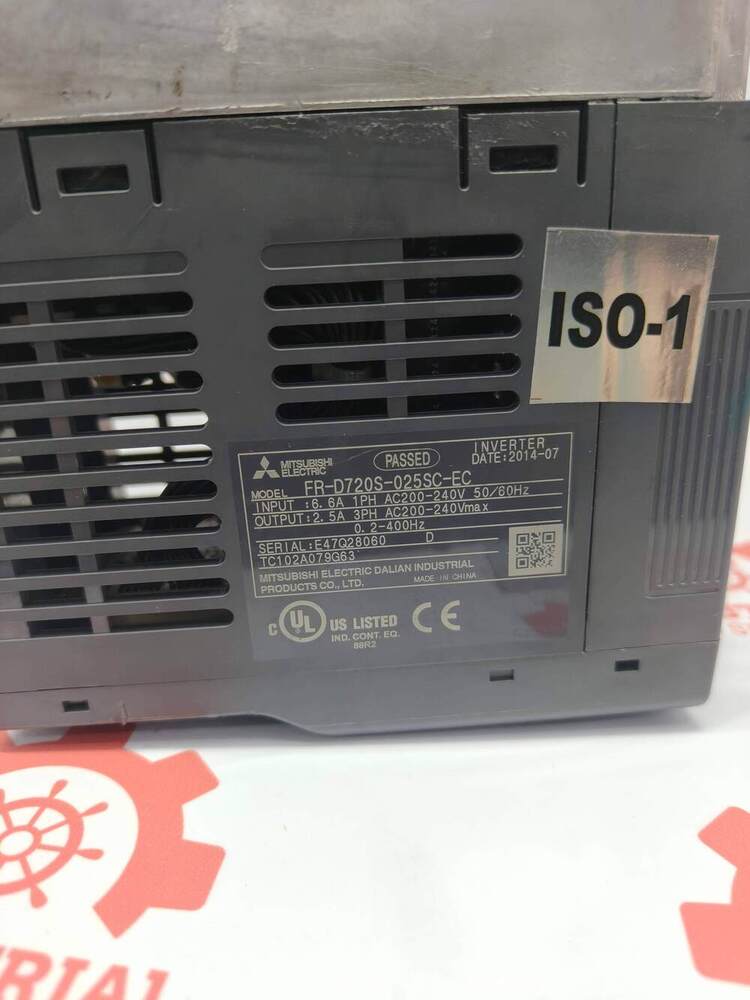

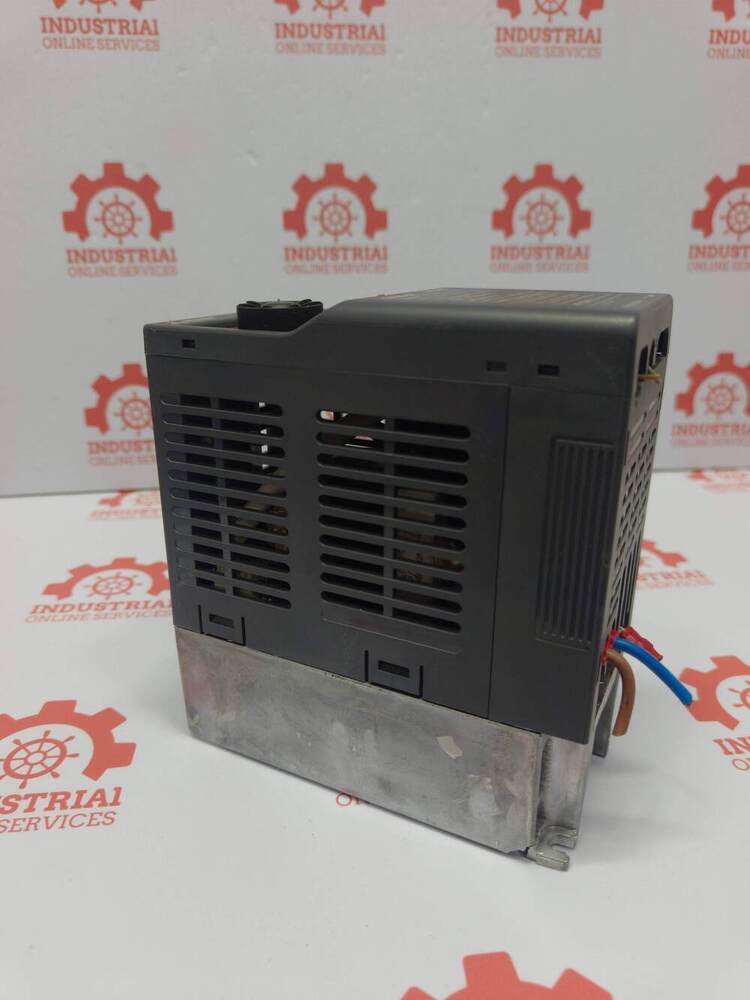

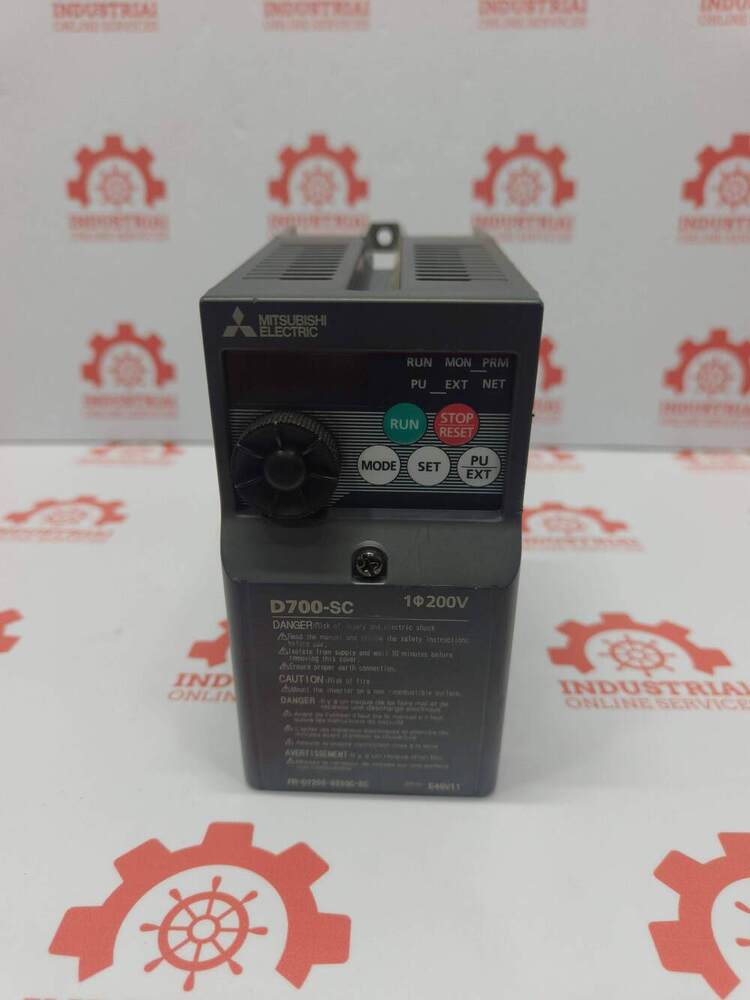

MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD)

Send Inquiry

Request To Call Back

MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD)

Name: MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD)
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD) Specification

Model No
FR-D7205-0235SC-EC

Chip Type
Integrated Microcontroller

I/O Cards Type
Analog / Digital Inputs & Outputs

Condition
Used / Refurbished

Compatible Port/Slot
Terminal Block / DIN Rail Mount

Use
Motor Control / Speed Regulation

Input Voltage
400V AC, 3-phase

Power Rating
0.75 kW (750W)

Control Method
V/F (Voltage/Frequency) Control

Enclosure Type
IP20

Speed Setting
Potentiometer, External Analog Input, Digital Setting

Output Frequency
0.2 - 400 Hz

Communication Interface
RS485 (Optional)

Output Voltage
3-phase, 400V AC

Ambient Temperature Range
-10 to +50C

Output Current
2.3A

Applications
Industrial Automation, Conveyor Drives, Pumps, Fans

Display
Integrated Digital Keypad

Cooling
Fan Cooling

Dimensions
150mm x 100mm x 85mm (HxWxD)

Weight
Approx. 1.5 kg

Protective Features
Overcurrent, Overvoltage, Overheating, Short-circuit Protection

MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD) Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD)

MITSUBISHI FRD72050235SCEC UltraCompact Variable Frequency Drive VFD This Compact Inverter Converts a SinglePhase 200240V AC Input Into a ThreePhase AC Output

Key Specifications

According to the official Mitsubishi Electric Technical Specifications the key ratings for this model include

Power Rating 04 kW approx 05 HP

Rated Current 25 A

Input Voltage Single Phase 200240 V AC 5060 Hz

Output Frequency 02 to 400 Hz

Control Methods VF control Magnetic Flux Vector Control and SoftPWM

Enclosure Rating IP20 intended for clean indoor panel mounting

Dimensions Super compact form factor measuring 68 mm W x 128 mm H x 1425 mm D

Ultra-Compact Design for Versatile Integration

Measuring just 150mm x 100mm x 85mm, the FR-D7205-0235SC-EC is engineered for installations where space is a premium. Its weight of approximately 1.5 kg and IP20 enclosure enable easy mounting on DIN rails or within equipment panels, making it suitable for both new and retrofit projects across diverse industrial settings.

Comprehensive Motor Protection and Reliable Operation

Equipped with advanced protective features such as overcurrent, overvoltage, overheating, and short-circuit safeguards, this VFD prioritizes safety and dependability. Its fan cooling system maintains optimal operating temperatures, ensuring continuous and trouble-free operation even in challenging conditions.

Flexible Control Methods and Easy Operation

With V/F control and an integrated digital keypad, users can precisely manage motor speed. The drive supports multiple input options, such as potentiometer, external analog input, and digital setting, while its optional RS485 interface provides enhanced connectivity for industrial automation networks.

FAQ's of MITSUBISHI FR-D7205-0235SC-EC Ultra-Compact Variable Frequency Drive (VFD):

Q: How do I set the desired speed on the MITSUBISHI FR-D7205-0235SC-EC VFD?

A: Speed can be adjusted using the integrated digital keypad, a potentiometer, or an external analog signal. This flexibility allows for direct and precise speed regulation depending on your control preference or system requirements.

Q: What types of motors are compatible with this VFD?

A: The FR-D7205-0235SC-EC is designed for use with 3-phase AC induction motors rated up to 0.75 kW (750W), making it suitable for a variety of industrial automation, conveyor, pump, and fan applications.

Q: When should I use the built-in protective features of this VFD?

A: The drive's protective features-such as overcurrent, overvoltage, overheating, and short-circuit protection-activate automatically during fault conditions, ensuring the safety of both the VFD and connected motor. No user intervention is needed; these safeguards are always operational.

Q: Where can this VFD be installed?

A: Thanks to its IP20 rated enclosure and compact dimensions, this VFD is ideal for installation in clean, indoor industrial panels or equipment enclosures. It can be mounted via terminal blocks or DIN rails for convenience.

Q: What is the process for connecting external controls or automation systems?

A: External analog or digital inputs can be connected via the terminal block. For communication with automation networks, the optional RS485 interface may be used. Please refer to the specific wiring diagram in the user manual for detailed connection instructions.

Q: What are the main benefits of using this variable frequency drive?

A: Key benefits include precise motor control, enhanced energy efficiency, improved machinery longevity through soft start/stop, integrated safety protections, and its ultra-compact size, which facilitates installation in space-constrained environments.

Q: How does this VFD help in industrial automation projects?

A: The FR-D7205-0235SC-EC supports smooth and adjustable motor speeds, which is essential for conveyor systems, pumps, and fan operations. Its integration capabilities and robust protective features make it a valuable asset in a wide range of industrial automation solutions.
