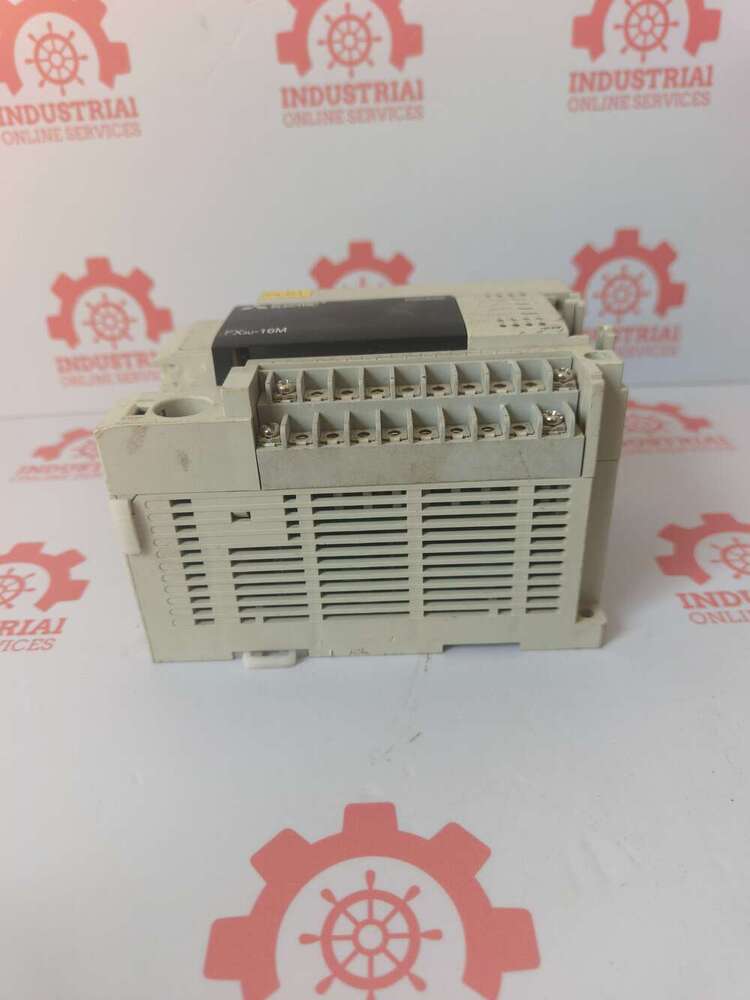

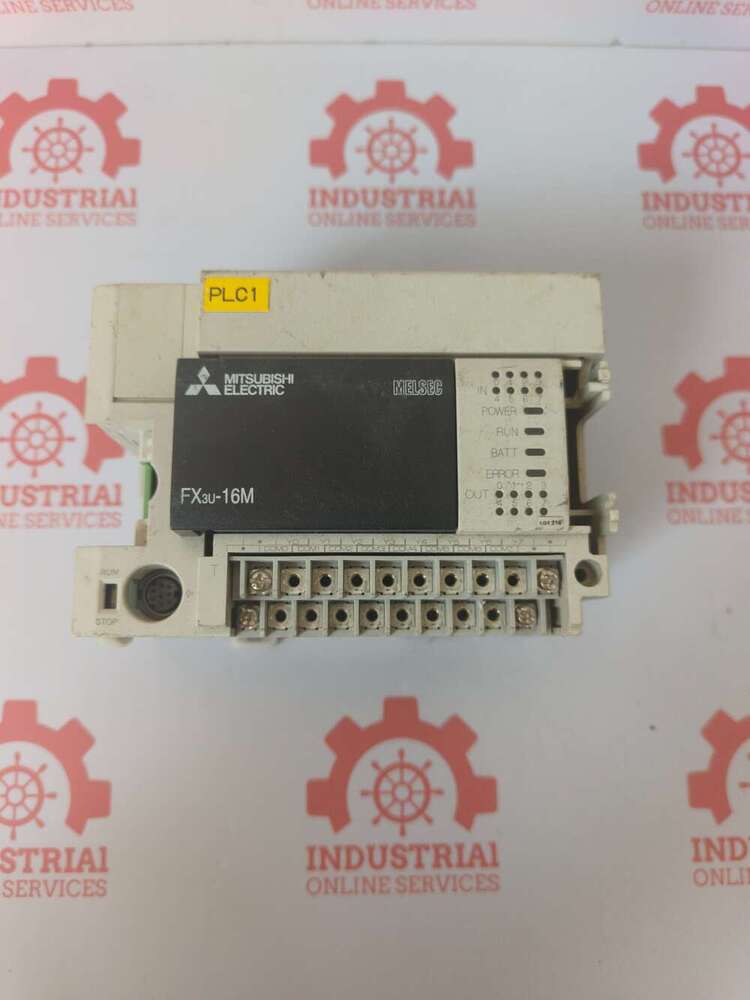

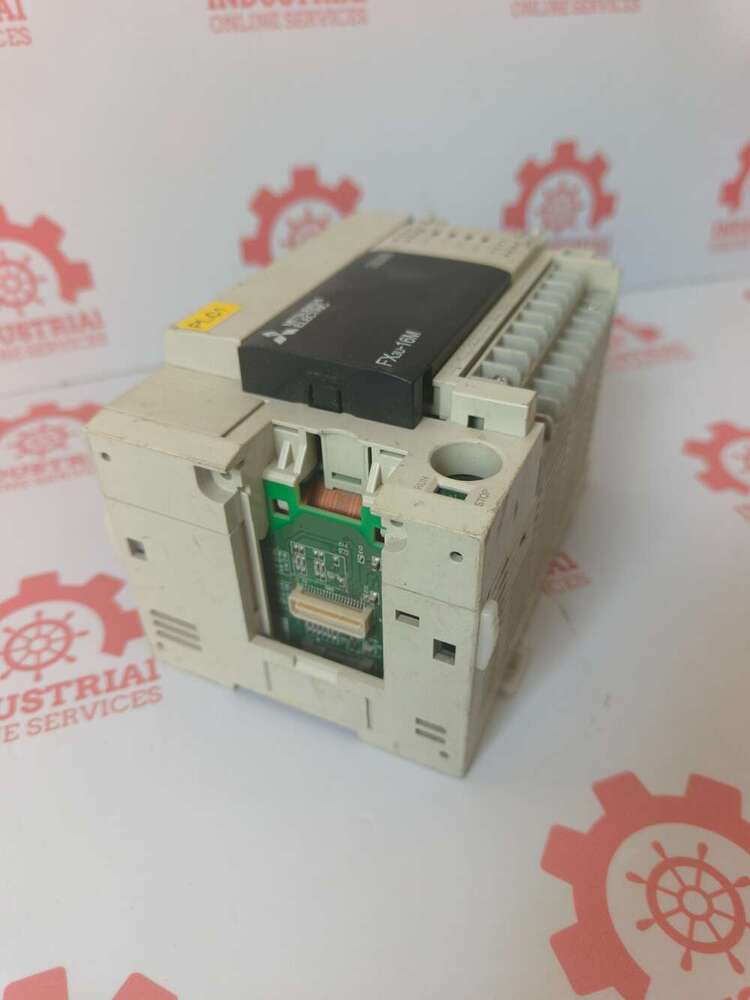

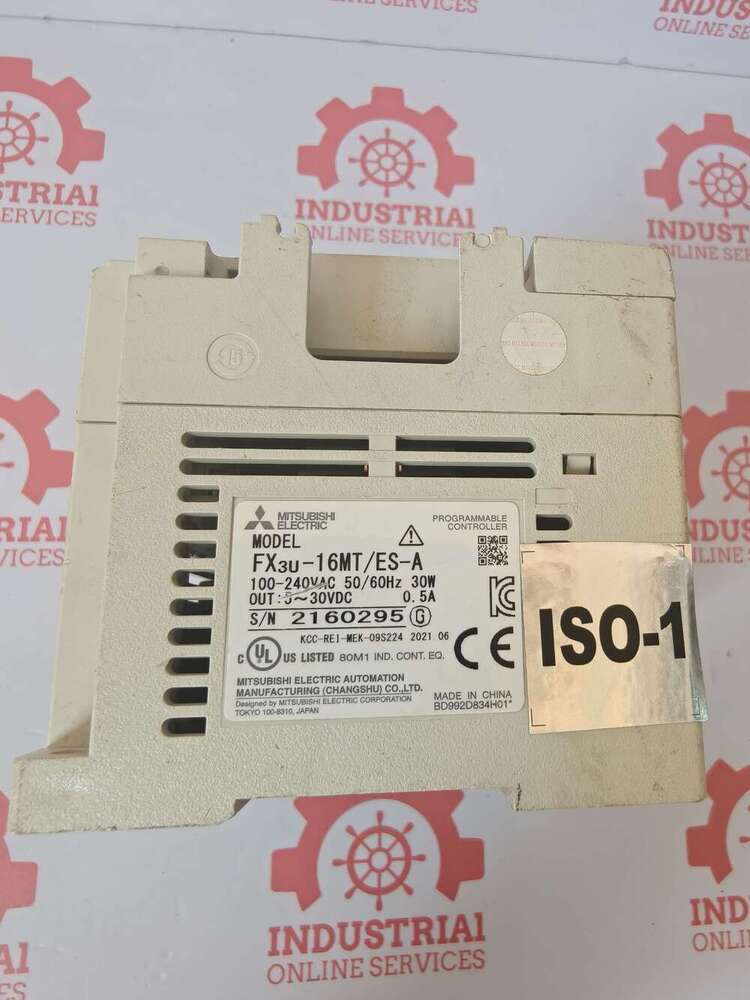

Mitsubishi FX3U-16MT/ES-A Compact Programmable Logic Controller PLC

Name: Mitsubishi FX3U-16MT/ES-A Compact Programmable Logic Controller PLC
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mitsubishi FX3U-16MT/ES-A Compact Programmable Logic Controller PLC Specification

Phase
Single phase

Input Current
0.35A (AC)

Frequency
50/60Hz

Protection Level
IP10 (typical for compact PLCs)

Rated Voltage
100-240V AC

Operating Temperature
0C to 55C

Output Voltage
24V DC (transistor output type)

Efficiency
Typically high, specific not listed

Humidity
5% to 95% RH (non-condensing)

Mounting Type
DIN rail or screw mounting

Main Material
Plastic enclosure, electronic components

Processing Type
Microprocessor-based logic control

Condition
New or used (refer to vendor)

Function
Programmable Logic Control (PLC) for automation

Application
Industrial automation, machine control, and process automation

Dimension (L*W*H)
90mm x 87mm x 86mm (approx.)

Power Mode
AC powered

Voltage
100-240V AC

Power Consumption
20W (max)

Battery Life
Not applicable (uses non-volatile memory)

Accessories
None included, optional expansion modules available

Response Time
0.08s per basic instruction

Product Model
FX3U-16MT/ES-A

Insulation Resistance
>= 5M (500V DC megger)

Output Points
8 (transistor type)

Programming Language
Ladder diagram, Structured Text (supported by GX Developer/GX Works)

Noise Immunity
Conforms to IEC 61000-4-2, 61000-4-4

Vibration Resistance
Conforms to IEC standards

Weight
Approx. 0.4kg

Expansion Capability
Yes, via expansion modules

Data Registers
8,192

Memory Type
Flash (EEPROM) / RAM for volatile data

Communication Ports
RS-422/RS-485 (optional, via expansion)

Program Capacity
16,000 steps

Input Points
8 (digital)

Storage Temperature
-25C to 75C

Mitsubishi FX3U-16MT/ES-A Compact Programmable Logic Controller PLC Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Mitsubishi FX3U-16MT/ES-A Compact Programmable Logic Controller PLC About

Mitsubishi FX3U16MTESA Compact Programmable Logic Controller PLC

The Mitsubishi FX3U16MTESA is a compact programmable logic controller PLC main unit featuring 16 IO points 8 digital inputs and 8 transistor outputs operating on a 100240V AC power supply It is widely used for industrial automation tasks offering highspeed processing builtin positioning features and 64Kstep memory capacity

Technical Specifications

Power Supply 100240V AC as noted by PLCpartssolution

InputsOutputs 8 digital inputs and 8 transistor sinksource outputs

Program Memory 64 Kstep program memory capacity for logic instructions

Builtin Functions Highspeed counters and pulsepositioning outputs

Common Applications

Smallscale machine control and automation systems

Conveyor tracking and sorting operations

Advanced Control and High Capacity

With a program capacity of 16,000 steps and 8,192 data registers, the FX3U-16MT/ES-A manages complex process automation with ease. This makes it ideal for a wide array of applications such as machine control and factory automation, where fast processing and data management are essential.

Flexible Expansion and Connectivity

This PLC supports expansion modules and optional communication ports (RS-422/RS-485), allowing users to tailor systems to their needs. DIN rail or screw mounting options and compact size make installation straightforward in space-limited environments without compromising on functionality.

Rugged Design and Reliable Operation

Engineered for industrial conditions, the FX3U-16MT/ES-A withstands temperature extremes (-25C to 75C storage, 0C to 55C operating) and high humidity. Its plastic enclosure offers IP10 protection, and its noise and vibration resistance conforms to strict IEC standards, ensuring reliable performance across demanding sites.

FAQ's of Mitsubishi FX3U-16MT/ES-A Compact Programmable Logic Controller PLC:

Q: How can I program the Mitsubishi FX3U-16MT/ES-A PLC?

A: You can program the FX3U-16MT/ES-A using ladder diagram or structured text languages, supported by GX Developer or GX Works software. This allows for flexible and intuitive logic development tailored to your automation tasks.

Q: What expansion options are available for this PLC model?

A: The FX3U-16MT/ES-A supports multiple expansion modules, such as additional I/O, communication, or specialized function modules. Expansion modules connect easily to extend the PLC's capabilities based on your project's requirements.

Q: Where is the Mitsubishi FX3U-16MT/ES-A commonly used?

A: This PLC is widely implemented in industrial automation, machine control, and process automation environments. Its design and features make it suitable for manufacturing plants, assembly lines, and other factory-floor installations.

Q: What benefits does transistor output provide in this model?

A: Transistor outputs allow for high-speed switching and precise control of connected devices, making the FX3U-16MT/ES-A suitable for applications requiring fast response times, such as sorting machines or conveyor systems.

Q: When should I consider using expansion modules?

A: Expansion modules are recommended when your application requires more I/O points, additional communication interfaces, or specialized functions not available in the base unit. This ensures system scalability without full PLC replacement.

Q: What is the power supply specification for this PLC?

A: The unit operates on 100-240V AC single-phase power, with a maximum power consumption of 20W. It is suitable for standard industrial power environments and offers high efficiency for its size class.
