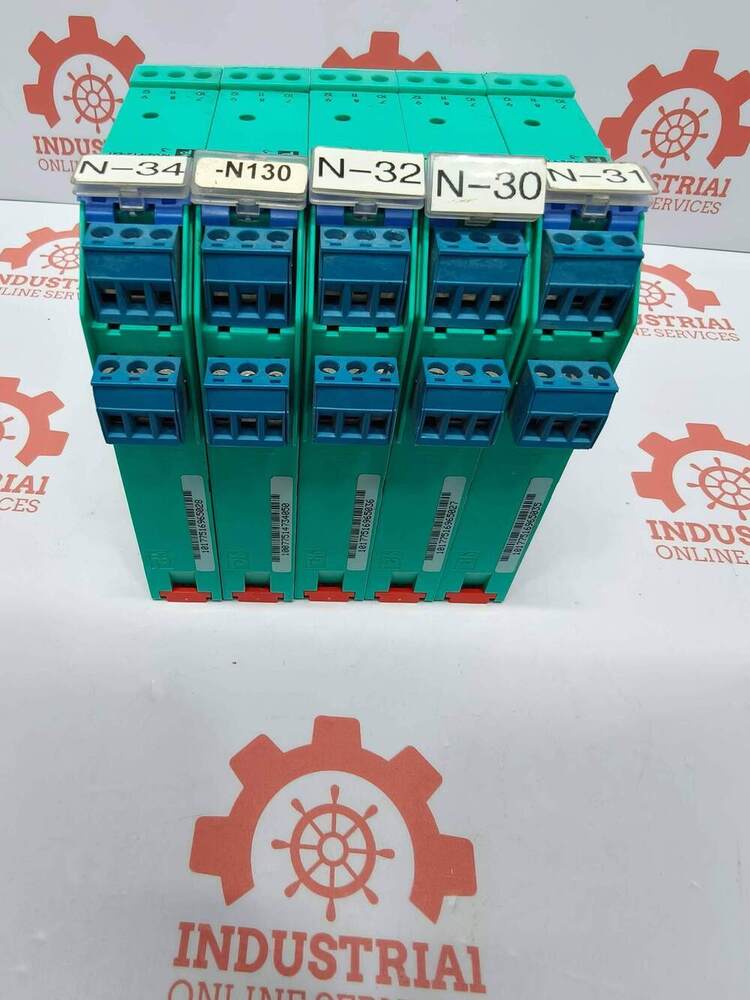

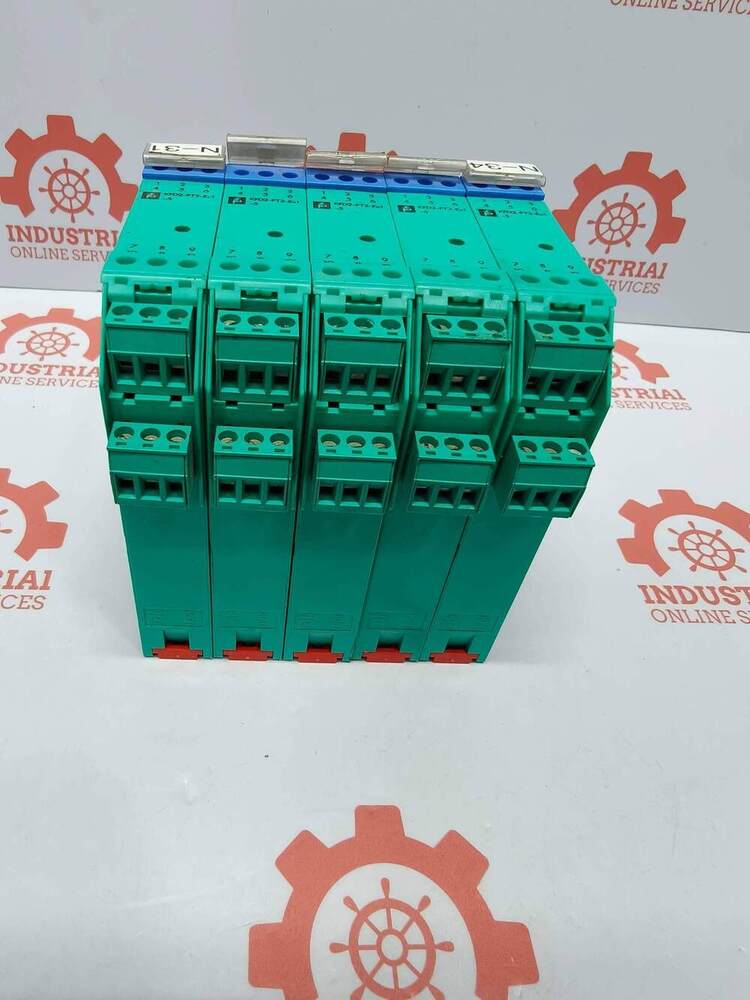

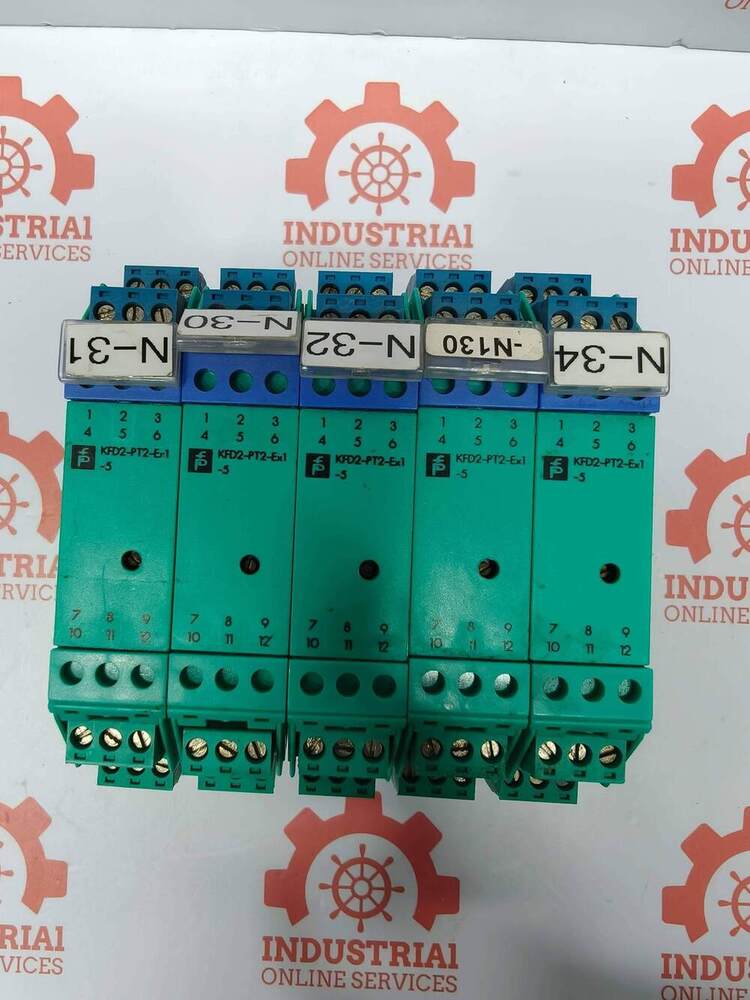

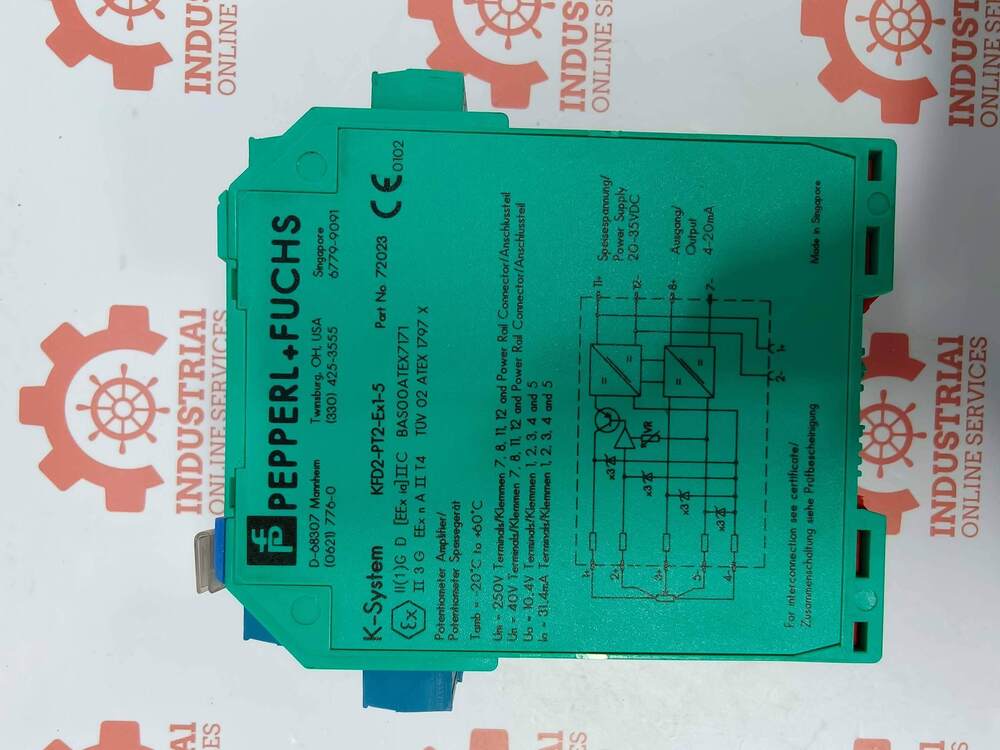

PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter)

Send Inquiry

Request To Call Back

PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter)

Name: PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter)
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter) Specification

Mounting Type
DIN rail mounting

Frequency
DC application

Humidity
Max. 95% RH, non-condensing

Output Voltage
(Dependent on field wiring, mainly produces 0/4-20 mA signal)

Input Current
Input for potentiometric sensor (signal varies by application)

Rated Voltage
24 V DC typical

Protection Level
Intrinsically safe, ATEX certified

Operating Temperature
-20C to +60C

Phase
Single phase (signal circuit)

Main Material
Industrial grade plastic enclosure

Processing Type
Isolated Barrier (Potentiometer Converter)

Condition
Used/Second hand

Function
Intrinsically safe interface for potentiometers; converts position to a standard output current signal

Application
Signal isolation and conversion for potentiometer sensors in hazardous areas

Dimension (L*W*H)
Approx. 18 x 114 x 124 mm

Power Mode
24 V DC powered

Voltage
20 to 35 V DC (typical 24 V DC)

Power Consumption
Approx. 1.7 W

Accessories
No additional accessories included

Isolation
3-port isolation (input/output/power supply)

Enclosure Type
Polyamide housing

Explosion Protection
ATEX, IECEx certified for hazardous area use

Series
KFD2-PT2-EX1-5

Weight
Approx. 150 grams per module

Input
Potentiometer up to 10 k

Connections
Screw terminals

Status Indication
LED status indicator on front panel

Output Signal
0/4-20 mA (adjustable, non-reverse or reverse mode)

Response Time
<10 ms

PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter)

PEPPERL FUCHS KFD2PT2EX15 Intrinsically Safe Isolated Barrier Potentiometer Converter

Technical Specifications

Part Number 072023

Channels 1channel isolated barrier

Power Supply 20 35 V DC supports Power Rail or terminal connection

Input Type Potentiometer supports 3wire 4wire or 5wire technology

Output Signal 4 mA 20 mA analog current output

Measurement Accuracy 005

Safety Certifications Functional safety up to SIL 2 IEC 61508 FM UL ATEX and IECEx approved for hazardous areas

Connection Screw terminals

Housing Width 20 mm

Feature Breakdown

Feature Specification Detail

Field Device Potentiometer Nominal resistance 800

Output Load 1 k Standard loop capability

Compensation Lead resistance Frontfacing adjustment potentiometer

Galvanic Isolation Full Between input output and power supply

Hazardous Area Certified Solution

Fully certified for ATEX and IECEx, the KFD2-PT2-EX1-5 ensures intrinsic safety in hazardous locations. Its 3-port isolation protects input, output, and power circuitry, preventing cross-interference and enhancing operational safety. Designed for use in demanding environments, this module supports reliable monitoring and control for critical processes.

Flexible Signal Conversion

This converter interfaces with potentiometer inputs up to 10 k and outputs a scalable 0/4-20 mA signal, suitable for most industrial control systems. With selectable non-reverse and reverse output modes, it allows for application-specific adjustments, delivering versatility in signal management across various process industries.

Easy Installation and Operation

Housed in a durable polyamide enclosure, the unit offers simple DIN rail mounting. Screw terminals provide secure connections, while an LED status indicator on the front panel offers straightforward operational feedback. With no additional accessories required, deployment is quick, convenient, and suited for retrofitting or new installations alike.

FAQ's of PEPPERL & FUCHS KFD2-PT2-EX1-5 Intrinsically Safe Isolated Barrier (Potentiometer Converter):

Q: How is the KFD2-PT2-EX1-5 installed within an industrial control system?

A: The KFD2-PT2-EX1-5 is designed for straightforward DIN rail mounting inside electrical panels. It connects to field potentiometers and the main control system using screw terminals, making integration into new or existing systems both secure and efficient.

Q: What type of input and output signals does the KFD2-PT2-EX1-5 support?

A: The device accepts potentiometer sensor inputs up to 10 k and converts the position to a standard 0/4-20 mA current output, which can be set as non-reverse or reverse, ensuring compatibility with most industrial automation and monitoring systems.

Q: When should I use an intrinsically safe isolated barrier like this product?

A: This module should be used when you need to safely transmit potentiometer signals from hazardous areas to non-hazardous zones, providing explosion protection and signal isolation in industries such as chemical, oil and gas, or pharmaceuticals.

Q: Where is the KFD2-PT2-EX1-5 commonly applied and why?

A: It is commonly deployed in hazardous industrial environments where electrical devices must meet intrinsic safety standards, such as chemical plants and refineries, to prevent ignition risks and protect both people and equipment.

Q: What is the process for adjusting the output signal mode?

A: Users can configure the output signal for either non-reverse or reverse mode through on-device adjustments, ensuring the output current aligns with application requirements. Refer to the manufacturer's manual for exact configuration steps.

Q: How does three-port isolation benefit my installation?

A: Three-port isolation maintains electrical separation between the input, output, and power supply, minimizing potential ground loops and crosstalk, thereby improving measurement accuracy and system reliability, especially in complex or sensitive setups.

Q: What are the primary benefits of using this intrinsically safe interface unit?

A: This unit offers enhanced safety for hazardous areas, accurate signal conversion, robust electrical isolation, and hassle-free installation-making it a reliable choice for converting potentiometer signals into industry-standard current outputs.
