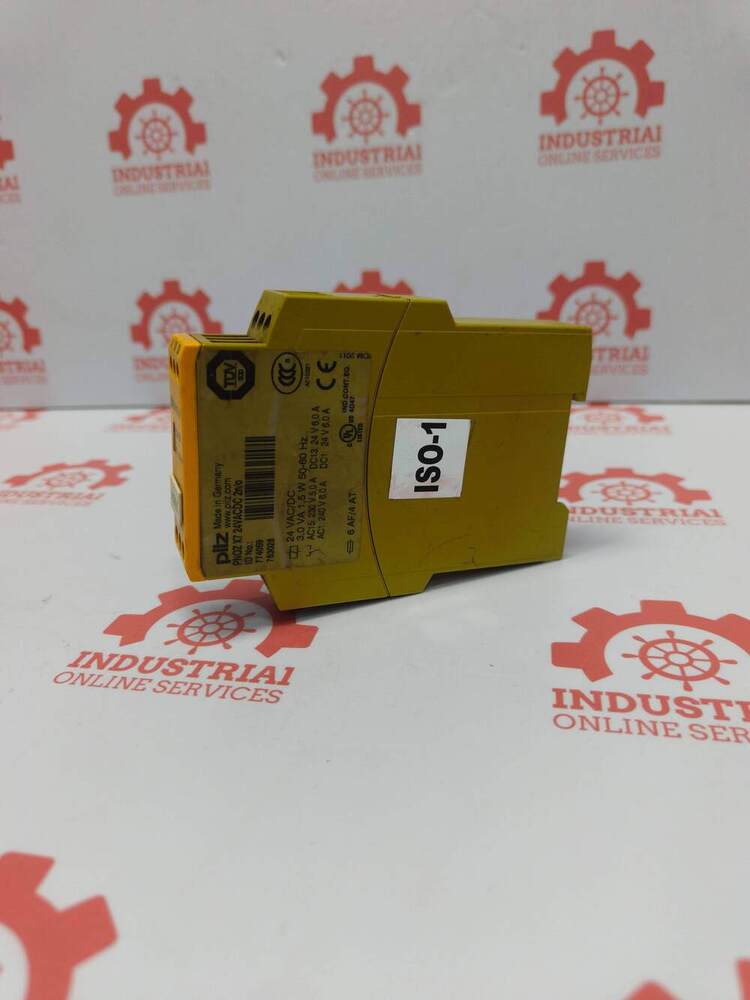

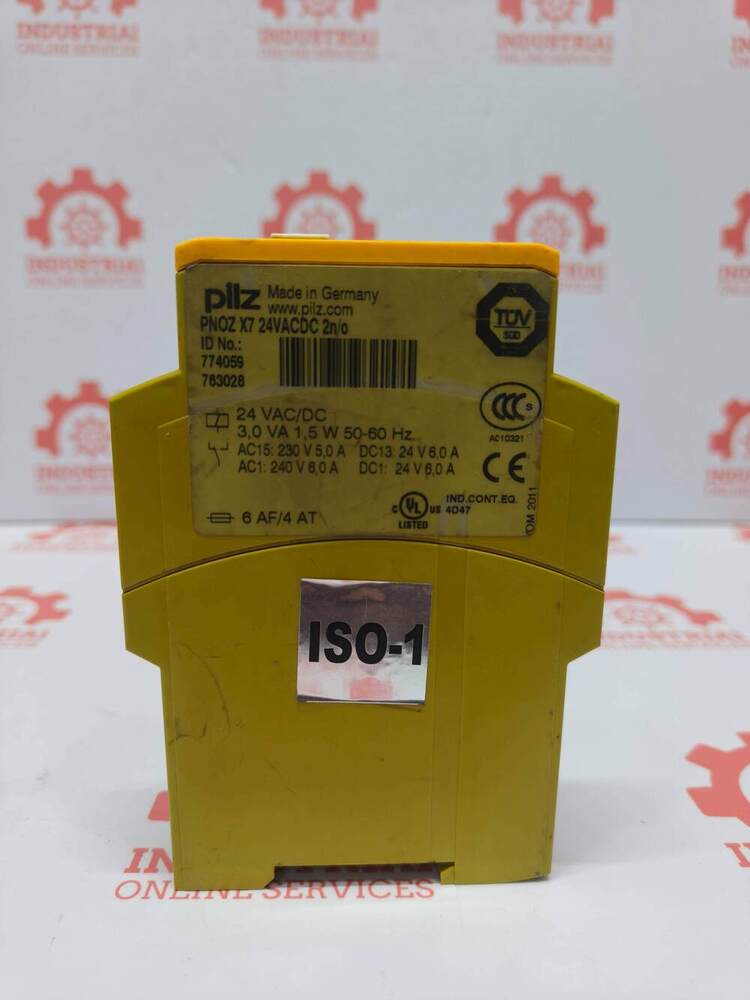

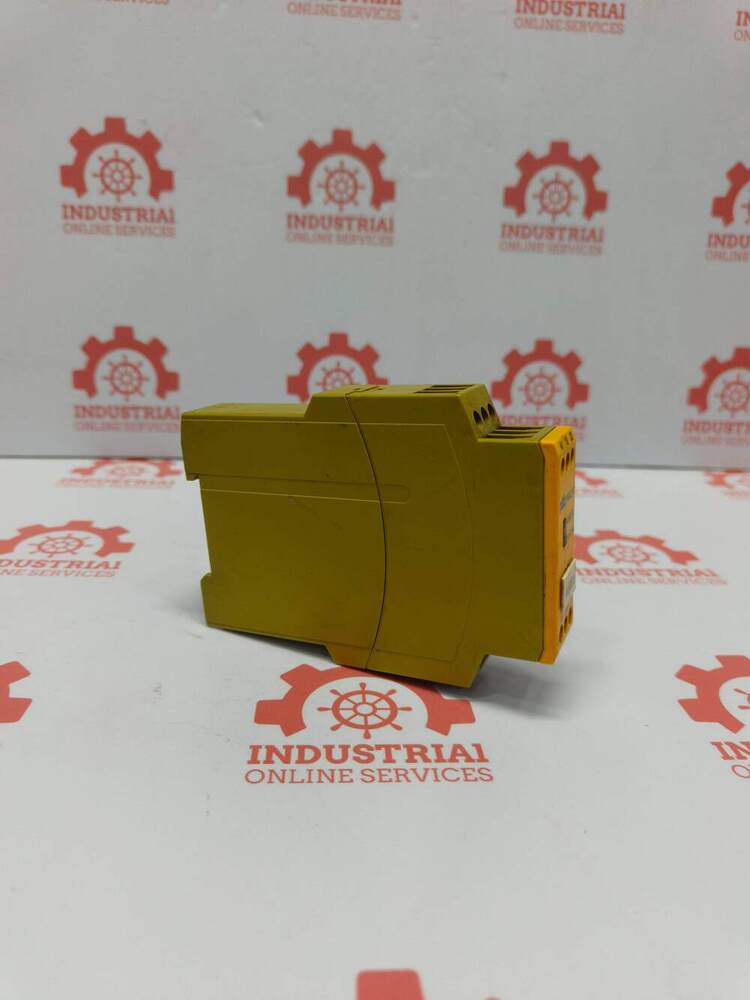

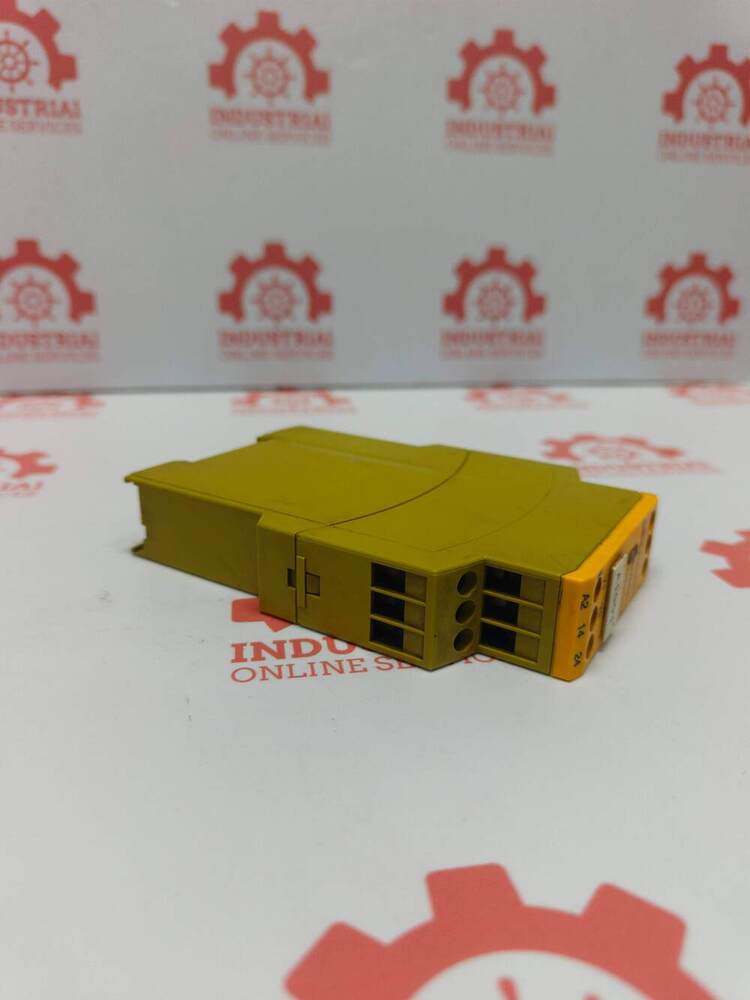

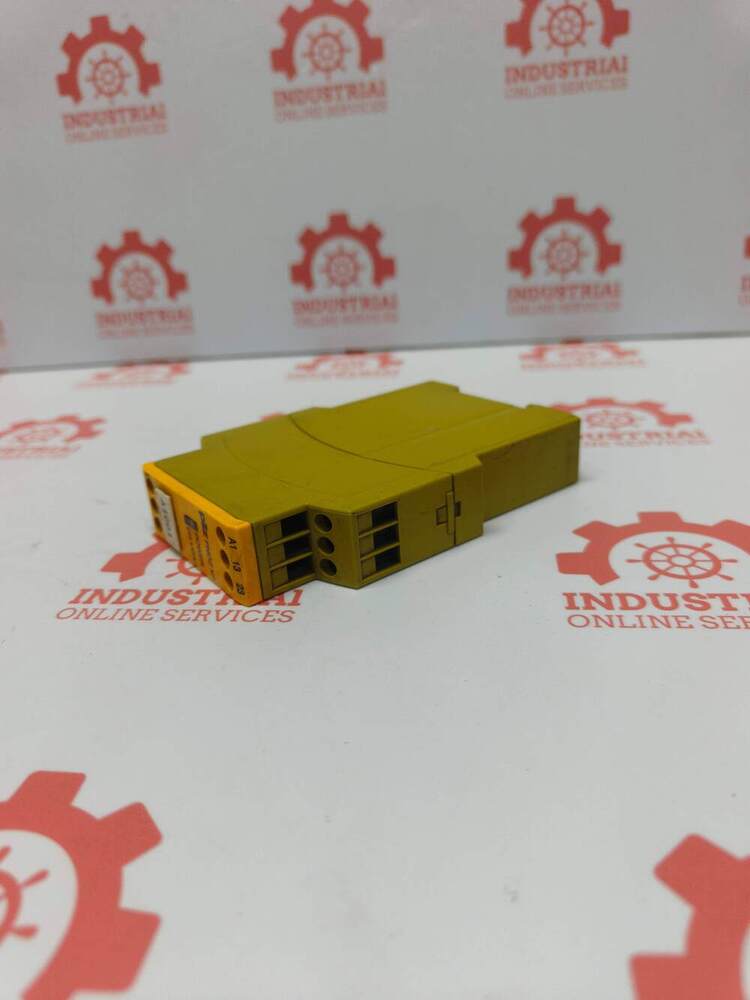

PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop)

Send Inquiry

Request To Call Back

PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop)

Name: PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop)
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Perch

PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop) Specification

Humidity
Max. 95% (non-condensing)

Protection Level
IP20

Input Current
Approx. 80 mA (at 24 VDC)

Operating Temperature
-10C to +55C

Frequency
50/60 Hz (for AC voltage)

Phase
Single Phase

Output Voltage
Dependent on Input Supply (Relay Contact Output)

Mounting Type
DIN Rail

Rated Voltage
24 VAC/DC

Main Material
Plastic/Metal

Processing Type
Electromechanical

Condition
New

Function
Safety Relay for Monitoring Emergency Stop Circuits

Application
Emergency Stop (E-Stop) Monitoring

Dimension (L*W*H)
87 mm x 22.5 mm x 121 mm

Power Mode
AC/DC

Voltage
24 VAC/DC

Power Consumption
Approx. 2 VA

Accessories
None Included

Category
Category 4, PL e (according to EN ISO 13849-1)

Number of Safety Contacts
2 N/O (Normally Open)

Housing Material
Polycarbonate

Standards
EN 60204-1, EN ISO 13849-1, IEC 60947-5-1

Weight
Approx. 180 g

Rated Impulse Voltage
4 kV

Response Time
< 20 ms

Width
22.5 mm

Connection Type
Screw Terminals

PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop) Trade Information

Minimum Order Quantity
1 Perch

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop)

PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop)

Key Specifications

Technical Feature	Specification Detail
Supply Voltage	24 V AC/DC
Inputs	1-channel wiring
Safety Contacts	2 N/O (Normally Open)
Max Switching Current	6 A
Max Switching Voltage	240 V AC / 24 V DC
Housing Width	22.5 mm
Terminal Type	Integrated screw terminals
Start/Reset Modes	Automatic or manual start
Features & Functionality Built-in Redundancy: Features internal self-monitoring to guarantee fail-safe operations even if a component malfunctions. Automatic Testing: The device automatically runs self-tests at every power-up to verify signal path integrity. Feedback Loop: Built-in connection terminals for a feedback loop allow for direct monitoring of external relays or contactors. LED Status Diagnostics: Simple front-panel LEDs display the status of the supply voltage and contact channels for rapid troubleshooting.

Reliable Emergency Stop Monitoring

The PILZ PNOZ X7-24VAC/DC-2N/O safety relay provides dependable emergency stop (E-Stop) monitoring for critical applications. It is designed to instantly disconnect hazardous machinery, meeting stringent safety performance standards. With high reliability, it is an essential choice for manufacturing, automation, and industrial sectors where safety takes priority.

Certified Safety and Compliance

Certified to EN 60204-1, EN ISO 13849-1, and IEC 60947-5-1, the PNOZ X7 is compliant with international safety regulations, offering peace of mind for integrators and users. Rated for Category 4, PL e safety level, it is suitable for the highest risk applications, ensuring both safety and conformity.

Flexible Installation and Operation

With a slim 22.5 mm profile and DIN rail mounting, installation is straightforward in control panels. Operating on a 24 VAC/DC single-phase supply, it features a simple screw terminal connection. The device functions efficiently between -10C to +55C, and up to 95% humidity (non-condensing), making it adaptable to varied environments.

FAQ's of PILZ PNOZ-X7-24VAC/DC-2N/O Safety Relay For Monitoring Emergency Stop (E-Stop):

Q: How does the PILZ PNOZ X7-24VAC/DC-2N/O safety relay monitor emergency stop circuits?

A: The PILZ PNOZ X7 safety relay is designed to monitor E-Stop circuits by detecting actuation and promptly interrupting power to hazardous machinery. It ensures immediate disconnection through its dual N/O safety contacts, safeguarding personnel during emergencies.

Q: What environments and industries is the PNOZ X7 safety relay best suited for?

A: Ideal for industrial automation, manufacturing, and equipment control applications, the PNOZ X7 excels wherever reliable emergency stop monitoring is essential. Its adherence to Category 4, PL e safety levels makes it suitable for high-risk areas.

Q: When should the PNOZ X7 safety relay be used in a safety system?

A: The PNOZ X7 should be integrated into safety systems whenever emergency stop circuits need monitoring in applications demanding rapid response and compliance with rigorous safety standards, especially those requiring Category 4, PL e protection.

Q: Where can the PNOZ X7 be installed, and how does it mount?

A: This relay is designed for installation inside electrical control panels. It features a slim profile (22.5 mm) and can be easily mounted on standard DIN rails, simplifying integration into existing panel layouts.

Q: What is the process for wiring and connecting the PNOZ X7 relay?

A: The device uses screw terminal connections for ease of wiring. Simply connect the E-Stop circuit and power supply (24 VAC or DC) to the marked terminals, following the provided wiring diagram for correct configuration and safety compliance.

Q: How does the PNOZ X7 benefit users in terms of safety and reliability?

A: By providing rapid response (<20 ms) and two redundant safety contacts, the PNOZ X7 delivers elevated protection against unintentional machinery start-up during emergencies. Its compliance with leading safety standards ensures both legal conformity and operator safety.

Q: What are the key advantages of using the PNOZ X7 for emergency stop monitoring?

A: The main advantages include high-level safety through dual N/O contacts, fast switching response, compact size for space-saving integration, robust construction, and compatibility with both AC and DC power supplies, making it a versatile safety solution for modern control systems.
