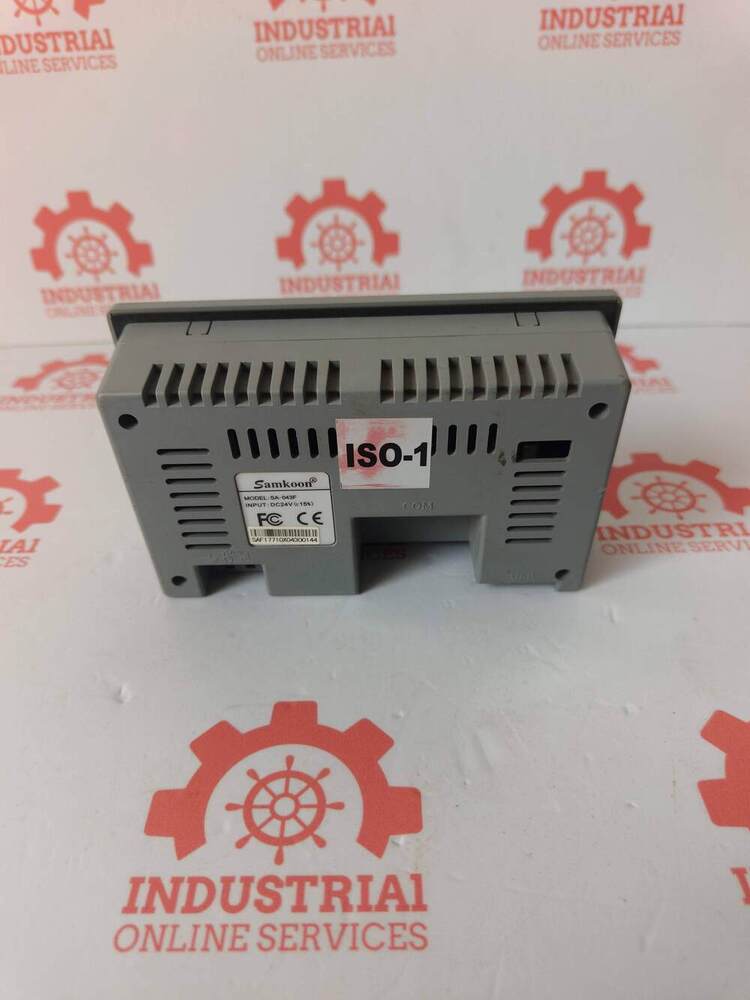

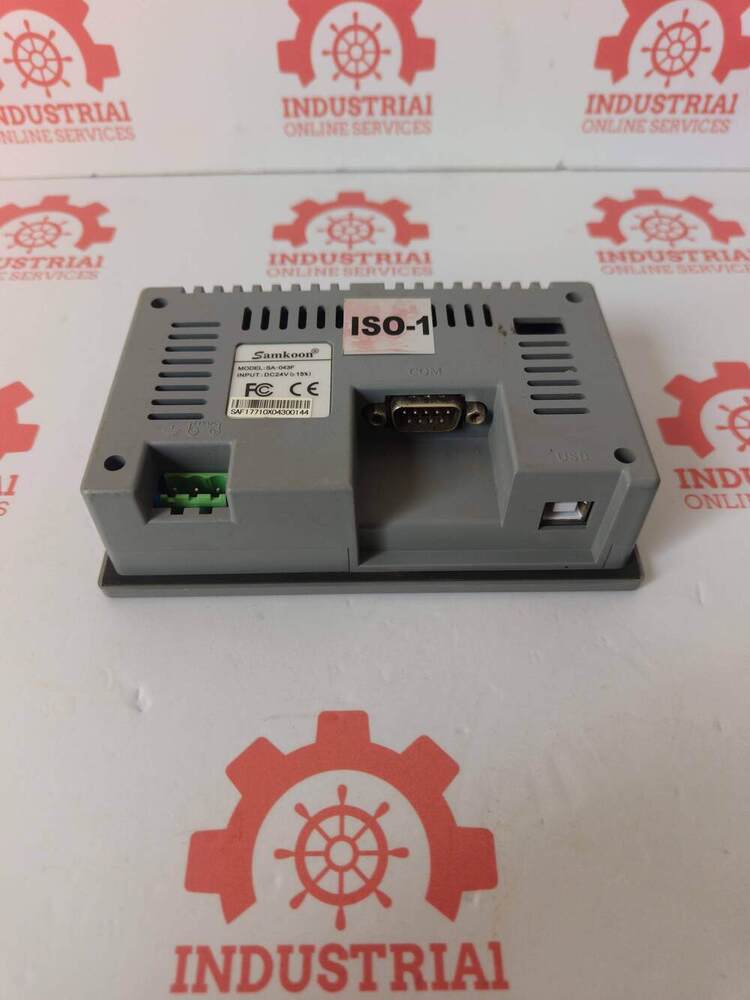

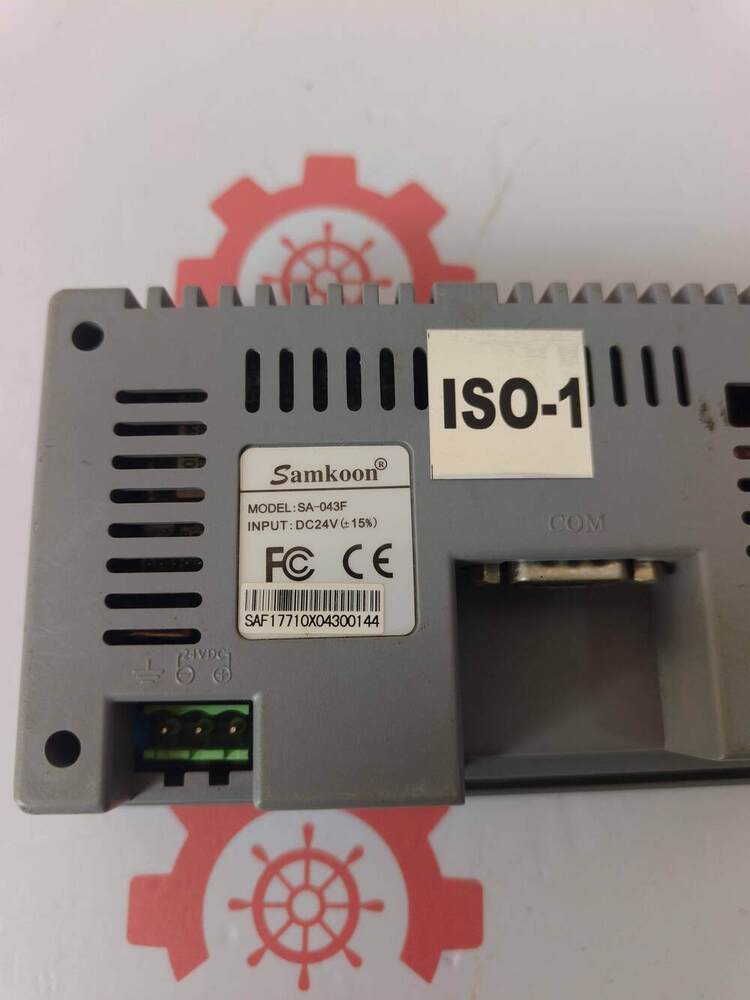

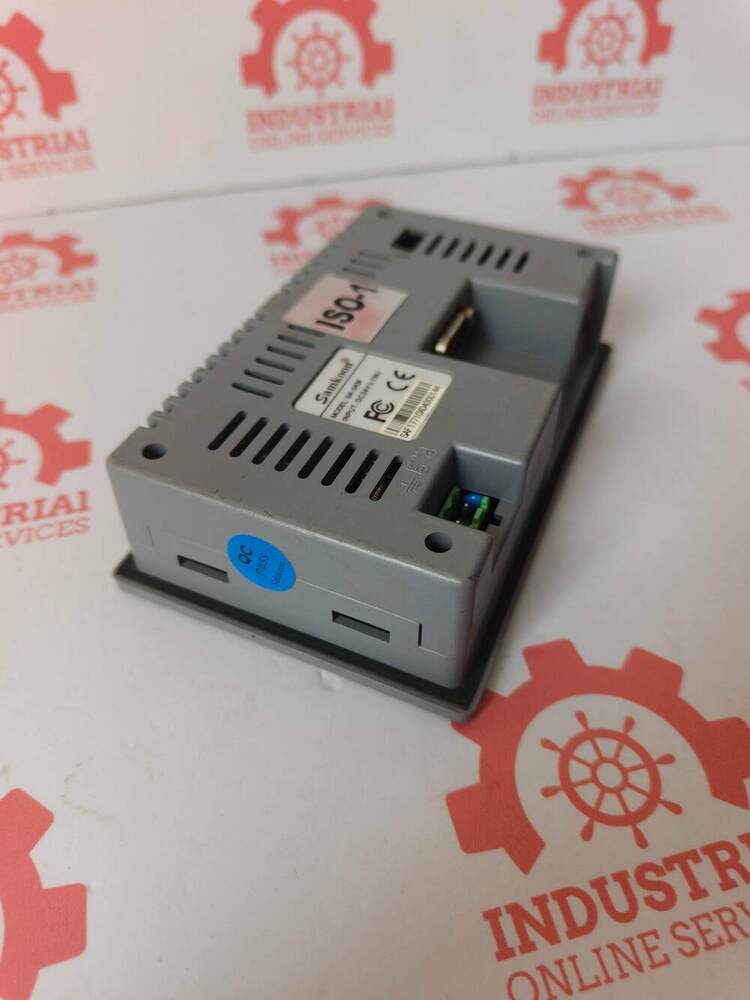

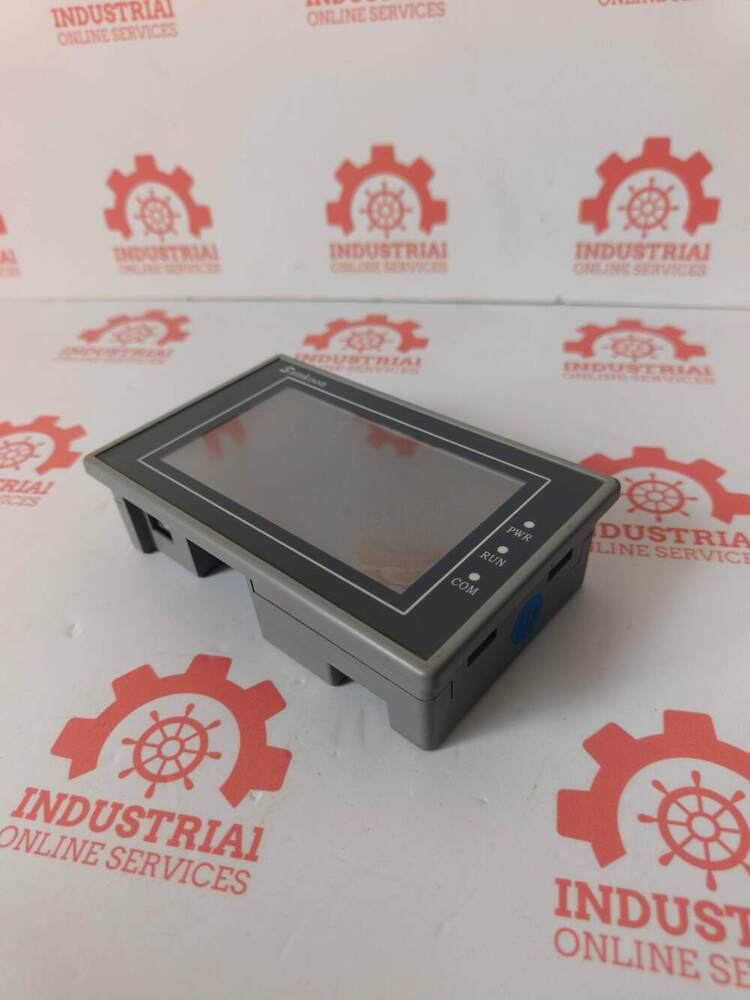

SAMKOON SA-043F 4.3-Inch Industrial Human-Machine Interface (HMI) Touch Screen Panel

Name: SAMKOON SA-043F 4.3-Inch Industrial Human-Machine Interface (HMI) Touch Screen Panel
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SAMKOON SA-043F 4.3-Inch Industrial Human-Machine Interface (HMI) Touch Screen Panel Specification

Humidity
10% - 90% RH (Non-condensing)

Rated Voltage
24V DC

Frequency
50/60 Hz (Power Supply Tolerance)

Protection Level
IP65 (Front Panel)

Mounting Type
Panel Mount

Input Current
300mA

Efficiency
Rated for Continuous Operation

Phase
Single Phase

Operating Temperature
0C to 50C

Main Material
ABS Plastic, Glass

Processing Type
Digital

Condition
New

Function
Human-Machine Interface Touch Control

Application
Industrial Automation, Machine Control, Process Monitoring

Dimension (L*W*H)
129 x 102 x 44 mm

Power Mode
DC Power Supply

Voltage
24V DC

Power Consumption
5W (Max)

Accessories
CD, USB Cable, Brackets, User Manual

Display Type
TFT LCD

Response Time
Less than 10ms

SD Card Slot
Optional

Color Display
Support 65536 Colors

Display Size
4.3 Inch

Touch Screen Type
4-Wire Resistive

Weight
Approx. 0.35 kg

Backlight
LED

Communication Ports
RS232/RS485

Storage Memory
Flash Memory (128MB)

Resolution
480 x 272 pixels

Programming Software
Samkoon HMI Programming Suite

SAMKOON SA-043F 4.3-Inch Industrial Human-Machine Interface (HMI) Touch Screen Panel Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About SAMKOON SA-043F 4.3-Inch Industrial Human-Machine Interface (HMI) Touch Screen Panel

SAMKOON SA043F 43Inch Industrial HumanMachine Interface HMI Touch Screen Panel

Component Feature Specification Details

Display Size Type 43inch 169 widescreen TFT LCD

Resolution 480 272 pixels with LED backlight

Touch Screen Type 4wire highprecision analog resistive

Processor CPU 32bit CortexA8 600MHz

Memory 128MB FLASH 128MB DDR2 RAM

Input Voltage DC 24V 15 variance allowed

Serial Communication Ports COM1 Supports RS232 RS422 and RS485 modes

Additional Port USBA for programmingdata storage

Software Program Programmed using SATOOL configuration software

Physical Dimensions Outer 138 86 38 mm Panel Cutout 132 80 mm

Environmental Protection IP65 rated front panel waterdust resistant

Key Application Strengths

Broad PLC Compatibility It pairs natively with most major controller brands Siemens Mitsubishi Omron Delta Schneider etc via serial Modbus or proprietary protocols

Industrial Durability Features level 3 ESD protection 6kV and thrives in harsh environments within operating temperatures of 20C to 65C

CostEfficient Build Ideal for standalone machinery tiny control boxes and basic data visualization where highend networking features like builtin Ethernet are unnecessary

User-Friendly Human-Machine Interface

Designed for intuitive interaction, the SA-043F's 4.3-inch touch panel incorporates a responsive 4-wire resistive screen, enabling reliable operation even with gloves or in challenging workplace conditions. The vivid color display ensures all visual data is presented with clarity.

Versatile Connectivity and Easy Programming

Equipped with RS232/RS485 ports, the HMI panel accommodates multiple devices in varied industrial settings. Programming is streamlined with the Samkoon HMI Programming Suite, improving system integration and reducing installation time.

Built for Industrial Environments

The IP65-rated ABS plastic and glass front panel ensures resistance to dust, water, and harsh conditions common in industrial applications. Continuous operation is supported, while robust components ensure long-term reliability.

FAQ's of SAMKOON SA-043F 4.3-Inch Industrial Human-Machine Interface (HMI) Touch Screen Panel:

Q: How does the SAMKOON SA-043F 4.3-Inch HMI panel benefit industrial automation?

A: The SAMKOON SA-043F streamlines machine control and process monitoring, offering responsive touch input and high-resolution display, which together improve operational efficiency and real-time data visualization in industrial environments.

Q: What programming software is required for configuring this HMI panel?

A: You will need the Samkoon HMI Programming Suite to configure and program the SA-043F touch panel, ensuring seamless system integration and easy customization.

Q: Where can the SAMKOON SA-043F be installed?

A: This unit is intended for panel mount installations in various industrial sectors, including automation systems, machinery control stations, and process monitoring setups.

Q: When should the optional SD card slot be considered for use?

A: The optional SD card slot should be used when you require additional storage capacity for data logging, increased program files, or frequent updates beyond the standard 128MB Flash memory.

Q: What is the process for connecting the SA-043F to other equipment?

A: You can connect this HMI via RS232 or RS485 communication ports to compatible industrial devices, such as PLCs or controllers, using the provided USB cable and following the wiring instructions in the user manual.

Q: How is reliability maintained in demanding industrial environments?

A: The SA-043F features an IP65-rated front panel for dust and water resistance, operates efficiently across a temperature range of 0C to 50C, and supports continuous operation, ensuring consistent performance even in harsh conditions.
