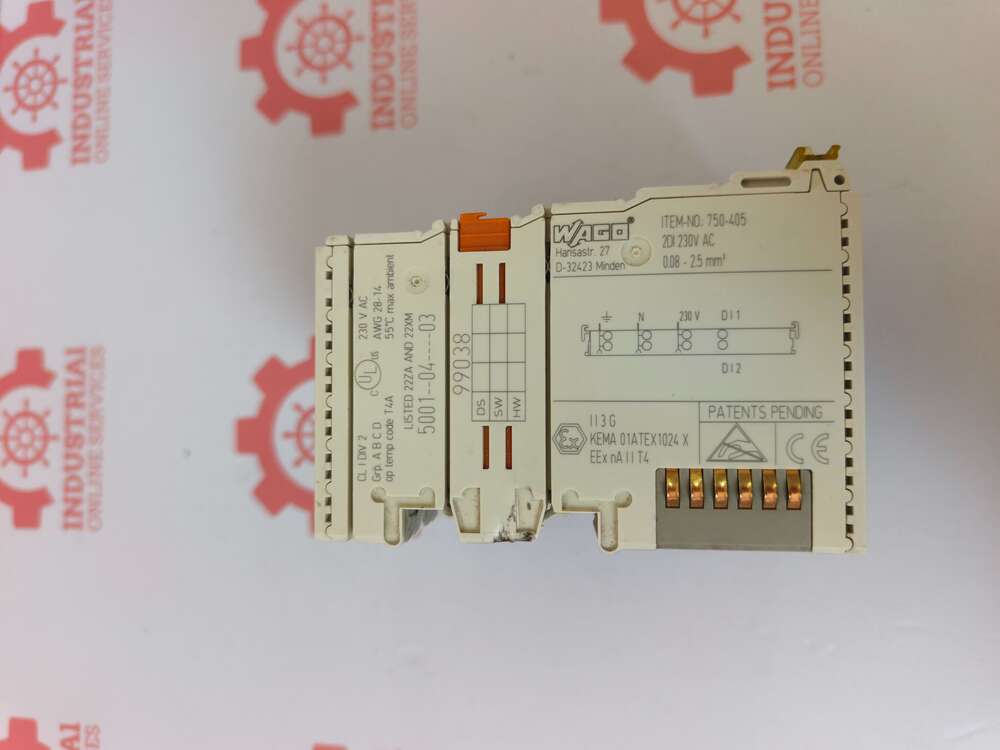

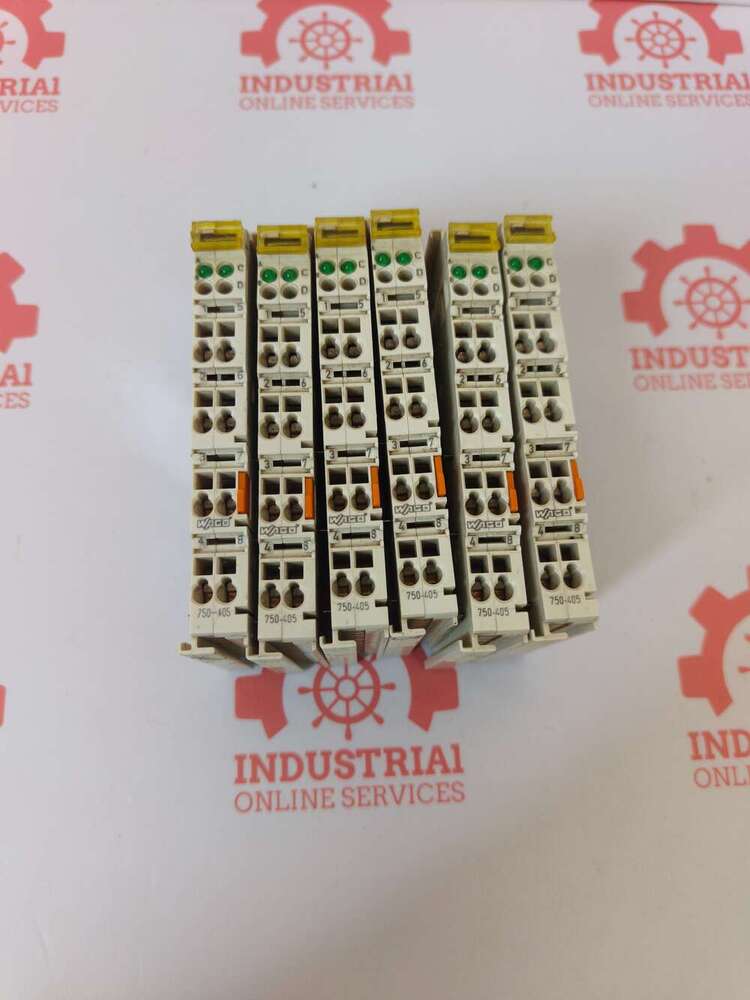

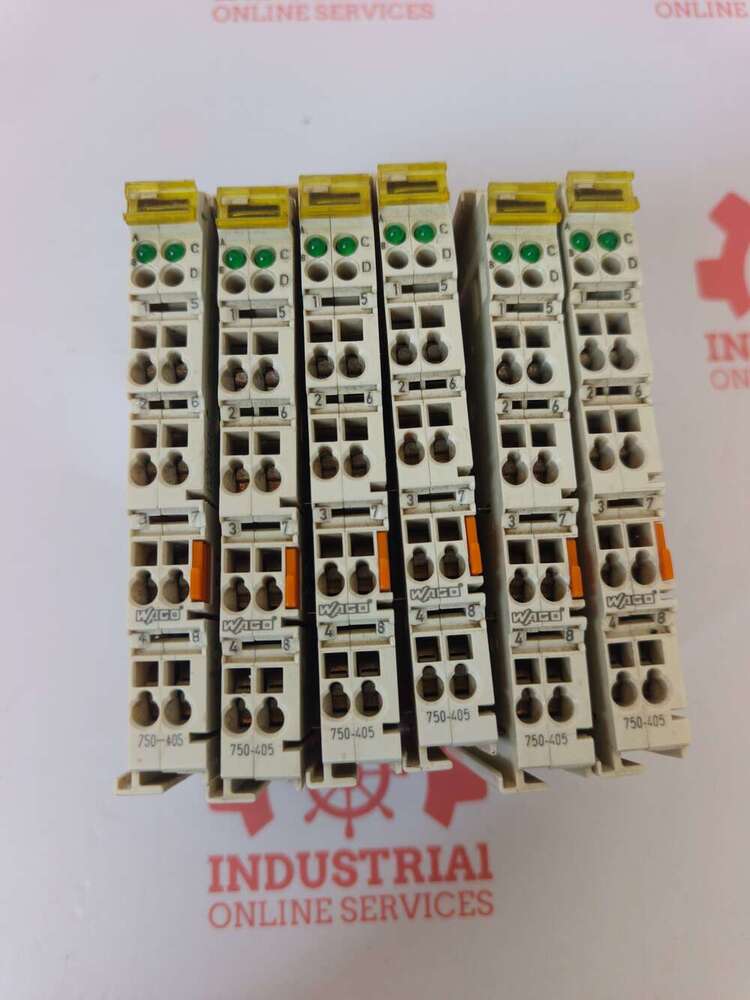

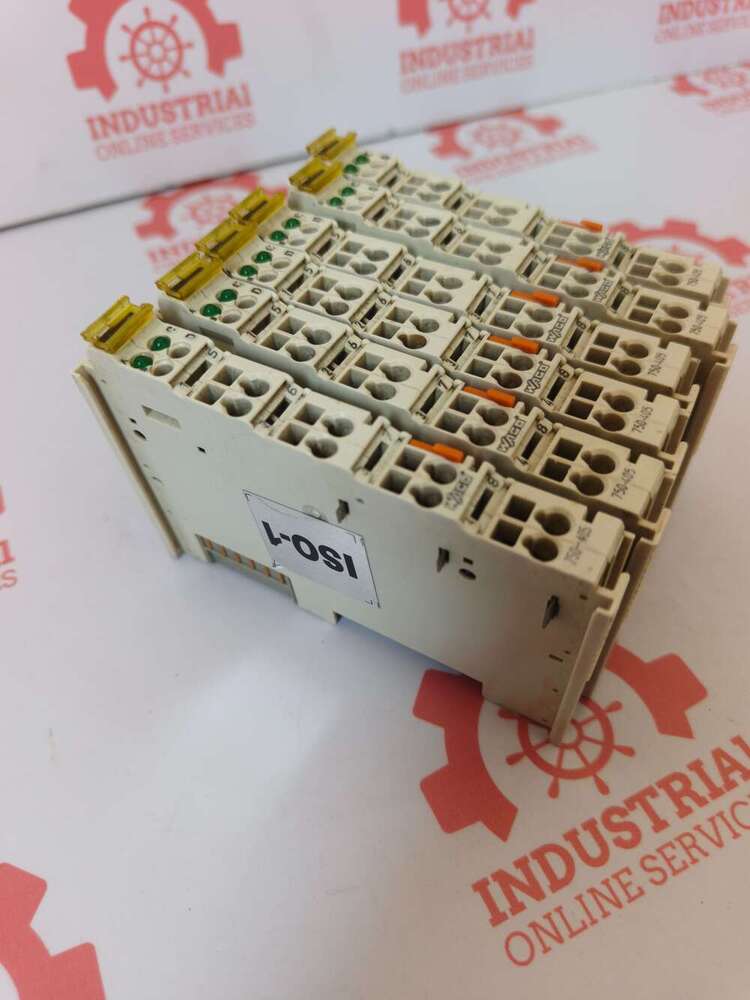

Wago 750-405 PLC 2-Channel Digital Input Module

Send Inquiry

Request To Call Back

Wago 750-405 PLC 2-Channel Digital Input Module

Name: Wago 750-405 PLC 2-Channel Digital Input Module
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wago 750-405 PLC 2-Channel Digital Input Module Specification

Mounting Type
DIN rail mount

Efficiency
High efficiency, low power consumption

Protection Level
IP20

Output Voltage
Not applicable (input module)

Rated Voltage
24 V DC

Humidity
95% (non-condensing)

Frequency
Input frequency up to 1 kHz

Operating Temperature
-20C to +60C

Phase
Not applicable (DC powered)

Input Current
4 mA per channel (at 24 V DC)

Main Material
Polycarbonate housing, electronic internal components

Processing Type
Digital signal processing

Condition
Used/Refurbished (as per visible image)

Function
2-channel digital input module for fieldbus systems

Application
PLC automation systems, digital I/O integration, fieldbus applications

Dimension (L*W*H)
Approx. 12 mm x 100 mm x 69 mm

Power Mode
Direct bus-powered

Voltage
24 V DC (rated supply voltage)

Power Consumption
0.38 W (typical)

Battery Life
Not applicable (no battery)

Accessories
No accessories included

Approvals/Certifications
CE, UL, RoHS compliant

Fieldbus Compatibility
Supports various WAGO 750 Series fieldbus couplers

Response Time
< 3 ms

Product Series
WAGO I/O System 750

Product Model
750-405

Status Indicators
2 yellow LEDs for input state, 2 green LEDs for diagnostics

Isolation
500 V system/supply internal isolation

Connection Technology
CAGE CLAMP spring pressure connection

Input Type
Digital (sink or source, programmable)

Storage Temperature
-40C to +85C

Number of Input Channels
2 (digital inputs)

Module Width
12 mm

Signal Type
24 V DC

Wago 750-405 PLC 2-Channel Digital Input Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Wago 750-405 PLC 2-Channel Digital Input Module About

Wago 750405 PLC 2Channel Digital Input Module

The WAGO 750405 is a 2channel digital input module belonging to the modular WAGO IO System 750 It is primarily engineered for industrial automation systems to process highvoltage AC control signals from field sensing devices like switches or sensors

Technical Specifications

Channels 2 digital inputs

Signal Voltage 230 V AC

Switching Characteristic Highside switching

Signal Frequency Range 45 Hz to 65 Hz

Input Filter 10 ms hardware filter to prevent signal bouncing

Signal Detection Thresholds

Signal 0 OFF 0 V to 40 V AC

Signal 1 ON 164 V to 253 V AC 11 nominal voltage

Current Consumption 2 mA at 5 VDC system voltage

Input Current 65 mA per channel

Isolation 1500 V between system and field electronics

Connection Type WAGO CAGE CLAMP vibrationproof spring terminals

Mounting 35mm DIN rail

Protection Rating IP20

Dimensions 12 mm wide 64 mm high 100 mm deep

Reliable 2-Channel Digital Input Interface

The WAGO 750-405 module offers two independent 24 V DC digital input channels, ideal for high-speed, accurate signal capture in automation environments. Its compact design (12 mm width) and CAGE CLAMP technology ensure secure wiring, making it a versatile choice for control panels and distributed I/O setups. The module's robust construction and internal 500 V isolation guarantee dependable operation in industrial settings.

Seamless Integration with Fieldbus Systems

Supporting a broad range of WAGO 750 Series fieldbus couplers, the 750-405 module integrates effortlessly into complex PLC and fieldbus architectures. Its DIN rail mounting facilitates quick installation, and clear LED indicators simplify diagnostics and status monitoring. The unit is perfect for distributors, exporters, suppliers, and traders seeking reliable automation solutions in India's industrial market.

FAQ's of Wago 750-405 PLC 2-Channel Digital Input Module:

Q: How is the WAGO 750-405 PLC digital input module typically mounted in a control system?

A: The WAGO 750-405 module is designed for simple DIN rail mounting, enabling secure, fast, and space-saving installation within industrial cabinets or control panels.

Q: What is needed to connect input devices to the WAGO 750-405 module?

A: Input devices can be connected via the CAGE CLAMP spring pressure terminals, providing reliable and vibration-resistant wire connections without the need for special tools.

Q: When should the WAGO 750-405 module be integrated into a PLC system?

A: The module is best used when you require precise, rapid digital input signal acquisition-such as in automation, process control, or fieldbus applications that demand high reliability and fast response times.

Q: Where can the WAGO 750-405 be applied in industrial automation?

A: It is suitable for digital I/O signal integration, PLC-based control, and distributed fieldbus applications across manufacturing, process automation, and machine control environments.

Q: What are the benefits of the module's programmable sink/source input types?

A: The ability to program each channel as sink or source ensures compatibility with a wide range of digital sensors and field devices, boosting system flexibility and simplifying integration.

Q: What process indicators are available for troubleshooting on this module?

A: Each input channel features a yellow LED to display input status and a green LED for diagnostic purposes, making on-site monitoring and fault-tracing straightforward.

Q: How does this module ensure operational safety and reliability?

A: With internal 500 V system/supply isolation and compliance with CE, UL, and RoHS standards, the module ensures safe, reliable operation even in challenging industrial environments.
