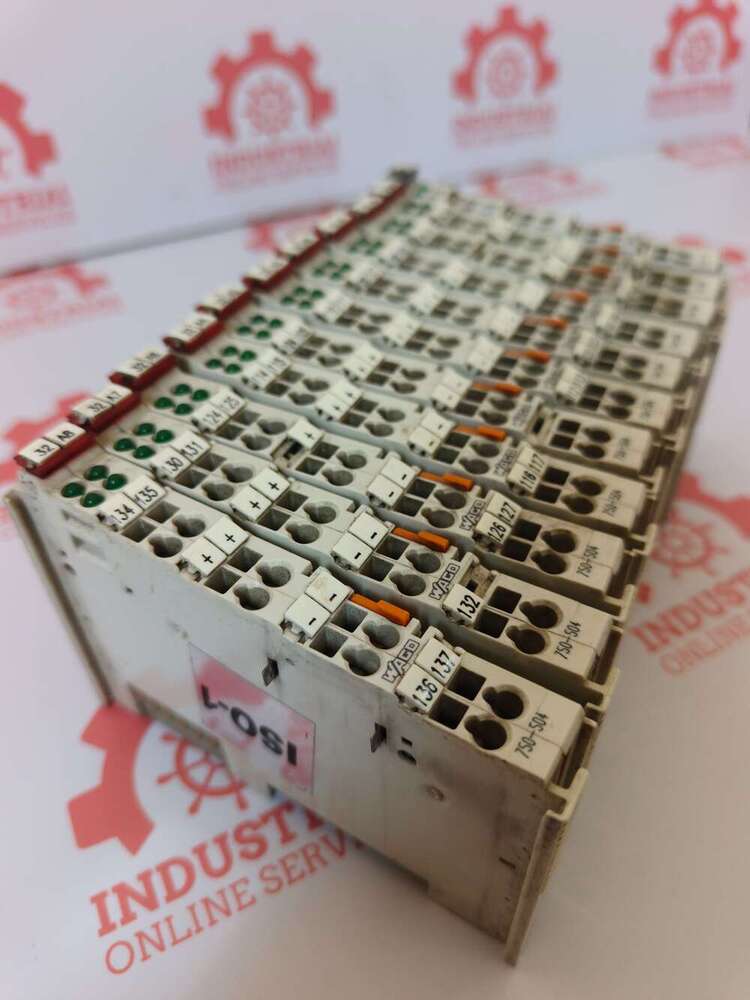

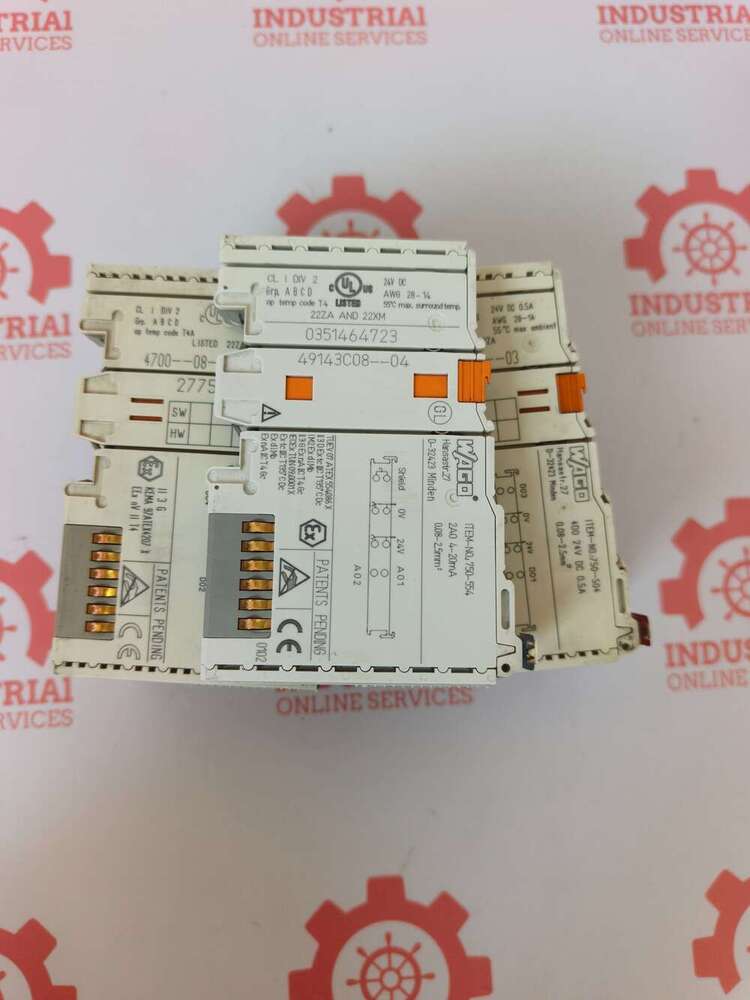

Wago 750-504 PLC 4-Channel Digital Output Module

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Wago 750-504 PLC 4-Channel Digital Output Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Wago 750-504 PLC 4-Channel Digital Output Module

Wago 750-504 PLC 4-Channel Digital Output Module

The WAGO 750-504 is a 4-channel digital output module designed for use within the WAGO I/O System 750 and 753 series. It transmits binary control signals from an automation device (like a PLC or coupler) directly to connected actuators.

Key Specifications

Output Channels: 4 digital outputs.
Signal Voltage: DC 24 V (ranges from -25% to +30%).
Output Current: Max 0.5 A per channel.
Switching Characteristic: High-side switching.
Max Switching Frequency: 1 kHz.
Load Types: Suitable for resistive, inductive, and lamp loads.
Internal Bit Width: 4 bits.
Connection Technology: CAGE CLAMP (vibration-proof spring clamps) supporting wire sizes from 0.08 mm² to 2.5 mm².
Dimensions: 12 mm width, 100 mm length, 64 mm height
