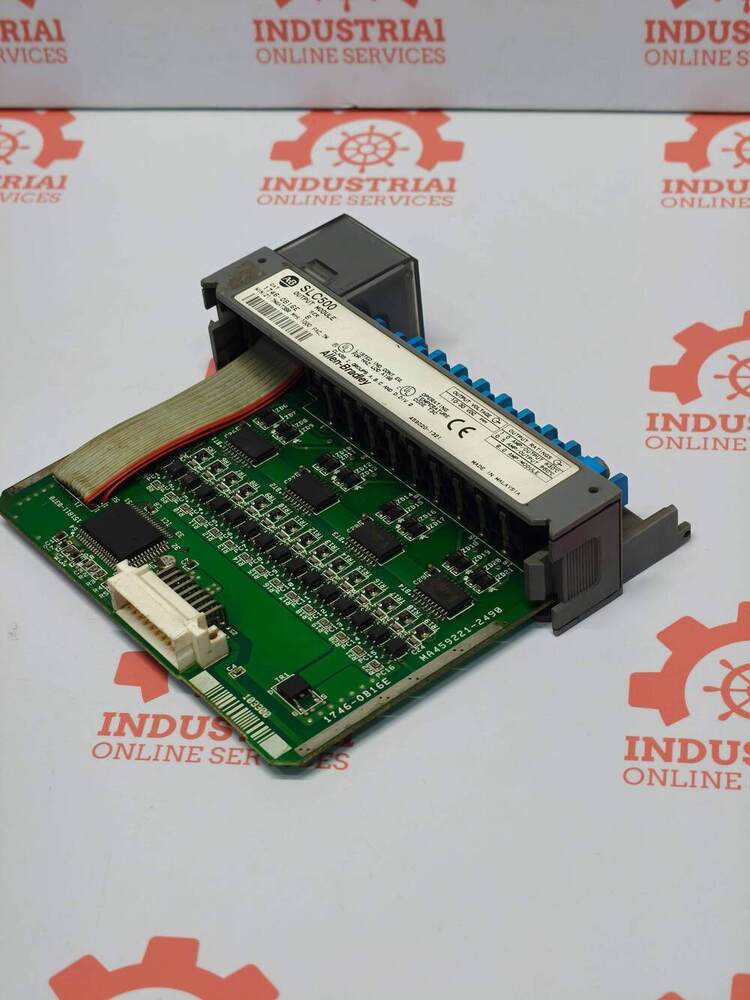

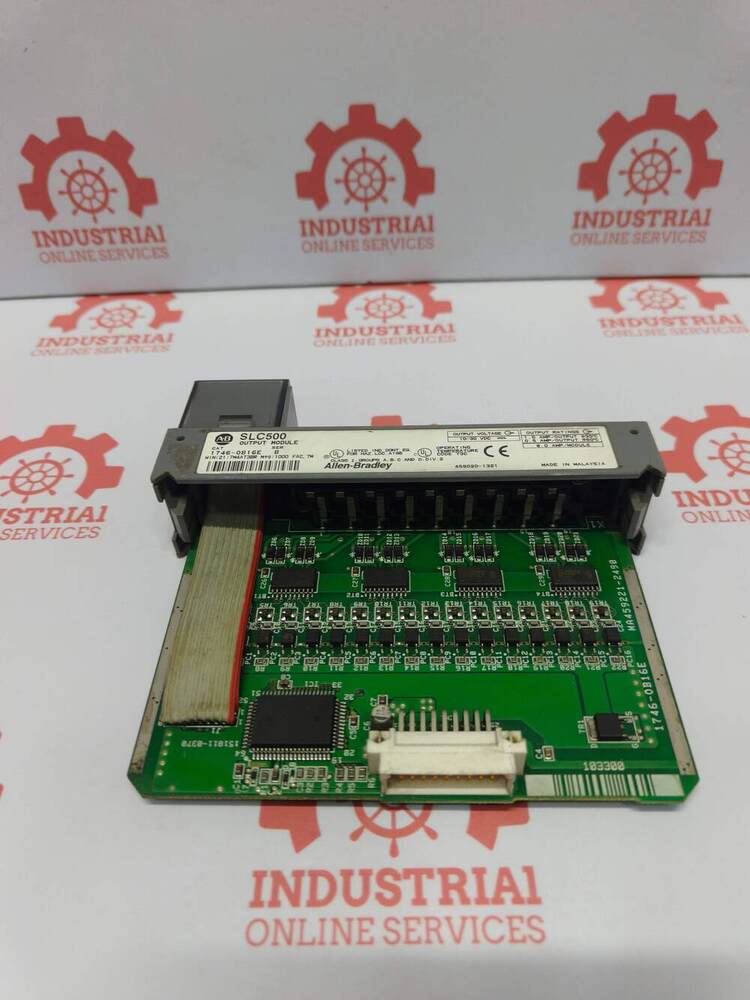

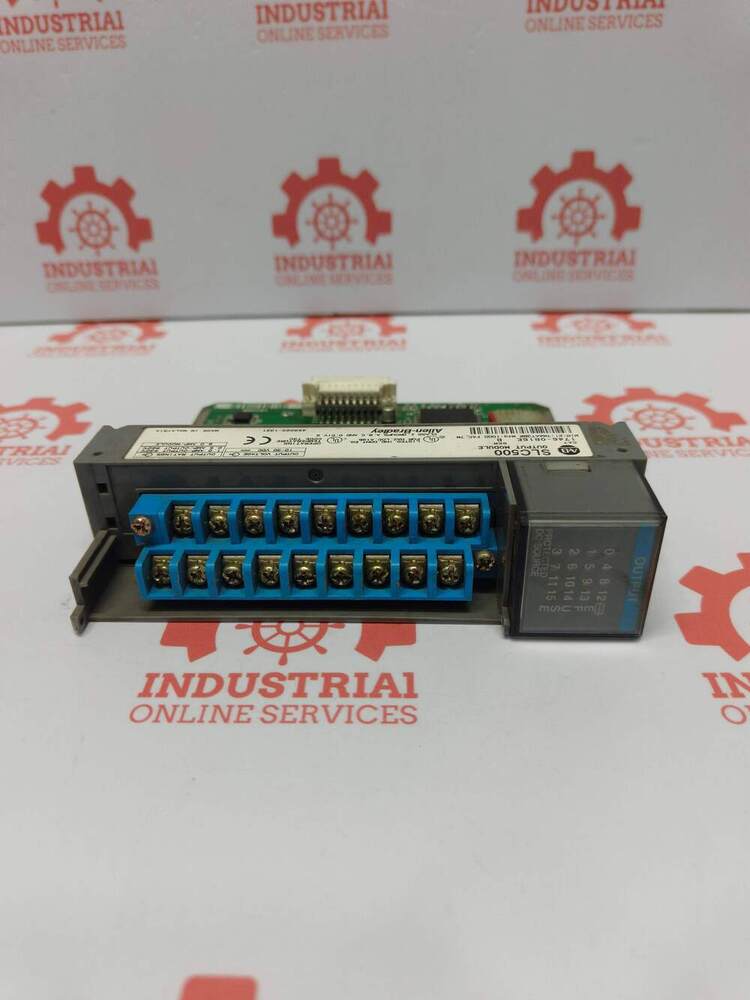

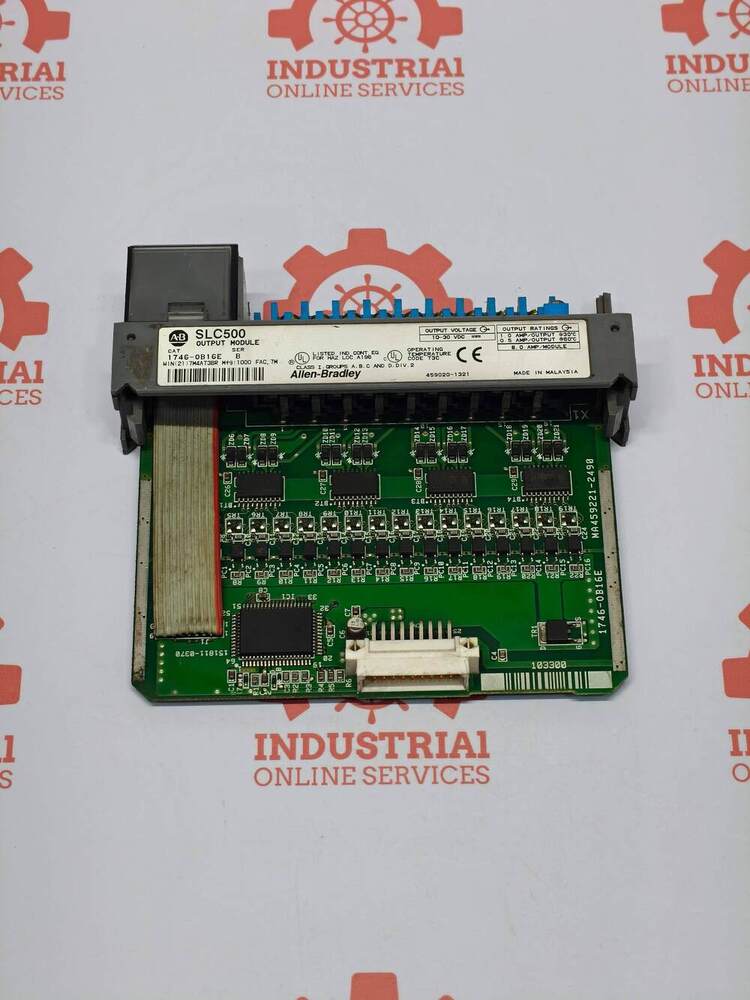

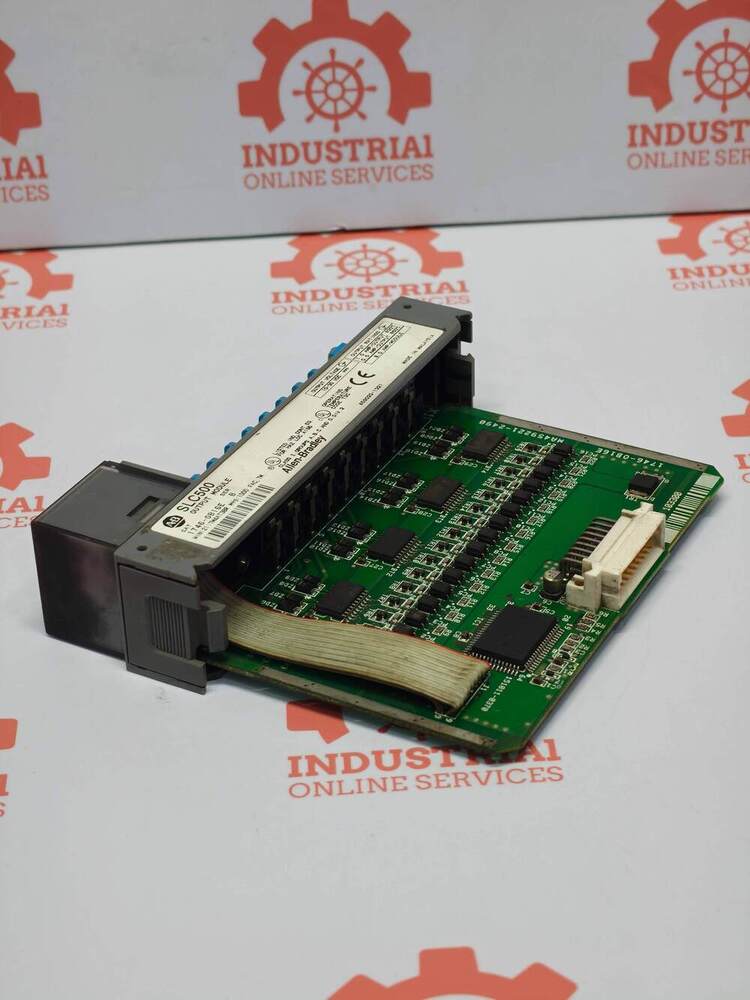

ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module

Send Inquiry

Request To Call Back

ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module

Name: ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module Specification

Model No
1746-OB16E

Chip Type
Digital Output Module

I/O Cards Type
Digital Output Card

Condition
New / Used (as per availability)

Compatible Port/Slot
SLC 500 I/O Chassis

Use
Industrial Control, PLC Automation

OS Supported
PLC Platform (Not OS dependent)

Mounting
Module Rack Mount (SLC 500 Chassis)

Maximum Output Current per Module
8A

Weight
~250g

Storage Temperature
-40C to 85C (-40F to 185F)

Field Wiring Arm
1746-W16 (not included)

Replacement For
Compatible with SLC 500 series systems

Status Indicators
Each output has an LED status indicator

Maximum Output Current per Channel
0.5A @ 30V DC

Output Type
Sourcing (Positive Logic), Solid State

Maximum Surge Current per Output
2A max, 10ms

Product Type
16-Channel DC Source Output Module

Isolation Voltage
1500V AC (RMS) between field side and logic side

Family
SLC 500

Operating Voltage
10-30V DC

Operating Temperature
0C to 60C (32F to 140F)

Dimensions
129 mm x 35 mm x 145 mm (HxWxD)

Number of Outputs
16 (Sourcing)

Typical Applications
Controlling solenoids, relays, lamps, or other DC-powered devices

Relative Humidity
5% to 95% non-condensing

ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module

ALLEN BRADLEY 1746OB16E 16Channel Digital DC Source Output Module

Core Specifications

Output Channels 16 digital channels transistor source

Operating Voltage Range 10 to 30 Volts DC

Current Capacity

Up to 10 Amp per output at 30C drops to 05 Amps at 60C

Maximum total current of 80 Amps per module

Electronic Protection Features builtin thermal cutout electronic protection In the event of a short circuit or overload condition the affected channel limits current within milliseconds while all other channels continue normal operation

Reliable Multi-Channel Output

The 1746-OB16E delivers up to 16 independent, sourcing digital outputs, each rated for 0.5A at 30V DC. Its positive logic solid-state design ensures fast, reliable switching for a wide range of industrial automation applications. With built-in status LEDs, engineers and technicians can quickly diagnose output status, streamlining maintenance and troubleshooting.

Engineered for Industrial Demands

Designed specifically for SLC 500 PLC systems, the 1746-OB16E module features robust isolation with 1500V AC RMS between logic and field sides, and can function in harsh environments-ranging from 0C to 60C. Compact dimensions and module rack mount compatibility allow for easy integration into both new and existing control panels.

Flexible and Easy Integration

This digital output module is suited for various industrial applications, from operating solenoids and relays to controlling indicator lamps. Its compatibility with the SLC 500 chassis and standard field wiring arm (1746-W16) provides installation flexibility. Both new and used units are available, supported by a worldwide supplier network.

FAQ's of ALLEN BRADLEY 1746-OB16E 16-Channel Digital DC Source Output Module:

Q: How do I install the Allen Bradley 1746-OB16E module into my PLC system?

A: To install the 1746-OB16E, insert it into an available slot in your SLC 500 chassis and secure it properly. Ensure you use the compatible 1746-W16 wiring arm for field connections (sold separately). Once installed, wire your output devices according to the module's terminal layout.

Q: What devices can I control with this 16-channel DC source output module?

A: This module is designed to control a range of DC-powered devices, including solenoids, relays, lamps, and other actuators commonly found in industrial automation and control systems.

Q: What is the benefit of solid-state sourcing outputs in the 1746-OB16E?

A: Solid-state sourcing outputs provide faster switching speeds, longer lifespan (no mechanical wear), and reduced maintenance compared to mechanical relays. Positive logic (sourcing) also simplifies wiring for many industrial applications.

Q: What is the maximum current I can draw from each output and the entire module?

A: Each output channel can source up to 0.5A at 30V DC, with a module total of 8A. Short duration surges up to 2A per output (for max. 10ms) are supported for transient loads.

Q: How does the module indicate output status?

A: Each output channel on the 1746-OB16E is equipped with an LED indicator. When a channel is active, the corresponding LED will be illuminated, making it easy to check the real-time status of all outputs.

Q: Where can this module be used and what temperatures does it support?

A: The 1746-OB16E is suitable for industrial environments and can operate within a temperature range of 0C to 60C (32F to 140F), with storage capabilities from -40C to 85C.

Q: Is the 1746-OB16E compatible with existing SLC 500 systems?

A: Yes, the 1746-OB16E is fully compatible with Allen Bradley SLC 500 series PLCs and fits into any standard SLC 500 I/O chassis, making it an excellent replacement or expansion module.
