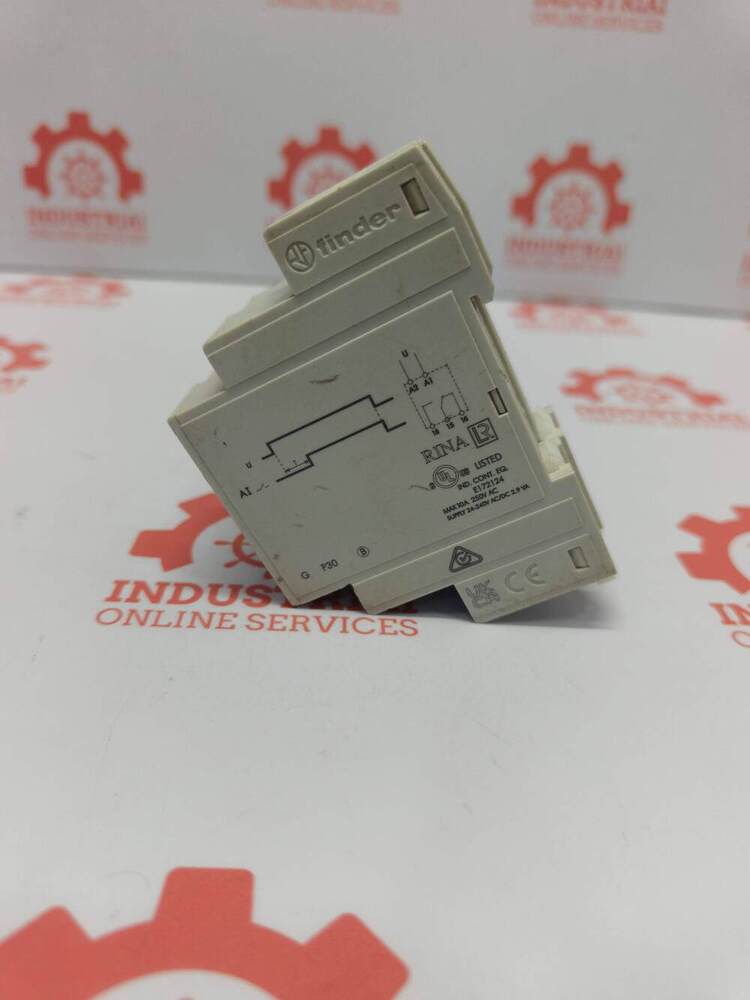

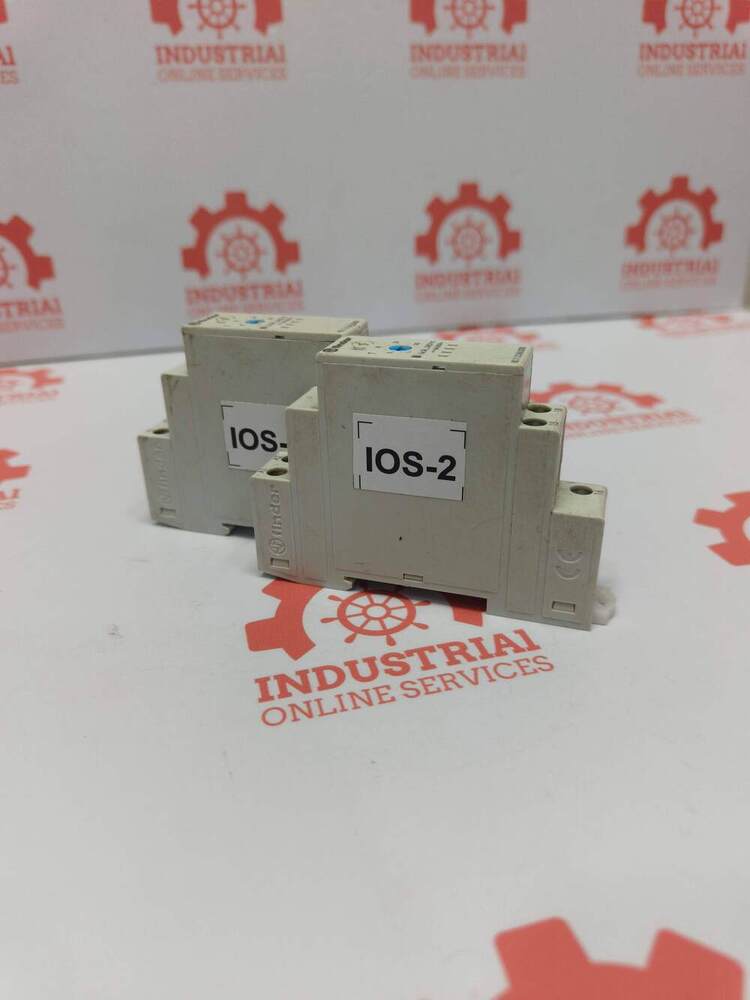

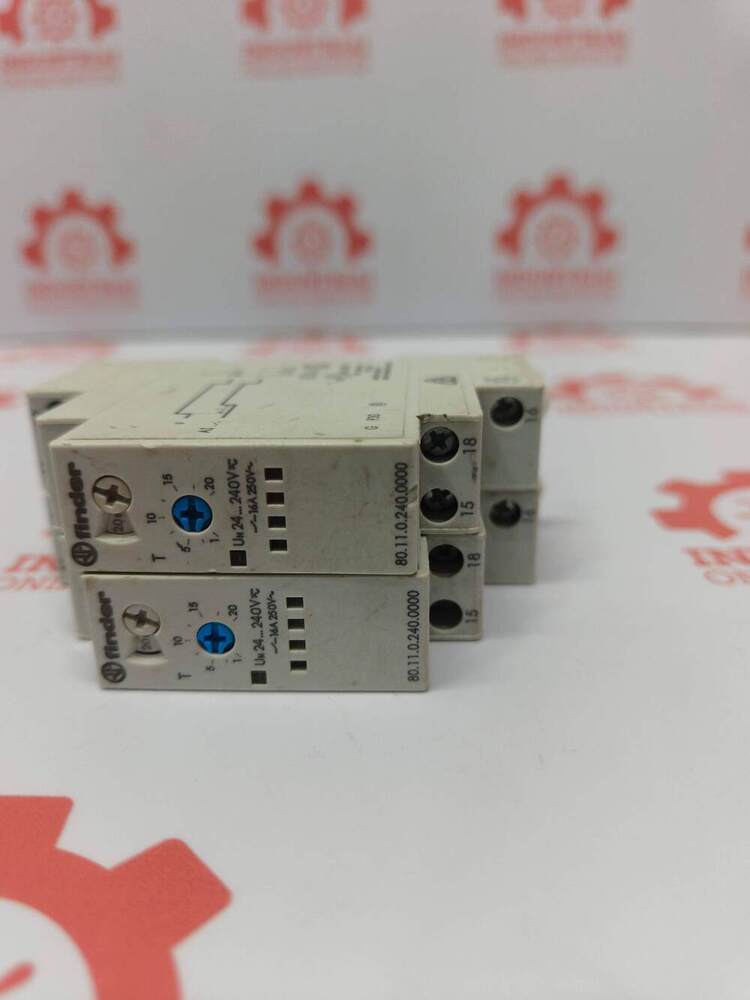

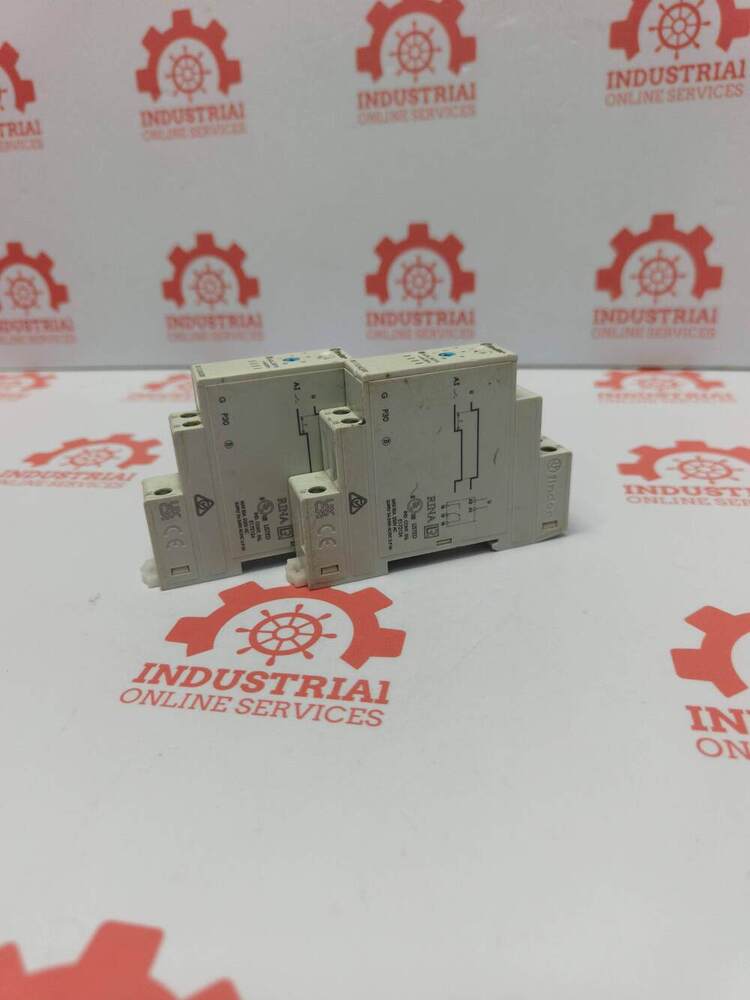

FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay

Send Inquiry

Request To Call Back

FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay

Name: FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay Specification

Model No
80.11.0.240.0000

Chip Type
Timer Relay IC

I/O Cards Type
Timer Relay Module

Condition
New

Compatible Port/Slot
DIN Rail Mount

Use
Industrial Automation, Control Systems, Timing Applications

Relay Rating
16A 250V AC

Width
17.5 mm

Contact Configuration
Single Pole Changeover (SPDT)

Function
Highly versatile, 7 timed functions

Mounting Type
Modular, DIN Rail

Output Contacts
1 NO (Normally Open)

Frequency
50/60 Hz

Housing Material
Self-extinguishing Plastic

Ambient Operating Temperature
-20C to +50C

Supply Voltage
24 - 240 V AC/DC

Power Consumption
0.6 W

Time Range
0.1 seconds to 24 hours

Dimensions
17.5 x 85 x 60 mm

FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay

FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay

Key Specifications

Attribute	Specification Details
Function Mode	AI: On-Delay (delayed switching on)
Supply Voltage Range	24240 V AC (50/60 Hz) / DC (Multi-voltage)
Contact Configuration	SPDT (1 Changeover / Form C Contact)
Contact Ratings	Max current 16A @ 250V AC (Peak switching up to 4000VA)
Timing Range	Adjustable from 0.1 seconds up to 24 hours (divided into 6 ranges via rotary switch)
Mounting & Width	Standard 35mm DIN Rail Mount (EN 60715) \| Slim 17.5 mm width profile
Terminals & IP Rating	Screw terminals \| IP20 enclosure protection
Status Indication	Built-in LED diagnostics indicator

Versatile Timing Functions for Every Application

Equipped with seven selectable timed functions, the FINDER 80.11.0.240.0000 timer relay delivers exceptional flexibility for industrial automation. Whether it's delay ON, delay OFF, or pulsed operations, this relay adapts to varied control schemes with consistent reliability. It's perfect for applications requiring precise time management.

Wide Voltage Range and Safe Construction

Designed to operate over a broad voltage range from 24 to 240 V AC/DC, this timer relay is compatible with diverse power supplies, reducing inventory needs and simplifying installation. Its self-extinguishing plastic housing provides an added layer of safety, making it a dependable choice for industrial settings.

Effortless DIN Rail Mounting and Compact Design

The unit's slim 17.5 mm width and modular structure ensure straightforward DIN rail mounting, saving valuable panel space. Its compact dimensions facilitate installation in crowded control cabinets, making system upgrades and maintenance more convenient for technicians.

FAQ's of FINDER 80.11.0.240.0000 Highly Versatile, Multi-Voltage Modular Timer Relay:

Q: How do I install the FINDER 80.11.0.240.0000 timer relay?

A: This timer relay is designed for straightforward DIN rail mounting. Simply attach the unit to a standard 35 mm DIN rail, connect your supply voltage (24 - 240 V AC/DC), and wire your load through the SPDT output contacts.

Q: What applications can benefit from using this timer relay?

A: It is ideal for industrial automation, control systems, and timing applications, such as motor control, lighting sequences, and delayed switching processes. Its wide voltage range and robust relay rating make it suitable for numerous industrial uses.

Q: When would I use each of the seven timed functions provided?

A: The relay's seven functions, such as delay ON, delay OFF, and cycling, allow you to manage diverse timing needs like staggered equipment starts or timed alarms. Select a function based on your specific process requirements to enhance system performance.

Q: Where can I purchase the FINDER 80.11.0.240.0000 relay in India?

A: The timer relay is available through authorized distributors, exporters, suppliers, and traders across India. Contact local industrial automation component dealers for availability and pricing.

Q: What is the process for setting the time range on this relay?

A: Adjust the front-panel dials to select your desired timing range (from 0.1 seconds to 24 hours). Consult the user manual for specific settings for each function to ensure correct operation in your application.

Q: What are the main benefits of using this modular timer relay?

A: Key benefits include precise timing, energy savings, robust 16A switching capability, compatibility with wide supply voltages, safety from self-extinguishing housing, and easy integration into control panels.
