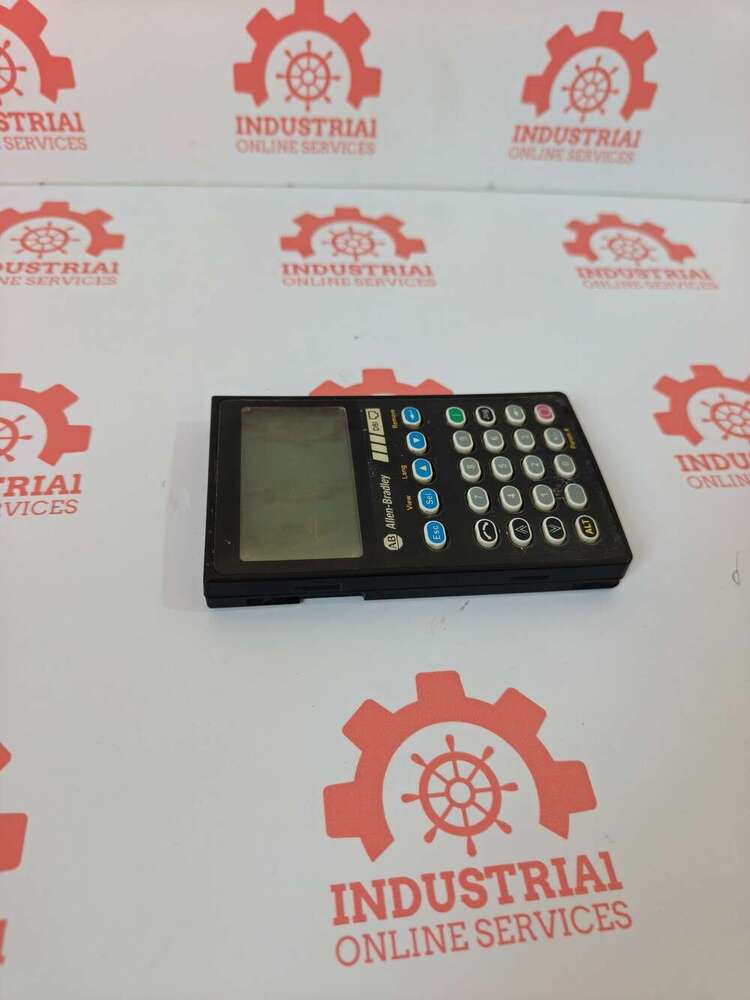

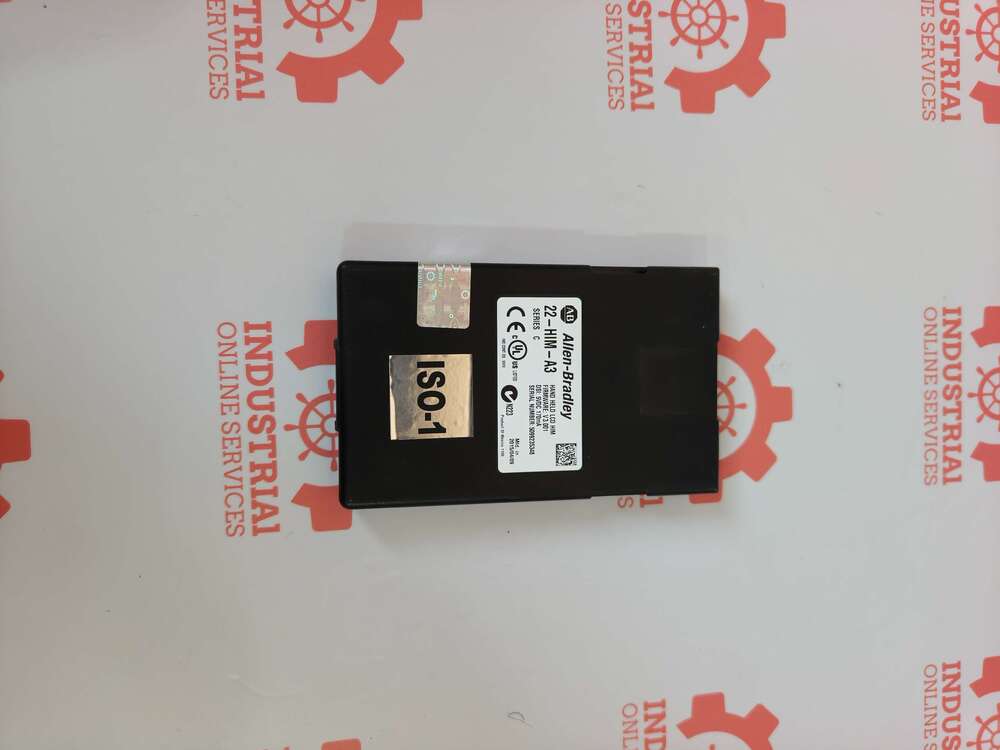

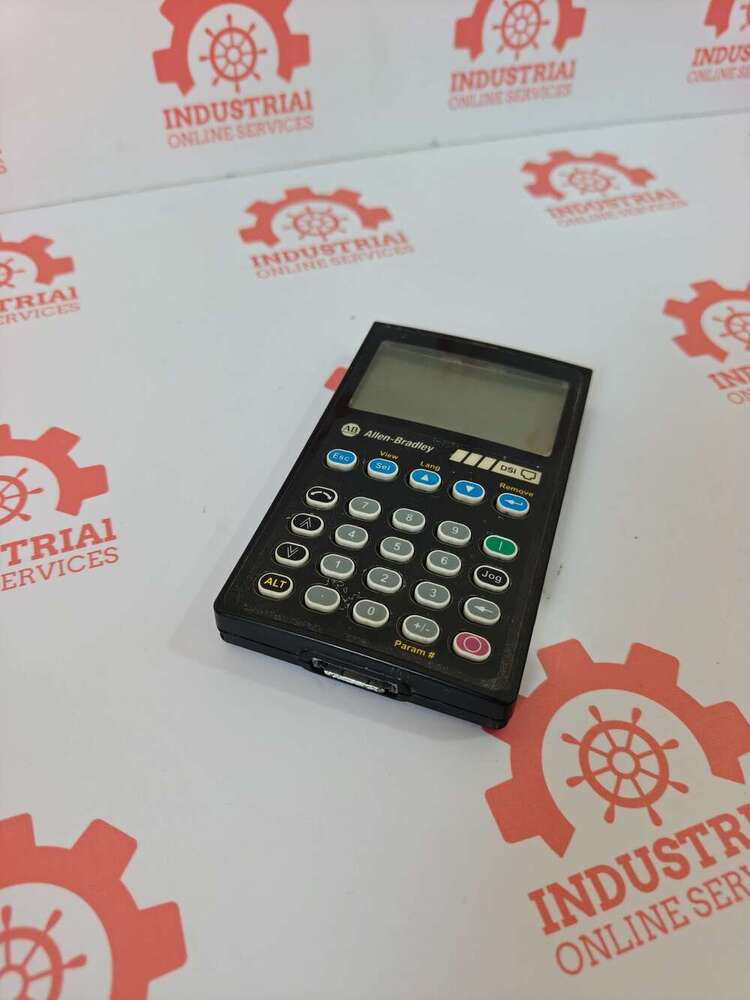

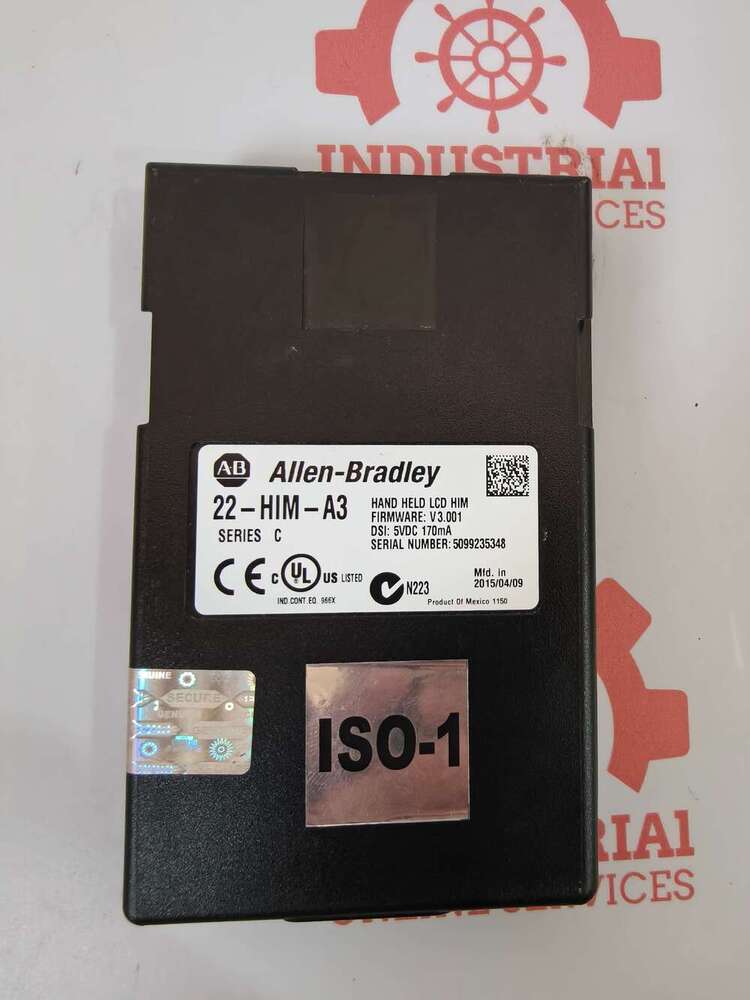

Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module

Name: Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module Specification

Chip Type
Handheld Human Interface Module

Model No
22-HIM-A3

I/O Cards Type
HIM (Human Interface Module)

Condition
New

Compatible Port/Slot
HIM Port

Use
PowerFlex AC Drives

Enclosure Rating
Open-type device

Power Source
Powered from Drive Unit

Supported Drives
PowerFlex 4, 40, 400, 520-Series AC Drives

Communication Interface
RS-232 via HIM port

Menu Navigation
Push Button

Backlight
LED backlit for enhanced visibility

Dimensions
Approx. 145 mm x 63 mm x 26 mm

Compliance
UL, CE, cUL Certified

Mounting Type
Handheld

Display Type
LCD, text-based

Weight
Approx. 0.2 kg

Part Number
22-HIM-A3

Language Support
Multi-language (English default)

Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module

Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module

Key Specifications & Features

Drive Compatibility: Functions seamlessly with the PowerFlex 4-series (such as 4, 4M, 40, and 400) and PowerFlex 520-series drives.
Interface Layout: Equipped with a multi-row LCD display screen and a full numeric keypad for precise variable and speed control.
Connectivity Protocol: Uses a Drive Serial Interface (DSI) communication protocol and includes a 1.0-meter connection cable.
CopyCat Functionality: Supports parameter storage and uploading/downloading configuration files directly between drives.
Enclosure Rating: Rated at IP30 / UL-NEMA Type 1 protection against dust and foreign objects

Seamless Control for PowerFlex AC Drives

The 22-HIM-A3 handheld module streamlines the setup, monitoring, and diagnostics of your PowerFlex 4, 40, 400, and 520-Series AC Drives. Its straightforward push-button menu navigation simplifies adjustments, making operations intuitive and reducing machine downtime for maintenance staff and operators alike.

Enhanced Display and Ergonomics

Equipped with a clear LCD text-based display and LED backlighting, the module provides optimal visibility even in dim environments. Its lightweight, handheld design allows for effortless mobility between drives, supporting on-the-go diagnostics and adjustments while maintaining user comfort during prolonged use.

Reliable, Certified, and Compatible

Engineered to ensure reliability, the 22-HIM-A3 adheres to UL, CE, and cUL standards, providing quality assurance for industrial applications. It communicates securely through the drive's HIM port and is easily integrated into existing systems by distributors, exporters, suppliers, and traders across India.

FAQ's of Allen Bradley 22-HIM-A3 PowerFlex Handheld Human Interface Module:

Q: How do I connect the Allen Bradley 22-HIM-A3 to a PowerFlex AC Drive?

A: Simply plug the 22-HIM-A3 module into the drive's dedicated HIM port using the RS-232 interface. The module is powered directly from the drive unit, so no external power source is required.

Q: What are the main benefits of using the 22-HIM-A3 Handheld Human Interface Module?

A: The module offers convenient, portable control for configuration, monitoring, and diagnostics of various PowerFlex AC Drives. Its user-friendly interface and backlit LCD screen enhance visibility and usability in diverse industrial environments.

Q: When should I use the 22-HIM-A3 for my PowerFlex drive applications?

A: The 22-HIM-A3 is ideal for commissioning, troubleshooting, and regular maintenance of PowerFlex 4, 40, 400, or 520-Series AC Drives. It's particularly useful when quick changes or drive status checks are needed on-site.

Q: Where can the 22-HIM-A3 Handheld Module be utilized?

A: This module is suitable for use in various industrial settings where PowerFlex AC Drives are installed, such as manufacturing, automation, and process plants throughout India.

Q: What is the process for menu navigation on the 22-HIM-A3?

A: Menu navigation relies on clearly labeled push buttons, allowing users to efficiently scroll through settings and parameters. The LCD provides immediate feedback for each selection, making adjustments straightforward.

Q: What drives are supported by the 22-HIM-A3 module?

A: The 22-HIM-A3 is compatible with PowerFlex 4, 40, 400, and 520-Series AC Drives, allowing broad utility across Allen Bradley's popular drive platforms.
