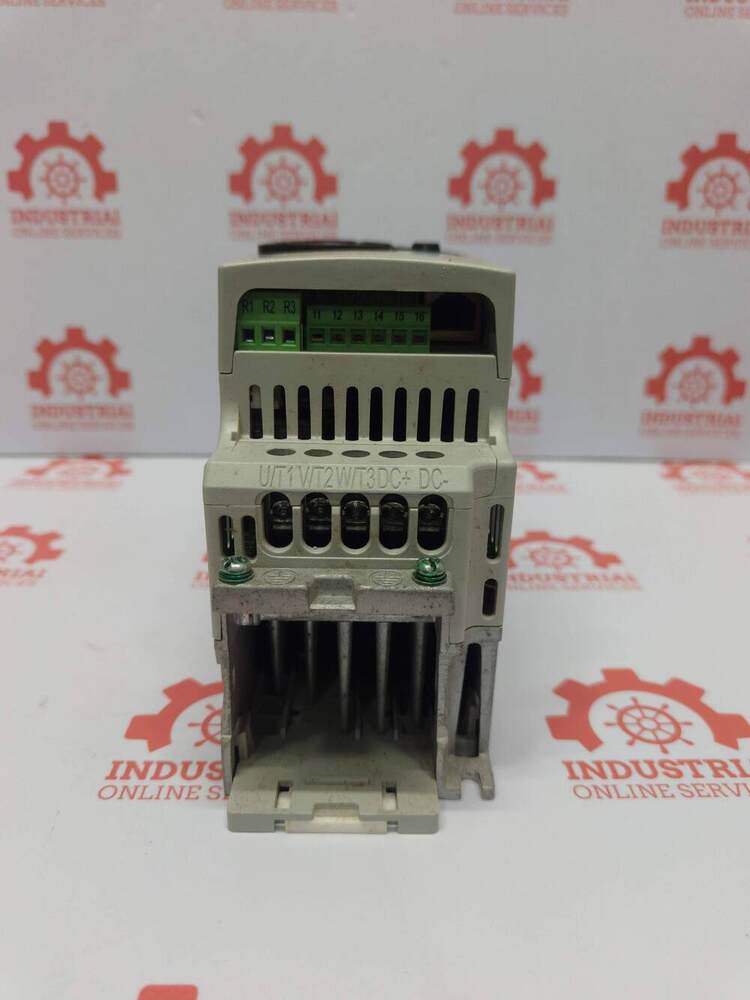

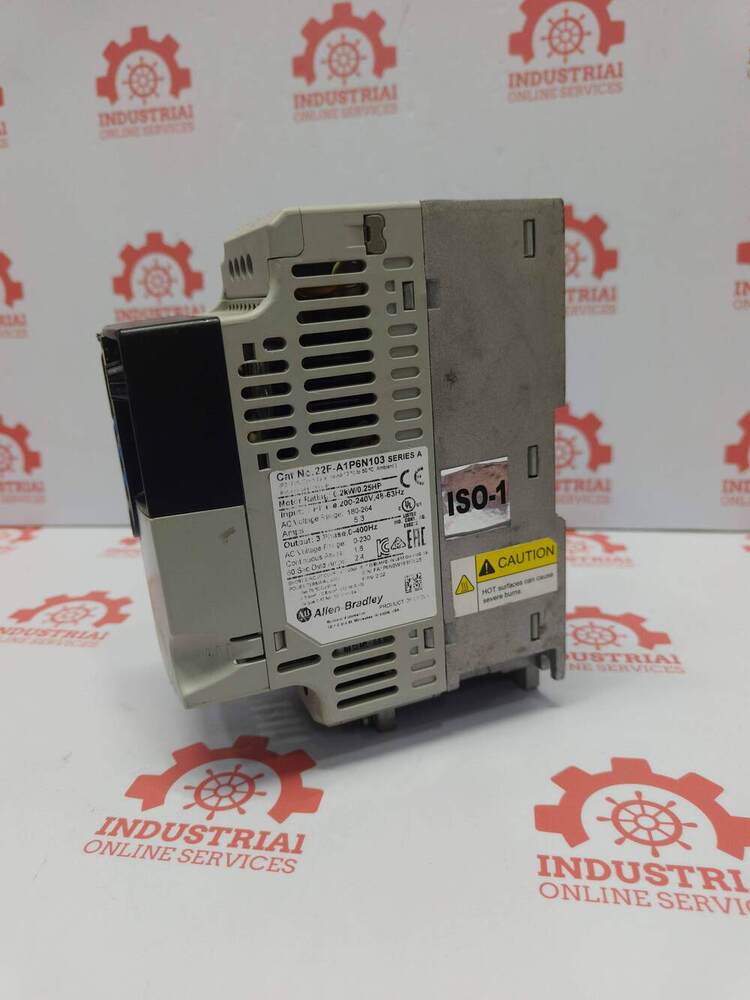

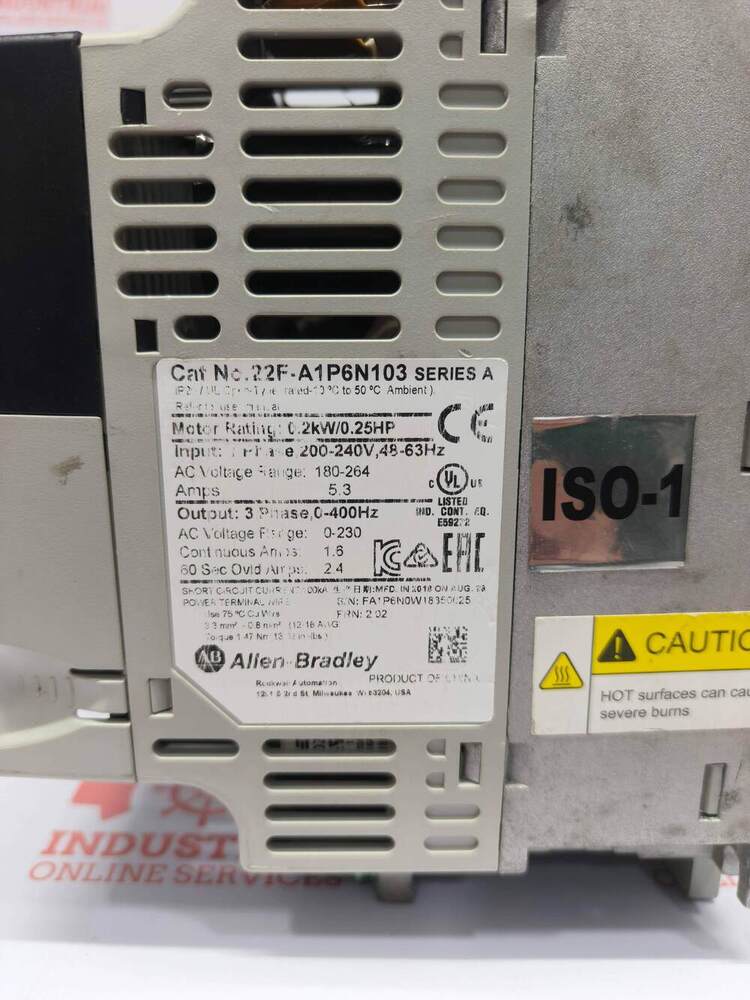

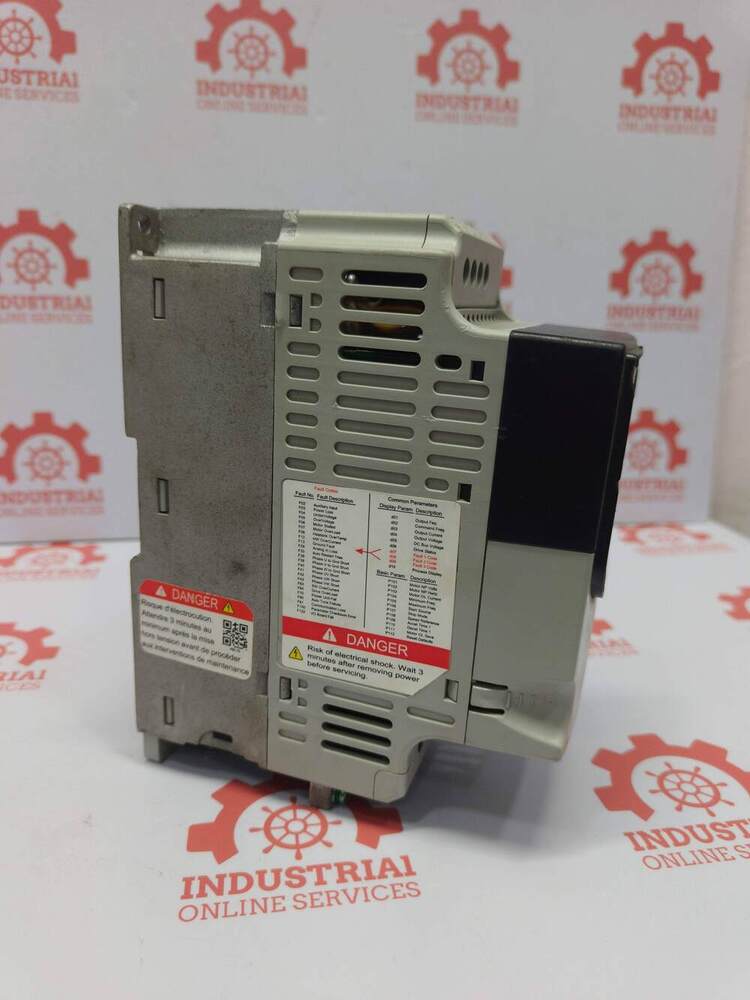

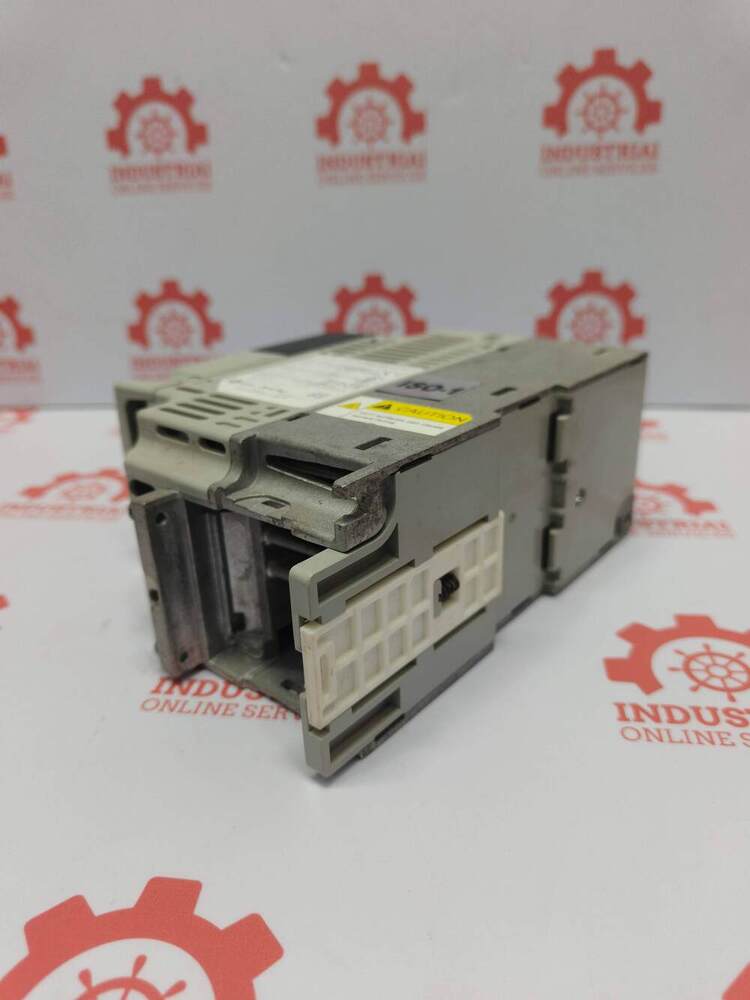

ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series

Send Inquiry

Request To Call Back

ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series

Name: ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series Specification

Chip Type
Microprocessor-based controller

Model No
22F-A1P6N103

I/O Cards Type
Integrated Digital/Analog I/O

Condition
New

Compatible Port/Slot
Panel mounting, terminal block connections

Use
Speed control of AC induction motors

OS Supported
N/A (standalone industrial controller)

Frequency Range
0-400 Hz

Enclosure Rating
IP20

Output Power
0.37 kW (0.5 HP)

Product Series
PowerFlex 4M

Programming Interface
Keypad, parameter configuration

Protection Features
Overload, Overvoltage, Undervoltage, Short Circuit

Communication Options
RS-485 (Modbus)

Output Current
1.6A

Display Type
LED Digital Display

Input Voltage
Single Phase 200-240V AC

Weight
Approx. 1.2 kg

Mounting Type
DIN rail / Panel mount

Dimensions
Approx. 152 mm x 85 mm x 151 mm

Ambient Temperature
-10C to 50C

Control Method
V/F (Voltage/Frequency) control

Output Voltage
0-240V AC

ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series

ALLEN BRADLEY 22FA1P6N103 Variable Frequency AC Drive VFD From The PowerFlex 4M Series

Technical Specifications

Power Rating 02 kW 025 HP

Input Voltage 200240V AC 1Phase 4863 Hz

Output Current 16 Amps

Control Type Volts per Hertz VHz control

Enclosure Rating IP20 Open Type

Frame Size Frame A Supports DINrail mounting

Interface Fixed digital keypad with LED display

Communication Integral RS485 Modbus RTU

Key Features

FeedThrough Wiring Keeps input power terminals at the top and motor output terminals at the bottom for clean panel routing

ZeroStacking Multiple units can be mounted sidebyside with no gap at temperatures up to 40C to maximize panel space

Builtin Protection Provides overcurrent overload up to 150 for 60s stall prevention and ground fault safeguards

Advanced Motor Speed Control

The PowerFlex 4M Series VFD enables precise speed control of AC induction motors using V/F (Voltage/Frequency) control method. This ensures enhanced process efficiency, energy savings, and longer equipment life, catering to varied industrial requirements. Its easy-to-navigate keypad and LED digital display simplify parameter setup, operation, and monitoring for operators and engineers alike.

Robust Protection & Flexible Installation

Engineered for reliability, the 22F-A1P6N103 VFD comes with built-in protections against overload, overvoltage, undervoltage, and short circuits. Its IP20-rated enclosure makes it suitable for clean industrial environments, while the compact form allows for simple DIN rail or panel mounting. This versatile VFD adapts easily to both new installations and upgrades.

Seamless Communication & Connectivity

Equipped with RS-485 (Modbus) support, the VFD allows for smooth integration into automation systems for centralized control or remote monitoring. Terminal block connections and integrated digital/analog I/O further enhance application flexibility, making it appropriate for distributed control architectures in modern industrial settings.

FAQ's of ALLEN BRADLEY 22F-A1P6N103 Variable Frequency AC Drive (VFD) From The PowerFlex 4M Series:

Q: How do I configure the parameters on the ALLEN BRADLEY 22F-A1P6N103 VFD?

A: Parameters are configured using the built-in keypad and the LED digital display. Simply navigate through the menu to set parameters such as speed, acceleration, and deceleration based on your motor and application requirements.

Q: What protection features does this PowerFlex 4M VFD offer during operation?

A: The drive comes equipped with built-in protections including overload, overvoltage, undervoltage, and short circuit safeguards, ensuring motor and drive safety under various operating conditions.

Q: When should I use the V/F control method provided by this VFD?

A: V/F (Voltage/Frequency) control is best suited for constant torque applications such as conveyors, fans, and pumps, providing a straightforward and reliable method of adjusting motor speed for general industrial automation.

Q: Where can I install the 22F-A1P6N103 VFD within my facility?

A: This VFD features a compact IP20 enclosure suitable for clean, dry environments. It can be conveniently mounted on a DIN rail or a panel in your control cabinet, making it adaptable to a range of installation layouts.

Q: What are the benefits of using RS-485 (Modbus) communication with this VFD?

A: RS-485 (Modbus) enables seamless integration with PLCs and industrial control systems, allowing for centralized monitoring and diagnostics as well as remote parameter adjustments, enhancing automation and system efficiency.

Q: How do I connect the VFD to my AC induction motor?

A: Connect the motor cables to the output terminals of the drive, and ensure correct wiring according to the terminal block diagram provided in the product manual. Parameterize the drive for the motor's specific voltage and current ratings to ensure safe operation.
