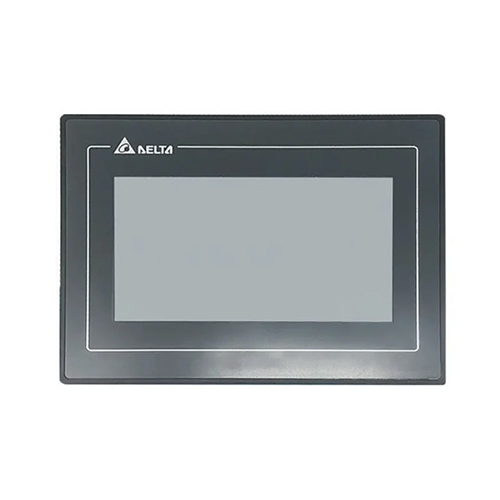

Delta DOP 107WV HMI

Get a Price/Quote

MOQ : 1 Piece

Delta DOP 107WV HMI Specification

Phase
Single Phase

IP Rating
IP65 (Front Panel)

Application
Industrial Automation, Machine Control

Frequency
50/60 Hz

Weight
Approx. 0.7 kg

Processor Type
32-bit RISC CPU

Control Type
Touchscreen

Mounting Type
Panel Mount

Automation Grade
Automatic

Features
High-brightness display, Wide viewing angle, Multi-language support

Connectivity Type
RS232/RS485, Ethernet, USB Host

Screen Size
7 inch (800 x 480 pixels) Widescreen TFT-LCD

Material
ABS Plastic

Power
4.8 W

Temperature
0C to 50C (Operating), -20C to 60C (Storage)

Voltage
24 VDC (15%)

Touch Panel Type
4-wire Resistive

Color Depth
16.7M (24 bit) Colors

Cutout Dimensions
192 x 138 mm

USB Host
Yes (supports USB flash drives)

Backlight
LED, 20,000 hours (typical)

Operating Humidity
10% to 90% RH (Non-condensing)

Serial Ports
2 COM ports (COM1: RS232/RS422/RS485, COM2: RS232)

Audio Output
Buzzer

Data Storage
128MB Flash, 128MB RAM

Dimensions (W x H x D)
200.6 x 146.5 x 34 mm

About Delta DOP 107WV HMI

The acclaimed Delta DOP 107WV HMI stands as a paragon of industrial automation interfaces, exquisitely crafted for optimal performance and versatility. Explore a broad spectrum of applications with its illustrious 7-inch widescreen TFT-LCD, featuring a high-brightness 16.7M color display and LED backlight with a life of 20,000 hours. This featured HMI boasts robust connectivity, including Ethernet, RS232/RS485, and USB Host support, all powered by a 32-bit RISC CPU. With IP65-rated front panel, multi-language support, and durable ABS plastic housing, it ensures resilience and intuitive machine control in demanding environments.

Versatile Plant Applications & Standout Features

The Delta DOP 107WV HMI is ideal for plant automation, providing seamless machine control across varied industrial environments. Its expansive connectivity, high-brightness display, and multi-language support ensure reliable, intuitive operation even under stringent conditions. Boasting automatic grade functionality, a responsive resistive touchscreen, and robust data storage, this HMI caters to plant requirements for monitoring, process control, and real-time interaction, making it an essential tool for modern industrial operations and machinery management.

Payment Terms, Shipping and Export Market Overview

Delta DOP 107WV HMI is delivered with flexible payment terms designed to suit both distributor and exporter needs. We typically operate on FOB port Mumbai, ensuring timely shipped goods at your asking price. Our main export markets include India, South East Asia, and the Middle East, positioning us as a reliable supplier and trader for industrial automation solutions. Products are meticulously packed and ready for rapid shipment, prioritizing customer satisfaction and prompt delivery of every consignment.

FAQ's of Delta DOP 107WV HMI:

Q: How does the Delta DOP 107WV HMI enhance machine control in industrial settings?

A: The Delta DOP 107WV HMI integrates a responsive touchscreen, high-brightness display, and extensive connectivity to provide real-time monitoring, streamlined machine interaction, and precise automation control in diverse industrial environments.

Q: What connectivity options are available on this HMI for various applications?

A: The unit features two COM ports (RS232/RS422/RS485), Ethernet, and USB Host support, making it adaptable to numerous industrial devices and facilitating efficient data transfer and system integration.

Q: Where can this HMI be effectively installed and used?

A: With its IP65 front panel and panel-mount design, the DOP 107WV HMI suits harsh industrial settings, manufacturing plants, and machinery operation panels, ensuring durability and reliable operation.

Q: When is it recommended to use this model's IP65-rated front panel?

A: It's ideal when your application demands dust and water resistance, such as in factories, food processing, or outdoor units where exposure to moisture, oil, or debris may occur.

Q: What are the benefits of its multi-language support and high storage capacity?

A: Multi-language support ensures usability across global teams, while the 128MB flash and 128MB RAM provide ample space for project files, ensuring smooth operation of advanced automation processes.
