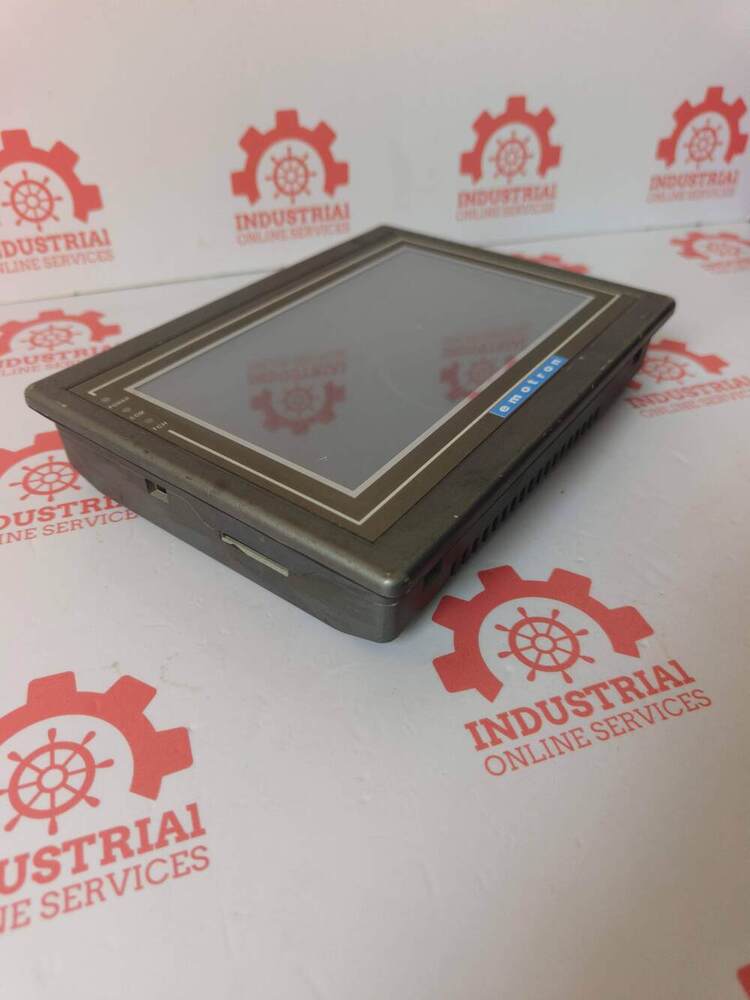

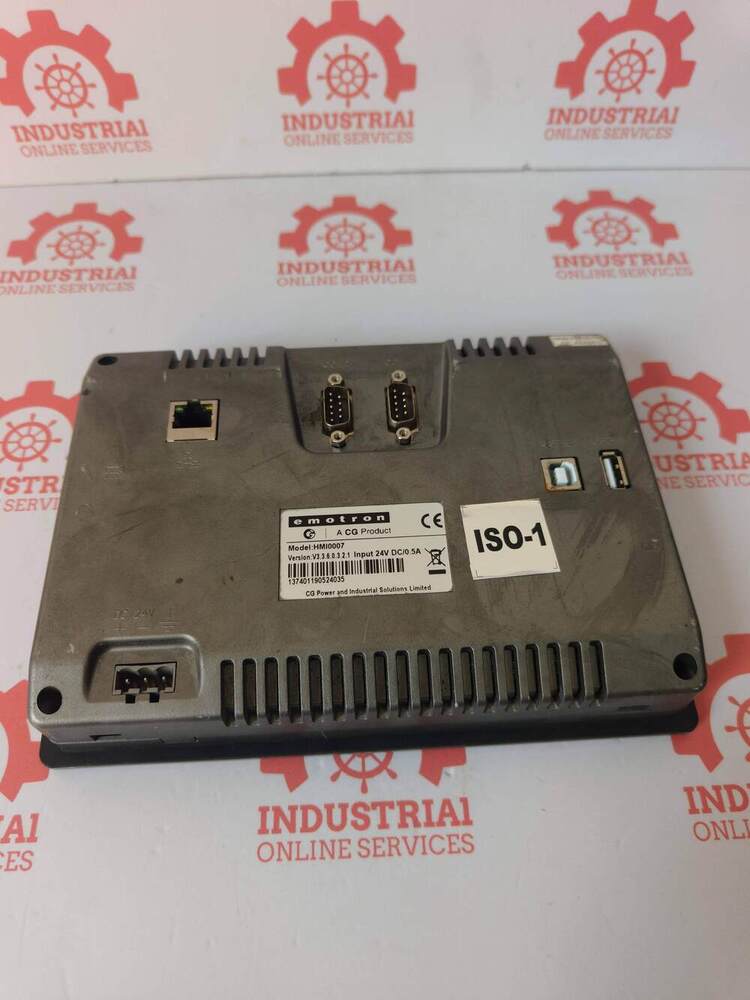

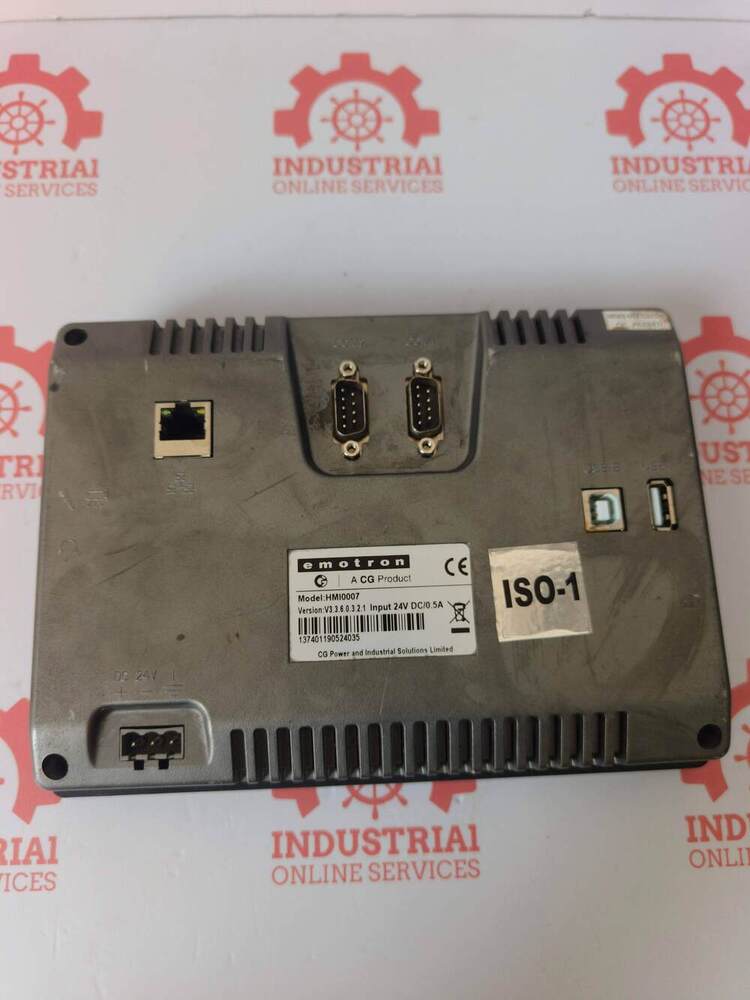

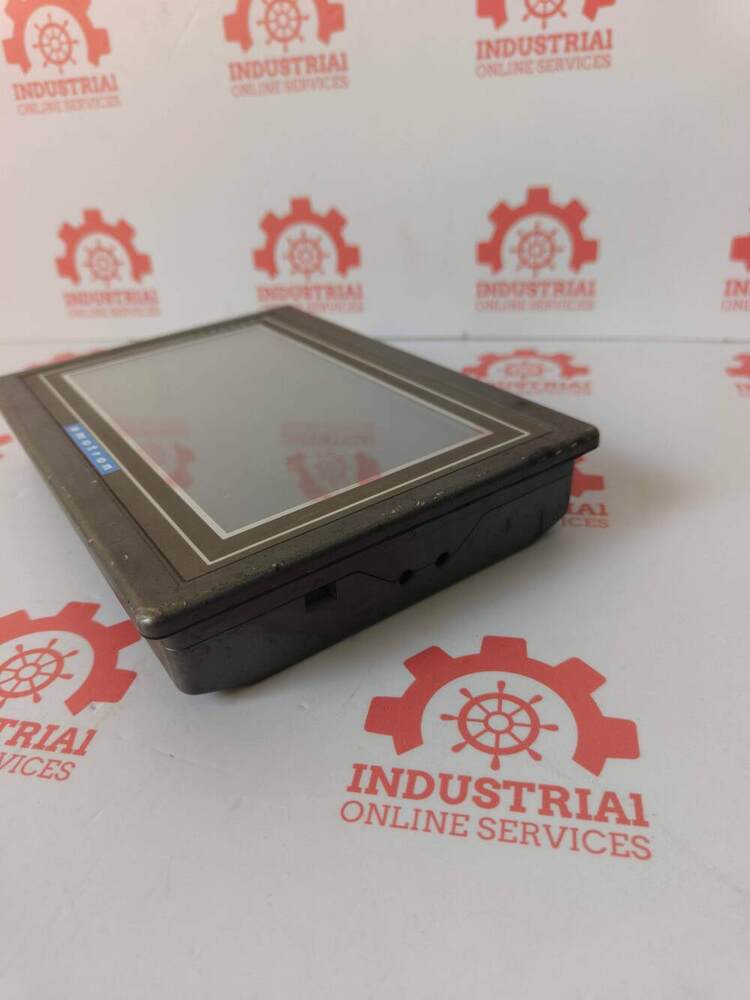

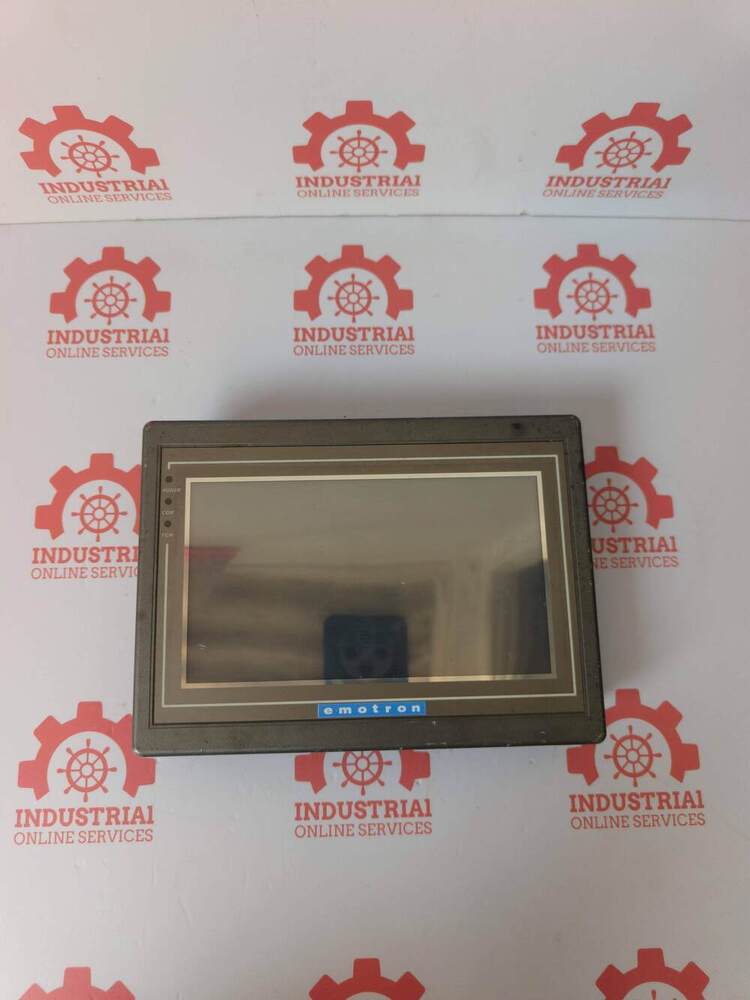

EMOTRON HMI10007 7-Inch Human-Machine Interface (HMI) Touch Screen Panel

Name: EMOTRON HMI10007 7-Inch Human-Machine Interface (HMI) Touch Screen Panel
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EMOTRON HMI10007 7-Inch Human-Machine Interface (HMI) Touch Screen Panel Specification

Input Current
0.3 A (approx.)

Operating Temperature
0C to 50C

Protection Level
IP65 (Front Panel)

Efficiency
High

Humidity
10-90% RH (Non-Condensing)

Mounting Type
Panel Mount

Frequency
50/60 Hz compatible

Rated Voltage
24V DC

Phase
Single Phase

Main Material
ABS Engineering Plastic (Panel), Glass (Display)

Processing Type
Touchscreen Input Interface

Condition
New

Function
Human-Machine Interface Display and Control

Application
Industrial Automation, Process Control, Machine HMI

Dimension (L*W*H)
200 x 150 x 35 mm (approx.)

Power Mode
DC Powered

Voltage
24V DC

Power Consumption
Approx. 7W

Battery Life
N/A (No built-in battery)

Accessories
User Manual, Mounting Clips, Power Cable

Storage
128 MB Flash

Languages Supported
Multi-language support

Touch Screen Type
4-wire Resistive

Display Size
7 inch TFT LCD

Software Compatibility
EMOTRON HMI Programming Suite

Backlight
LED

Resolution
800 x 480 pixels

Communication Ports
RS232, RS485, Ethernet (optional)

Weight
Approx. 0.7 kg

EMOTRON HMI10007 7-Inch Human-Machine Interface (HMI) Touch Screen Panel Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About EMOTRON HMI10007 7-Inch Human-Machine Interface (HMI) Touch Screen Panel

EMOTRON HMI10007 7Inch HumanMachine Interface HMI Touch Screen Panel

Technical Specifications

Display Size 7inch LEDbacklit TFT screen

Resolution 800 x 480 pixels

Processor Cortex A8 600MHz

Memory 128 MB RAM DDR3 128 MB Flash ROM

Operating Voltage 24V DC Power consumption 10W

Communication Interface RS232 RS485 serial ports

Programming Extension Ports 2 x USB ports including USB Client programming port

Configuration Software Configured using Emolog software

Physical Dimensions 201 x 1466 x 365 mm designed for panel mounting

Environmental Limits Operating temperature range from 10 to 60C

Key Functional Features

Seamless Connectivity The device acts as a primary bridging interface using standard industrial protocols like Modbus RTU to communicate with machinery and system electronics

High Contrast Display Features a 300 cdcm brightness setting and supports up to 16000K colors for highclarity viewing on factory floors

High-Performance Display and Interface

The EMOTRON HMI10007 features a 7-inch TFT LCD with bright LED backlighting for crisp and clear displays. Its 4-wire resistive touch screen ensures accurate user interactions, even in harsh industrial environments. With multi-language support, the interface is accessible and user-friendly for a wide range of operators.

Robust Industrial Connectivity

This HMI panel supports a variety of communication protocols, including RS232, RS485, and optional Ethernet, making it adaptable to various control systems. Its compatibility with the EMOTRON HMI Programming Suite ensures efficient configuration and integration in process control and automation applications.

Durable and Easy to Install

Constructed from ABS engineering plastic and glass, the EMOTRON HMI10007 is both lightweight and sturdy. The front panel's IP65 protection guards against dust and water ingress. Designed for panel mounting, it includes all necessary accessories for quick and easy installation in industrial machine interfaces.

FAQ's of EMOTRON HMI10007 7-Inch Human-Machine Interface (HMI) Touch Screen Panel:

Q: How is the EMOTRON HMI10007 panel installed in an industrial setup?

A: The HMI10007 is designed for panel mounting. Simply use the included mounting clips to secure it onto the control cabinet or equipment panel, and connect the supplied power cable to a 24V DC source.

Q: What types of applications is this HMI best suited for?

A: This HMI panel excels in industrial automation, process control, and machine interface applications. Its robust design and reliable input make it suitable for manufacturing environments and equipment operation control.

Q: When should I choose the Ethernet communication option?

A: Ethernet communication is recommended when you require faster data transfer, remote monitoring, or integration into networked control systems. It offers added flexibility for modern industrial applications.

Q: Where can the HMI10007 operate effectively in terms of environmental conditions?

A: The device operates optimally within a temperature range of 0C to 50C and humidity between 10-90% RH (non-condensing). The IP65-rated front panel protects it against dust and water, making it suitable for harsh industrial conditions.

Q: What benefits does the multi-language support provide?

A: Multi-language support enables operators from diverse backgrounds to interact effectively with the interface, enhancing usability and reducing training time for multi-lingual teams.

Q: How is the touch screen of the EMOTRON HMI10007 operated and maintained?

A: The 4-wire resistive touch screen responds well to finger or gloved touch. Regular cleaning with a soft, damp cloth (avoiding harsh chemicals) will maintain its responsiveness and clarity.
