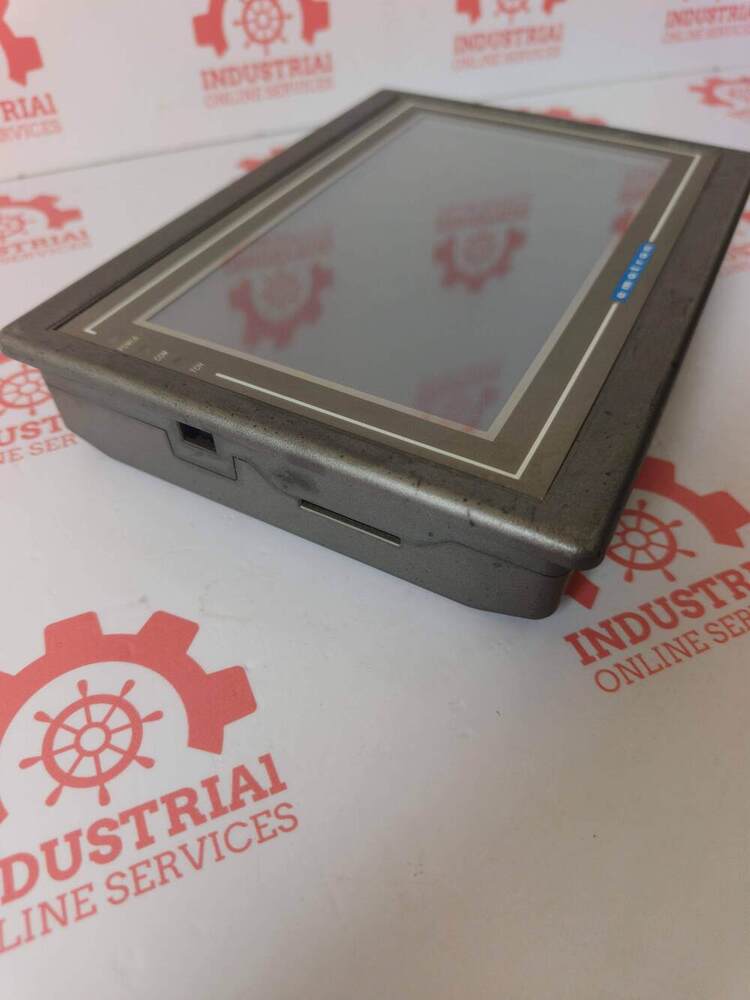

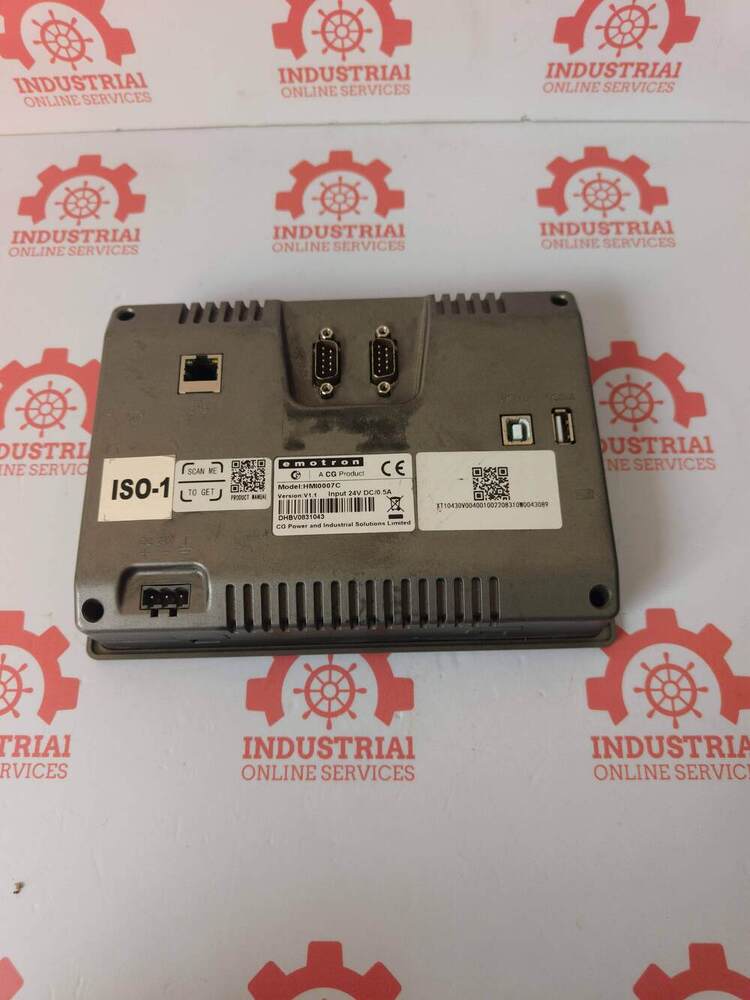

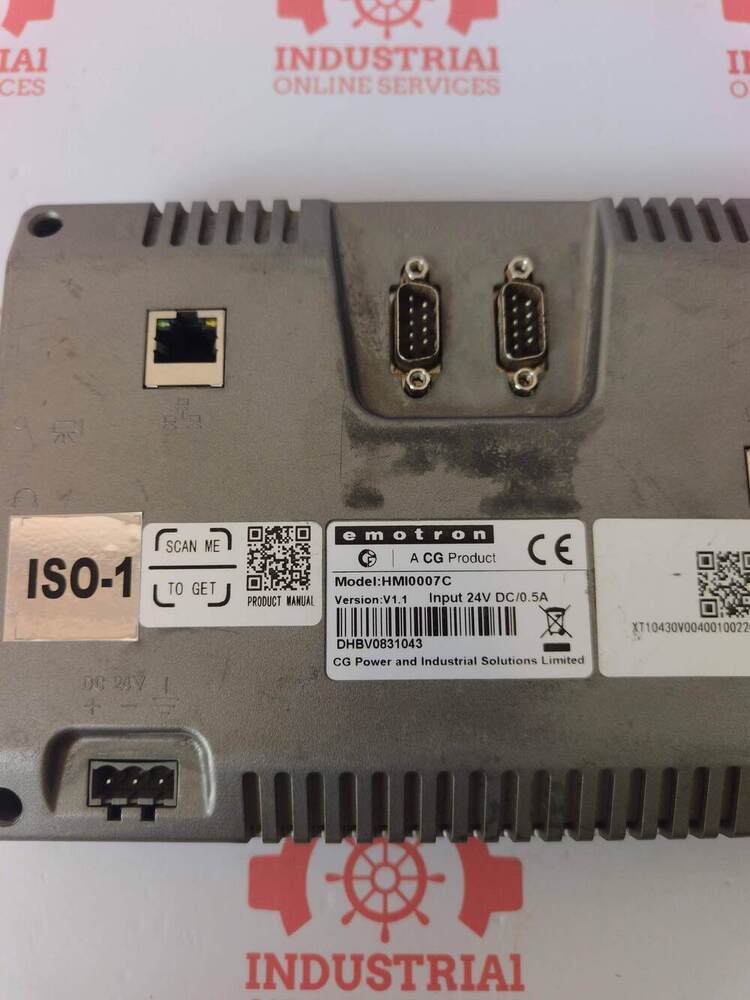

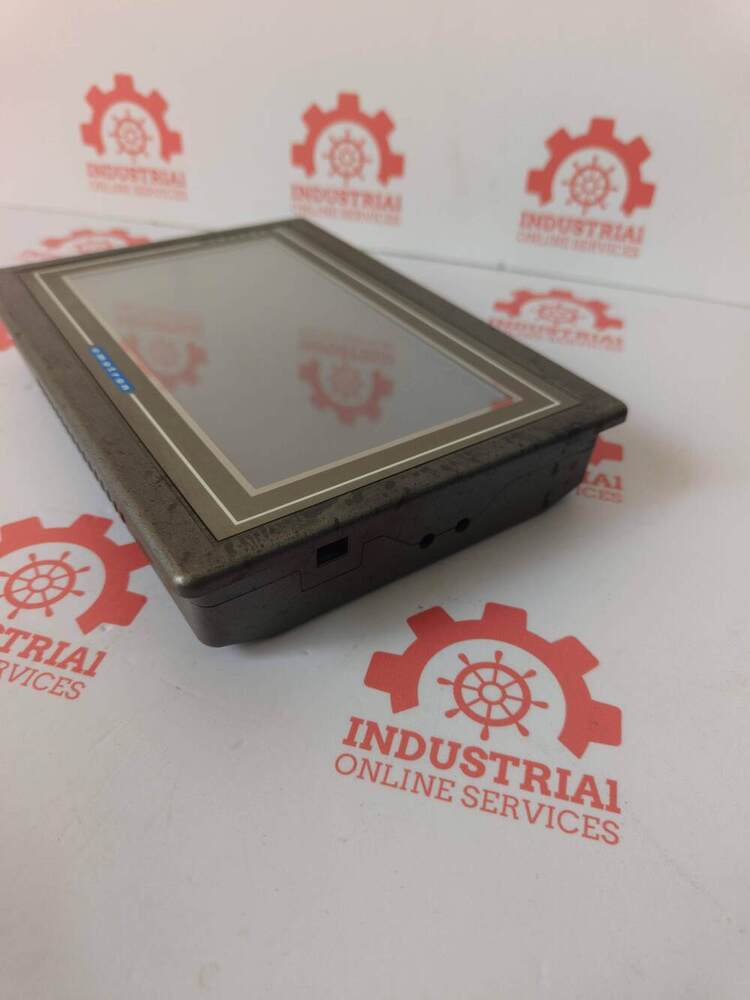

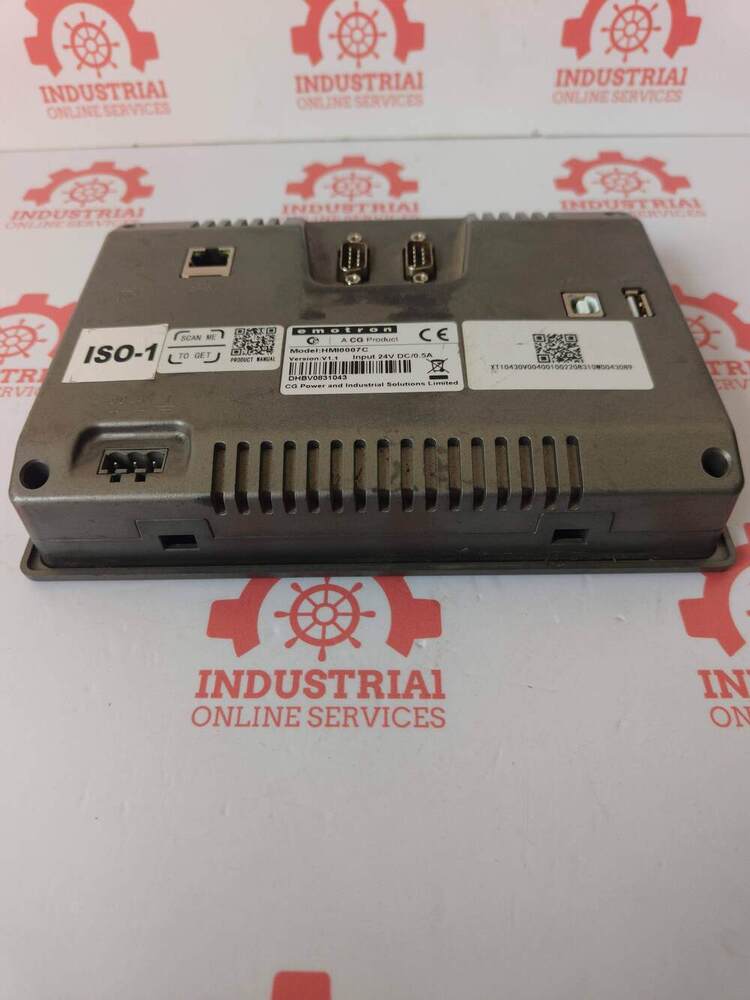

EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel

Name: EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel
Brand: Industrial Online Services
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Number

Get a Price/Quote

MOQ : 1 Pallet

EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel Specification

Output Voltage
N/A (interface device, not a power supply)

Mounting Type
Panel Mount

Humidity
10% to 90% RH (non-condensing)

Efficiency
High, typical for industrial HMI

Protection Level
IP65 (front panel only)

Operating Temperature
0C to 50C

Input Current
0.4A @ 24V DC (typical)

Phase
Single

Rated Voltage
24V DC

Frequency
50/60 Hz (for relay outputs, not power input)

Main Material
Industrial-grade plastic with glass touchscreen

Processing Type
HMI Touchscreen Panel Control

Condition
Used

Function
Human-Machine Interface, visual control, and operation input

Application
Industrial automation control, machinery interface

Dimension (L*W*H)
Approx. 200mm x 145mm x 36mm (estimate, verify with datasheet)

Power Mode
DC Power Supply

Voltage
24V DC

Power Consumption
Approximately 7W (typical for 7-inch HMI)

Battery Life
Not applicable (does not use internal battery)

Accessories
User Manual, Mounting Clips (standard, confirm with retailer)

Display Colors
65K colors (16-bit)

Storage Temperature
-20C to 60C

Display Size
7-inch TFT LCD

Communication Ports
RS232/RS485, Ethernet (varies by model variant)

Backlight Type
LED backlight

Resolution
800 x 480 pixels (WVGA)

Touch Screen Type
Resistive touch panel

Software Compatibility
Compatible with standard HMI configuration software (check product documentation)

Backlight Lifetime
Approx. 50,000 hours

Weight
Approx. 1.2 kg

EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel Trade Information

Minimum Order Quantity
1 Pallet

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel

EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel

Key Technical Specifications

Display Size: 7 inches
Resolution: 800 x 480 pixels (WVGA widescreen display)
Display Colors: 64K to 16,000K high-contrast palette
Enclosure Rating: IP65 dust/waterproof front panel protection, IP20 back panel
Hardware Core: Driven by a high-speed processor (typically ARM Cortex A8 or equivalent)
Power Supply: 24V DC operating voltage

Connectivity & Communication

Serial Ports: Built-in COM ports supporting RS232, RS422, and RS485 physical layer communication.
Ethernet: Supports standard industrial protocols including Modbus TCP/IP for networking with modern industrial devices.
Modbus RTU: Native support for master/slave serial communication.
Programming Interfaces: Features a USB Client 2.0 port for software code transfer/firmware updates, and a USB Host 2.0 port for external data log storage or peripheral attachments.

Efficient and Durable Industrial HMI

The EMOTRON HMI1007C stands out with its high efficiency, long-lasting LED backlight, and robust construction suitable for demanding environments. Its resistive touch screen enables precise input even with gloved hands, while the 7-inch display delivers clear visuals for enhanced control and monitoring.

Flexible Connectivity and Integration

This HMI supports RS232/RS485 communication and, on certain variants, Ethernet connectivity-facilitating integration with industrial controllers and networks. Compatible with standard configuration software, it offers straightforward setup and reliable operation for automation projects.

FAQ's of EMOTRON HMI1007C 7-Inch Human-Machine Interface (HMI) Touch Screen Panel:

Q: How is the EMOTRON HMI1007C installed?

A: The HMI1007C is designed for panel mounting and comes with standard mounting clips (inquire with your retailer to confirm included accessories). Installation typically involves cutting an appropriately sized panel opening and securing the unit using the provided clips.

Q: What communication interfaces are available on this HMI?

A: Depending on the model variant, the EMOTRON HMI1007C provides RS232, RS485, and possibly Ethernet ports, allowing flexible connectivity with a wide range of industrial automation equipment and networks.

Q: When should this HMI panel be used in industrial settings?

A: The HMI1007C is ideal for use in factory automation, machinery interfaces, and any application where a durable, clear, and responsive user interface is essential for operational control and data visualization.

Q: Where should the EMOTRON HMI1007C be mounted for optimal performance?

A: Mount the panel on the front of control cabinets or machine panels in locations protected from excessive moisture, dust, and direct sunlight. Its IP65-rated front panel offers resistance to water and dust, making it suitable for harsh industrial environments.

Q: What is the process for configuring this HMI touch screen?

A: To configure the EMOTRON HMI1007C, connect it to your PC using the required communication port and use compatible HMI configuration software as specified in the product documentation. Load your project, set up communication parameters, and download the application to the HMI.

Q: What are the main benefits of using this HMI in automation?

A: The HMI1007C delivers reliable human-machine interaction, enhances process transparency, and improves operational safety. Its robust construction, long backlight life, and flexible communication ensure consistent performance in demanding applications.
