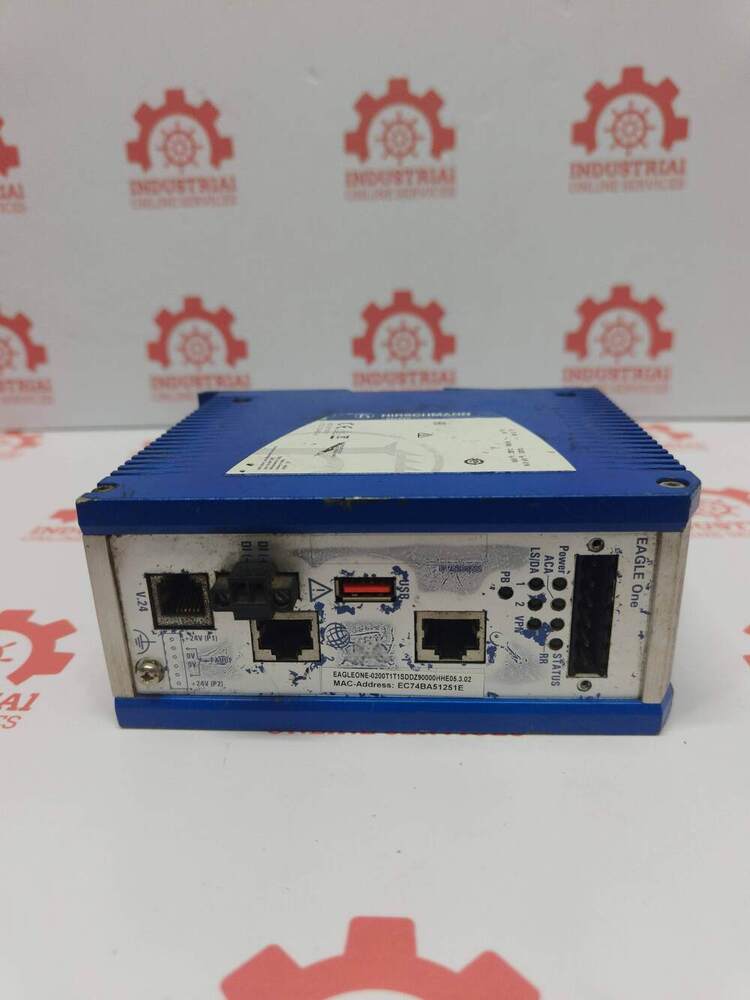

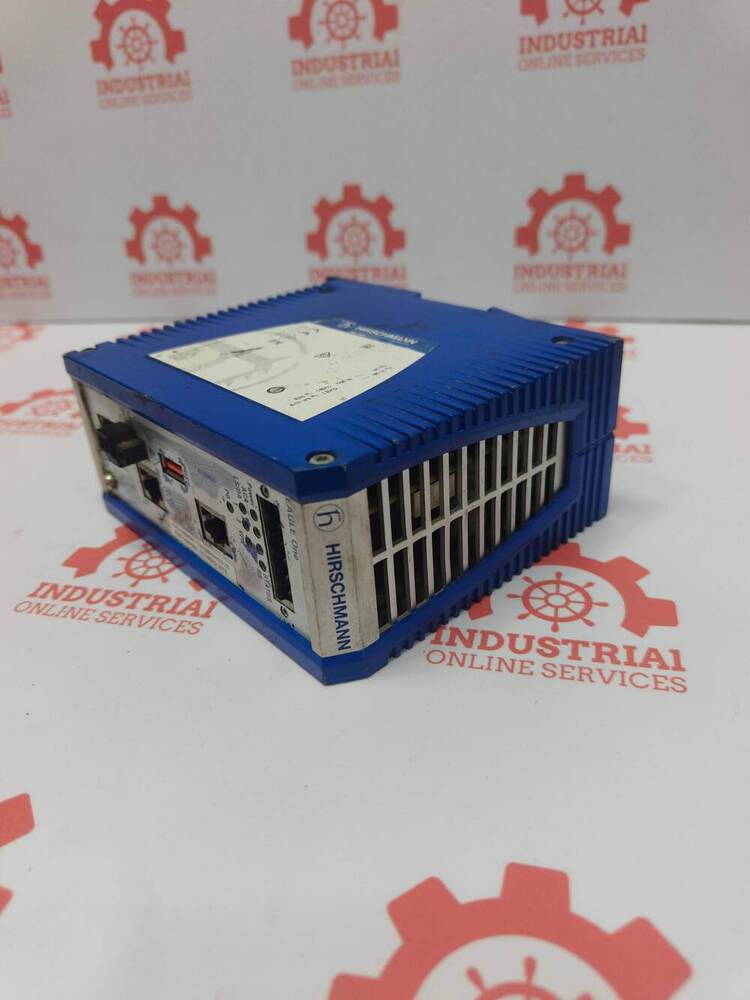

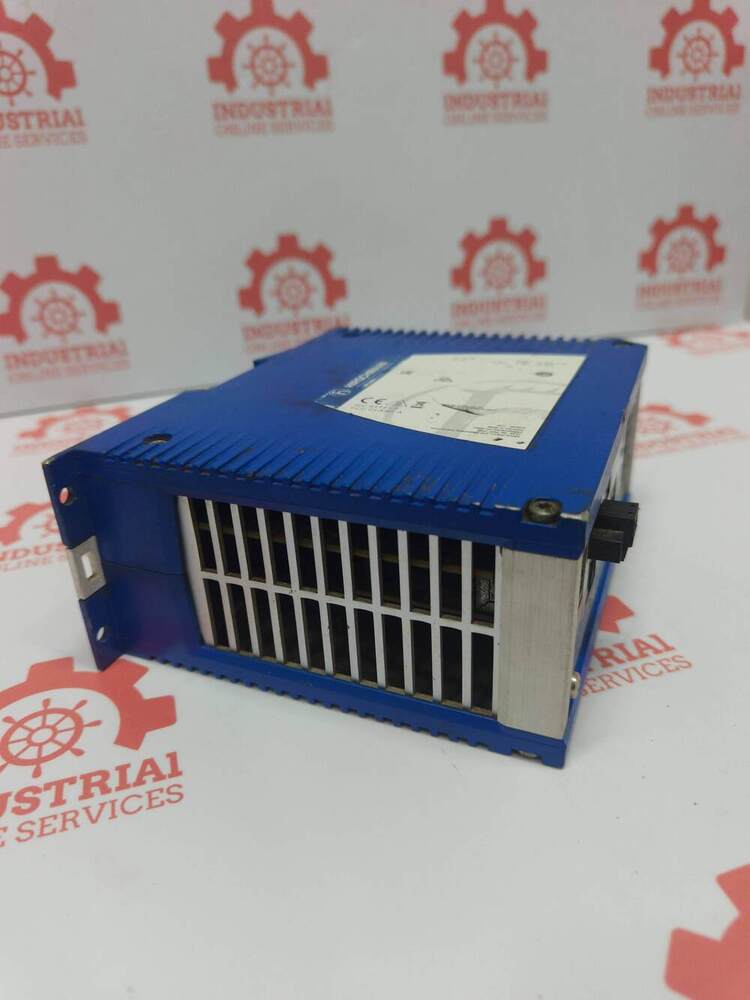

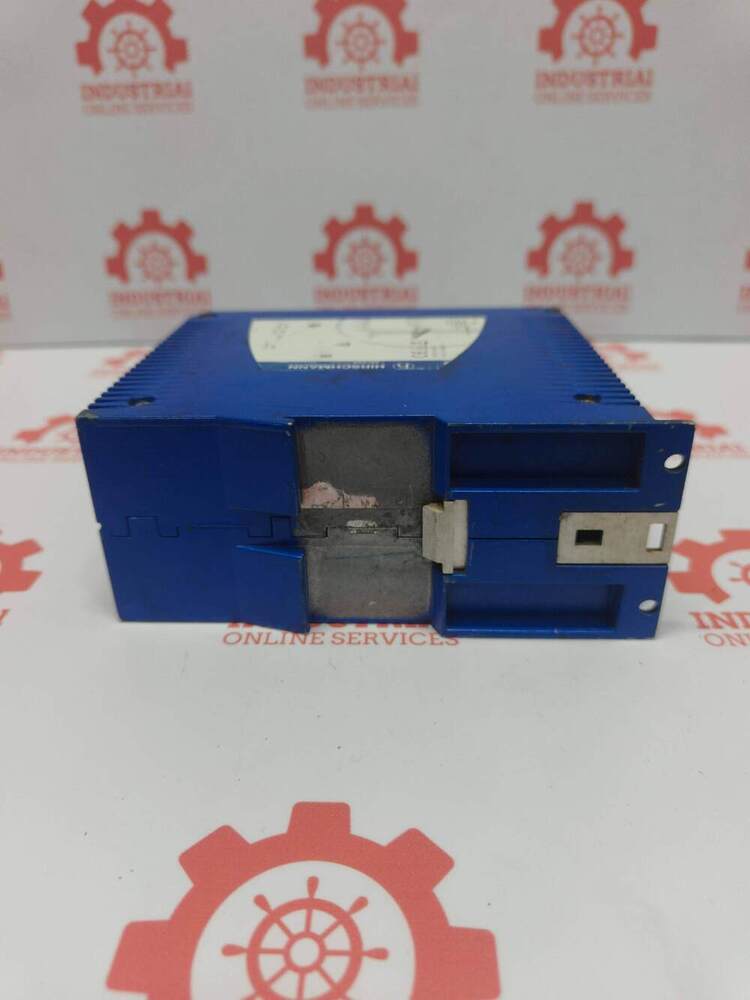

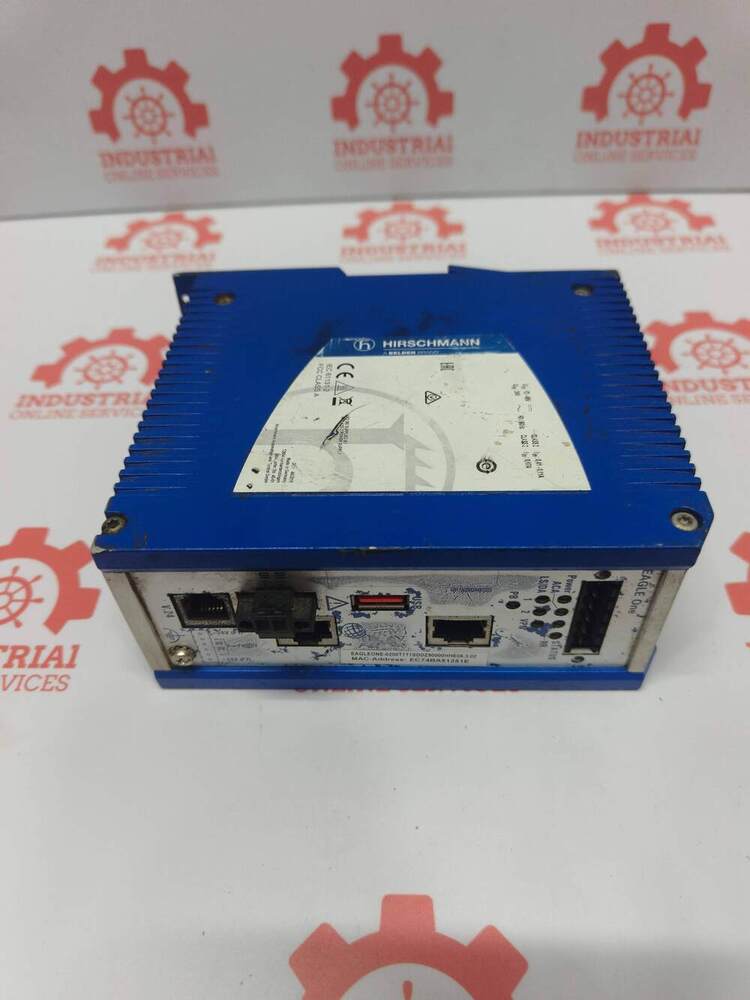

HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device

Send Inquiry

Request To Call Back

HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device

Name: HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Kilovolt

Get a Price/Quote

MOQ : 1 Piece

HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device Specification

Chip Type
Integrated Security Processor

Model No
EAGLEONE-0200T1T1SDD290000HHE08.3.02

I/O Cards Type
Industrial Network Security Appliance

Condition
New / Refurbished (Depends on Source)

Compatible Port/Slot
DIN Rail Mount, Standard Ethernet Ports

Use
DIN Rail-Mounted Industrial Network Security

OS Supported
Proprietary Hirschmann OS

Management Interface
Web-based GUI, SNMP, CLI

Mounting
DIN Rail Mountable

Weight
Approx. 0.8 kg

Power Supply
24 V DC (18-32 V DC)

Typical Applications
Industrial Automation, Critical Infrastructure, Secure Networking

Enclosure Material
Rugged Industrial Plastic/Metal Housing

Device Type
Industrial Hardware Firewall / Security Appliance

Protection Type
Firewall, VPN, Intrusion Detection/Prevention

Network Ports
2 x 10/100/1000BASE-TX Ethernet Ports

Operating Temperature
-40 C to +70 C

Dimensions
Approx. 140 mm x 55 mm x 120 mm (W x H x D)

Approvals/Certifications
CE, FCC, IEC 61850-3, IEEE 1613

HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device About

HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device

Overview & Specifications

Brand/Series: Hirschmann (a Belden brand) / EAGLE One Series

Ports: 2 x 10/100BASE-TX RJ45 Fast Ethernet ports

Enclosure/Mounting: IP20-rated robust metal housing with DIN rail mount

Power Input: Redundant power options (typically 12-48 VDC / 24 VAC)

Operating Temperature: Standard range of 0C to +60C (extended variants available)
Key Features
- Industrial Firewall: Stateful Packet Inspection (SPI) with a unique Firewall Learning Mode for smooth initial configuration based on live network traffic.
- Routing & Security: Supports 1-to-1 NAT, port forwarding, IP masquerading, and secure VPN connections (IPsec).
- Redundancy: Layer 2 and Layer 3 redundancy features designed for critical infrastructures and production cells.
- Approvals: Built for harsh environments, meeting standards like IEC 61850-3 (energy) and ATEX/Class 1 Div. 2 (hazardous areas).

Comprehensive Industrial-Grade Security

Equip your industrial networks with state-of-the-art protection using the HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02. With firewall, VPN, and IDS/IPS integrated, this device safeguards sensitive applications in automation and critical infrastructure, meeting the strictest regulatory standards.

Flexible and Easy Deployment

Install the EAGLEONE device effortlessly on DIN rails in varied industrial settings. Its wide voltage input range and compatibility with standard Ethernet ports make integration simple, while the rugged enclosure ensures performance in harsh temperature extremes.

Intuitive Management for Seamless Operation

Manage your network security using a web-based GUI, SNMP, or CLI. The proprietary Hirschmann OS delivers reliability and advanced control, allowing administrators to monitor policies and respond quickly to threats across industrial environments.

FAQ's of HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 DIN Rail-Mounted Industrial Hardware Security Device:

Q: How do I install the HIRSCHMANN EAGLEONE-0200T1T1SDD290000HHE08.3.02 in my industrial network?

A: The device is DIN rail-mounted, allowing for straightforward installation in control cabinets commonly found in industrial environments. Ensure it is secured on a compatible DIN rail and connect it to your 24 V DC (18-32 V DC) power supply and network.

Q: What security features are integrated into this hardware appliance?

A: This device combines an industrial firewall, VPN for encrypted secure connections, and intrusion detection/prevention (IDS/IPS), providing comprehensive network security for critical applications.

Q: When should I use the EAGLEONE-0200T1T1SDD290000HHE08.3.02?

A: This appliance is ideal for deployment when your industrial network requires high-grade security, particularly in applications like automation systems or critical infrastructure needing regulatory compliance and robust protection.

Q: Where can I manage and configure the security settings?

A: You can configure and manage the EAGLEONE device using the built-in web-based GUI, SNMP, or via command-line interface (CLI), providing flexible management options based on your operational needs.

Q: What approvals or certifications does this product carry?

A: The appliance is certified to CE, FCC, IEC 61850-3, and IEEE 1613 standards, confirming its suitability for industrial communication and critical infrastructure security deployments.

Q: How does this device benefit my industrial operation?

A: By providing advanced security functions, rugged construction, and reliable performance across extreme temperatures, the EAGLEONE device safeguards network integrity, ensuring uninterrupted industrial operations.
