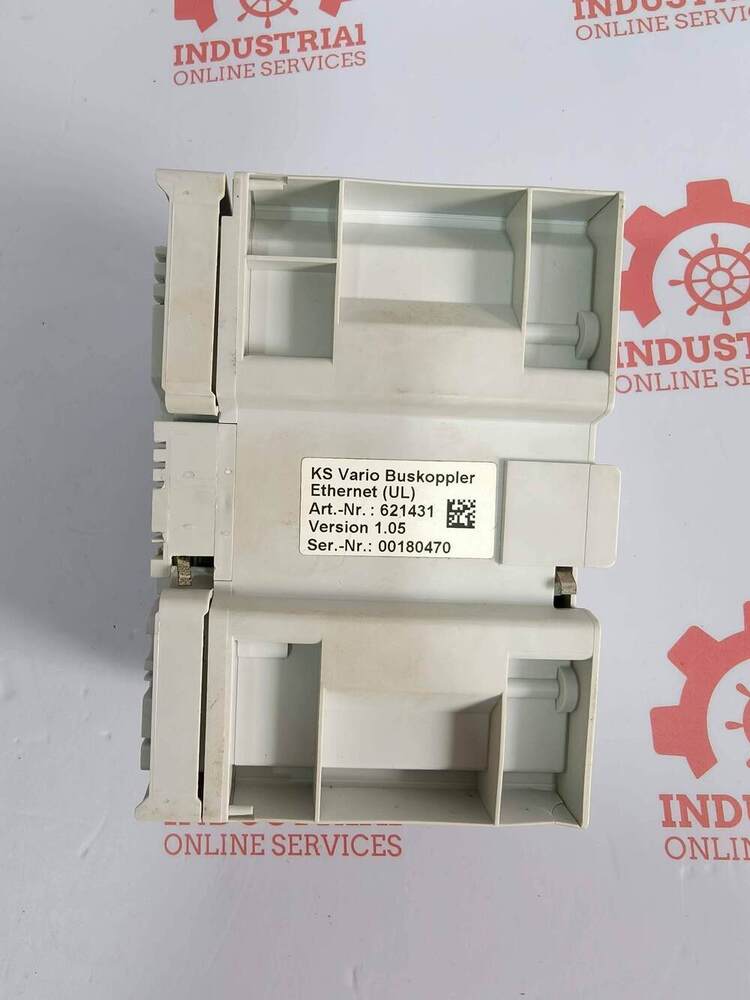

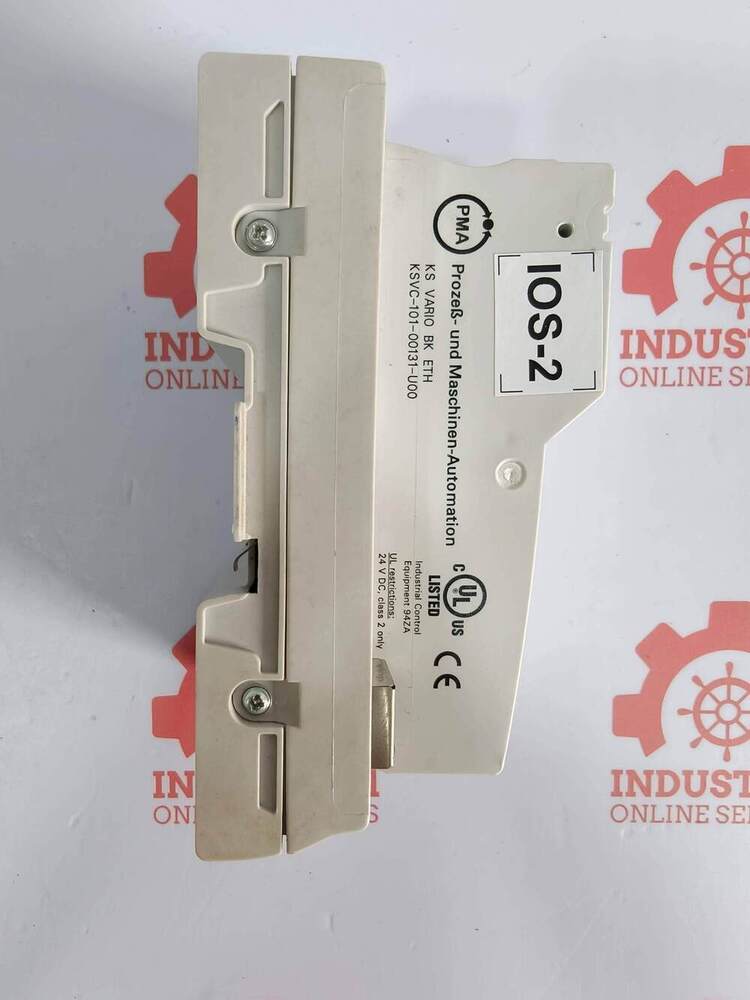

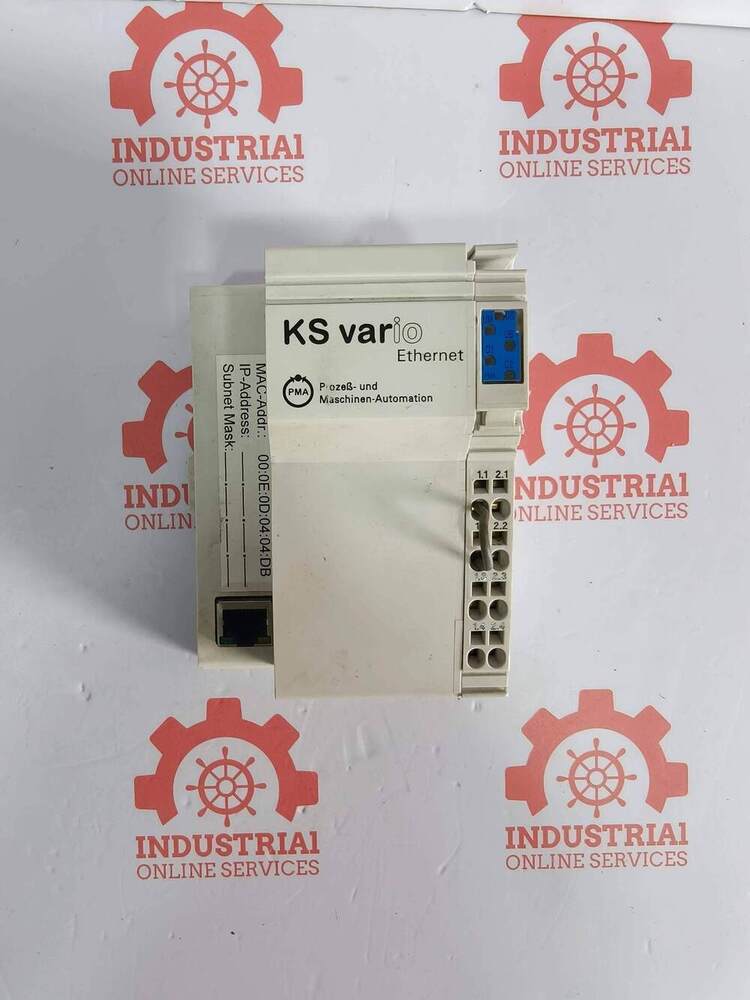

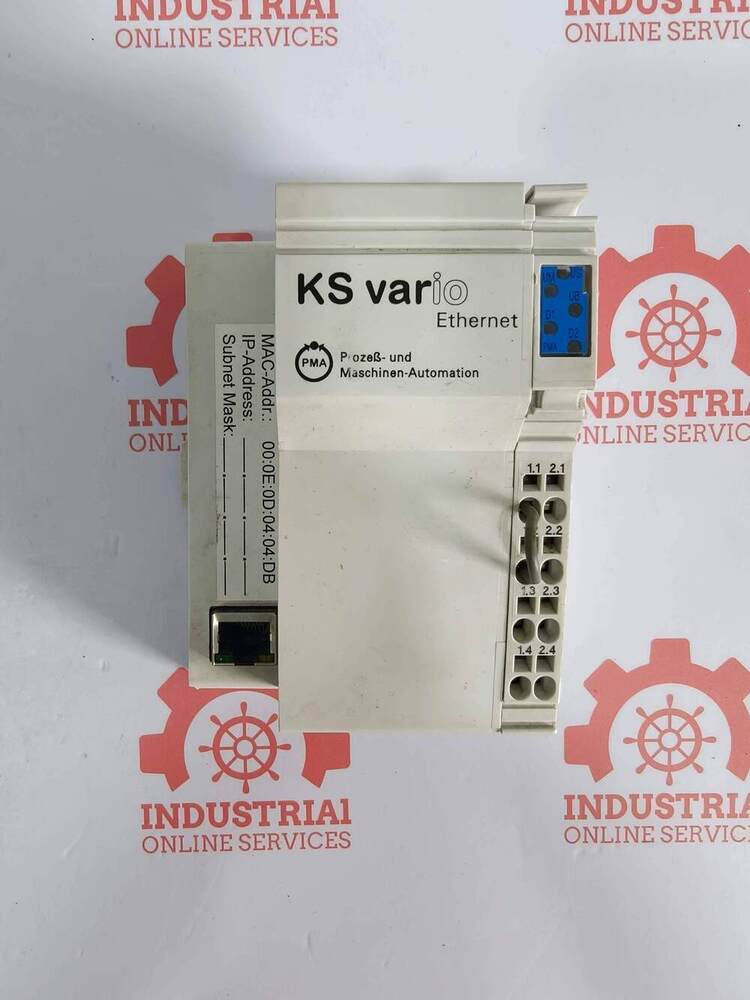

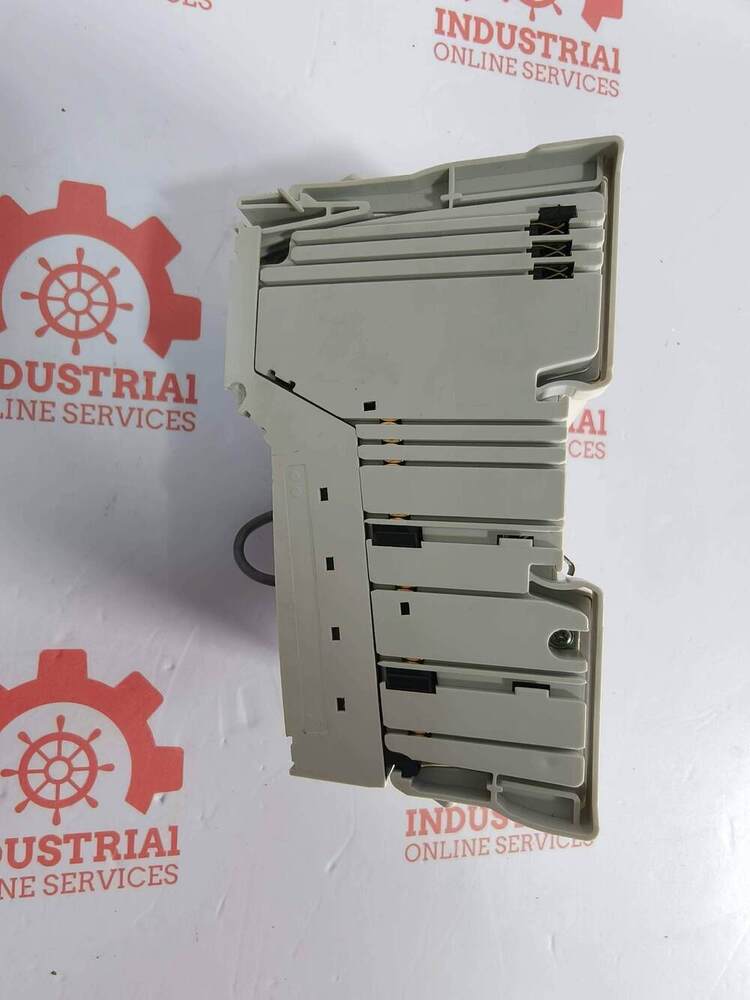

KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module

Name: KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module Specification

Efficiency
High

Rated Voltage
24 V DC

Humidity
5-95% Non Condensing

Mounting Type
DIN Rail Mountable

Protection Level
IP20

Operating Temperature
0C to 55C

Input Current
Max. 0.1 A

Phase
Single Phase (DC)

Main Material
Plastic, Electronic Components

Processing Type
Controller / Communication Module

Condition
Used / Reconditioned

Function
Bus Coupler for Ethernet TCP/IP Communication

Application
Industrial Automation, Ethernet Communication, I/O Systems

Dimension (L*W*H)
Compact DIN Rail Size

Power Mode
External Power Supply

Voltage
24 V DC

Power Consumption
Max. 2.5 W

Accessories
Not Included

Response Time
Fast Data Transmission Rate suitable for Real-Time Control

Communication Protocol
Ethernet TCP/IP

Isolation
Galvanic Isolation Between Bus and Field Side

Number of I/O Channels
Supports Multiple Digital or Analog I/O Channels (expandable)

Storage Temperature
-25C to 70C

Compatible Systems
Various Industrial PLC and SCADA Networks

Color
Light Grey with Blue Marking

Compliance
RoHS Compliant

Connector Type
RJ45 Ethernet Port, Terminal Block I/O

Weight
Approx. 120 g

Bus Type
Bus Terminal and Bus Coupler

LED Indicators
Power, Communication Status

Model Number
KSVC-101-00131-U00

KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module

KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module

Key Technical Specifications

Function: Ethernet/Modbus TCP Bus Terminal / Controller Module
Operating Voltage: 24 V DC
Communication Interface: Ethernet TCP/IP (Modbus TCP) protocol
System Capacity: Manages expandable, multi-zone control configurations ranging from 4 to 30 continuous PID loops.
Mounting Type: Tool-free, standard DIN rail mounting
Configuration Tool: Programs via the proprietary PMA BlueControl Software over a dedicated RS232 port.

High-Performance Industrial Connectivity

The KSVC-101-00131-U00 delivers reliable, high-speed Ethernet TCP/IP communication, making it ideal for real-time control and data acquisition in industrial automation setups. Its robust interface and compatibility with multiple PLC and SCADA systems ensure smooth data flow and enhanced productivity.

Flexible and Expandable I/O Options

Supporting both digital and analog channels, the module allows for seamless expansion to meet evolving system requirements. Its terminal block I/O and modular architecture provide the flexibility needed for a wide variety of industrial applications.

Durable Design for Demanding Environments

Engineered for resilience, this bus coupler offers IP20 protection and operates within a broad temperature range of 0C to 55C. Its compact, DIN rail-mountable form factor and galvanic isolation ensure long-lasting and safe operation in industrial settings.

FAQ's of KS VARIO KSVC-101-00131-U00 Ethernet TCP/IP Bus Terminal And Bus Coupler Module:

Q: How do I install the KS VARIO KSVC-101-00131-U00 bus coupler module in my automation system?

A: Installation is straightforward: mount the module onto a DIN rail and connect it to your network via the RJ45 port. Wire your I/O channels using the terminal blocks, and supply 24 V DC power from an external source. Refer to your system's PLC or SCADA documentation for integration specifics.

Q: What types of signals can the KSVC-101-00131-U00 handle?

A: This module supports both digital and analog I/O channels, allowing for flexibility in connecting a range of industrial sensors, actuators, and devices as required by your automation setup.

Q: When should the LED indicators be monitored on the KSVC-101-00131-U00?

A: Regularly observe the LED indicators for power and communication status to ensure the device is operating correctly. Any unusual LED signals can indicate issues requiring attention, such as power interruptions or network connectivity problems.

Q: Where is the best place to use this Ethernet TCP/IP bus coupler?

A: It is ideal for indoor industrial settings, such as factories or control rooms, where real-time control and reliable communication are essential. Its DIN rail compatibility makes it suitable for standard electrical cabinets.

Q: What is the process for expanding I/O channels with this module?

A: To expand I/O channels, simply attach additional compatible I/O terminals to the bus coupler. The modular design enables easy extension and flexible configurations tailored to specific system needs.

Q: How does galvanic isolation benefit my automation network?

A: Galvanic isolation protects both the field and bus sides from surges and ground loops, ensuring signal integrity and minimizing equipment damage risks in harsh industrial environments.
