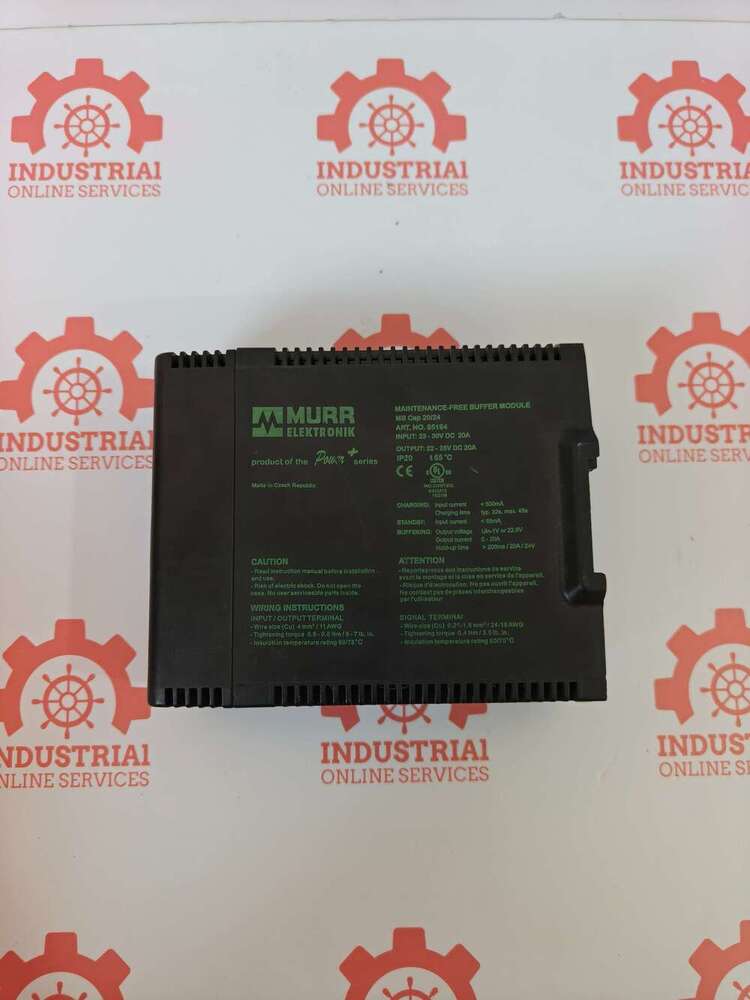

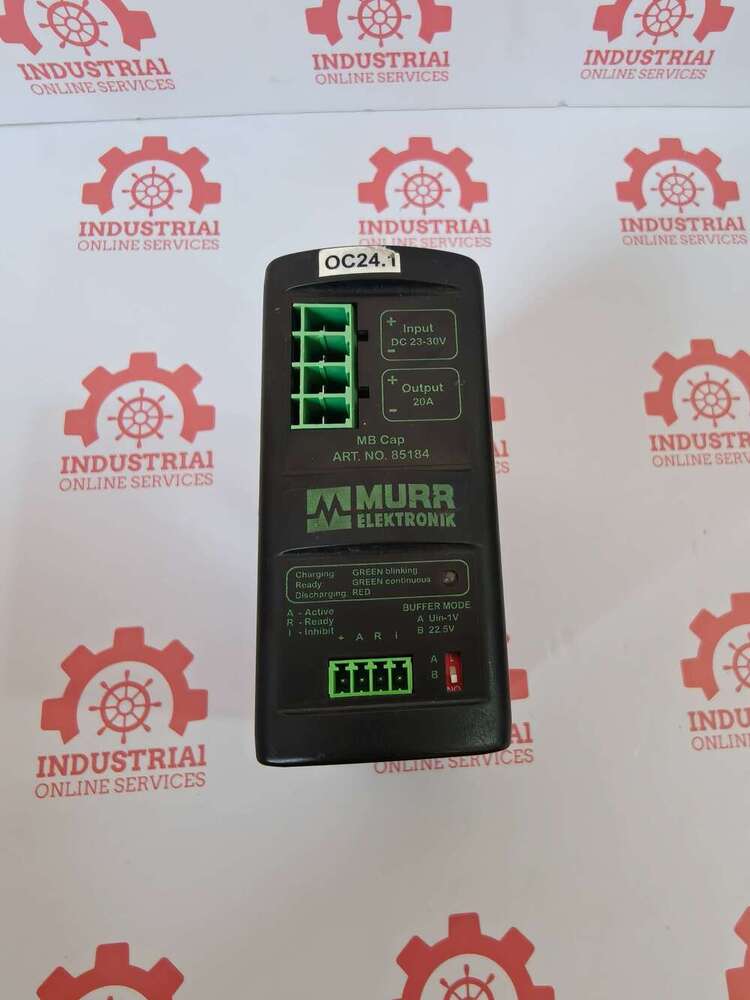

Murr Elektronik 85184 PLC Maintenance-Free Buffer Module

Name: Murr Elektronik 85184 PLC Maintenance-Free Buffer Module
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Murr Elektronik 85184 PLC Maintenance-Free Buffer Module Specification

Rated Voltage
24 V DC

Frequency
Not Applicable (DC Powered)

Phase
Single Phase

Output Voltage
24 V DC

Humidity
Up to 95% (non-condensing)

Mounting Type
DIN Rail Mount

Operating Temperature
-25C to +60C

Protection Level
IP20

Efficiency
>98%

Input Current
Max. 10 A

Main Material
Plastic, Electronic Components

Processing Type
Electronic

Condition
New

Function
Provides backup power supply for PLCs during power loss

Application
PLC Buffering, Industrial Automation, Uninterruptible Power Supply for PLCs

Dimension (L*W*H)
68 x 90 x 70 mm

Power Mode
DC Powered

Voltage
24 V DC

Power Consumption
10 W max

Battery Life
Maintenance-Free (Capacitor Based)

Accessories
User Manual, Mounting Clips

Storage Temperature
-40C to +85C

Connection Type
Spring clamp terminal blocks

Status Indication
LED indication for operation and buffer activity

Parallel Connection
Yes, for increased buffering time

Weight
Approx. 500 g

Cooling
Natural convection (fanless)

Response Time
< 1 ms

Buffer Time
Up to 0.9 s at 6 A (see curve for detail)

Ripple
< 100 mVpp

Murr Elektronik 85184 PLC Maintenance-Free Buffer Module Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Murr Elektronik 85184 PLC Maintenance-Free Buffer Module

Murr Elektronik 85184 MB Cap 2024 MaintenanceFree Buffer Module

Key Technical Specifications

Input Voltage 2330V DC SELVPELV

Output Voltage 2228V DC adjustable

Current Rating 20A continuous maximum output current Current limit peaks at 26A during buffer operation

Buffer Performance Provides a minimum buffer time of 02 seconds at a full 20A load which stretches up to 4 seconds under a light 1A load

Charging Metrics Features a maximum loading current of 500 mA allowing full capacitor recharge cycles in roughly 20 to 45 seconds

Efficiency Hardware Delivers up to 95 efficiency housed in a standard IP20 rated compact enclosure configured for 35mm DINrail mounting

Reliable Backup Solution for PLCs

This buffer module instantly supplies backup power to PLCs, guaranteeing no disruption during momentary voltage drops or outages. Its electrolytic capacitor ensures long-lasting, maintenance-free performance, making it highly suitable for demanding industrial conditions where system continuity is crucial.

Effortless Integration & Operation

Installation is straightforward with screw terminals and DIN rail mounting. The included mounting clips and user manual provide step-by-step guidance for quick deployment. LED indicators offer real-time status monitoring, so operators can easily verify module performance at a glance.

FAQ's of Murr Elektronik 85184 PLC Maintenance-Free Buffer Module:

Q: How does the Murr Elektronik 85184 buffer module function during a power loss?

A: When a power outage or dip occurs, the module automatically delivers stored energy from its electrolytic capacitor, providing up to 2 seconds of backup power at a maximum of 10A. This ensures connected PLCs continue to operate smoothly, preventing process interruptions.

Q: What are the advantages of using a maintenance-free, capacitor-based buffer module?

A: Unlike battery-based modules, this product relies on an electrolytic capacitor for energy storage, which eliminates battery replacement and regular maintenance. This results in lower operational costs and improved system reliability over time.

Q: When should I install a buffer module in my PLC automation setup?

A: A buffer module is recommended whenever momentary power losses or voltage fluctuations pose a risk to PLC-triggered processes. It is essential in applications demanding uninterrupted operation, such as critical control systems in industrial automation.

Q: Where can the Murr Elektronik 85184 be mounted?

A: The module is designed for easy DIN rail mounting inside control cabinets commonly found in industrial settings. Its compact dimensions (68 x 90 x 70 mm) and IP20 protection facilitate secure and versatile installation.

Q: What steps are involved in installing this buffer module?

A: First, mount the module onto the DIN rail using the provided clips. Next, connect the power supply and load using the screw terminals as detailed in the user manual. Finally, verify operational status with the integrated LED indicator.

Q: How does the status LED indicator enhance usage?

A: The status LED provides immediate visual feedback about the module's operational state, allowing users to quickly assess whether the buffer system is active and functioning correctly without specialized equipment.

Q: What is the benefit of the module's high efficiency and swift response?

A: With over 98% efficiency and a response time of less than 2 ms, the buffer module maximizes power utilization while ensuring nearly instantaneous backup during power shifts. This prevents system disturbances and supports critical process continuity.
