MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module

Send Inquiry

Request To Call Back

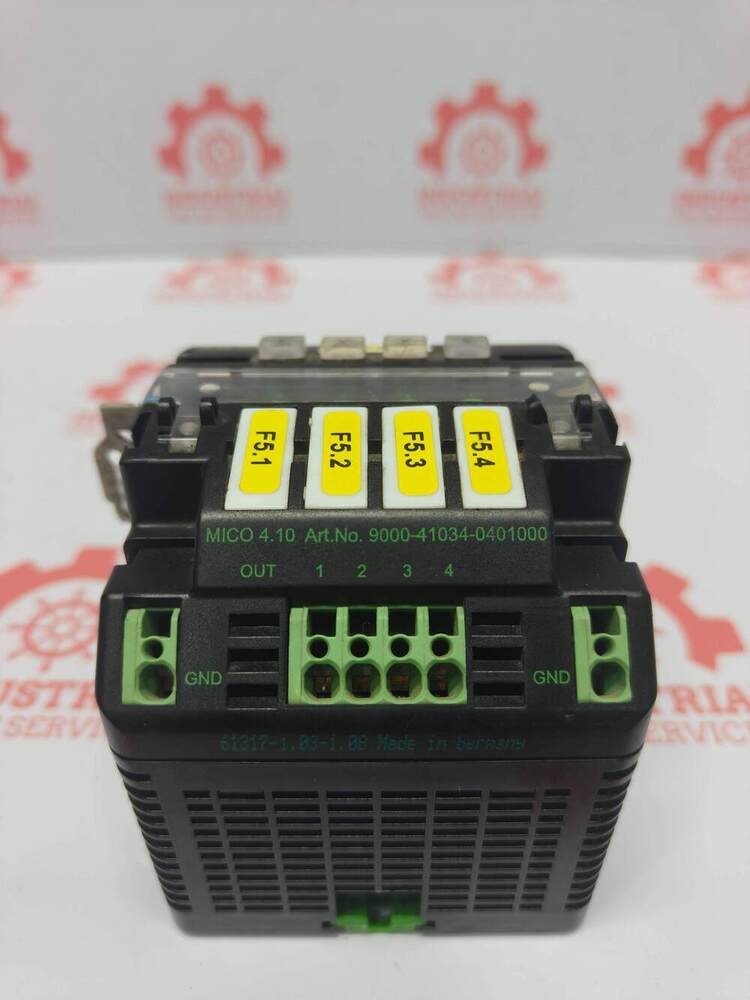

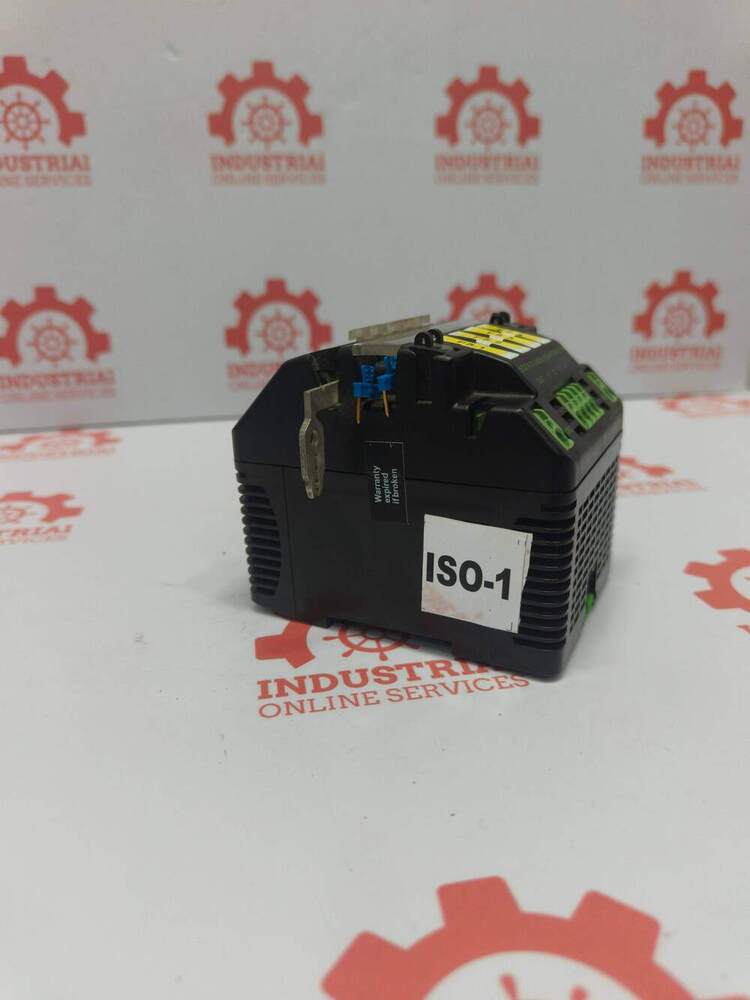

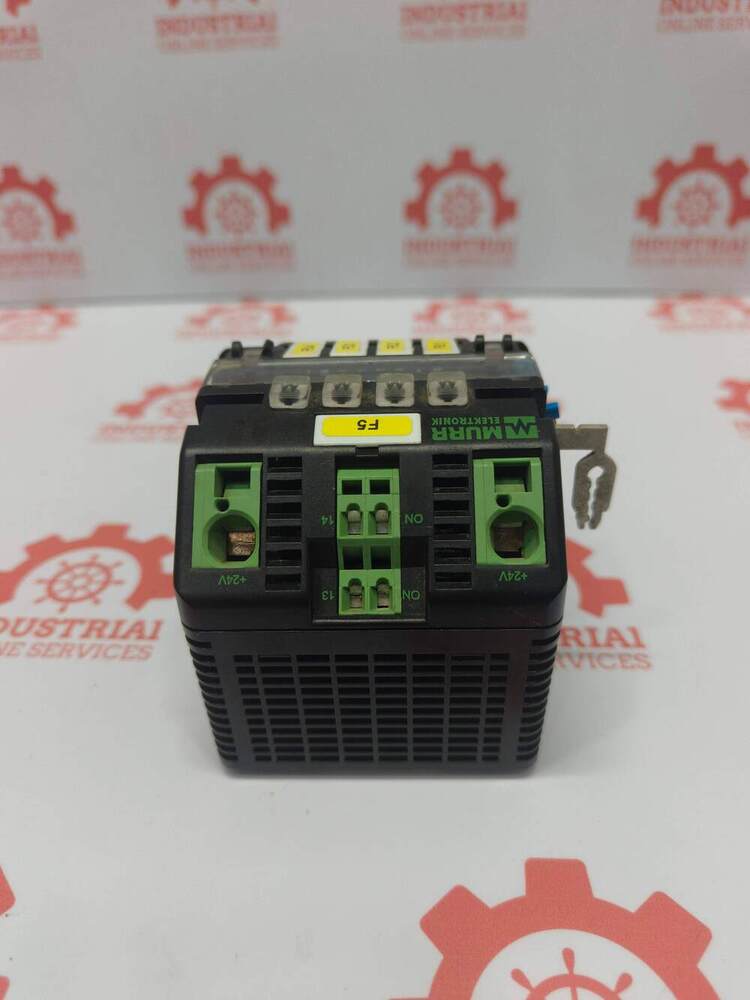

MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module

Name: MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module Specification

Humidity
Max. 95% (non-condensing)

Protection Level
Typically IP20

Mounting Type
35mm DIN rail

Output Voltage
DC 24V (same as input)

Operating Temperature
-25C to +55C

Efficiency
>97%

Frequency
DC application (0 Hz)

Phase
Single phase (DC system)

Rated Voltage
24V DC

Input Current
Max. 40A total, 10A per channel

Main Material
Industrial grade thermoplastic & electronic components

Processing Type
Electronic circuit module

Condition
New

Function
Channel-selective electronic circuit protection of 24V loads

Application
Electronic circuit protection for automation systems

Dimension (L*W*H)
90 x 90 x 55 mm (approx.)

Power Mode
Electronic

Voltage
DC 24V (typical)

Power Consumption
Max. 6 W per channel

Battery Life
N/A (not battery operated)

Standards/Certifications
CE, UL Listed

Series
MICO 4.10

Connection Type
Screw terminals

Weight
Approx. 230g

Switch-off Time
Typically <10ms (overcurrent event)

Signal Output
Group alarm contact (potential-free) for collective fault indication

Manufacturer Part Number
9000-41034-0401000

Disconnect Characteristic
Electronic shutdown with automatic reset & manual reset options

Channel Current Rating
4 x 10A

Number of Channels
4 (independent electronic protection channels)

LED Indicators
Channel status and fault indication LEDs

MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module

MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module

Technical Specifications

Input Voltage: 24 V DC (operating range 18 to 30 V DC)
Number of Channels: 4 independent paths
Current Settings: Adjustable per channel to 4 A, 6 A, 8 A, or 10 A
Status Indicators: Individual channel LEDs with a 90% load pre-warning flash
Alarm Mechanism: Potential-free group alarm output for remote fault signalling
Mounting Method: DIN-rail installation (IP20 protection rating)

Advanced Channel-Selective Protection

Each of the four independent channels in the MICO 4.10 monitors and protects 24V DC loads with up to 10A per channel. This channel-selective technology enables rapid and precise response to overcurrent events, ensuring critical processes are safeguarded without unnecessary system-wide disruptions.

Efficient Fault Detection and Indication

Integrated LED indicators provide real-time channel status and fault notifications. For collective diagnosis, a group alarm contact (potential-free) enables centralized detection of faults, improving maintenance efficiency and ensuring timely intervention in complex automation setups.

Easy Installation and Reliable Operation

Housed in a rugged thermoplastic enclosure and designed for 35mm DIN rail mounting, the MICO 4.10 offers simple, secure installation. Its robust build, wide operating temperature range, and high efficiency (>97%) make it ideal for demanding industrial environments.

FAQ's of MURR ELEKTRONIK 9000-41034-0401000 MICO 4.10 Electronic Circuit Protection Module:

Q: How does the MICO 4.10 module provide electronic circuit protection in automation systems?

A: The MICO 4.10 uses independent electronic protection channels to monitor and control current flow. In the event of overcurrent, it rapidly disconnects the affected channel (in less than 10ms), preventing damage while keeping unaffected channels operational.

Q: What are the available reset options after a fault is detected in the MURR ELEKTRONIK MICO 4.10?

A: This module offers both automatic and manual reset options. After resolving the overcurrent condition, it can reset itself automatically or operators may manually restore the affected channel if preferred.

Q: When should I use the MICO 4.10 electronic circuit protection module in my setup?

A: The module is ideal when you need precise, channel-specific protection for 24V DC loads in industrial environments, such as automation panels, machinery, or distributed control systems.

Q: Where can the MICO 4.10 be installed, and what are its mounting requirements?

A: It is designed for quick mounting on 35mm DIN rails, which are common in industrial control cabinets and automation panels, facilitating easy integration into new or existing systems.

Q: What benefits does using the MICO 4.10 offer compared to conventional fuses or circuit breakers?

A: The MICO 4.10 delivers faster fault response (<10ms) and minimizes downtime by only disconnecting the affected channel, not the entire system. LED status indicators and group alarm contacts streamline troubleshooting, while its electronic precision outperforms traditional mechanical solutions.

Q: How do the LED indicators and group alarm contact function in this module?

A: LEDs on the module show each channel's operational and fault status. The group alarm contact provides a potential-free signal to external systems, enabling collective fault monitoring for the whole module.

Q: Can the MICO 4.10 operate in harsh industrial conditions?

A: Yes, the module is built from industrial-grade thermoplastic and functions across -25C to +55C, with a high humidity tolerance (up to 95% non-condensing) and an IP20 protection rating.
