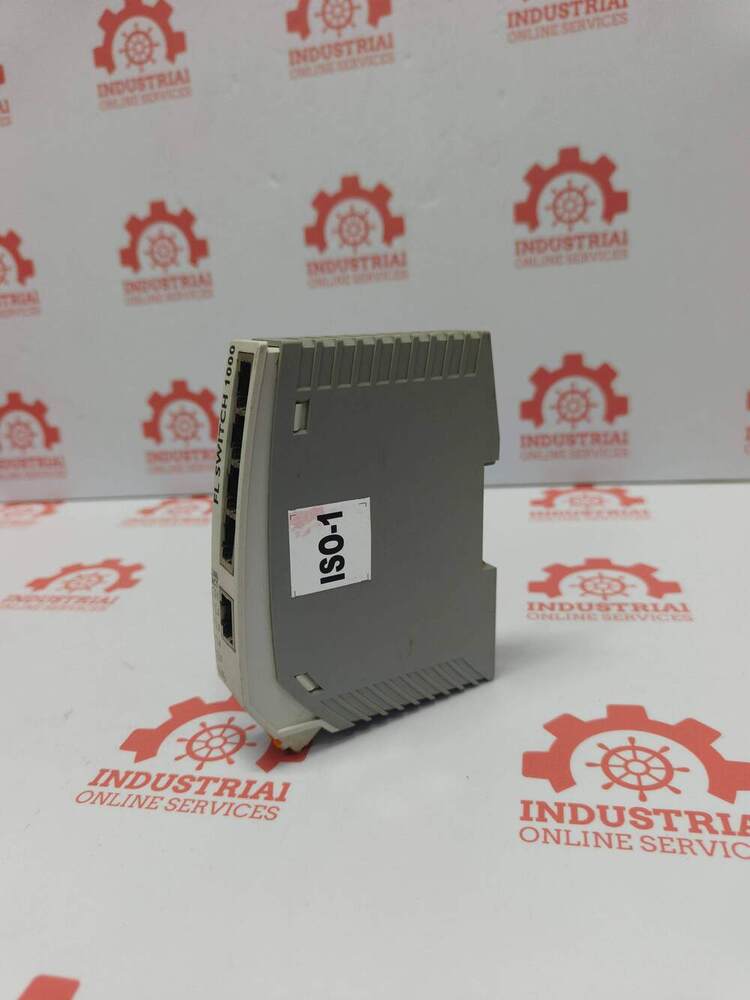

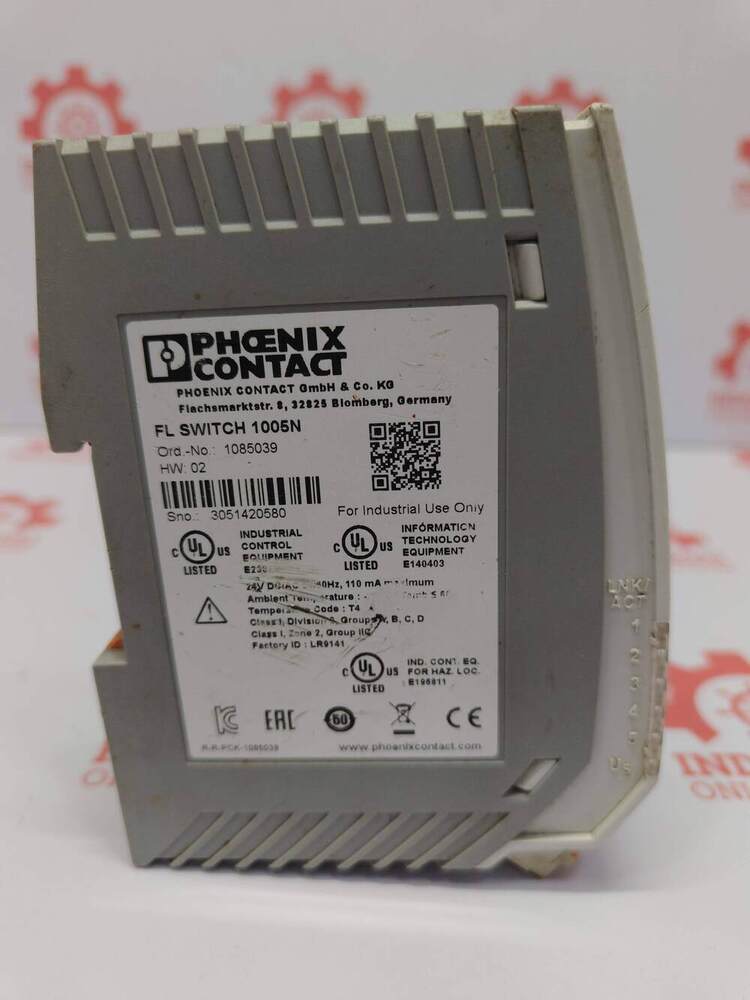

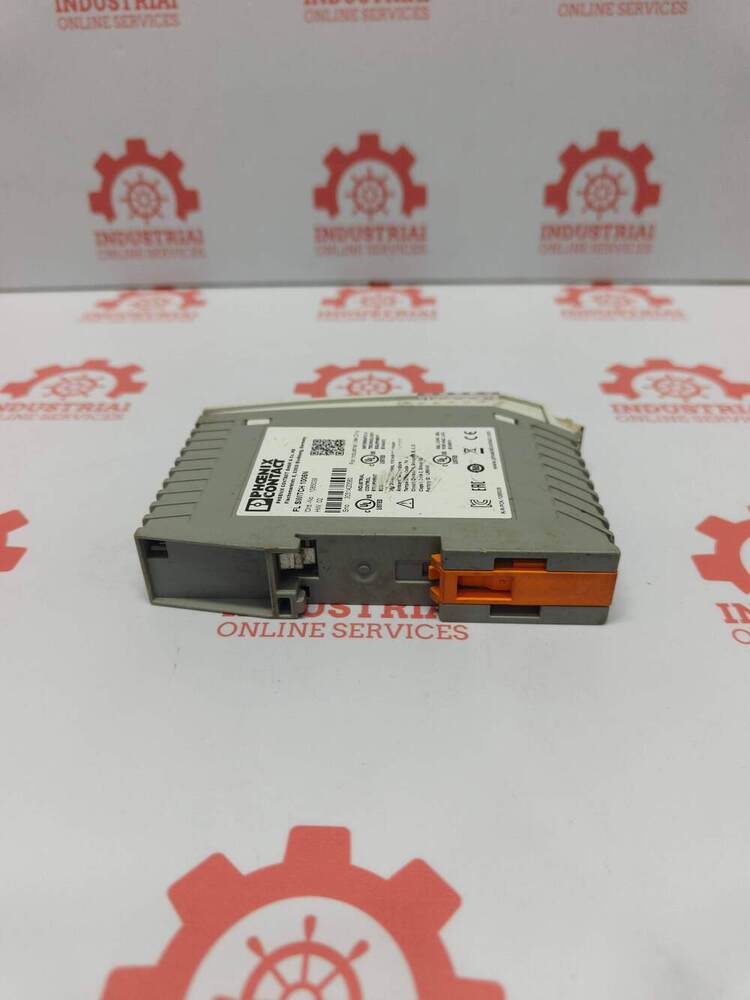

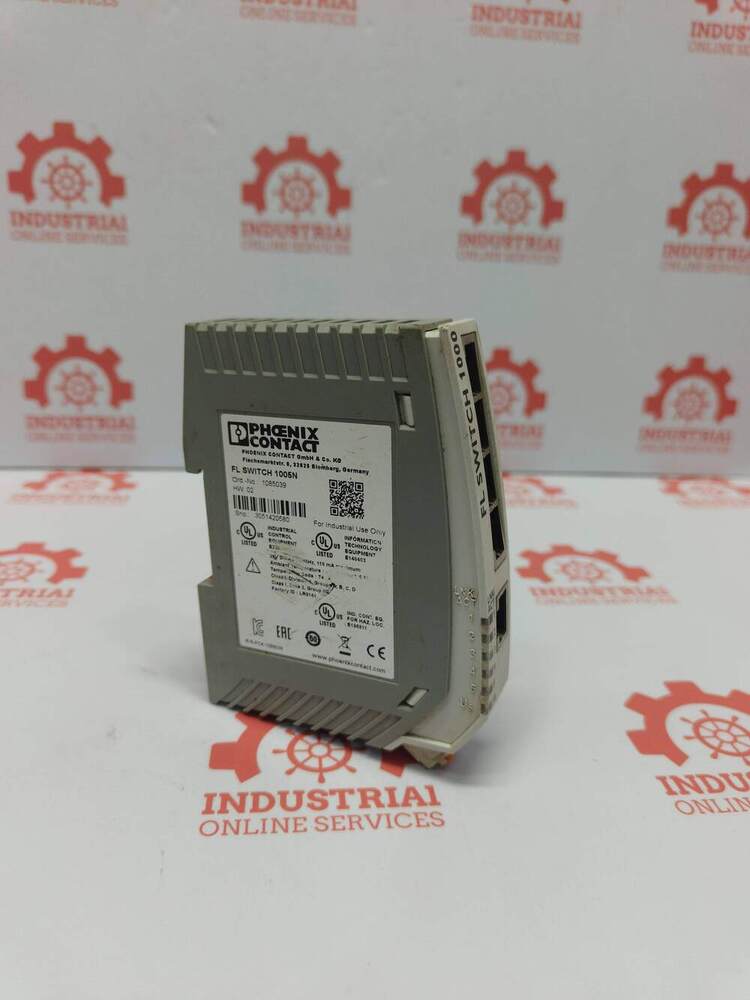

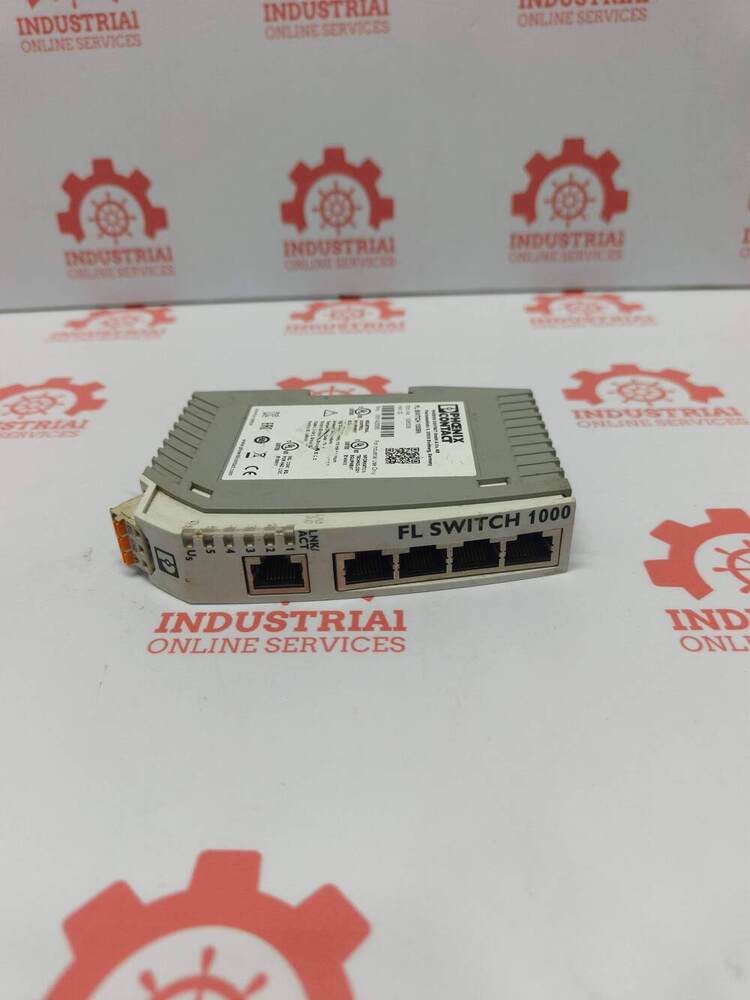

PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch

Send Inquiry

Request To Call Back

PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch

Name: PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch
Brand: Industrial Online Services
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch Specification

Rated Voltage
24 V DC

Humidity
10% to 95% (non-condensing)

Protection Level
IP20

Input Current
Max 150 mA at 24 V DC

Mounting Type
DIN Rail Mounting

Operating Temperature
-10C to +60C

Main Material
Plastic housing with electronic components

Processing Type
Unmanaged Switch

Condition
New

Function
Ethernet switching

Application
Industrial Ethernet networking

Dimension (L*W*H)
99 mm x 22.5 mm x 112 mm

Power Mode
External DC Power Supply

Voltage
18-32 V DC (24 V DC nominal)

Power Consumption
Maximum 3.5 W

Accessories
DIN rail mounting kit (included)

Switching Capacity
1 Gbps

LED Indicators
Power, Link/Activity per port

Data Rate
10/100 Mbps (auto negotiation)

Number of Ports
5 x 10/100 Mbps RJ45 Ethernet ports

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

MAC Address Table Size
1K entries

Storage Temperature
-20C to +70C

Weight
Approx. 120 g

Shock Resistance
IEC 60068-2-27

Vibration Resistance
IEC 60068-2-6

PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch About

PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch

Port Configuration 5 RJ45 ports supporting 10100 Mbps transmission speeds

Functionality Fully plugandplay featuring autonegotiation and autocrossing detection

Network Features Integrated Quality of Service QoS prioritisation and PROFINET PTCP filters for stable automation networking

Power Supply 24 V DCAC operational voltage with a low static power consumption of roughly 264W

Environmental Limits IP30rated plastic housing optimized to operate reliably across a temperature threshold of 10C to 60C

Compact Form Factor The narrow chassis allows highdensity packing within crowded control cabinets

EnergyEfficient Designed in alignment with IEEE 8023az energyefficient Ethernet criteria

Industrial Grade Built to resist noise immunity standards EN 6100062 and certified for Class I Div 2 hazardous environments

Rugged Industrial Reliability

Built with a resilient plastic housing and compliant with strict vibration and shock resistance standards (IEC 60068-2-6, IEC 60068-2-27), the FL SWITCH 1005N ensures stable operations in harsh industrial settings. Its IP20 protection and wide operating temperature range (-10C to +60C) make it suitable for a variety of environments, while DIN rail mounting provides flexible installation options.

Flexible Networking Applications

Supporting IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards, this unmanaged switch is designed for seamless integration into industrial Ethernet networks. It features automatic data rate negotiation and a 1K MAC address table, which helps maintain network efficiency and manage multiple device connections with ease.

FAQ's of PHOENIX CONTACT FL SWITCH 1005N Unmanaged Industrial Ethernet Switch:

Q: How is the PHOENIX CONTACT FL SWITCH 1005N typically installed in an industrial environment?

A: The FL SWITCH 1005N is designed for DIN rail mounting, making installation quick and secure within industrial control cabinets and network enclosures. A DIN rail mounting kit is included for added convenience.

Q: What are the main benefits of using an unmanaged switch like the FL SWITCH 1005N?

A: Unmanaged switches such as the FL SWITCH 1005N offer simple plug-and-play operation, reducing configuration complexity. They are ideal for straightforward network expansion, reliable Ethernet connectivity, and robust performance without the need for advanced management features.

Q: When should I consider using the FL SWITCH 1005N in my network?

A: This switch is best used when you require reliable, continuous Ethernet connectivity for industrial devices in environments that demand durability, shock and vibration resistance, and operating temperature flexibility. Applications include factory automation, process control, and energy systems.

Q: Where can I use the FL SWITCH 1005N?

A: The FL SWITCH 1005N is suitable for use in industrial facilities, manufacturing plants, utilities, and other locations needing rugged networking equipment able to withstand wide temperature ranges and mechanical stress.

Q: What is the process for connecting devices to this switch?

A: Simply connect up to five Ethernet-enabled devices to the RJ45 ports. The switch automatically negotiates the appropriate speed (10/100 Mbps) and handles traffic switching without manual configuration.

Q: How does the switch indicate power and network activity?

A: LED indicators on the FL SWITCH 1005N provide clear status updates, showing power availability and link/activity for each individual port at a glance.
