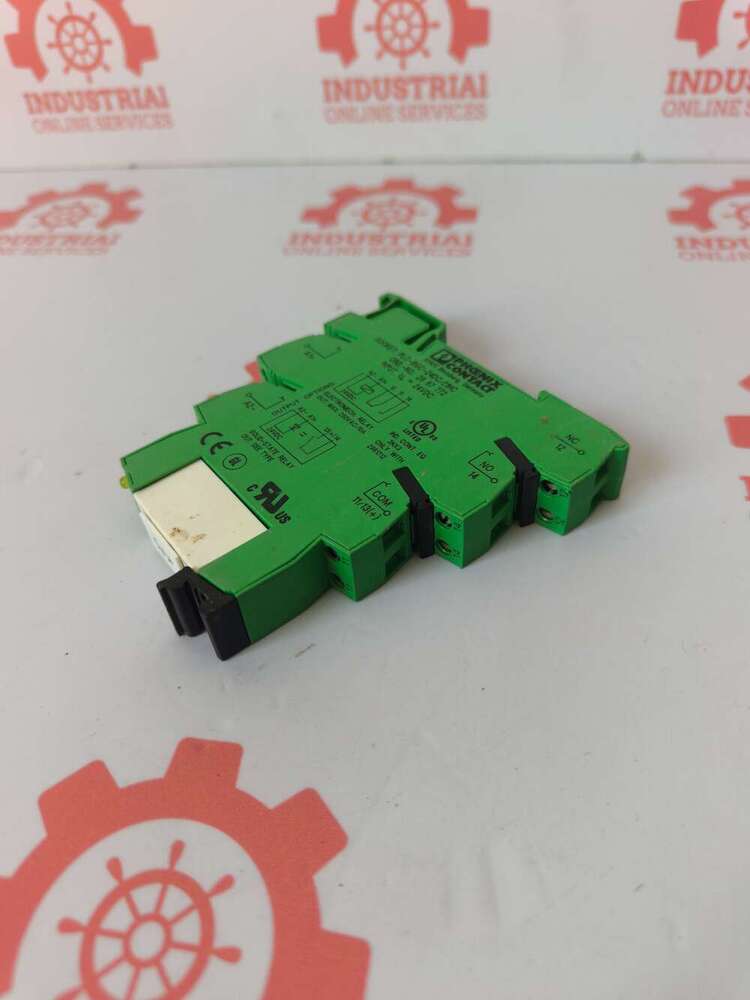

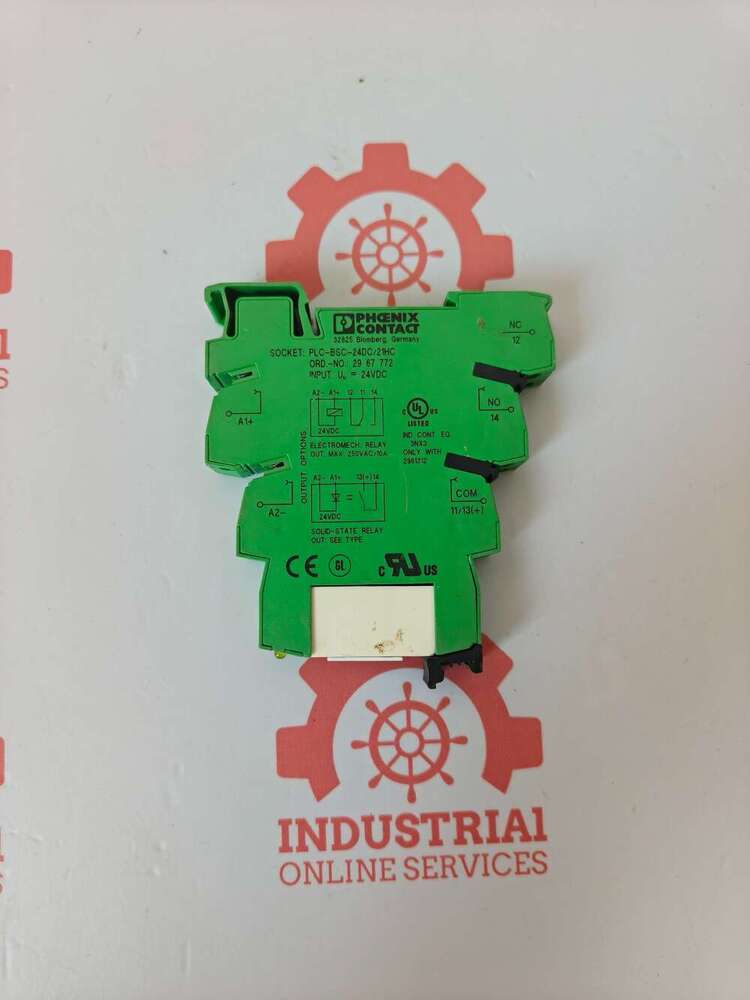

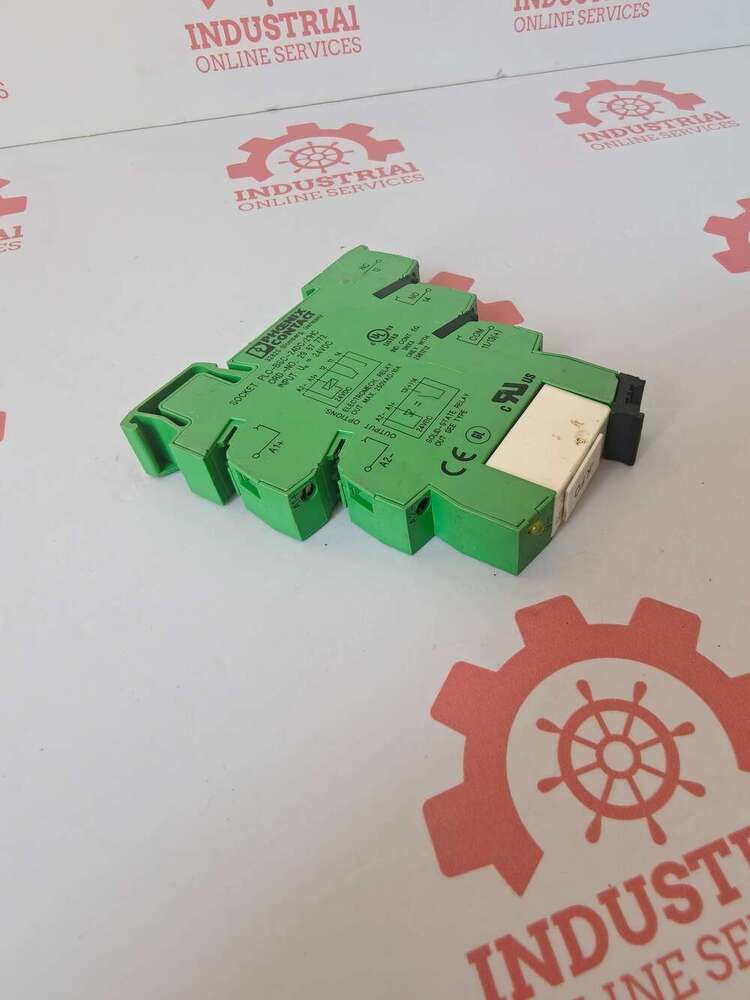

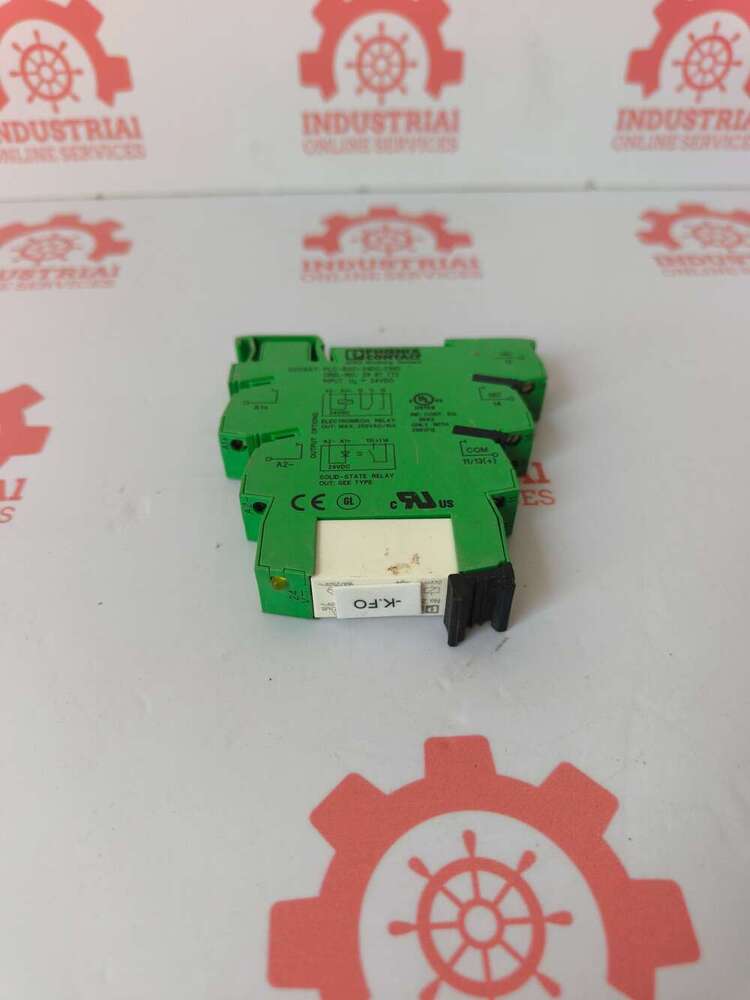

Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772

Send Inquiry

Request To Call Back

Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772

Name: Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772
Brand: Industrial Online Services
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772 Specification

Operating Temperature
-40C to +60C (typical for Phoenix Contact relays)

Protection Level
IP20

Mounting Type
DIN rail mount

Rated Voltage
24 V DC

Main Material
Plastic/Polyamide housing

Processing Type
Electromechanical relay base

Condition
New

Function
Relay coupling with 1 changeover contact

Application
Industrial automation, PLC interfaces, relay modules

Power Mode
DC Operated

Voltage
24 V DC

Contact Material
AgNi (Silver-Nickel)

Relay Type
PLC Interface Relay

Model Number
PLC-BSC-24DC/21HC

Suitable for
PLC logic isolation and control signal switching

Min. Switching Load
100 mA at 5V DC

Insulation Voltage
250 V AC

Series
PLC-INTERFACE

Pull-in Time
< 8 ms

Relay Height
Approximately 80 mm (typical for PLC-INTERFACE series)

Contact Rating
6A at 250V AC / 30V DC

Order No.
2967772

Contact Configuration
1 changeover contact (SPDT)

Coil Power
Approx. 0.53 W

Release Time
< 8 ms

Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772 Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772

Phoenix Contact PLCBSC 24DC21HC PLC Relay Base 2967772

The PLCBSC24DC21HC Phoenix Contact Item Number 2967772 is a 14 mm wide DIN railmountable PLC basic terminal blockrelay socket designed for high continuous currents up to 10 A It operates with a 24 V DC nominal input voltage and features a screw connection method This unit is sold as a standalone base without the plugin relay or solidstate relay installed serving as a foundation for a complete interface relay module

Core Specifications

14 mm PLC basic terminal block for high continuous currents with screw connection without relay or solidstate relay for mounting on DIN rail NS 3575 1 changeover contact input voltage 24 V DC as outlined by Phoenix Contact

Width 14 mm

Input Voltage 24 V DC nominal

Contact Type 1 Changeover Contact SPDT 1 PDT

Maximum Current Optimized for High Continuous Currents up to 10 A depending on the inserted relay

Connection Type Screw Connection

Mounting Type DIN Rail NS 3575

Status Indicator Integrated yellow LED status display

Operating Temperature 40 C to 60 C

Efficient Signal Switching for Industrial Applications

Designed for seamless PLC interfacing, the PLC-BSC-24DC/21HC ensures precise and reliable control signal transfer. Its electromechanical design and AgNi (Silver-Nickel) contacts provide durability and high conductivity, making it suitable for complex automation setups where quick switching response is essential.

Versatile and Durable Construction

This relay base features a compact 80 mm height typical of the PLC-INTERFACE series and offers DIN rail mounting for quick installation. The main housing, made from robust plastic/polyamide, ensures durability, insulation, and easy integration into electrical cabinets, while IP20 protection guards against accidental contact.

FAQ's of Phoenix Contact PLC-BSC- 24DC/21HC PLC Relay Base 2967772:

Q: How is the PLC-BSC-24DC/21HC relay base typically installed?

A: This relay base is designed for DIN rail mounting, simplifying installation in industrial panels and control cabinets. Simply snap the unit onto the standard DIN rail for immediate integration with other modular automation components.

Q: What types of loads can be switched using this relay base?

A: The PLC-BSC-24DC/21HC supports loads up to 6A at 250V AC or 30V DC. The minimum switching load is 100 mA at 5V DC, making it suitable for both signal-level switching and higher-power applications in industrial automation.

Q: When should I use this relay base in my automation system?

A: Use the PLC-BSC-24DC/21HC when you need reliable galvanic isolation between PLC logic and field devices, or when you require a control signal switch for actuators, valves, or indicator lights in industrial environments.

Q: Where is this relay base most commonly used?

A: It is commonly deployed in industrial automation systems-such as machine control panels, process control lines, and PLC modules-especially where modular, DIN rail-mountable components are preferred for ease of maintenance and expansion.

Q: What process does the relay base support within PLC applications?

A: This relay base facilitates the coupling of PLC outputs to various field devices by isolating low-voltage control signals from higher voltage circuits. It ensures secure signal transmission and protects sensitive electronics from transients or overvoltages.

Q: How does using the PLC-BSC-24DC/21HC benefit my automation setup?

A: This relay base offers fast response times (less than 8 ms for pull-in and release), robust construction, and reliable contact performance. Its modular design improves system flexibility, maintenance efficiency, and operational safety in demanding industrial environments.
