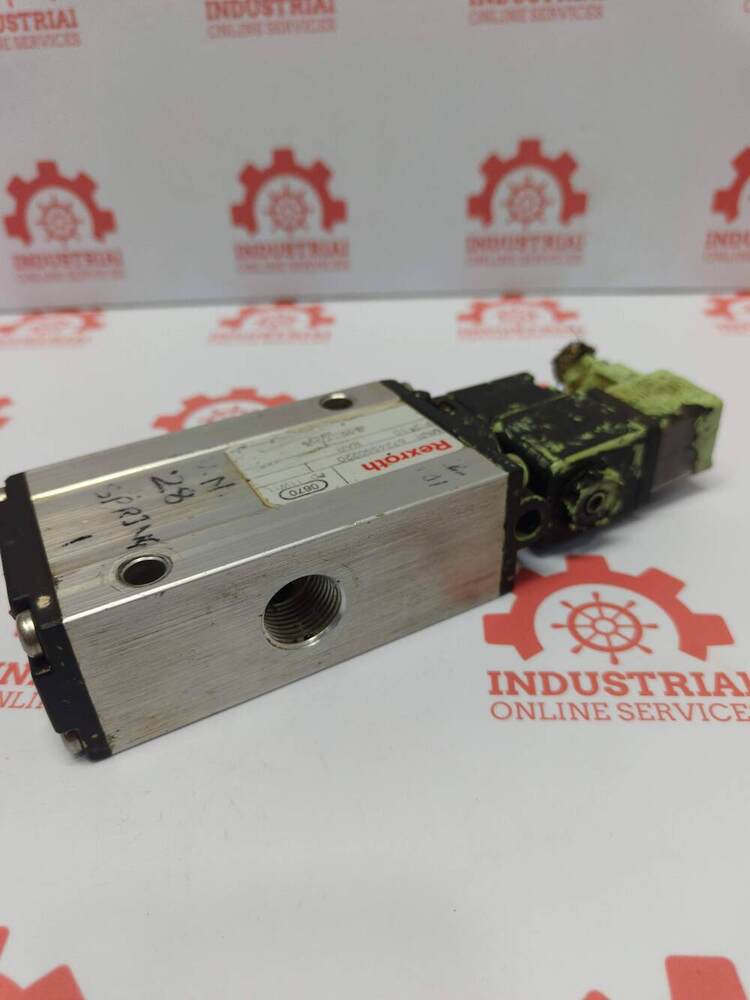

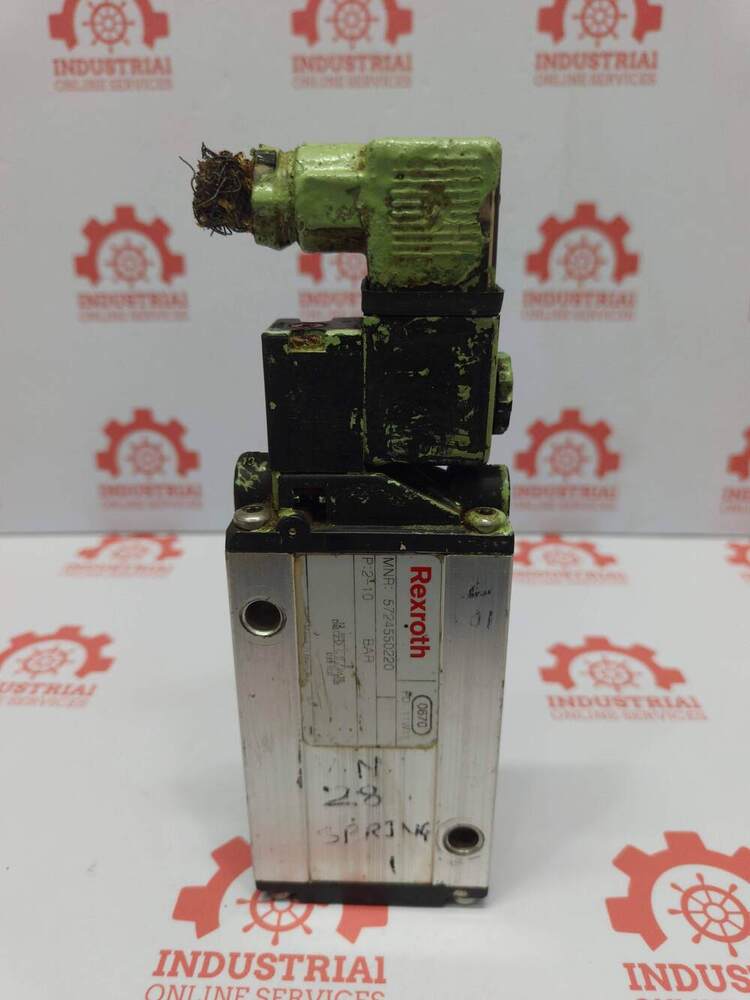

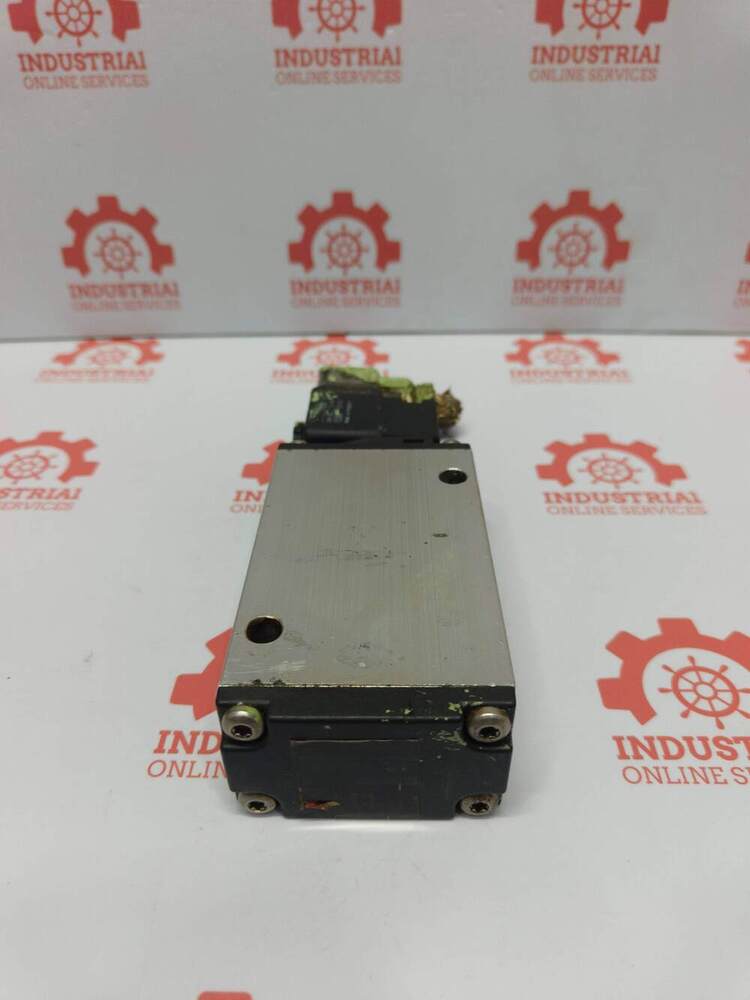

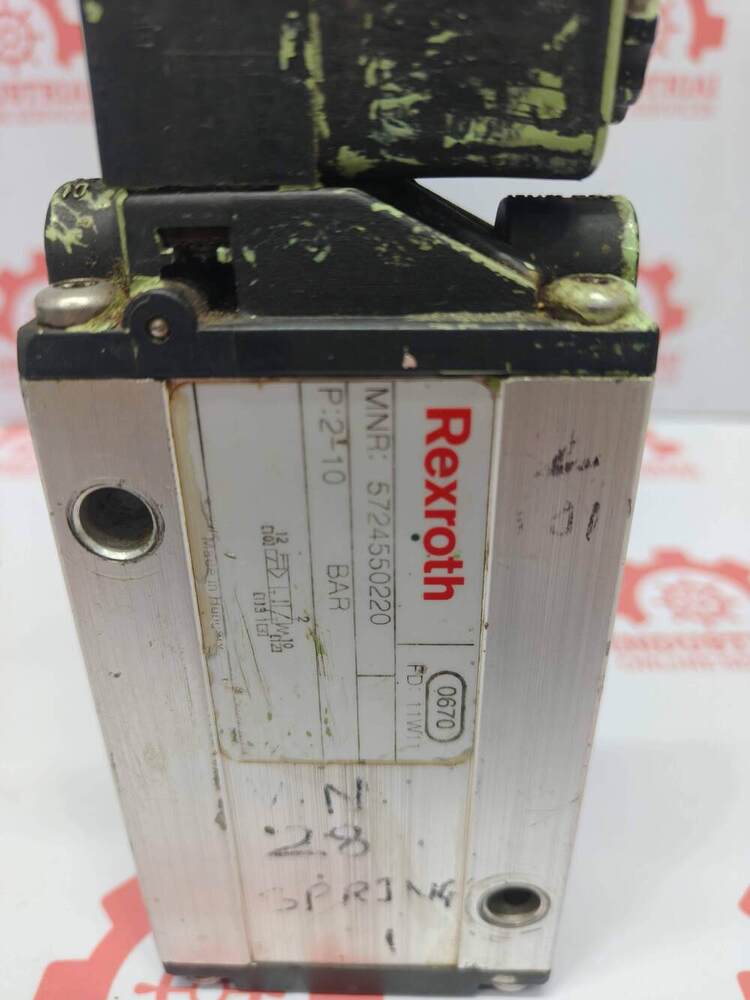

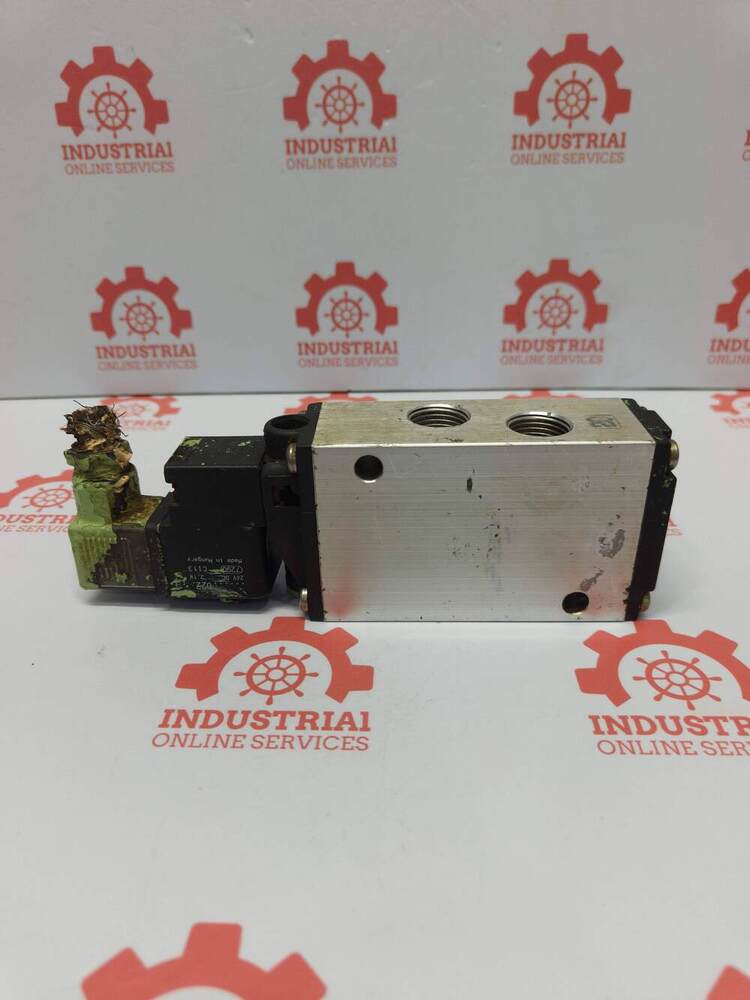

REXROTH MNR 5724550220 Electrically Activated 3/2-Directional Spool Valve

About REXROTH MNR 5724550220 Electrically Activated 3/2-Directional Spool Valve

Technical Specifications

• Switching Principle: 3/2-way, normally open (NO) single solenoid operation.
• Connection Type: G 1/2 inch thread port size for input, output, and exhaust.
• Flow Performance: High nominal flow rate of 4,000 L/min (approx. 141.26 cfm).
• Operating Pressure: Minimum 2 bar to a maximum of 10 bar (up to 145 psi).
• Electrical Parameters:
  • Operational Voltage: 24V DC (tolerates ±10% fluctuations).
  • Power Consumption: 2.1 W.
  • Electrical Interface: Plug connection conforming to EN 175301-803 Form A.
• Protection Class: IP65 rated dust and water resistance.
• Actuation Mechanism: Internal pilot control with a spring return.
• Dynamic Response: 34 ms switch-on time; 90 ms switch-off time.
