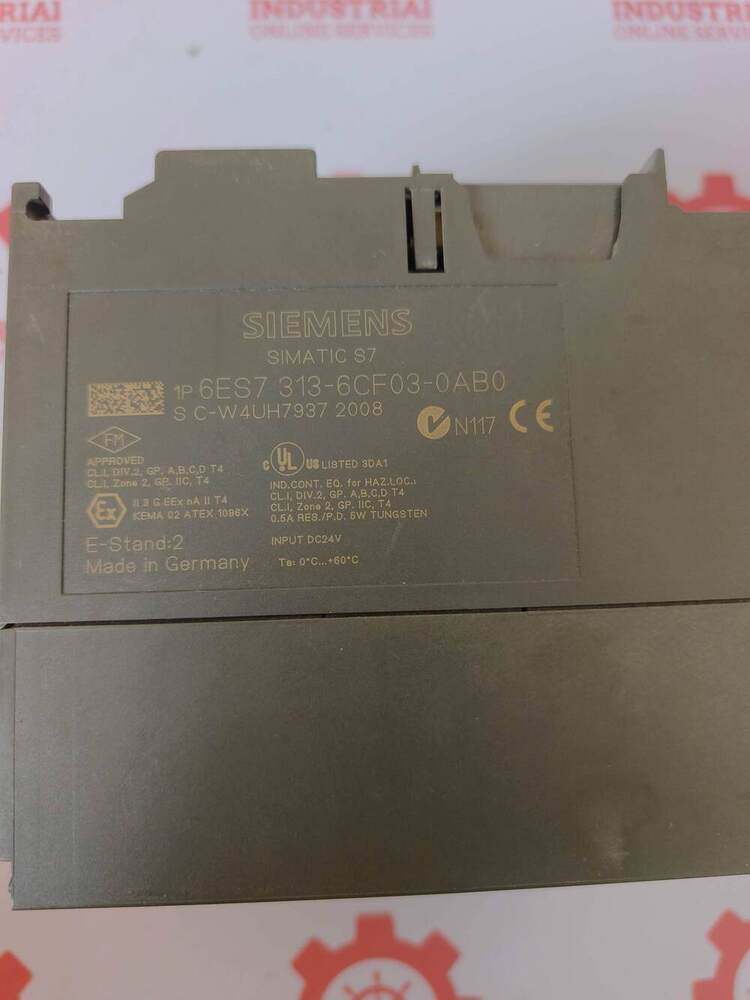

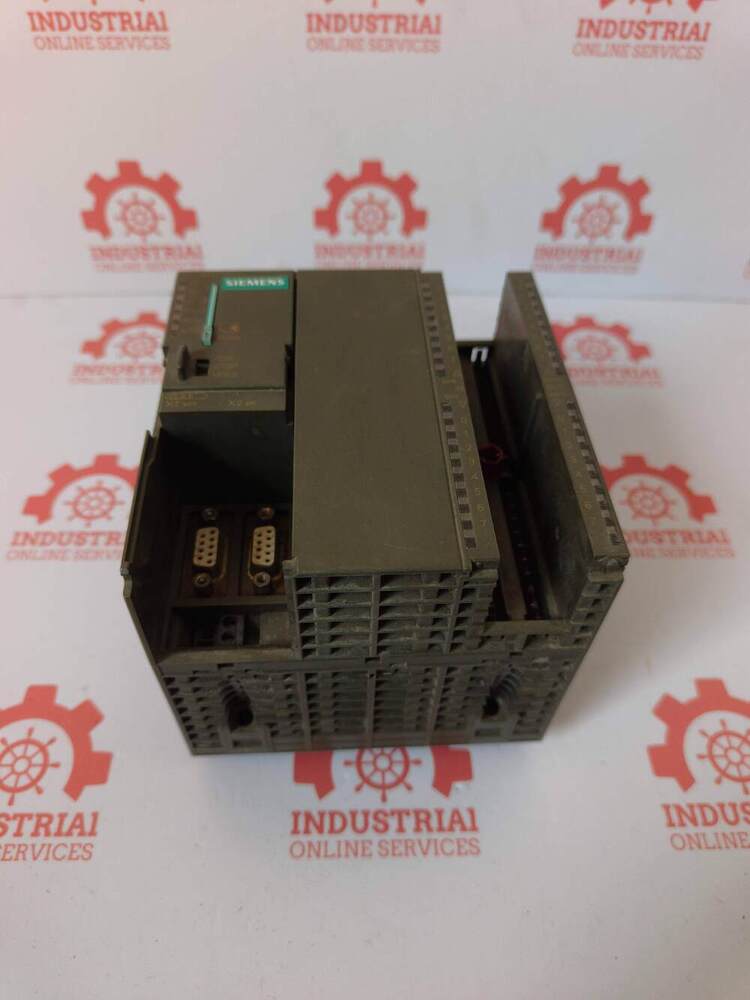

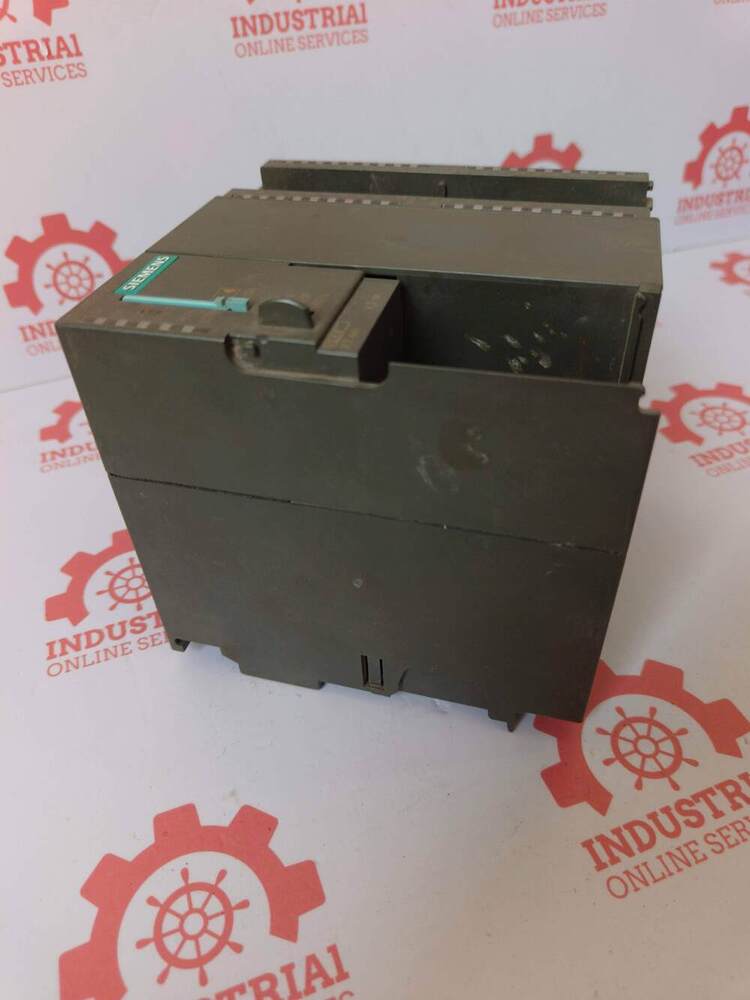

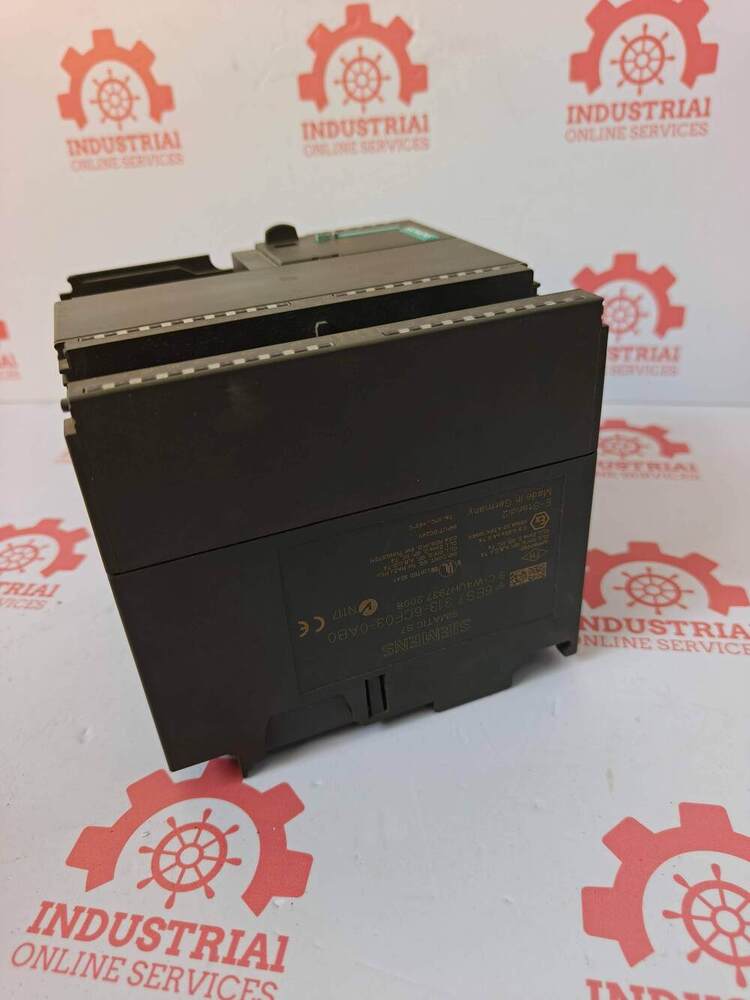

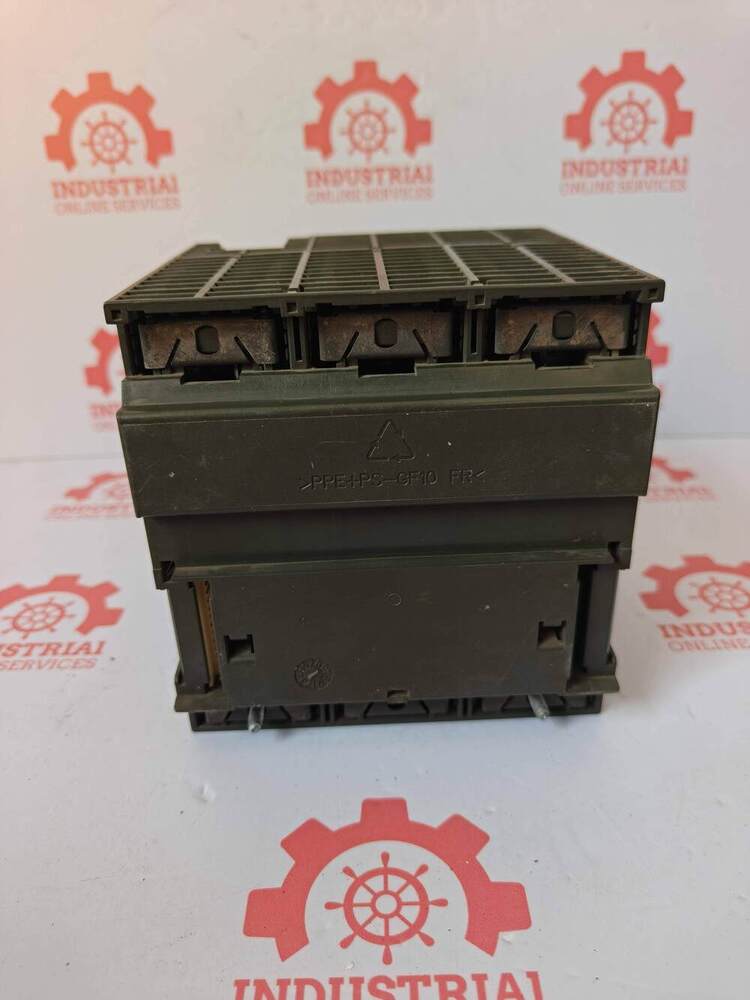

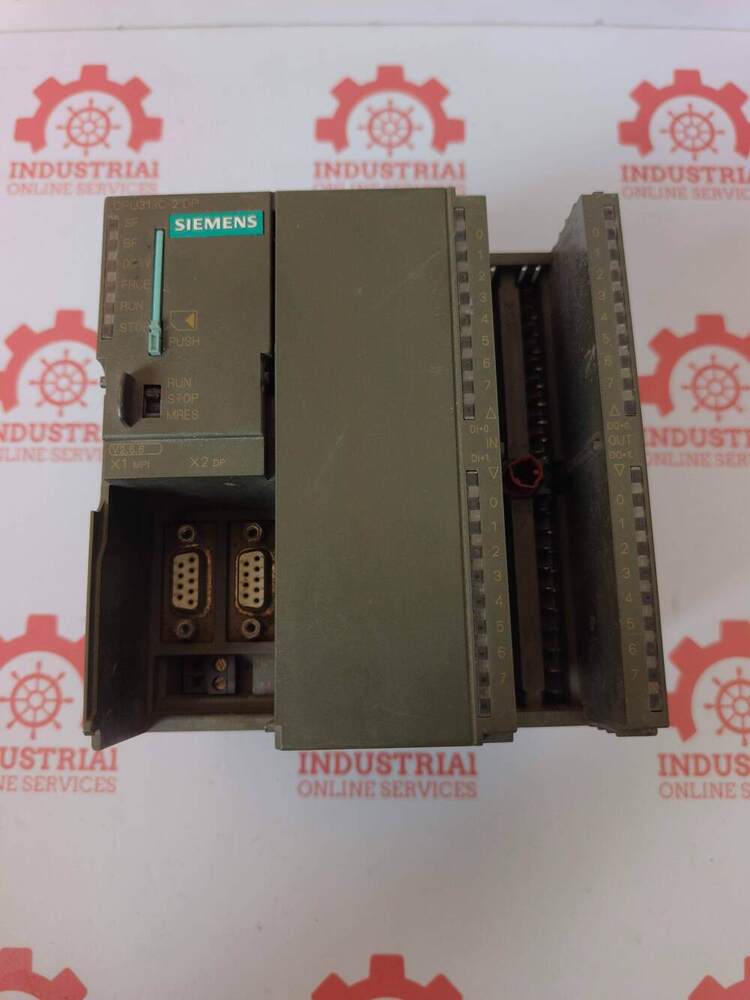

Siemens 6ES7313-6CF03-0AB0 SIMATIC S7-300 CPU 313C-2 DP

Name: Siemens 6ES7313-6CF03-0AB0 SIMATIC S7-300 CPU 313C-2 DP
Brand: Industrial Online Services
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens 6ES7313-6CF03-0AB0 SIMATIC S7-300 CPU 313C-2 DP Specification

Input Current
Approx. 170 mA at 24 V DC

Phase
Single Phase (Power Supply)

Operating Temperature
0C to +60C

Output Voltage
No direct outputs (CPU module)

Protection Level
IP20

Efficiency
High, Suitable for Continuous Operation

Humidity
5% to 95% non-condensing

Mounting Type
DIN Rail / Cabinet Mounting

Rated Voltage
24 V DC

Frequency
50/60 Hz (for input signal compatibility)

Main Material
Industrial Grade Plastic / Metal

Processing Type
Microprocessor-based CPU

Condition
Used / Refurbished

Function
Programmable Logic Controller (PLC) CPU

Application
Industrial Automation, Process Control

Dimension (L*W*H)
125 x 80 x 130 mm

Power Mode
DC Supply

Voltage
24 V DC

Power Consumption
Typically 3.5 W

Accessories
Not Included

Integrated Outputs
16 Digital Outputs (24 V DC)

Firmware
Upgradeable

Expansion Capability
Yes, supports S7-300 modules

Diagnostic Functions
Integrated LED diagnostics

Communication Ports
MPI/DP (RS485), PROFIBUS DP

Integrated Inputs
16 Digital Inputs (24 V DC)

Backplane Bus
S7-300 standard

Real-time Clock
Yes

Programming Language
STEP 7

Analog Outputs
2 (12-bit resolution)

Weight
Approx. 400 g

Model
6ES7313-6CF03-0AB0

Analog Inputs
4 (12-bit resolution)

Product Type
SIEMENS SIMATIC S7-300 CPU 313C-2 DP

Memory Capacity
64 KB Work Memory

Siemens 6ES7313-6CF03-0AB0 SIMATIC S7-300 CPU 313C-2 DP Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Siemens 6ES7313-6CF03-0AB0 SIMATIC S7-300 CPU 313C-2 DP

Siemens 6ES73136CF030AB0 SIMATIC S7300 CPU 313C2 DP

Technical Specifications

Series SIMATIC S7300

CPU Type 313C2 DP Compact CPU

Work Memory 64 KB

Integrated IO 16 Digital Inputs DI and 16 Digital Outputs DO

HighSpeed Counters 3 channels up to 30 kHz frequency

Communication Interfaces Integrated PROFIBUS DP interface MasterSlave and MPI MultiPoint Interface

Power Supply Integrated 24V DC

Required Accessories Requires 1x 40pole front connector and a Micro Memory Card MMC to operate

Efficient Industrial Control Solution

The Siemens SIMATIC S7-300 CPU 313C-2 DP offers a comprehensive solution for demanding automation and process control tasks. With ample digital and analog I/O, upgradeable firmware, and reliable diagnostics, it ensures streamlined control and monitoring. Its high efficiency and rugged build make it suitable for a wide range of industrial environments.

Flexible Expansion and Integration

Designed to support S7-300 expansion modules, this CPU adapts easily to changing automation needs. Integrated communication ports such as MPI/DP and PROFIBUS DP facilitate straightforward system integration, enabling flexibility for various industrial applications.

FAQ's of Siemens 6ES7313-6CF03-0AB0 SIMATIC S7-300 CPU 313C-2 DP:

Q: How do I program the Siemens S7-300 CPU 313C-2 DP?

A: The CPU 313C-2 DP is programmed using the STEP 7 software suite. This tool enables you to develop, configure, and download automation projects directly to the controller over communication interfaces such as MPI/DP. Ensure your programming device is connected via the appropriate port before beginning the programming process.

Q: What are the benefits of using the integrated digital and analog I/O?

A: The CPU's built-in 16 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs (all 12-bit resolution) reduce the need for additional modules in smaller applications. This integrated design simplifies installation, saves space, and lowers overall system costs.

Q: When is it necessary to upgrade the firmware on this controller?

A: Firmware upgrades are beneficial when Siemens releases updates that enhance functionality, improve performance, or address security vulnerabilities. Upgrading ensures your PLC maintains compatibility with new modules and software versions.

Q: Where should the CPU 313C-2 DP be mounted for optimal performance?

A: Mount the CPU in a control cabinet or on a DIN rail within non-condensing environments, maintaining an ambient temperature of 0C to +60C. Proper mounting ensures reliable operation, protection from environmental hazards, and efficient heat dissipation.

Q: What is the process for adding expansion modules to this CPU?

A: Expansion is straightforward: switch off power, mount the compatible S7-300 module to the backplane bus beside the CPU, and secure it. Power up the system and configure the new module using STEP 7, ensuring seamless integration and operation.

Q: How does the integrated diagnostic function enhance usage?

A: Integrated LED diagnostics provide immediate visual feedback on operational status and errors, allowing for swift troubleshooting and minimizing downtime. This enhances system reliability and simplifies maintenance routines.

Q: What are the main advantages for industrial automation applications?

A: This CPU delivers high processing efficiency, robust communication, flexible expansion, and comprehensive diagnostics, making it ideal for continuous industrial automation and process control. Its durability and reliability support long-term operation in demanding environments.
