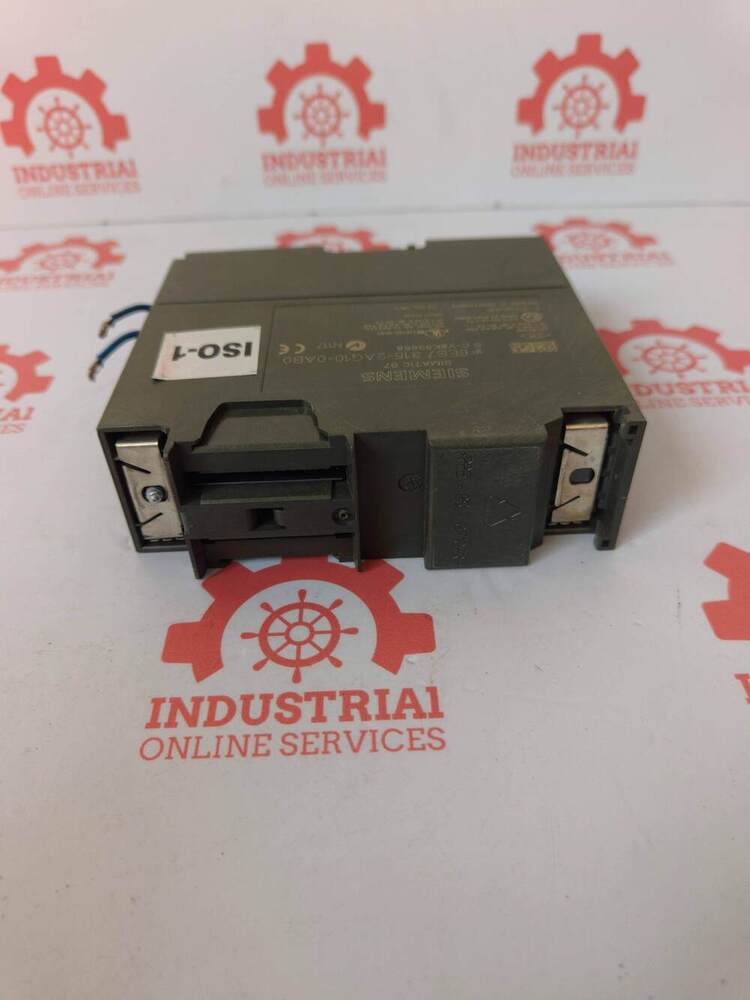

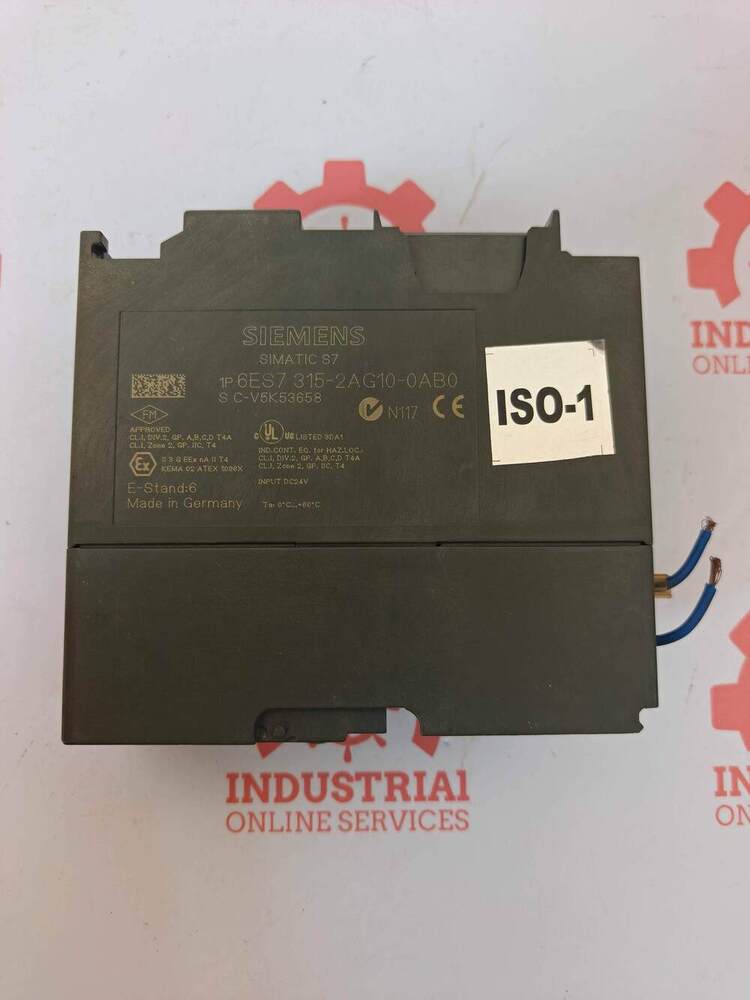

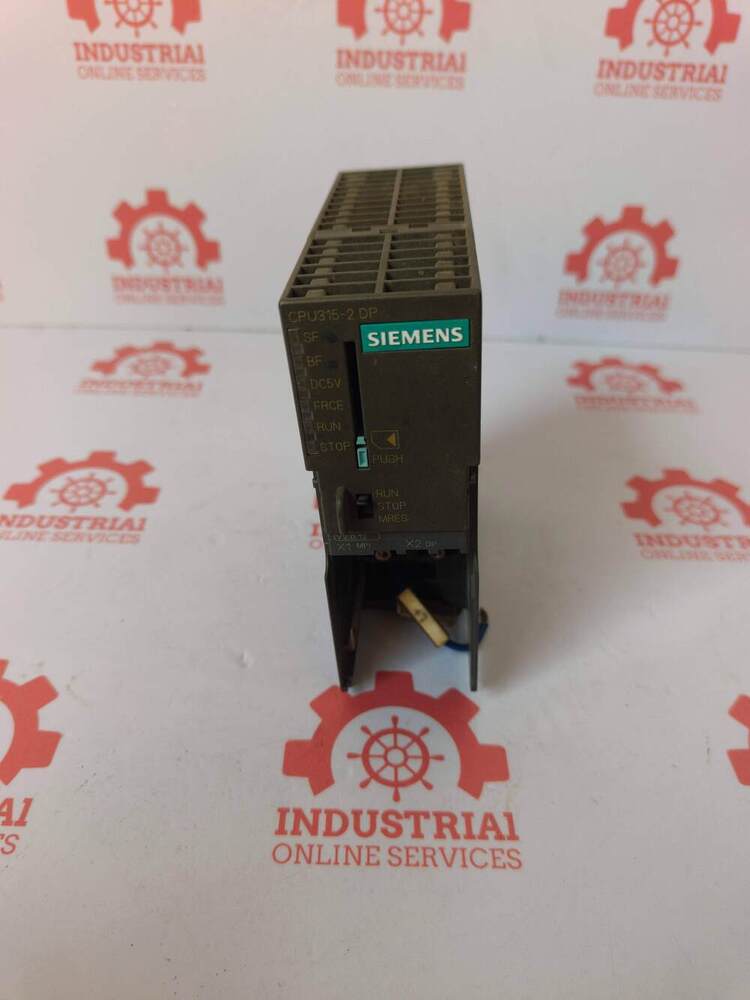

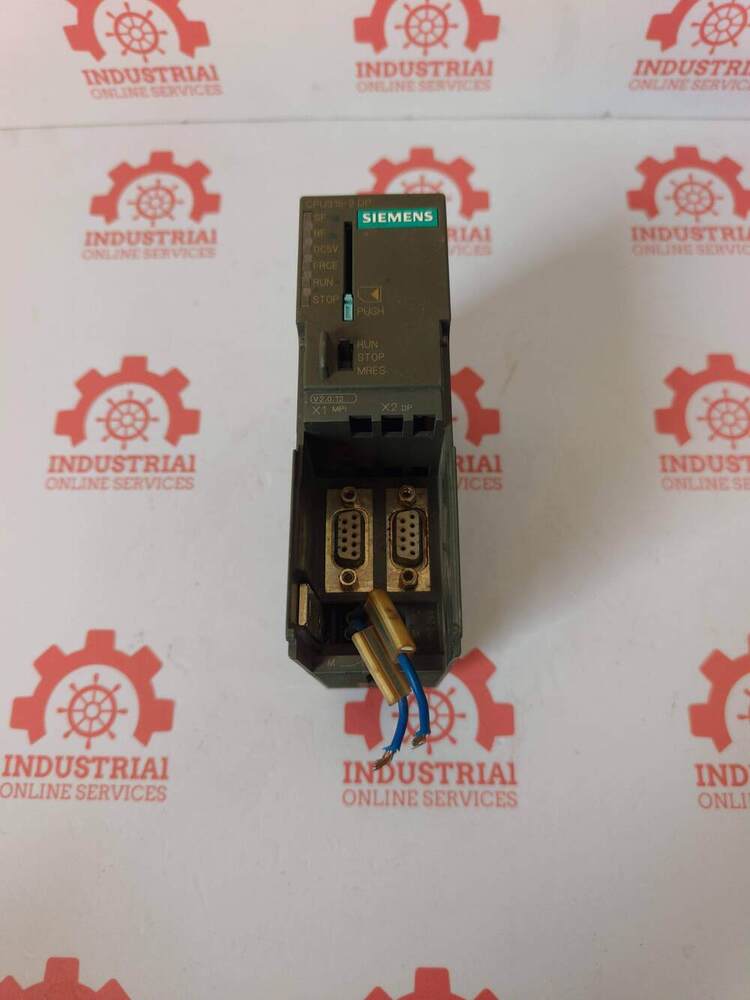

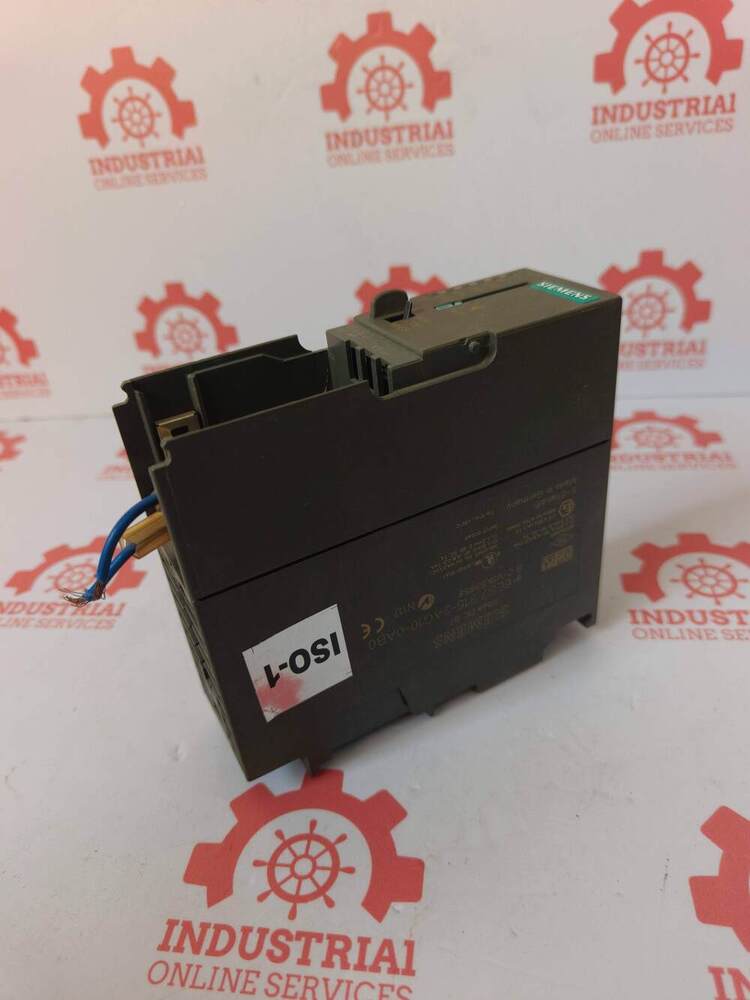

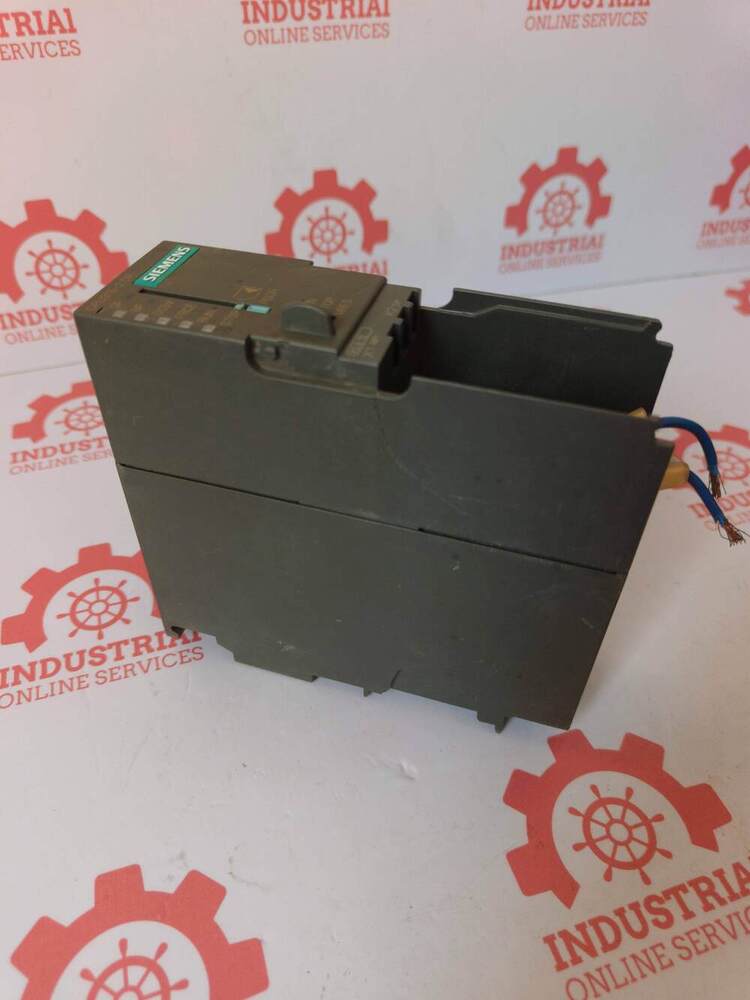

SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit

Send Inquiry

Request To Call Back

SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit

Name: SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit Specification

Protection Level
IP20

Input Current
600 mA at 24 V DC

Rated Voltage
24 V DC

Humidity
5% to 95% (non-condensing)

Operating Temperature
0C to +60C

Mounting Type
DIN Rail Mounting

Phase
Single

Efficiency
>90%

Frequency
DC powered, not frequency dependent

Main Material
Plastic housing with metal components

Processing Type
Central Processing Unit (CPU)

Condition
Used / Refurbished

Function
PLC control, data processing

Application
Industrial Automation, PLC Systems

Dimension (L*W*H)
125 x 80 x 120 mm

Power Mode
External DC supply

Voltage
24 V DC

Power Consumption
Approx. 1.5 W

Battery Life
Battery not included, depends on type used

Accessories
Not included, CPU module only

Display
Status LEDs

Weight
Approx. 400 g

RAM
128 KB integrated

Model Series
SIMATIC S7-300 CPU 315-2 DP

Firmware Version
FW 2.6 or compatible

Number of Inputs/Outputs
Addressed by expansion modules

Type of Communication
MPI/DP interface, PROFIBUS DP master/slave

Article Number (MLFB)
6ES7315-2AG10-0AB0

Expansion Capability
Yes, via S7-300 expansion modules

Load Memory
Optional memory card (MMC), not integrated

User Memory
128 KB

Program Cycle Time
~0.1 ms per 1 K operations

Integrated Interfaces
2 (MPI/DP, PROFIBUS DP)

Backup
Retentive memory for backup

SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit

SIEMENS 6ES73152AG100AB0 SIMATIC S7300 CPU 3152 DP central processing unit

Core Specifications

Memory 128 KB work memory Note requires a SIMATIC Micro Memory Card MMC to store and load programs

Power Supply Integrated 24 V DC power unit

Interfaces

1st Interface Integrated MPI MultiPoint Interface for programming and operator communication

2nd Interface Integrated PROFIBUS DP masterslave interface for distributed IO connection

IO Configuration No onboard physical IO channels It relies on standard SIMATIC S7 rail modules or distributed PROFIBUS nodes

Flexible Communication and Expansion

The CPU 315-2 DP provides two integrated communication interfaces supporting both MPI and PROFIBUS DP, facilitating seamless integration with a wide range of industrial networks. Expansion is straightforward with S7-300 modules, making it suitable for scaled requirements in complex automation environments.

Robust Performance and Reliability

With a fast processing cycle of approximately 0.1 ms per 1K operations and over 90% efficiency, this CPU excels in demanding industrial applications. Its IP20 protection level and stable performance between 0C and 60C ensure dependable operation in harsh environments commonly found in manufacturing plants.

Versatile Installation and Maintenance

The compact design and DIN rail mounting capability allow for easy installation within existing control cabinets. Status LEDs provide instant feedback during operation, while battery-free operation (depending on user-supplied battery) and optional memory card usage offer flexibility and ease of maintenance.

FAQ's of SIEMENS 6ES7315-2AG10-0AB0 SIMATIC S7-300 CPU 315-2 DP central processing unit:

Q: How does the SIEMENS 6ES7315-2AG10-0AB0 facilitate communication within PLC systems?

A: This CPU model integrates both MPI and PROFIBUS DP interfaces, allowing flexible and high-speed communication with other automation devices. It can operate as a master or slave within PROFIBUS networks, making system connectivity efficient and versatile.

Q: What is required to expand the memory of the CPU 315-2 DP?

A: The CPU's user memory is 128 KB, but expansion requires an external memory card (MMC), as the unit does not have integrated load memory. The MMC is not included and needs to be purchased separately for program or data storage beyond the built-in RAM.

Q: When is it necessary to use a battery with this CPU module?

A: A battery is recommended when using retentive memory features that require data to be maintained during power loss. Batteries are not included; their lifespan depends on the type selected and operational parameters.

Q: Where can the SIEMENS 6ES7315-2AG10-0AB0 be installed?

A: This CPU is designed for DIN rail mounting, suitable for installation inside control panels within industrial settings. Its operating temperature range (0C to +60C) and IP20 rating make it appropriate for enclosed environments.

Q: What is the process for integrating this CPU into an existing automation setup?

A: First, mount the CPU on a standard DIN rail in the control cabinet, then connect it to your 24V DC power supply. Interfaces for MPI/DP and PROFIBUS DP can be linked to the network, and expansion modules may be attached as needed. Configure the system using SIMATIC programming software.

Q: How does this CPU benefit industrial automation projects?

A: The 6ES7315-2AG10-0AB0 offers fast processing cycles, communication flexibility, and modular expandability, which together enable robust and scalable automation solutions. Its status LEDs and memory card support provide easy diagnostics and reliability, reducing downtime in critical processes.

Q: What maintenance or accessories are recommended for ongoing use?

A: Periodic checks of power supply connections and communication interface integrity are advised. Accessories like memory cards and suitable batteries (if retentive memory is used) are recommended, and can be sourced separately as required for your application.
