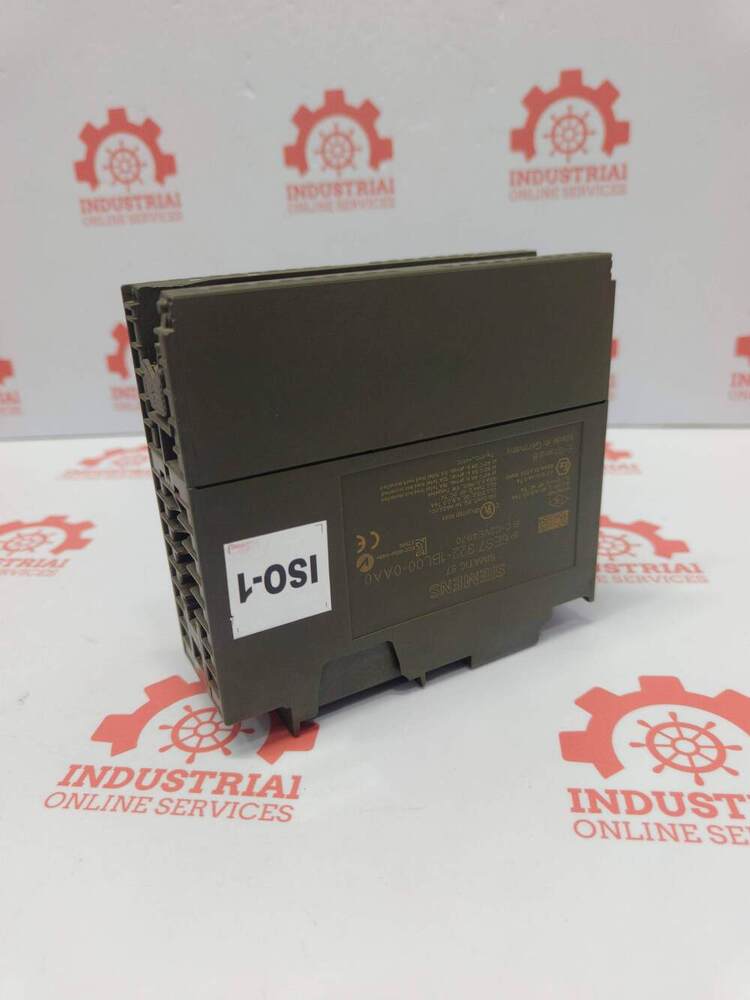

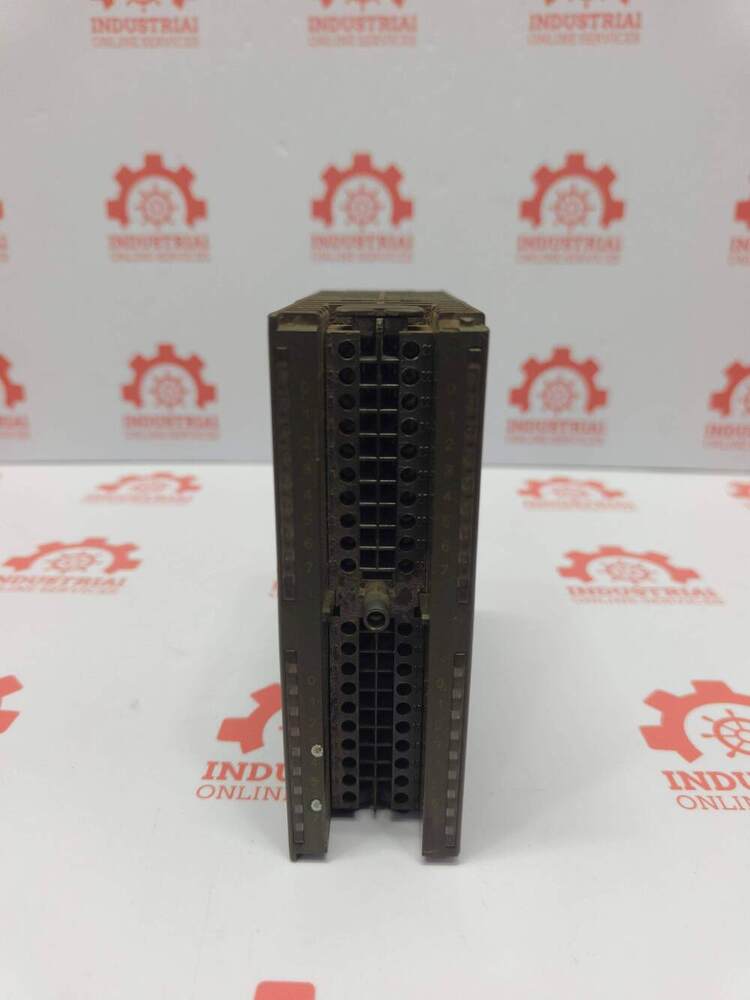

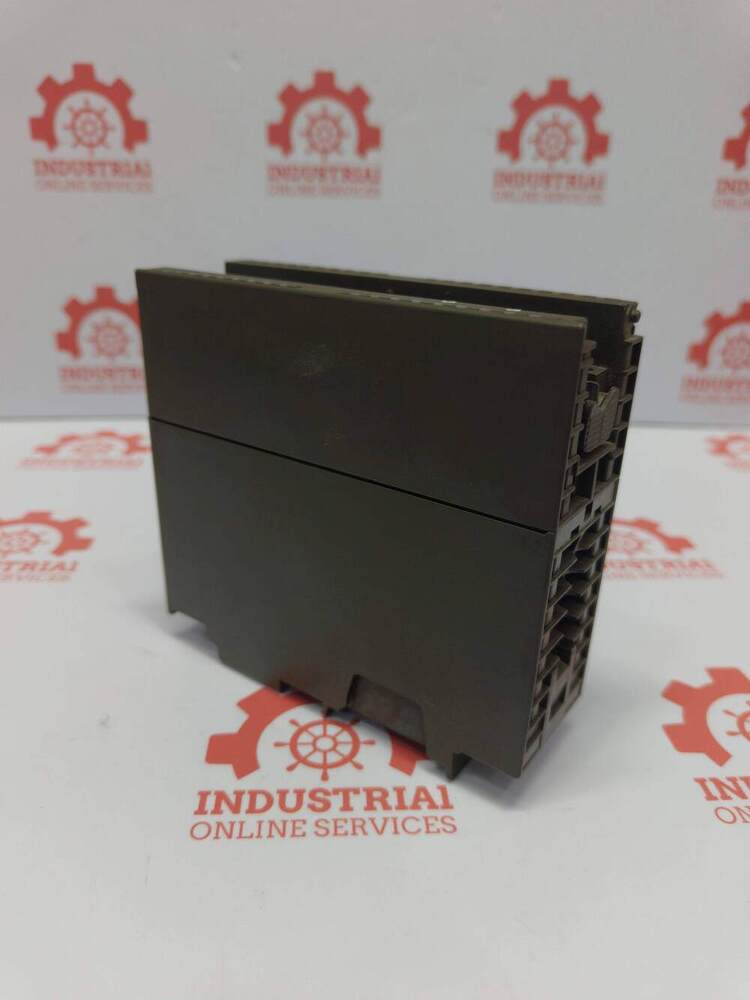

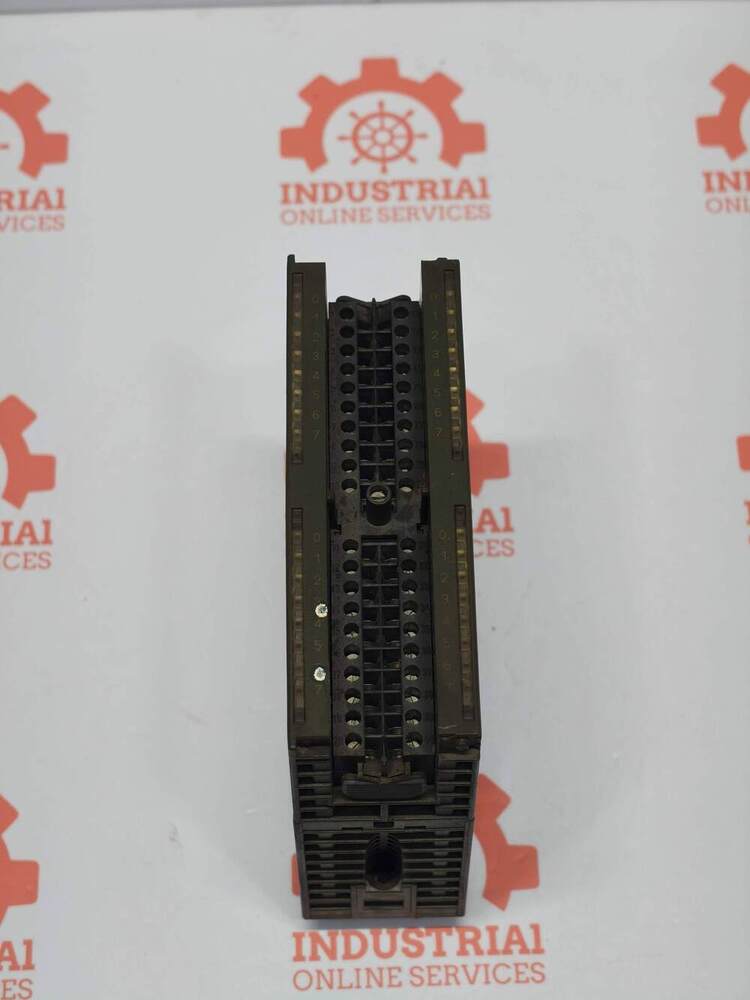

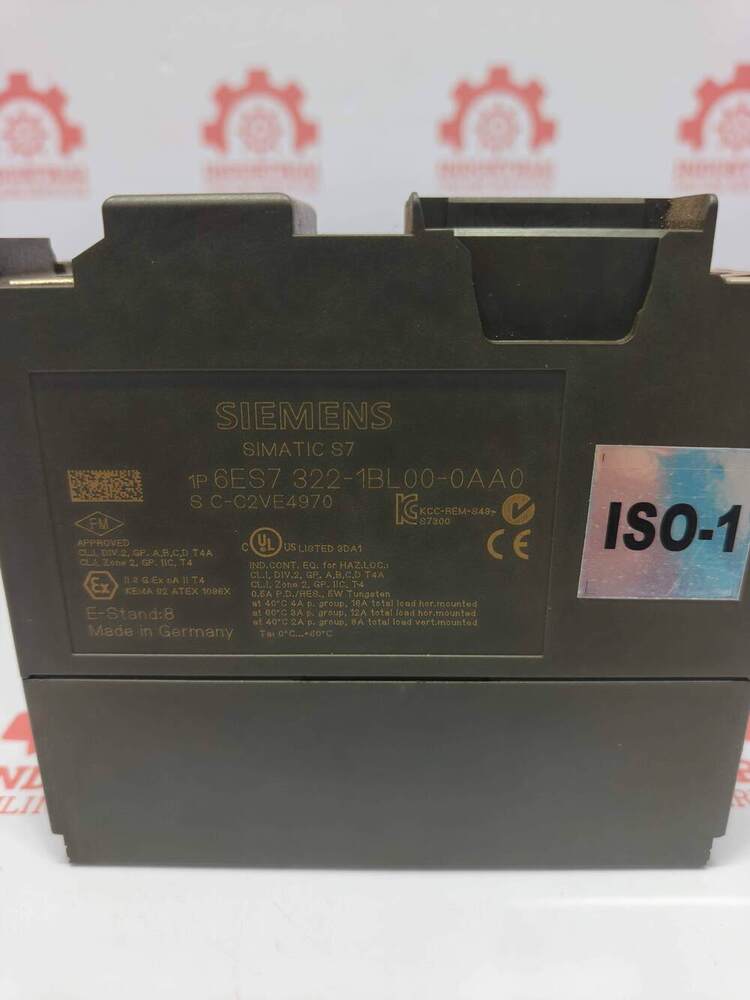

Send InquirySIEMENS 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module (SM 322)
Price 25000 INR/ Number
MOQ : 1 Piece
SIEMENS 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module (SM 322) Specification
- Protection Level
- IP20
- Rated Voltage
- 24 V DC
- Phase
- Single
- Humidity
- 5% to 95% (non-condensing)
- Mounting Type
- DIN Rail
- Input Current
- Typically 90 mA
- Operating Temperature
- 0C to +60C
- Output Voltage
- 24 V DC
- Frequency
- DC (not applicable)
- Main Material
- Plastic enclosure, electronic components
- Processing Type
- Digital Output
- Condition
- New or used (variants available depending on supplier)
- Function
- Digital output interface for SIMATIC S7-300
- Application
- Industrial automation, PLC systems
- Dimension (L*W*H)
- 125 mm x 40 mm x 120 mm (approx.)
- Power Mode
- External supply required
- Voltage
- 24 V DC
- Power Consumption
- 5 W
- Accessories
- Not included (Module only)
- Isolation
- Optical isolation between channels and backplane
- Product Code
- 6ES7322-1BL00-0AA0
- Number of Digital Outputs
- 32 Channels
- Module Type
- SM 322, Digital Output
- Storage Temperature
- -40C to +70C
- Load Type
- Resistive and inductive loads
- Conductor Connection
- Front connector (40-pin)
- Series
- SIMATIC S7-300
- Weight
- Approx. 300 g
- Backplane Current Consumption
- Approx. 90 mA from S7-300 rack
- Output Current per Channel
- 0.5 A
- Hot Swappable
- No
- Response Time
- Typically < 0.5 ms
SIEMENS 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module (SM 322) Trade Information
- Minimum Order Quantity
- 1 Piece
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
About SIEMENS 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module (SM 322)
SIEMENS 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module (SM 322)
Technical Specifications
| Feature | Specification Details |
|---|---|
| Series | SIMATIC S7-300 |
| Module Type | SM 322 Digital Output (DQ) |
| Total Outputs | 32 Electronic Outputs (arranged in 4 groups of 8) |
| Output Type | Transistor (Sourcing / PNP) |
| Rated Voltage | 24V DC (Permissible range: 20.4V to 28.8V) |
| Output Current | 0.5 A per channel (Max 4 A per group / 16 A per module) |
| Protection | Short-circuit protected |
| Isolation | Optocoupler isolation between channels and backplane bus |
| Front Connector | Requires 1x 40-pole front connector socket |
| Dimensions | 40 mm (W) x 125 mm (H) x 120 mm (D) |
