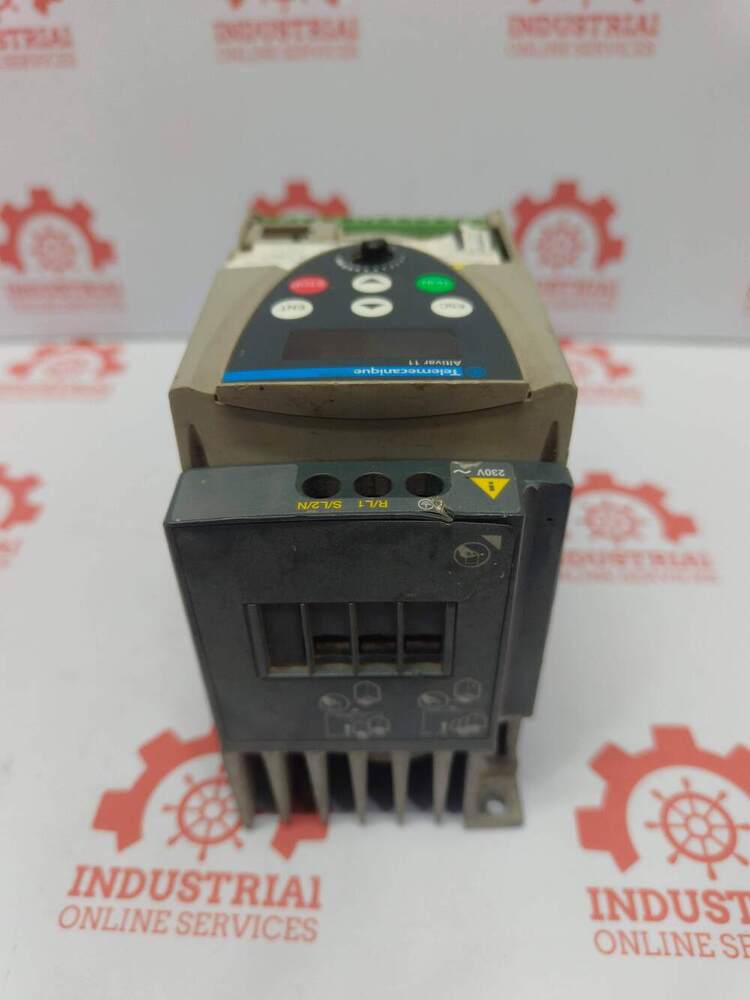

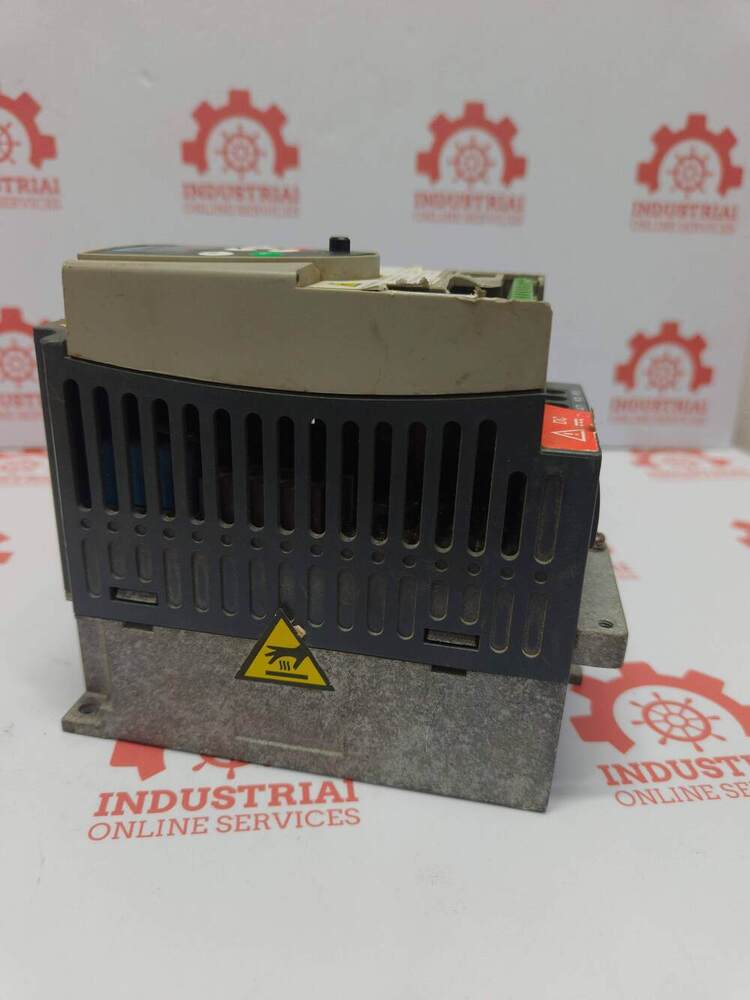

TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors

Send Inquiry

Request To Call Back

TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors

Name: TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors
Brand: Industrial Online Services
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors Specification

Protection Level
IP20

Output Voltage
Three Phase 0-230V variable

Efficiency
Approximately 97%

Rated Voltage
240V

Phase
Input: Single Phase, Output: Three Phase

Input Current
Up to 5.2A

Frequency
50/60 Hz

Humidity
5% to 95% non-condensing

Operating Temperature
-10C to +40C (without derating)

Mounting Type
Panel Mount

Main Material
Industrial Grade Plastic and Metal

Processing Type
Electronic

Condition
Used/Refurbished (as per image)

Function
Variable Frequency Motor Drive

Application
Variable Speed Control of Low Power Three-Phase Asynchronous AC Motors

Dimension (L*W*H)
70 x 143 x 142 mm (Approx.)

Power Mode
AC Power

Voltage
Single Phase 200-240V AC Input

Power Consumption
0.37 kW

Accessories
None Provided

Motor Types Supported
Three-phase asynchronous motors

Control Method
V/F Control

Regeneration Capability
No

Communication Port
Not available on this basic variant

Overload Capacity
150% for 1 minute

Output Power
0.37 kW (1/2 HP)

Cooling Method
Natural Cooling

Model Number
ATV-11HU09M2A

Start/Stop Method
Keypad and remote control

Series
Altivar 11

Fault Protection
Overvoltage, Undervoltage, Overcurrent, Short-circuit, Overtemperature

Display
LED Status Indicators

Programming Method
Integral Keypad

Standards Compliance
IEC/EN 61800-2, EN 55011 Class A

TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors

TELEMECANIQUEATV11HU09M2A Compact Altivar 11 Variable Frequency Drive VFD Designed For LowPower ThreePhase Asynchronous AC Motors

Key Technical Specifications

Parameter Specification

Power Rating 037 kW 05 HP

Input Voltage 200240V SinglePhase

Input Frequency 5060 Hz

Maximum Input Current 60 A

Output Voltage 200230V ThreePhase

Continuous Output Current 24 A

Output Frequency Range 05 to 200 Hz

Ingress Protection Rating IP20

Highly Efficient Motor Control

The Altivar 11 VFD utilizes advanced V/F control for optimal speed regulation with minimal energy waste, boasting an efficiency rate of approximately 97%. This ensures your operations benefit from precision and reduced operational costs without compromising performance.

Robust Protection & User-Friendly Operation

Equipped with multiple protection features-such as overvoltage, undervoltage, overcurrent, short-circuit, and overtemperature-the ATV-11HU09M2A safeguards both the drive and the connected motor. Programming and monitoring are simplified through its integral keypad and LED indicators, enabling stress-free integration and operation.

Versatile Industrial Usage

This compact drive is versatile and designed for variable speed control of low-power three-phase asynchronous AC motors in a variety of industrial and commercial settings. Its panel-mount design, wide temperature and humidity tolerance, and compliance with key safety standards ensure reliable performance in diverse environments.

FAQ's of TELEMECANIQUE ATV-11HU09M2A Compact Altivar 11 Variable Frequency Drive (VFD) Designed For Low-Power Three-Phase Asynchronous AC Motors:

Q: How do I install the TELEMECANIQUE ATV-11HU09M2A VFD?

A: Installation should be performed on a panel using the designated mount points. Ensure the single-phase 200-240V AC input voltage is available and connect power and motor leads according to the manual. Adequate ventilation is crucial, though this model employs natural cooling and does not require an external fan.

Q: What types of motors are supported by the ATV-11HU09M2A drive?

A: This VFD is specifically designed for use with low-power three-phase asynchronous AC motors. It is suitable for applications where precise and variable speed control is essential.

Q: Where can this Altivar 11 drive be used most effectively?

A: The ATV-11HU09M2A is ideal for industrial or commercial applications in India that require reliable variable speed control for compact motors, such as conveyors, fans, or pumps, due to its compact size, robust protection, and compliance with EN and IEC standards.

Q: What protection features does this VFD offer?

A: It includes multiple protection mechanisms: overvoltage, undervoltage, overcurrent, short-circuit, and overtemperature safeguards, ensuring reliable operation and increased equipment lifespan.

Q: When should maintenance or parameter adjustment be performed?

A: Routine maintenance is rarely required thanks to its natural cooling system, but periodic inspection of electrical connections and dust removal is advisable. Parameter adjustments can be made at any time via the integral keypad and LED indicators as application requirements change.

Q: How is the ATV-11HU09M2A programmed and controlled?

A: Programming is accomplished through its built-in keypad. Users can start/stop the VFD via the keypad or remotely, and LED indicators keep operators informed of system status.

Q: What are the main benefits of using this VFD in your automation system?

A: Benefits include increased energy efficiency, motor protection, reduced wear, straightforward installation, and reliable performance under a variety of environmental conditions. It helps achieve precise speed control while maintaining safety and minimizing maintenance.
